Overview

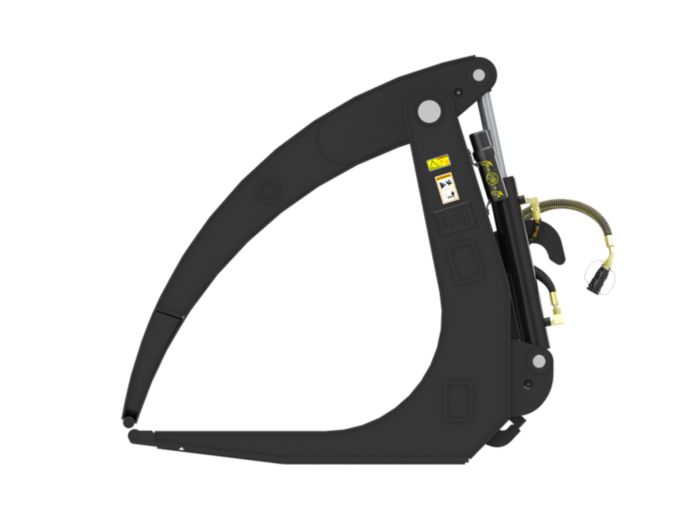

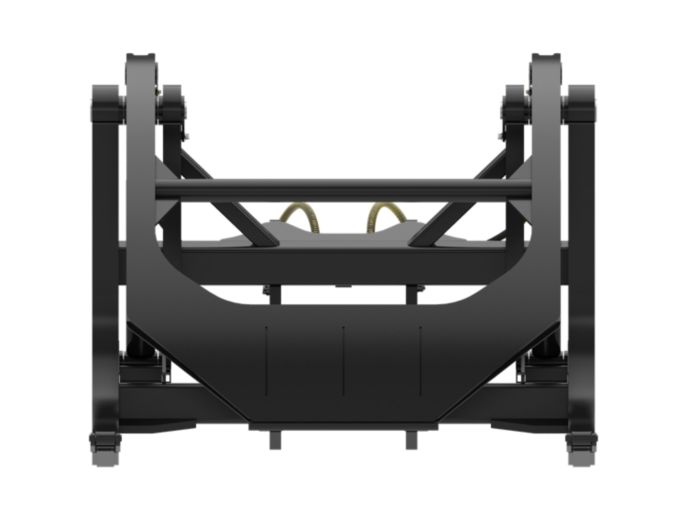

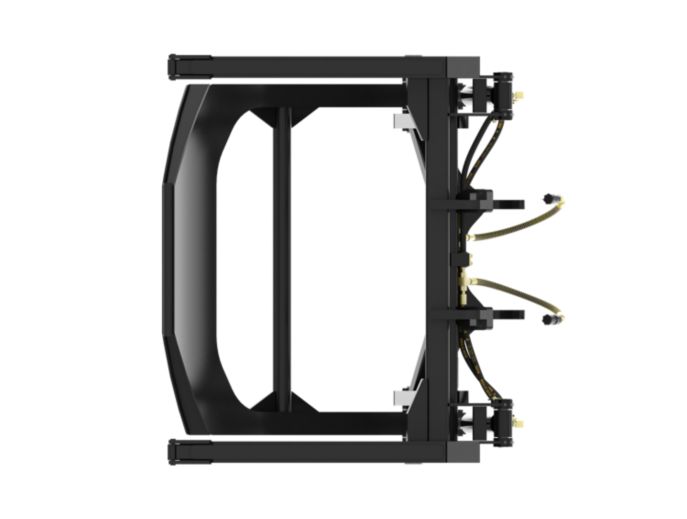

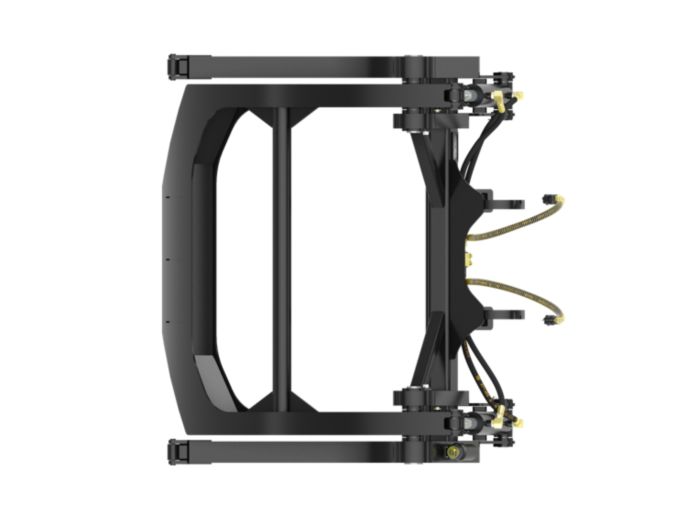

The Cat® Millyard Forks for Small Wheel Loaders are designed to efficiently load and unload from trucks, capably sort pole and decking materials, effectively feed sawmills as well as handle other long or bulky material.
UNITS:
Metric
Imperial
| Width | 2212 mm | 87.1 in |
| Tine Spacing - Maximum Width | 2185 mm | 86 in |
| Tine Spacing - Inside Width | 1955 mm | 77 in |
| Tine Length | 1260 mm | 49.6 in |
| Tine Width | 115 mm | 4.5 in |
| Maximum Clamp Opening | 2089 mm | 82.2 in |
| Minimum Clamp Opening | 149 mm | 5.9 in |
| Weight | 1714 kg | 3778.7 lb |
| Tip Type | Roller Tips | Roller Tips |
| Interface Type | Fusion™ Coupler | Fusion™ Coupler |
| End Area | 1.21 m² | 13 ft² |
Features
Application
Efficiently unload and load from trucks, capably sort pole and decking inventory in the yard, effectively feed sawmills and handle other long or bulky material.
Visibility
Large open frame top design increases visibility and assists operator in loading and unloading materials.
Curved Frame Design
Promotes rolling action of logs for smooth loading and unloading. Log quality is preserved by rounded corners and fewer sharp angles.
Roller Tips
Helps prevent damage to poles when loading and unloading.
Additional Wear Strips
Helps to increase life of the tines.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, holder includes all operation manuals and maintenance guides required for proper operation of the work tool.
Overview
The Cat® Millyard Forks for Small Wheel Loaders are designed to efficiently load and unload from trucks, capably sort pole and decking materials, effectively feed sawmills as well as handle other long or bulky material.
UNITS:
Metric
Imperial
| Width | 2212 mm | 87.1 in |
| Tine Spacing - Maximum Width | 2185 mm | 86 in |
| Tine Spacing - Inside Width | 1955 mm | 77 in |
| Tine Length | 1260 mm | 49.6 in |
| Tine Width | 115 mm | 4.5 in |
| Maximum Clamp Opening | 2089 mm | 82.2 in |
| Minimum Clamp Opening | 149 mm | 5.9 in |
| Weight | 1714 kg | 3778.7 lb |
| Tip Type | Roller Tips | Roller Tips |
| Interface Type | Fusion™ Coupler | Fusion™ Coupler |
| End Area | 1.21 m² | 13 ft² |
Features
Application
Efficiently unload and load from trucks, capably sort pole and decking inventory in the yard, effectively feed sawmills and handle other long or bulky material.
Visibility
Large open frame top design increases visibility and assists operator in loading and unloading materials.
Curved Frame Design
Promotes rolling action of logs for smooth loading and unloading. Log quality is preserved by rounded corners and fewer sharp angles.
Roller Tips
Helps prevent damage to poles when loading and unloading.
Additional Wear Strips
Helps to increase life of the tines.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, holder includes all operation manuals and maintenance guides required for proper operation of the work tool.
