Off-Highway Trucks

Compare Models

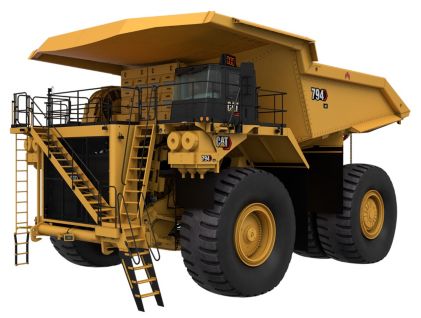

794 AC
794 AC
  • 785
  • 789
  • 793
  • 793D
  • 796 AC
  • 797F

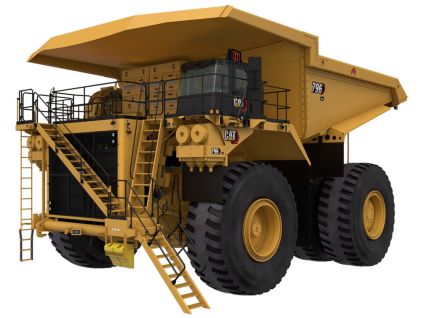

796 AC
  • 785
  • 789
  • 793
  • 793D
  • 794 AC
  • 797F

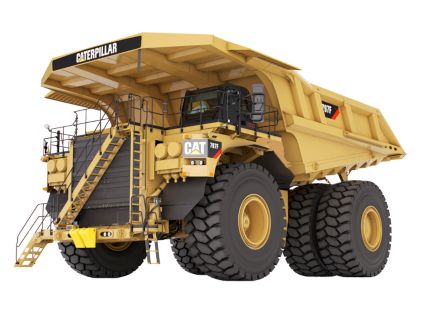

797F
  • 785
  • 789
  • 793
  • 793D
  • 794 AC
  • 796 AC
UNITS:
Metric
Imperial
Gross Power - SAE J1995
2610 kW
3500 hp

2610 kW
3500 hp

2983 kW
4000 hp
Standard Gross Power - SAE J1995
2610 kW
3500 hp

-

-
Engine Model
Cat® C175-16
Cat® C175-16

Cat® C175-16
Cat® C175-16

Cat® C175-20
Cat® C175-20
Optional Gross Power - SAE J1995
2312 kW
3100 hp

-

-
Optional Gross Power - SAE J1995 (Option 2)
2051 kW
2750 hp

-

-
Rated Speed
1800 r/min
1800 r/min

1800 r/min
1800 r/min

1750 r/min
1750 r/min
Net Power - SAE J1349
2539 kW
3405 hp

2539 kW
3405 hp

2828 kW
3795 hp
Emissions Rating
Fuel Optimized
Fuel Optimized

Fuel Optimized
Fuel Optimized

-
Bore
175 mm
6.9 in

175 mm
6.9 in

175 mm
6.9 in
Stroke
220 mm
8.7 in

220 mm
8.7 in

220 mm
8.7 in
Displacement
85 l
5187 in³

85 l
5187 in³

106 l
6469 in³
Note (1)
Contact factory for high altitude configuration.
Contact factory for high altitude configuration.

Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.

Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Note (2)
Tier 4 / EU Stage V option available for regions that require these emissions standards.
Tier 4 / EU Stage V option available for regions that require these emissions standards.

U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.

U.S. EPA Tier 4 Final available for applicable markets.
U.S. EPA Tier 4 Final available for applicable markets.
Note (3)
Tier 4 / EU Stage V engine option Net Power - SAE J1349: 3434 HP (2561 kW)
Tier 4 / EU Stage V engine option Net Power - SAE J1349: 3434 HP (2561 kW)

Additional fuel optimized selectable power ratings: 2312 kW / 3,100 hp
Additional fuel optimized selectable power ratings: 2312 kW / 3,100 hp

High Altitude Low Maintenance Ratio Engine Configuration (4x4) option available.
High Altitude Low Maintenance Ratio Engine Configuration (4x4) option available.
Emissions
-

-

U.S. EPA Compliant. Where applicable, the Cat C175-20 engine is compliant with U.S. EPA emission standards.Tier 4 engine option available to meet Tier 4 Final emission standards.
U.S. EPA Compliant. Where applicable, the Cat C175-20 engine is compliant with U.S. EPA emission standards.Tier 4 engine option available to meet Tier 4 Final emission standards.
Nominal Rated Payload
297 t
327 ton (US)

327 t
360 ton (US)

363 t
400 ton (US)
Rated Gross Machine Weight
521631 kg
1150000 lb

576072 kg
1270000 lb

623690 kg
1375000 lb
Chassis Weight
193338 kg
426237 lb

203398 kg
448415 lb

215217 kg
474472 lb
Body Weight
29187 kg
64346 lb

-

43000 kg
94799 lb
Note (1)
Consult your tire manufacturer for maximum tire load.
Consult your tire manufacturer for maximum tire load.

Consult your tire manufacturer for maximum tire load.
Consult your tire manufacturer for maximum tire load.

Consult your tire manufacturer for maximum tire load
Consult your tire manufacturer for maximum tire load
Note (2)
Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires
Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires

Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.

Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
Note (3)
Refer to Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations.
Refer to Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations.

Refer to Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations
Refer to Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations

-
Note (4)
Tier 4 Final / Stage V chassis weight: 426312 lb (193372 kg)
Tier 4 Final / Stage V chassis weight: 426312 lb (193372 kg)

-

Tier 4 Chassis Weight: 486263 lb (220565 kg)
Tier 4 Chassis Weight: 486263 lb (220565 kg)
Body Weight Range
-

38 833 – 42 907 kg (85,611 – 94,594 lb)
38 833 – 42 907 kg (85,611 – 94,594 lb)

-
Total Reduction Ratio
35:01:00
35:01:00

21.26:1
21.26:1
Type
-

Double reduction, planetary with full floating axles.
Double reduction, planetary with full floating axles.
Differential Ratio
-

1.276:1
1.276:1
Planetary Ratio
-

16.67:1
16.67:1
Note
-

Double reduction, planetary with full floating axles.
Double reduction, planetary with full floating axles.
Total Reduction Ratio
35:01:00
35:01:00

35:01:00
35:01:00
Top Speed - Loaded
60 km/h
37 mile/h

64 km/h
40 mile/h
Generator/Alternator
Brushless, engine mounted, dual bearing
Brushless, engine mounted, dual bearing

Cat brushless, engine mounted, dual bearing
Cat brushless, engine mounted, dual bearing
Controls
IGBT Inverter Technology, air cooled, pressurized cabinet with filtration
IGBT Inverter Technology, air cooled, pressurized cabinet with filtration

Cat IGBT Inverter Technology, air cooled, pressurized cabinet with filtration
Cat IGBT Inverter Technology, air cooled, pressurized cabinet with filtration
Wheel Motor
High-torque AC induction, rear axle mounted
High-torque AC induction, rear axle mounted

Cat AC induction, rear axle mounted
Cat AC induction, rear axle mounted
Cooling System
Variable speed, hydraulically driven cooling system
Variable speed, hydraulically driven cooling system

Cat variable speed, hydraulically driven cooling system
Cat variable speed, hydraulically driven cooling system
Standard Tires
53/80 R63
53/80 R63

59/80 R63
59/80 R63

-
Rims
36" x 63"
36" x 63"

44" x 63"
44" x 63"

44" x 63"
44" x 63"
Note (1)
Quick Change Rims optional.
Quick Change Rims optional.

Quick Change Rims optional.
Quick Change Rims optional.

Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Note (2)
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.

Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.

-
Tires
-

-

59/80 R63
59/80 R63
Note
-

-

Quick Change Rims optional.
Quick Change Rims optional.
Service Brakes
Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated

Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated

Service Brakes: Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Service Brakes: Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Front Wet Disc Brake Surface Area
131473 cm²
20378 in²

131473 cm²
20378 in²

132259 cm²
20500 in²
Rear - Wet Disc Brake Surface Area
198388 cm²
30750 in²

198388 cm²
30750 in²

198388 cm²
30750 in²
Standards
ISO 3450:2011
ISO 3450:2011

Service and Secondary: ISO 3450:2011
Service and Secondary: ISO 3450:2011

Service and Secondary: ISO 3450:2011
Service and Secondary: ISO 3450:2011
Parking Brake
Four-corner, Multi-disc, Spring applied, Hydraulically Released
Four-corner, Multi-disc, Spring applied, Hydraulically Released

Four-corner, Multi-disc, Spring Applied, Hydraulically Released
Four-corner, Multi-disc, Spring Applied, Hydraulically Released

Four-corner, Multi-disc, Spring Applied, Hydraulically Released
Four-corner, Multi-disc, Spring Applied, Hydraulically Released
Load Brake
Rear service brakes
Rear service brakes

Rear service brakes
Rear service brakes

Rear service brakes
Rear service brakes
Dynamic Retarding Power - Continuous
4086 kW
5480 hp

4086 kW
5480 hp

-
Note
-

Anti-Lock Brake System (ABS) optional with CMD package
Anti-Lock Brake System (ABS) optional with CMD package

Anti-Lock Brake System (ABS) optional with CMD package
Anti-Lock Brake System (ABS) optional with CMD package
Front Axle - Empty
49 %
49 %

47 %
47 %

47.20%
47.20%
Rear Axle - Empty
51 %
51 %

53 %
53 %

52.80%
52.80%
Front Axle - Loaded
33 %
33 %

33 %
33 %

33.30%
33.30%
Rear Axle - Loaded
67 %
67 %

67 %
67 %

66.70%
66.70%
Note
-

Weight distributions optimized with Cat body.
Weight distributions optimized with Cat body.

Weight distributions optimized with Cat body.
Weight distributions optimized with Cat body.
Pump Flow - High Idle (HAA at 1,800 rpm)
840 l/min
221 gal/min

-

-
Pump Flow - High Idle (LAA at 1,960 rpm)
910 l/min
240 gal/min

-

-
Relief Valve Setting - Raise
20884 kPa
3029 psi

20884 kPa
3029 psi

24200 kPa
3510 psi
Body Raise Time - High Idle
24 s
24 s

21 s
21 s

25 s
25 s
High Idle Body Lower Time - Float
20 s
20 s

-

-
Total Cycle Time
44 s
44 s

-

-
Note (1)
Twin, two-stage hydraulic cylinders mounted inside main frame; double-acting cylinders in both stages.
Twin, two-stage hydraulic cylinders mounted inside main frame; double-acting cylinders in both stages.

Twin, two-stage hydraulic cylinders mounted outside main frame; double-acting cylinders in both stages.
Twin, two-stage hydraulic cylinders mounted outside main frame; double-acting cylinders in both stages.

-
Note (2)
Power raise in both stages; power down in both stages possible.
Power raise in both stages; power down in both stages possible.

Power raise in both stages; power down capability in both stages.
Power raise in both stages; power down capability in both stages.

-
Note (3)
Automatic body-lower modulation reduces impact on frame.
Automatic body-lower modulation reduces impact on frame.

Automatic body-lower modulation reduces impact on frame.
Automatic body-lower modulation reduces impact on frame.

-
Type
-

Twin, two-stage hydraulic cylinders with snubbing valve.
Twin, two-stage hydraulic cylinders with snubbing valve.

Twin, two-stage hydraulic cylinders with snubbing valve.
Twin, two-stage hydraulic cylinders with snubbing valve.
Pump Flow - High Idle
-

964 l/min
257.3 gal/min

1140 l/min
317 gal/min
Body Lower Time - Float
-

22 s
22 s

18 s
18 s
Body Power Down- High Idle
-

17.5 s
17.5 s

18 s
18 s
Struck
108-133 m³ (142-175 yd³)
108-133 m³ (142-175 yd³)

97-153 m³ (127-200 yd³)
97-153 m³ (127-200 yd³)
Heaped (SAE 2:1)
180-222 m³ (236-290 yd³)
180-222 m³ (236-290 yd³)

186-237 m³ (243-310 yd³)
186-237 m³ (243-310 yd³)
Dump Body Plate Thickness Varies Depending on Body Selection - Floor Plate
16 mm
0.63 in

-
Dump Body Plate Thickness Varies Depending on Body Selection - Front Plate
9 mm
0.35 in

-
Dump Body Plate Thickness Varies Depending on Body Selection - Side Plate
8 mm
0.31 in

-
Dump Body Plate Thickness Varies Depending on Body Selection - Canopy Plate
5 mm
0.2 in

-
Note
Contact your local Cat dealer for body recommendations.
Contact your local Cat dealer for body recommendations.

Consult your local Cat dealer for body recommendations.
Consult your local Cat dealer for body recommendations.
Fuel Tank
4922 l
1300 gal (US)

4922 l
1300 gal (US)

3785 l
1000 gal (US)
Cooling System
799 l
211 gal (US)

799 l
211 gal (US)

1160 l
306 gal (US)
Crankcase
310 l
82 gal (US)

310 l
82 gal (US)

390 l
103 gal (US)
Final Drive - Each
254 l
67 gal (US)

254 l
67 gal (US)

-
Hydraulic Tank
1121 l
296 gal (US)

1121 l
296 gal (US)

-
Hydraulic System - Including Tank
1458 l
385 gal (US)

1458 l
385 gal (US)

-
Diesel Exhaust Fluid Tank
378 l
100 gal (US)

378 l
100 gal (US)

375 l
100 gal (US)
Note (1)
DEF Tank only available for EPA Tier 4 / EU Stage V engine option.
DEF Tank only available for EPA Tier 4 / EU Stage V engine option.

DEF Tank only available for U.S. EPA Tier 4 Final / EU Stage V engine option
DEF Tank only available for U.S. EPA Tier 4 Final / EU Stage V engine option

DEF Tank only available for EPA Tier 4 engine option.
DEF Tank only available for EPA Tier 4 engine option.
Fuel Tank (Tier 4)
-

4542 l
1200 gal (US)

4542 l
1200 gal (US)
Front Wheels - Each
-

28 l
7 gal (US)

61 l
16 gal (US)
Grease Tank
-

41 kg
90 lb

-
Differentials
-

-

1250 l
330 gal (US)
Steering Tank
-

-

254 l
67 gal (US)
Steering System - Including Tank
-

-

360 l
95 gal (US)
Brake/Hoist Tank
-

-

770 l
203 gal (US)
Brake Hoist System - Includes Tank
-

-

1850 l
489 gal (US)
Torque Converter Sump
-

-

303 l
80 gal (US)
Torque Converter/Transmission System - Including Sump
-

-

629 l
166 gal (US)
ROPS Standards (1)
Rollover Protective Structure (ROPS) meets ISO 3471:2008 criteria for operator and ISO 13459:2012 for trainer.
Rollover Protective Structure (ROPS) meets ISO 3471:2008 criteria for operator and ISO 13459:2012 for trainer.

ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer.
ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer.

The operator sound pressure level, 76 dB(A), complies with ISO 6394:2008 and ISO 6396:2008.
The operator sound pressure level, 76 dB(A), complies with ISO 6394:2008 and ISO 6396:2008.
FOPS Standards
Falling Object Protective Structure (FOPS) meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer.
Falling Object Protective Structure (FOPS) meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer.

FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer.
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer.

FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II criteria and ISO 13459:2012 Level II
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II criteria and ISO 13459:2012 Level II
Air Conditioning
-

HFC - 134A refrigerant: 21,600 Btu/h
HFC - 134A refrigerant: 21,600 Btu/h

HFC - 134A refrigerant: 24,300 Btu/h
HFC - 134A refrigerant: 24,300 Btu/h
Heater / Defroster
-

24600 Btu/h
24600 Btu/h

38900 Btu/h
38900 Btu/h
Note
-

Ambient capabilities down to -15C (5F) for heater/defroster and up to 50C (122F) for air conditioning.
Ambient capabilities down to -15C (5F) for heater/defroster and up to 50C (122F) for air conditioning.

Ambient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning.
Ambient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning.
ROPS Standards (2)
-

-

ROPS (Rollover Protective Structure) meets ISO 3471:2008 criteria and ISO 13459:2012
ROPS (Rollover Protective Structure) meets ISO 3471:2008 criteria and ISO 13459:2012
Sound Standards (1)
The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 75 dB(A) for cab offered by Caterpillar when properly installed, maintained, and tested with doors and windows closed.
The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 75 dB(A) for cab offered by Caterpillar when properly installed, maintained, and tested with doors and windows closed.

-
Sound Standards (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.

-
Sound Standards
-

The operator sound pressure level, 75 dB(A), measured according to ISO 6394:2008 and ISO 6396:2008.
The operator sound pressure level, 75 dB(A), measured according to ISO 6394:2008 and ISO 6396:2008.
Steering Standards
ISO 5010:2007
ISO 5010:2007

Steering Standards: ISO 5010:2007
Steering Standards: ISO 5010:2007

ISO 5010:2019
ISO 5010:2019
Note
Gross Machine Operating Weight is 521 631 kg (1,150,000 lb).
Gross Machine Operating Weight is 521 631 kg (1,150,000 lb).

Turning Diameter (ISO 7457:1997)
Turning Diameter (ISO 7457:1997)

Turning Diameter (ISO 7457:2009)
Turning Diameter (ISO 7457:2009)
Steer Angle
39 °
39 °

39 °
39 °

-
Turning Diameter - Front
-

32.4 m
106.3 ft

37.4 m
122.7 ft
Steering Angle
-

-

40 °
40 °
Height - Top of ROPS
6779 mm
22.25 ft

6720 mm
22.05 ft
Overall Length
15463.5 mm
50.75 ft

15679 mm
51.44 ft
Wheel Base
6644.5 mm
21.83 ft

6674 mm
21.9 ft
Rear Axle - Tail
4716 mm
15.5 ft

4898 mm
16.07 ft
Ground Clearance
906 mm
2.67 ft

-
Dump Clearance
1555 mm
3 ft

-
Loading Height - Empty
6995 mm
22.92 ft

7271 mm
23.85 ft
Overall Height - Body Raised
14747 mm
48.42 ft

14890 mm
48.85 ft
Centerline Front Tire Width
7024 mm
23 ft

7028 mm
23.06 ft
Front Axle Clearance
969 mm
3.17 ft

-
Canopy Width (without optional rock deflectors)
9068 mm
29.75 ft

-
Outside Body Width
9062 mm
29.75 ft

-
Inside Body Width
8560 mm
28.08 ft

8973 mm
29.44 ft
Front Canopy Height
8024 mm
26.33 ft

-
Rear Axle - Clearance
934 mm
3.08 ft

-
Centerline of Rear Dual Tire Width
5727 mm
18.75 ft

5943 mm
19.5 ft
Overall Tire Width
8738 mm
28.67 ft

-
Overall Canopy Width
9611 mm
31.5 ft

-
Dump Clearance - Empty
-

1744 mm
5.72 ft
Front Axle Clearance - Loaded
-

855 mm
2.81 ft
Overall Canopy Width (with rock deflectors)
-

10103 mm
33.15 ft
Outside Body/Canopy Width (without rock deflectors)
-

9639 mm
31.62 ft
Front Canopy Height - Empty
-

7928 mm
26.01 ft
Rear Axle Clearance - Loaded
-

854 mm
2.8 ft
Overall Tire Width - Empty
-

9226 mm
30.27 ft
Note
-

Dimensions listed includes canopy deflectors
Dimensions listed includes canopy deflectors
Type
Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments
Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments

Self-contained nitrogen/oil cylinders, rear strut pin-to-pin mounting, top & bottom double shear clevis attachments
Self-contained nitrogen/oil cylinders, rear strut pin-to-pin mounting, top & bottom double shear clevis attachments
Effective Cylinder Stroke - Front
102.1 ml
4 in

99.1 mm
3.9 in
Effective Cylinder Stroke - Rear
50.5 mm
2 in

93.2 mm
3.7 in
Rear axle - Oscillation
+/- 5.32 degrees
+/- 5.32 degrees

±3.96 degrees
±3.96 degrees
Forward - 1
10.7 km/h
6.6 mile/h
Forward - 2
14.4 km/h
8.9 mile/h
Forward - 3
19.3 km/h
12 mile/h
Forward - 4
26.1 km/h
16.2 mile/h
Forward - 5
35 km/h
21.8 mile/h
Forward - 6
47.3 km/h
29.4 mile/h
Forward - 7
63.6 km/h
39.5 mile/h
Reverse
11.9 km/h
7.4 mile/h
Top Speed - Loaded
63.6 km/h
39.5 mile/h
Struck
225 yd³ / 172 m³
225 yd³ / 172 m³
Heaped (SAE 2:1)*
330 yd³ / 252 m³
330 yd³ / 252 m³
Note (1)
Consult your local Cat dealer for body recommendations.
Consult your local Cat dealer for body recommendations.
Rear Axle - Clearance - Loaded
947 mm
3.08 ft
Inside Body Depth - Maximum
3363 mm
11 ft
Overall Height - Body Raised
15701 mm
51.5 ft
Loaded Ground Clearance
786 mm
2.58 ft
Loading Height - Empty
6998 mm
23 ft
Engine Guard Clearance - Loaded
1025 mm
3.33 ft
Height - Top of ROPS - Empty
6526 mm
21.4 ft
Front Canopy Height - Empty
7709 mm
25.33 ft
Overall Body Length
14802 mm
48.6 ft
Inside Body Length
9976 mm
32.75 ft
Overall Length
15080 mm
49.5 ft
Wheel Base
7195 mm
23.58 ft
Rear Axle - Tail
3944 mm
12.9 ft
Dump Clearance
2017 mm
6.58 ft
Centerline Front Tire Width
6534 mm
21.41 ft
Overall Canopy Width
9116 mm
29.91 ft
Outside Body Width
9755 mm
32 ft
Inside Body Width
8513 mm
27.91 ft
Centerline of Rear Dual Tire Width
6233 mm
20.41 ft
Overall Tire Width
9529 mm
31.25 ft
X
This site uses and sets "cookies" on your computer to help make this website better. By continuing to use this site without changing your settings, you are agreeing to our use of cookies.
Confirm
