Fork Accessories
1524 mm (60 in)
Heavy duty fork tines add versatility to pallet fork carriages for moving a wide variety of palletized construction site materials.
Request a quote
Overview

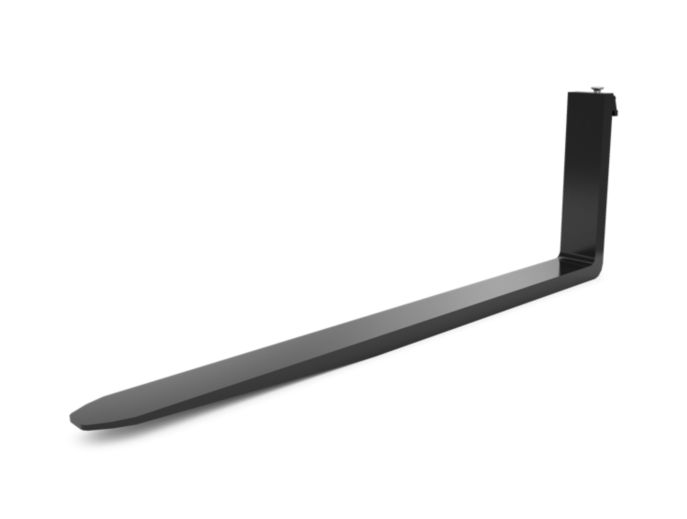

Cat® Heavy Duty Fork Tines for use with Cat heavy duty fork carriages are designed to meet a wide variety of material handling needs above those, that a standard pallet fork can handle. Fork tines come in different sizes to accommodate moving bulky or palletized materials on construction and industrial sites.
UNITS:
Metric
Imperial
| Overall Length | 1598 mm | 62.9 in |
| Tine Length | 1524 mm | 60 in |
| Width | 122 mm | 4.8 in |
| Height | 549 mm | 21.6 in |
| Tine Thickness | 45 mm | 1.8 in |
| Load Capacity | 2812 kg | 6199.4 lb |
| Weight | 158 kg | 348.3 lb |
Features
Application
Used for a variety of material handling needs, such as moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites, and similar jobs.
Rating
Heavy Duty Forks are rated Class II to handle lifting requirements of Skid Steer, Multi Terrain and Compact Track Loader machines.
Available Lengths
Heavy Duty Fork length options - 1067 mm (42 in), 1219 mm (48 in) and 1524 mm (60 in).
Attachments
Forks
Overview
Cat® Heavy Duty Fork Tines for use with Cat heavy duty fork carriages are designed to meet a wide variety of material handling needs above those, that a standard pallet fork can handle. Fork tines come in different sizes to accommodate moving bulky or palletized materials on construction and industrial sites.
UNITS:
Metric
Imperial
| Overall Length | 1598 mm | 62.9 in |
| Tine Length | 1524 mm | 60 in |
| Width | 122 mm | 4.8 in |
| Height | 549 mm | 21.6 in |
| Tine Thickness | 45 mm | 1.8 in |
| Load Capacity | 2812 kg | 6199.4 lb |
| Weight | 158 kg | 348.3 lb |
Features
Application
Used for a variety of material handling needs, such as moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites, and similar jobs.
Rating
Heavy Duty Forks are rated Class II to handle lifting requirements of Skid Steer, Multi Terrain and Compact Track Loader machines.
Available Lengths
Heavy Duty Fork length options - 1067 mm (42 in), 1219 mm (48 in) and 1524 mm (60 in).
Attachments
Forks
