Fork Accessories
2438 mm (96 in)

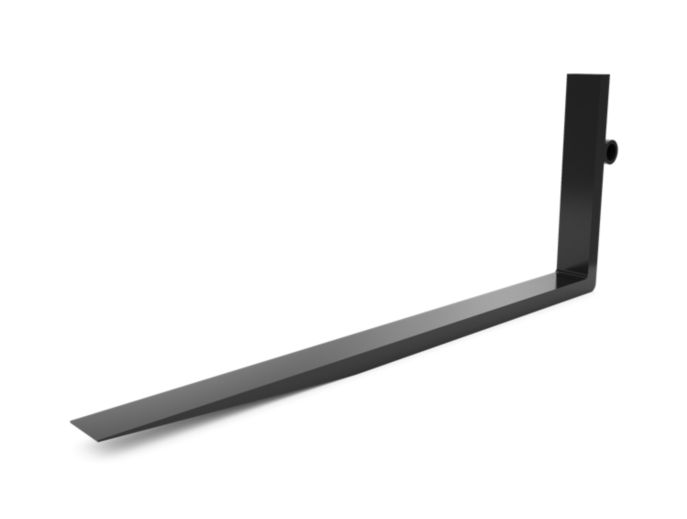

Extra fork tines add versatility to log and lumber fork carriages, providing several styles and lengths to meet your needs.
Request a quote
Overview
Cat® Log & Lumber Forks are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
UNITS:
Metric
Imperial
| Overall Length | 2628 mm | 103.5 in |
| Length | 2438 mm | 96 in |
| Width | 180 mm | 7.1 in |
| Height | 1016 mm | 40 in |
| Tine Thickness | 75 mm | 3 in |
| Load Capacity | 3882 kg | 8558.3 lb |
| Weight | 326 kg | 718.7 lb |
| Tine Configuration | Non-Swinging, Non-Floating | Non-Swinging, Non-Floating |
Features
Application
Cat® Log & Lumber Fork Tines are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Increased Tine Drop
Increased tine drop provides increased visibility for truck loading.
Tapered Box Tines
Tapered box tines are tapered to a point enabling the operator to insert the tines between logs for sorting and assist in a more controlled unloading of the payload.
Wider Tine Widths
Wider tine widths provide a larger surface area for stability when transporting larger materials.
