Augers

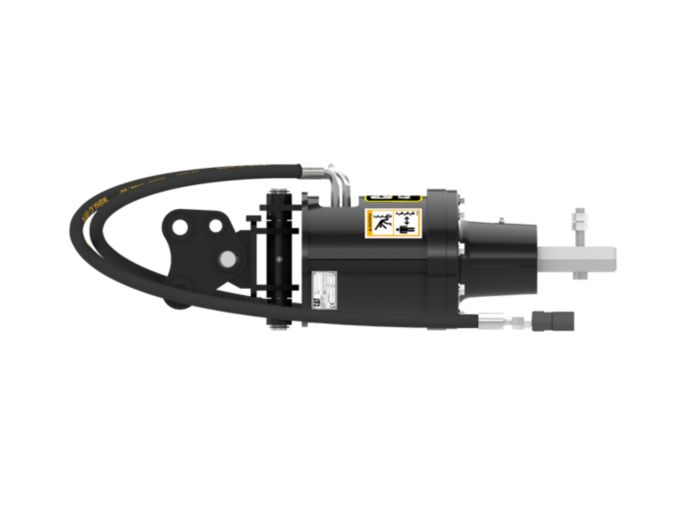

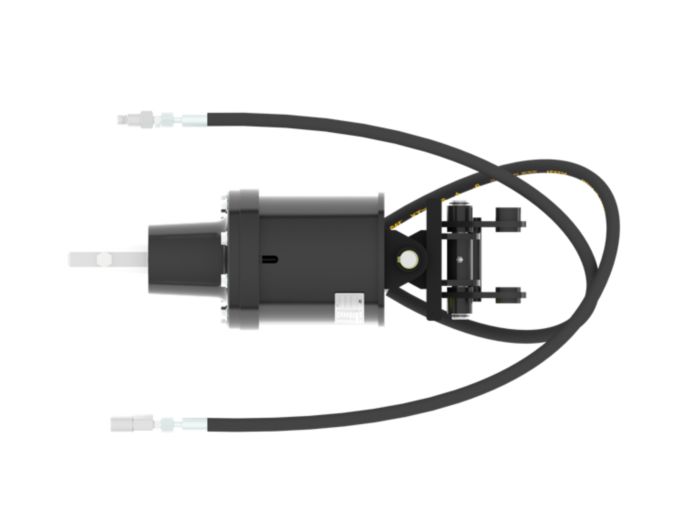

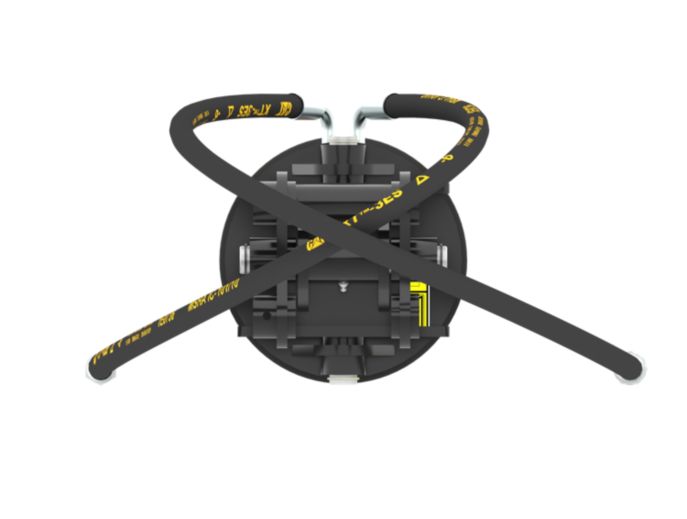

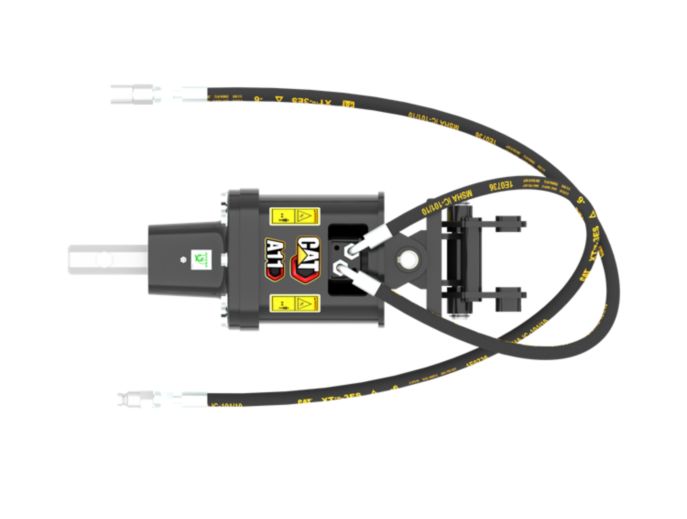

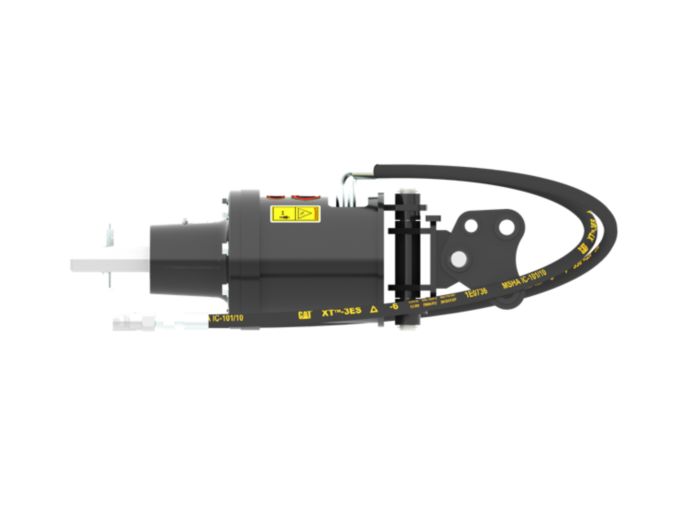

A11, 1 Ton Mini Excavators

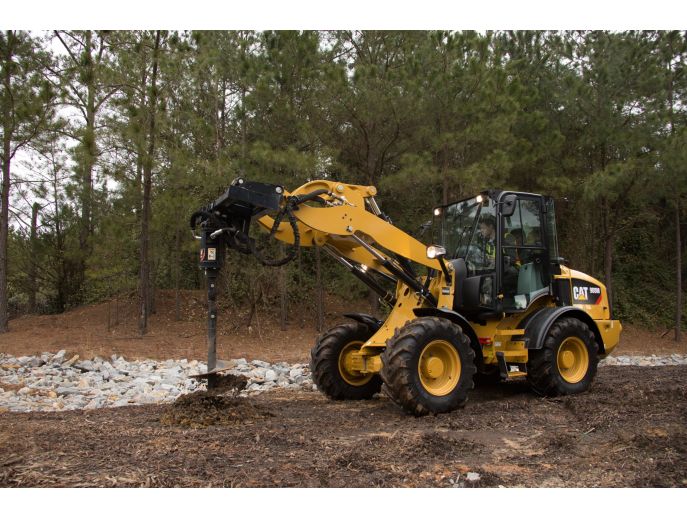

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Request a quote

Overview

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.

UNITS:

Metric

Imperial

Drive Shaft Torque at Maximum Pressure	1105 N·m	815 lb/ft
Drive Method	Gerotor Motor - Direct Drive	Gerotor Motor - Direct Drive
Mounting Bracket Design	1 Ton Mini Excavator Pin On	1 Ton Mini Excavator Pin On
Required Hydraulics	Standard Flow	Standard Flow
Optimal Hydraulic Flow	75-90 L/min (20-24 gpm)	75-90 L/min (20-24 gpm)
Optimal Hydraulic Pressure	105-150 bar (1523-2176 psi)	105-150 bar (1523-2176 psi)
Overall Width - With Bracket	280 mm	11 in
Overall Length - With Bracket	280 mm	11 in
Overall Height	900 mm	35.4 in
Housing Diameter	280 mm	11 in
Swing Range (fore/aft)	36 degrees	36 degrees
Swing Range (L/R)	76 degrees	76 degrees
Weight	79 kg	174.2 lb
Motor Displacement	393 cm³	24 in³
Bit Speed at Maximum Flow	191 rpm	191 rpm
Hex Output Shaft Size	51 mm	2 in

Features

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Articulated Joint

Articulated joint ensures auger hangs straight, independent of machine positioning.

Mechanical Swing Stops

Mechanical swing stops protect from auger over swing.

Optional Equipment

OTHER ATTACHMENTS

Bumper, standard
