Brooms

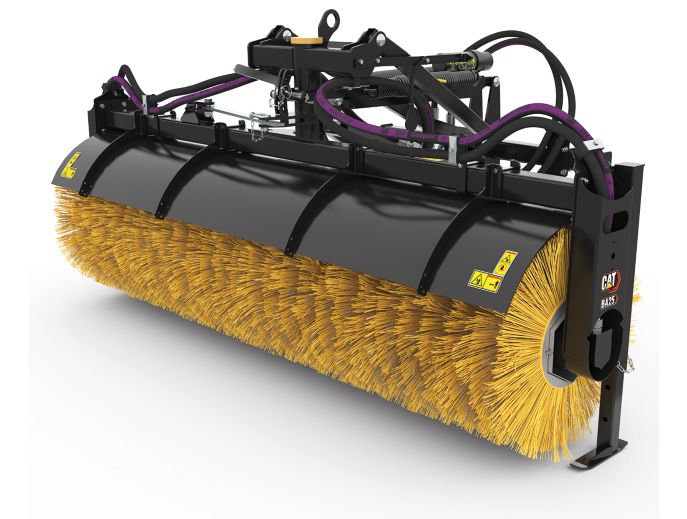

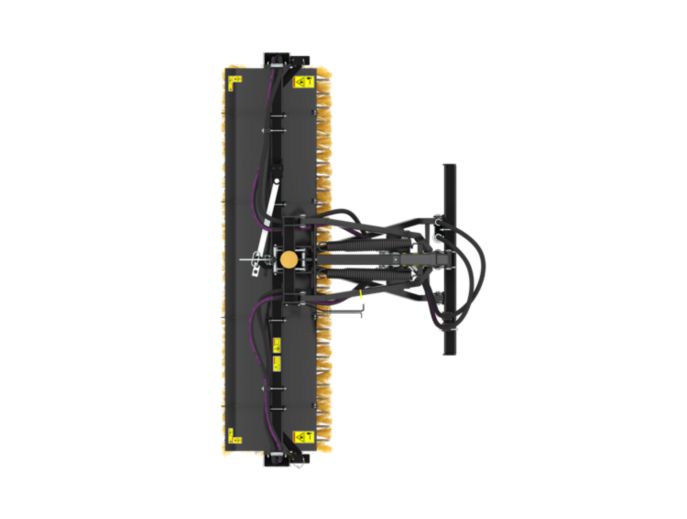

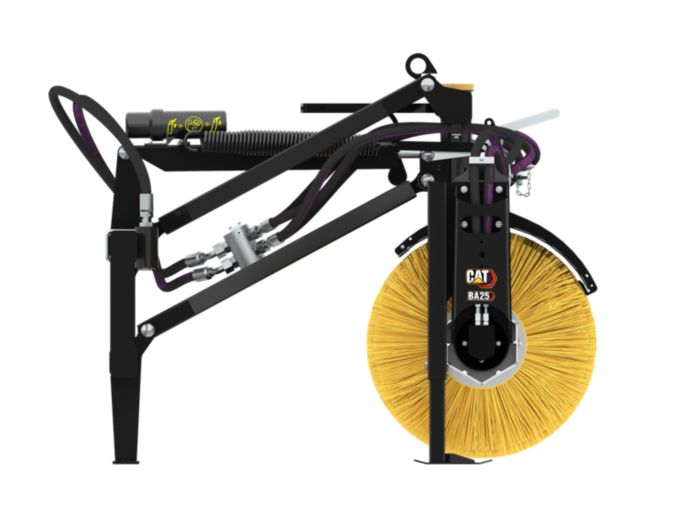

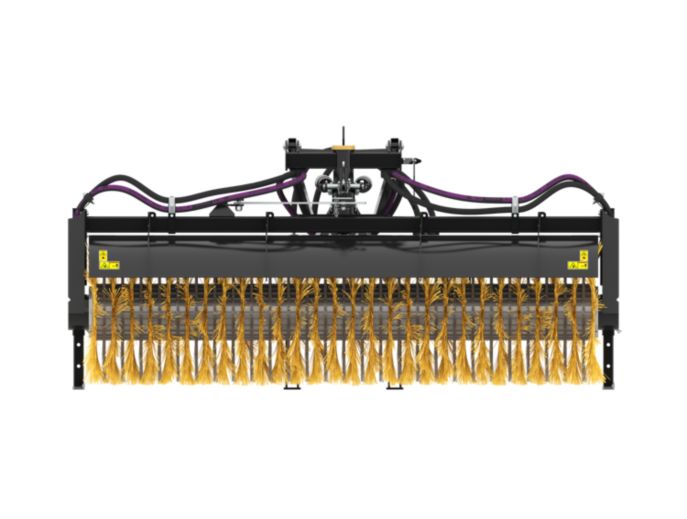

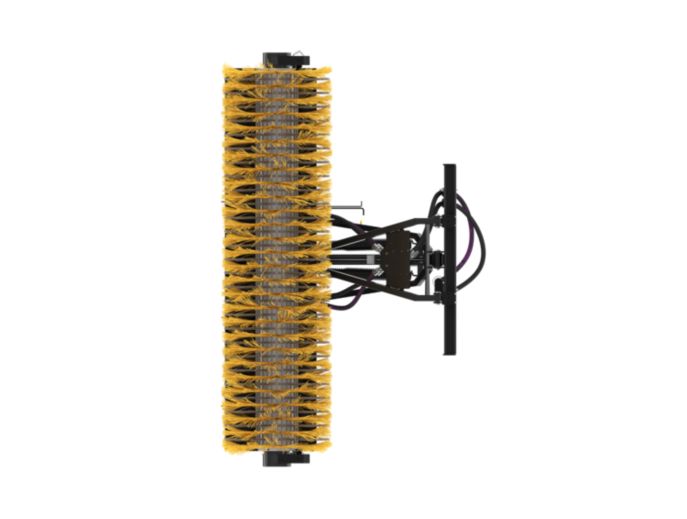

BA25 Manual, Polypropylene/Wire

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Overview

Hydraulic and Manual Cat® Angle Brooms for Skid Steer Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

UNITS:

Metric

Imperial

Overall Width	2700 mm	106 in
Required Hydraulics	Standard Flow	Standard Flow
Height	1300 mm	51.2 in
Weight	430 kg	948 lb
Optimal Hydraulic Flow	40-150 L/min (11-40 gpm)	40-150 L/min (11-40 gpm)
Optimal Hydraulic Pressure	150-260 bar (2176-3771 psi)	150-260 bar (2176-3771 psi)
Brush Speed at Maximum Flow	385 RPM	385 RPM
Sweeping Width - Angled (± 30 Degrees)	2200 mm	86.6 in
Drive Method	Direct Drive	Direct Drive
Interface Type	Tool Interface	Tool Interface
Sweeping Width	2500 mm	98.4 in
Brush Diameter	700 mm	27.6 in
Length	1535 mm	60.4 in
Motor Displacement	195 cm³/rev	11.9 in³/rev
Overall Width - Angled (± 30 Degrees)	2400 mm	94.5 in

Features

Application

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Unique Suspension

Unique suspension system eliminates the need for support wheels. Brush maintains constant ground pressure through a range of vertical motion from the initial setting.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Re-designed Leveling Indicator

Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.

Protected Hydraulic Motors

Hydraulic motors are protected from dust and debris - yet easily accessible if needed.

Optional Water Sprinkler Kit

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.

Polypropylene and Wire Bristle Options

Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
