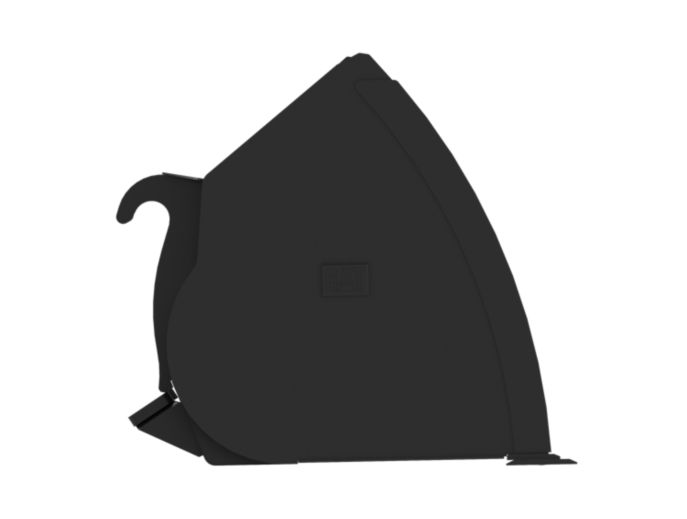

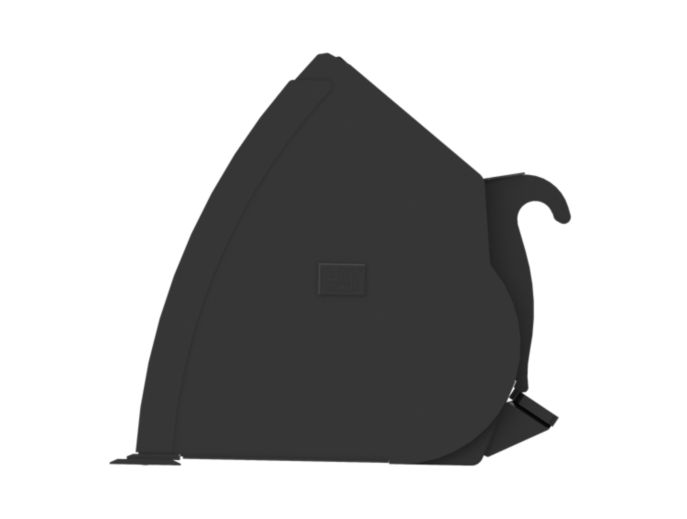

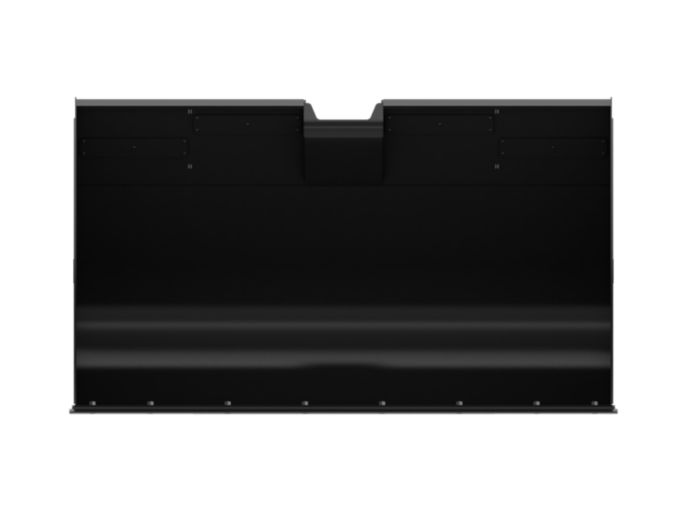

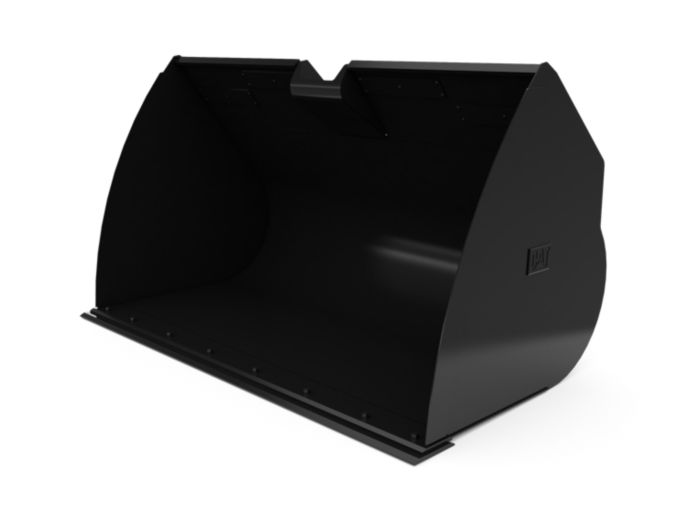

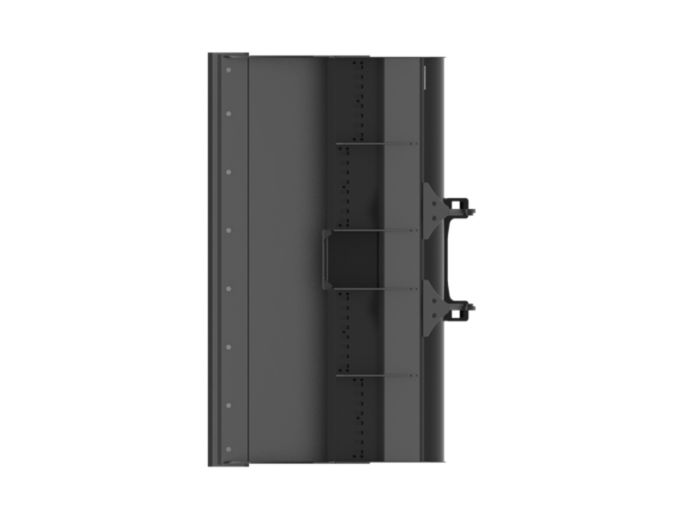

Buckets - Compact Wheel Loader

3.5 m3 (4.6 yd3), Fusion™ Coupler, Bolt-On Cutting Edge

High capacity increases productivity in handling light materials.

Specifications
Features

Overview

Cat® Light Material Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.

UNITS:

Metric

Imperial

Width	2549 mm	100.4 in
Weight	944 kg	2081.2 lb
Height	1483 mm	58.4 in
Length	1601 mm	63 in
Capacity	3.5 m³	4.6 yd³
Base Edge Thickness	19 mm	0.7 in
Cutting Edge Thickness	19 mm	0.7 in
Interface Type	Fusion™ Coupler	Fusion™ Coupler

Features

Application

Designed to handle low density materials such as mulch, wood chips, dry topsoil, fertilizer, livestock feed and snow. Performance Series Light Material Buckets are designed with larger capacity for light density material applications in Agriculture, Waste and other segments. These applications generally require moderate to light breakout forces. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

High Capacity

High capacity increases productivity in handling light materials.

Superior Loading

Long bucket floor length, combined with large radius back wrapper, provides superior material loading and dumping, resulting in greater payloads and quicker cycle times.

Rugged Design

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.
