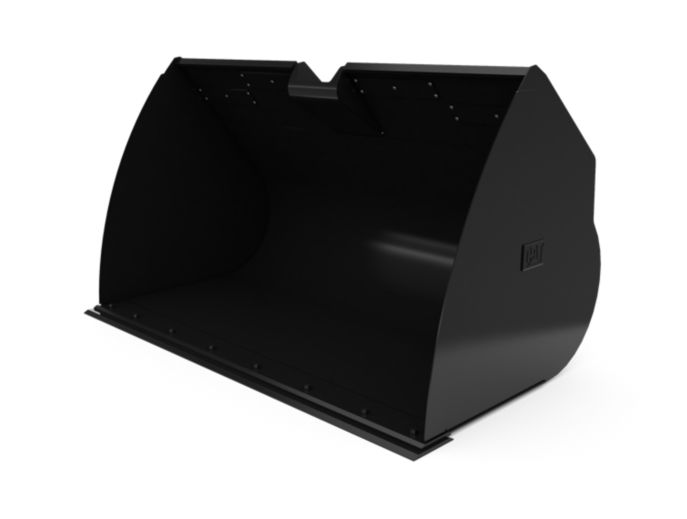

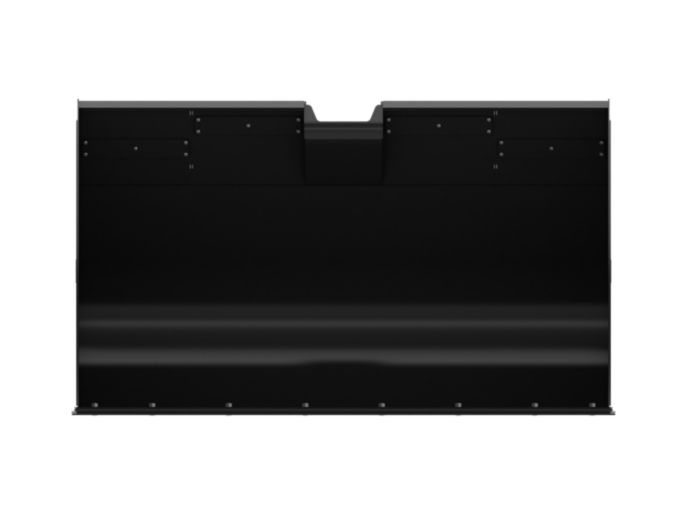

Buckets - Compact Wheel Loader

3.5 m3 (4.6 yd3), IT Coupler, Bolt-On Cutting Edge

High capacity increases productivity in handling light materials.

Specifications
Features

Overview

Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.

UNITS:

Metric

Imperial

Width	2549 mm	100.4 in
Weight	915 lb	2017.2 lb
Height	1486 kg	58.5 in
Length	1647 mm	64.8 in
Capacity	3.5 m³	4.6 yd³
Base Edge Thickness	19 mm	0.7 in
Cutting Edge Thickness	19 mm	0.7 in
Interface Type	IT Coupler	IT Coupler

Features

Application

Designed to handle low density materials such as mulch, wood chips, dry topsoil, fertilizer, livestock feed and snow. Performance Series Light Material Buckets are designed with larger capacity for light density material applications in Agriculture, Waste and other segments. These applications generally require moderate to light breakout forces. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

High Capacity

High capacity increases productivity in handling light materials. Optimal bucket shape for loading light materials up to 1150 kg/ltr (1600 lb/yd3).

Superior Loading

Long bucket floor length, combined with large radius back wrapper, provides superior material loading and dumping, resulting in greater payloads and quicker cycle times.

Integrated Spill Guard

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Integrated Visibility Slots with Removable Covers

Integrated visibility to the cutting edge while operating. Visibility slots can be closed while working with loose material with small particle sizes to increase capacity and prevent material loss.

Rugged Design

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.
