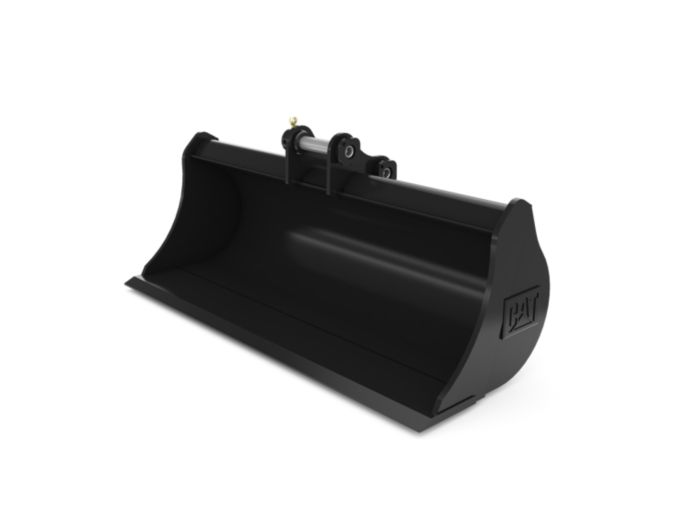

Buckets - Excavator

1000 mm (39 in)

For cleaning ditches, sloping, grading and other finishing work.

Overview

Grading Buckets for Cat® Mini Excavators are designed to provide optimum grading, trenching, slope-cutting and finishing work in addition to nesting additional buckets for ease of transportation.

UNITS:

Metric

Imperial

Width	1000 mm	39.4 in
Capacity	88.1 l	3.1 ft³
Weight	58.2 kg	128.3 lb
Base Edge Thickness	16 mm	0.6 in
Tip Radius	449.7 mm	17.7 in
Interface Type	Pin On	Pin On

Features

Application

Designed for cleaning ditches, sloping, grading and other finishing work.

Bucket Nesting

Transport all buckets needed for a job within the Grading Bucket.

Bolt-On Cutting Edge

Allows for smooth finish in grading applications.

Lack of Drainage Holes

Retains material and water for waste removal and light material applications.

Included Pins

Pins come pre-installed with bucket.

Downloads

Cat® Buckets for Mini Excavators Brochure Download
