Buckets - Excavator
1300 mm (51 in)
Ideal usage for grading applications, but suitable for general excavation, loading, and backfilling in all kinds of different soil types up to heavy duty applications.
Request a quote
Overview

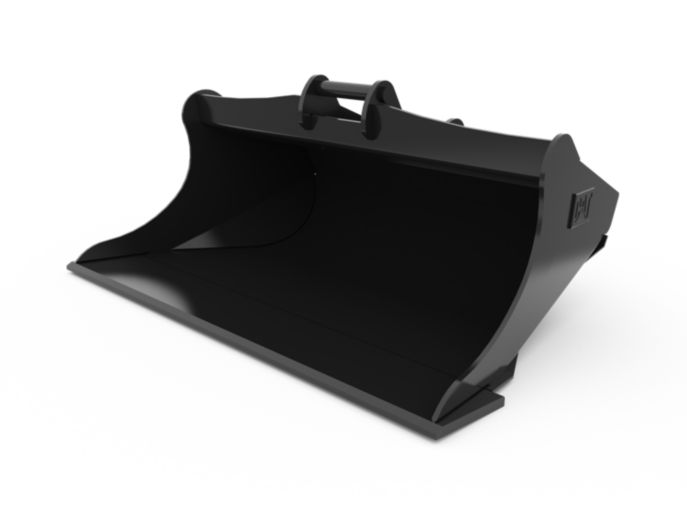

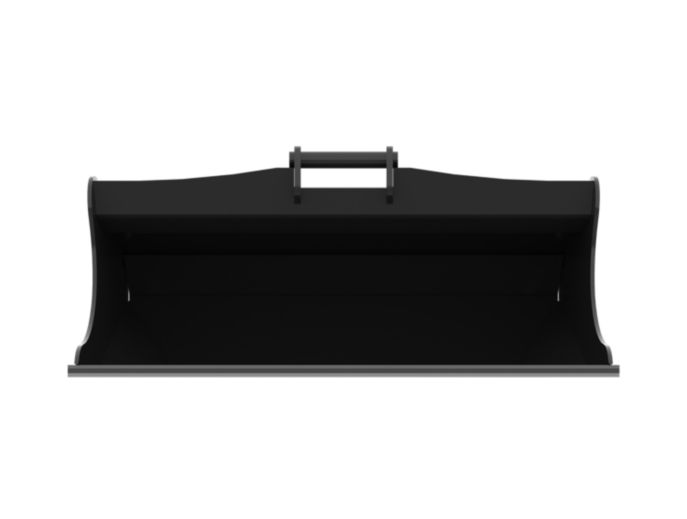

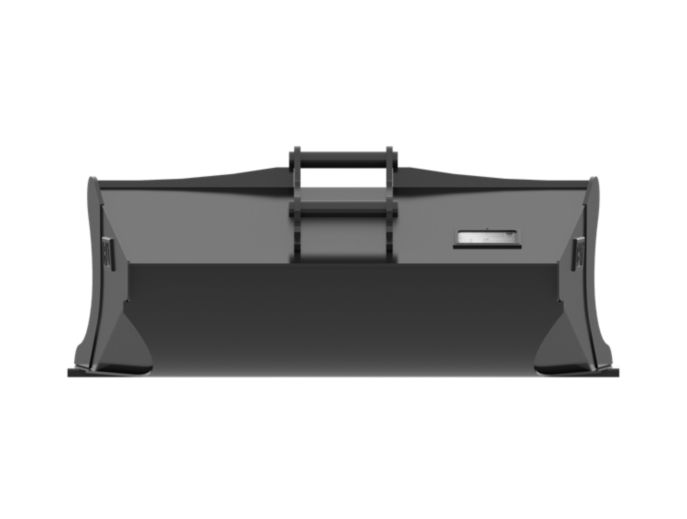

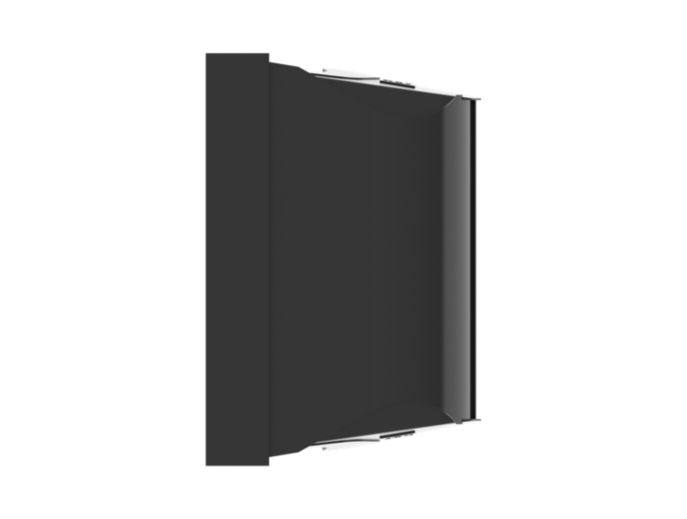

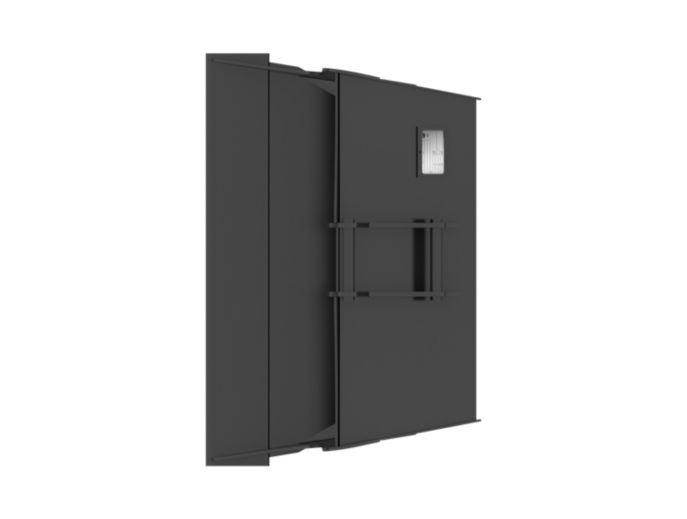

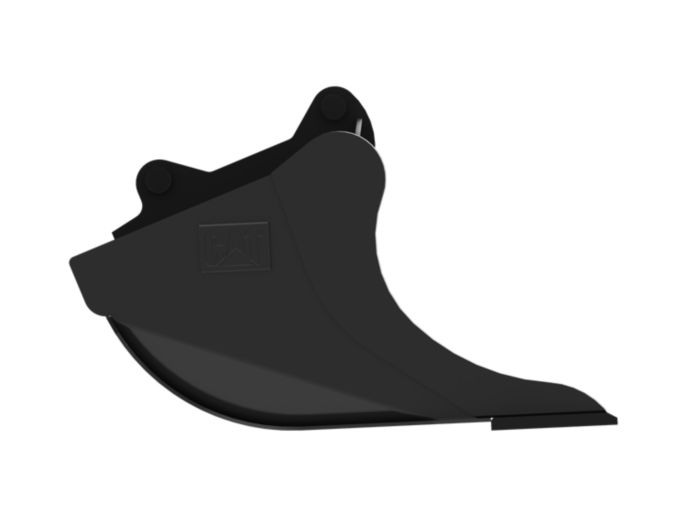

Nordic Grading Buckets for Cat® Mini Excavators are ideal for grading applications, but also suitable for general excavation, loading, and backfilling in all kinds of different soil types. The design features durable wear plates for longer wear resistance in heavy duty applications. Due to the rounded side shape, shorter tip radius, and flat torque tube construction they are optimal for using in combination with a Tilt Rotate System.
UNITS:
Metric
Imperial
| Width | 1300 mm | 51.2 in |
| Capacity | 250 l | 8.8 ft³ |
| Weight | 172 kg | 379.2 lb |
| Base Edge Thickness | 20 mm | 0.8 in |
| Tip Radius | 786 mm | 30.9 in |
| Interface Type | S-40 | S-40 |
Features
Application
Designed to create maximum performance in combination with a tiltrotator equipped with an S-Type or pin grabber coupler.
Wear Protected Side Plates
Specially designed side wear plates provide for optimal wear resistance in heavy duty applications.
Torque Tube
For low build bracket solution, close to zero offset and high bending resistance even during high stress work.
Conical / Tapered Side Plates
Special shape allows for easy bucket filling and emptying as well as inner trench rotating capabilities while using in conjunction with a tiltrotator.
Short Tip Radius and Long Floor
With high breakout forces combined with tiltrotator usage, the bucket still produces acceptable bucket volumes.
Overview
Nordic Grading Buckets for Cat® Mini Excavators are ideal for grading applications, but also suitable for general excavation, loading, and backfilling in all kinds of different soil types. The design features durable wear plates for longer wear resistance in heavy duty applications. Due to the rounded side shape, shorter tip radius, and flat torque tube construction they are optimal for using in combination with a Tilt Rotate System.
UNITS:
Metric
Imperial
| Width | 1300 mm | 51.2 in |
| Capacity | 250 l | 8.8 ft³ |
| Weight | 172 kg | 379.2 lb |
| Base Edge Thickness | 20 mm | 0.8 in |
| Tip Radius | 786 mm | 30.9 in |
| Interface Type | S-40 | S-40 |
Features
Application
Designed to create maximum performance in combination with a tiltrotator equipped with an S-Type or pin grabber coupler.
Wear Protected Side Plates
Specially designed side wear plates provide for optimal wear resistance in heavy duty applications.
Torque Tube
For low build bracket solution, close to zero offset and high bending resistance even during high stress work.
Conical / Tapered Side Plates
Special shape allows for easy bucket filling and emptying as well as inner trench rotating capabilities while using in conjunction with a tiltrotator.
Short Tip Radius and Long Floor
With high breakout forces combined with tiltrotator usage, the bucket still produces acceptable bucket volumes.
