Buckets - Loader

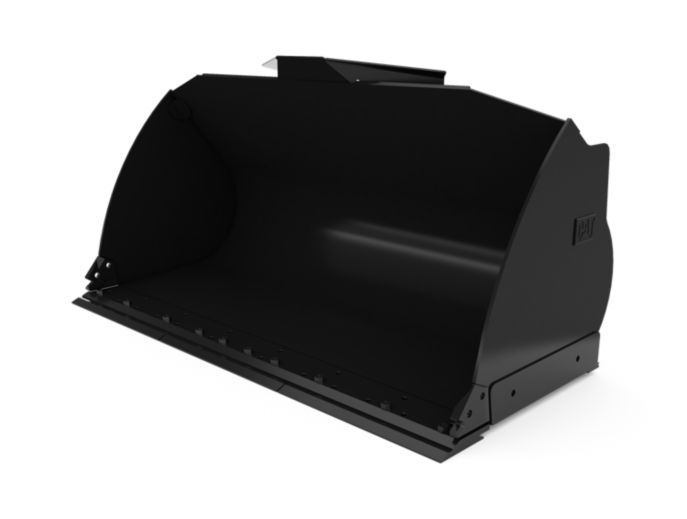

2.9 m3 (3.8 yd3), Fusion™ Coupler, Bolt-On Cutting Edge

Performance Series Flat Floor, General Purpose Buckets utilize a long flat floor that delivers improved results when back dragging and grading.

Request a quote

Specifications
Features

Overview

Cat® Flat Floor Buckets are Performance Series, General Purpose Buckets that incorporate a specially designed long floor and a rear cutting edge to provide optimum results and productivity when performing light grading or back-dragging—while retaining all the premium loading-characteristic of the Performance Series.

UNITS:

Metric

Imperial

Width	2727 mm	107.4 in
Height	1439 mm	56.7 in
Weight	1291 kg	2846.2 lb
Length	1445 mm	56.9 in
Capacity	2.9 m³	3.8 yd³
Base Edge Thickness	25 mm	1 in
Cutting Edge Thickness	25 mm	1 in
Interface Type	Fusion™ Coupler	Fusion™ Coupler

Features

Application

Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Rugged Design

Additional wear plates on bottom surface of bucket improves bucket life in coarse aggregate applications.

Performance Series Technology

Performance Series Technology - Innovations in bucket design that improve load-ability of buckets, increasing productivity and decreasing fuel costs.

Maximum Machine Usage

Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.

Overview

UNITS:

Metric

Imperial

Width	2727 mm	107.4 in
Height	1439 mm	56.7 in
Weight	1291 kg	2846.2 lb
Length	1445 mm	56.9 in
Capacity	2.9 m³	3.8 yd³
Base Edge Thickness	25 mm	1 in
Cutting Edge Thickness	25 mm	1 in
Interface Type	Fusion™ Coupler	Fusion™ Coupler
