Buckets - Loader

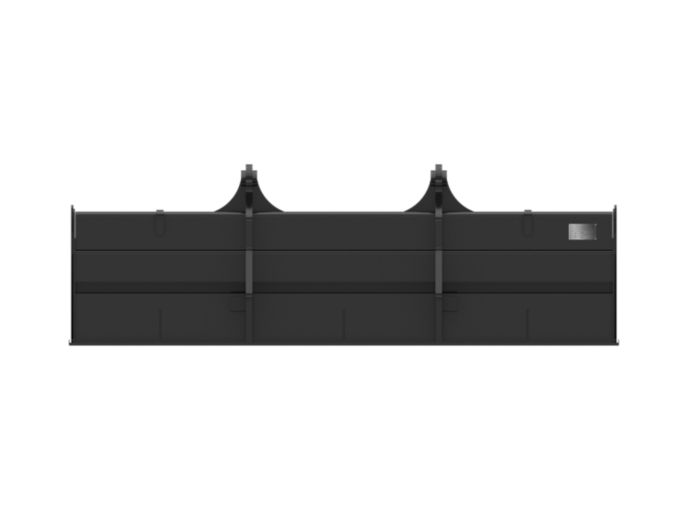

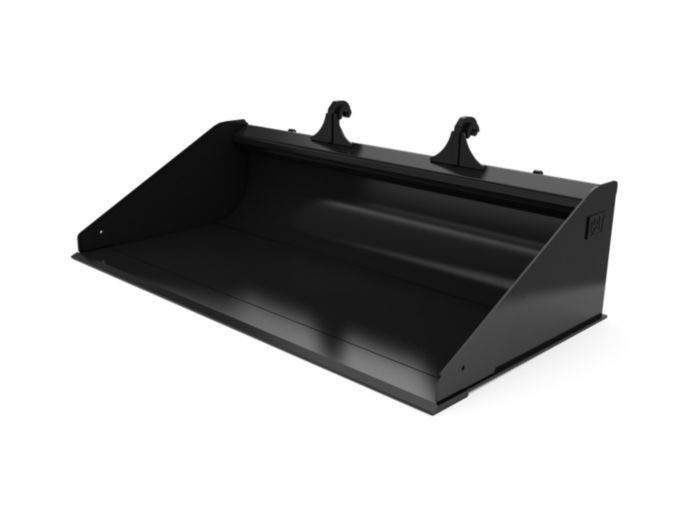

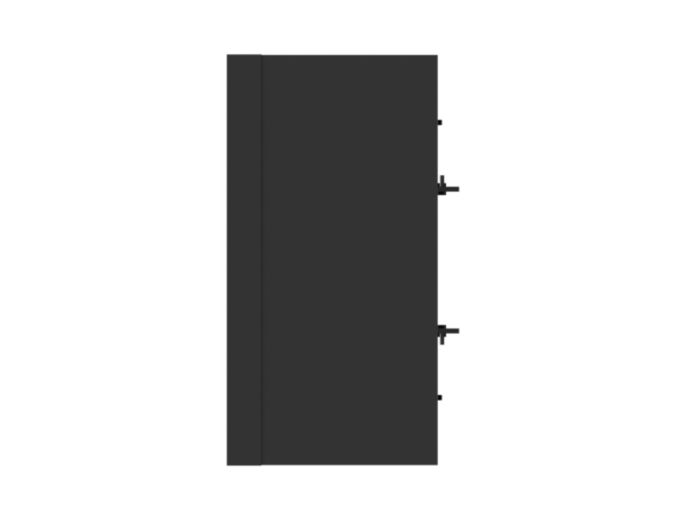

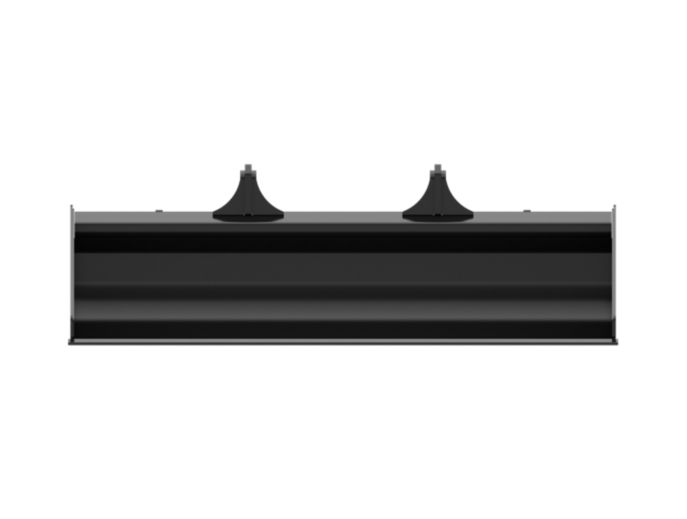

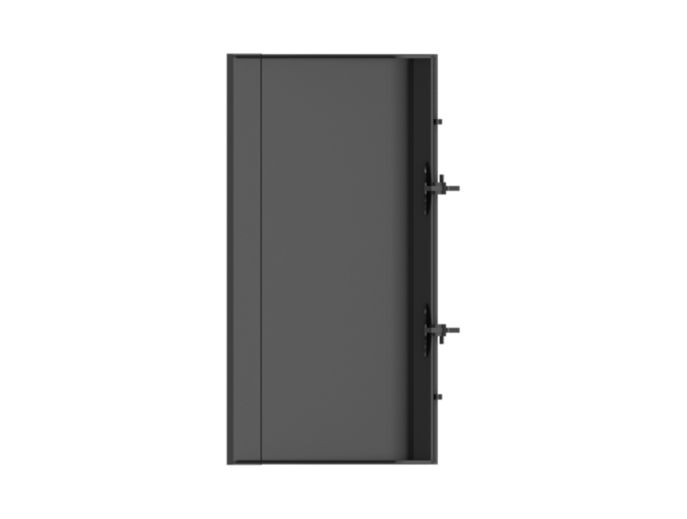

2900 mm (114 in), HPL-ISO Coupler, Base Edge

Long, flat-floor bucket can scoop material, level or backfill.

Specifications
Features

Overview

The Cat® Grading Bucket has a long, flat floor giving the operator complete visibility of the cutting edge. The shape of the bucket provides flexibility to scoop material, level or backfill.

UNITS:

Metric

Imperial

Width	2900 mm	114 in
Length	1640 mm	64.6 in
Height	972 mm	38.3 in
Weight	1057 kg	2330.3 lb
Capacity	2 m³	2.6 yd³
Base Edge Thickness	32 mm	1.3 in
Interface Type	HPL-ISO Coupler	HPL-ISO Coupler

Features

Application

These versatile buckets can be used in a variety of applications including back dragging, agricultural, snow removal, and jobs that require good visibility to the bucket edge while unloading or trench filling.

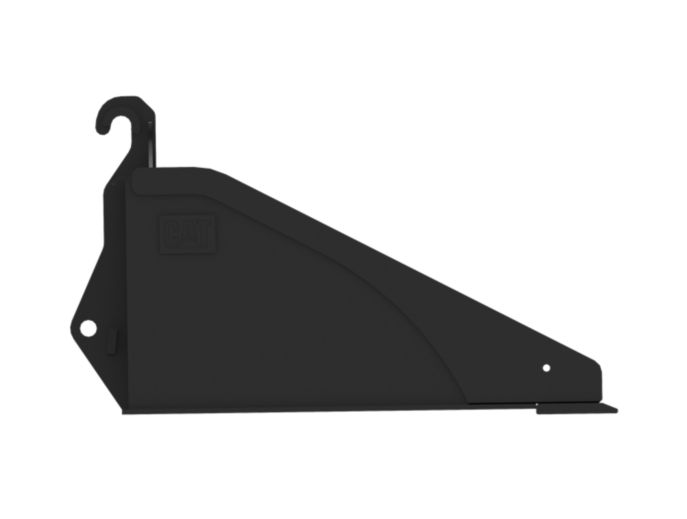

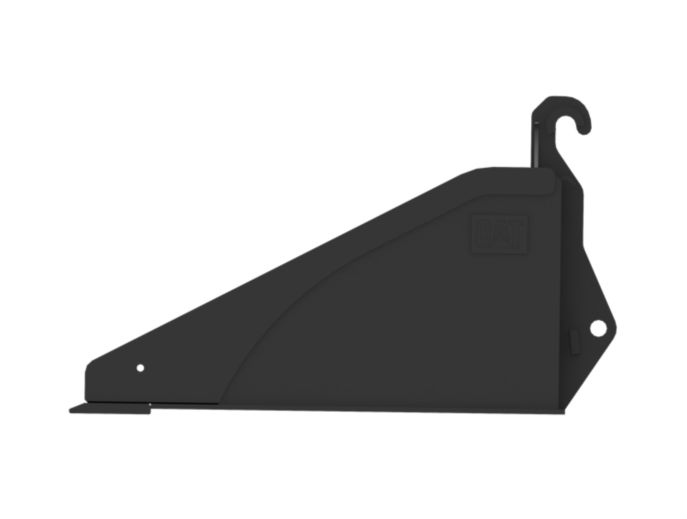

Sharp, Low Angle Side Plates

Sharp and low angled side plates (side cutting edge) ensures a high penetration force when loading, while also providing excellent visibility to the bucket cutting edge.

Reinforced Straight Bucket Shelve Support

Maximum penetration force, optimal back dragging and grading applications.

Wide and Flat Bucket Bottom

Highly wear resistant 15 mm (0.6 in) bottom plate is optimal for back dragging and allows for work in heavy duty applications.

Heavy Duty Torque Tube

Heavy duty torque tube provides optimal bucket stability and provides for an extended bucket life.

Optional Detachable Spill Guard

Quickly increase bucket capacity for light materials (snow, mulch, etc.) with the quick fit spill guard. Slots in spill guard ensure visibility to cutting edge when installed. Same spill guard adjusts to fit all 3 sizes of grading bucket.
