Buckets - Loader

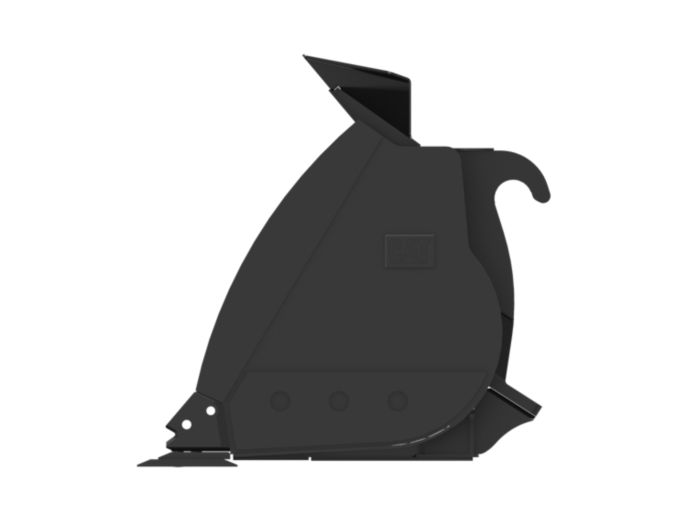

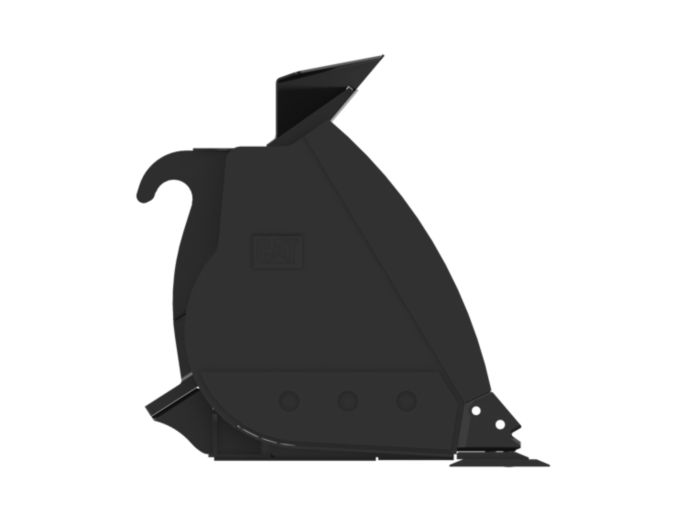

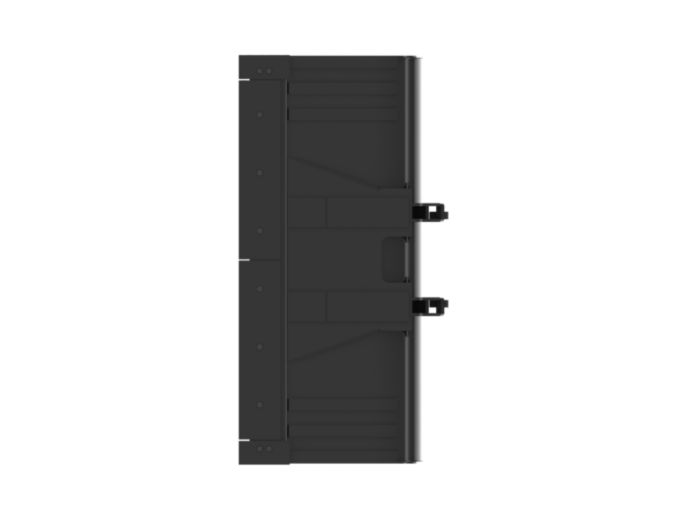

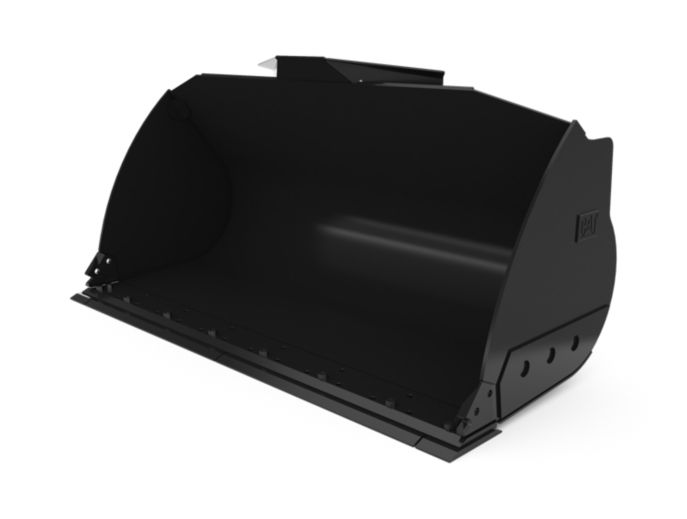

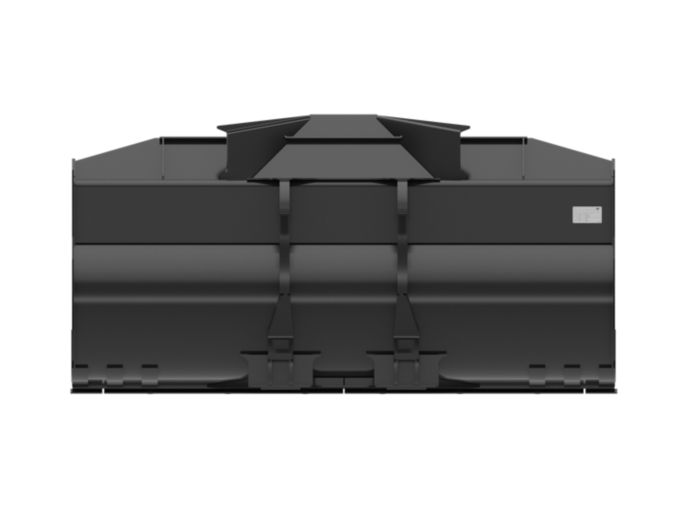

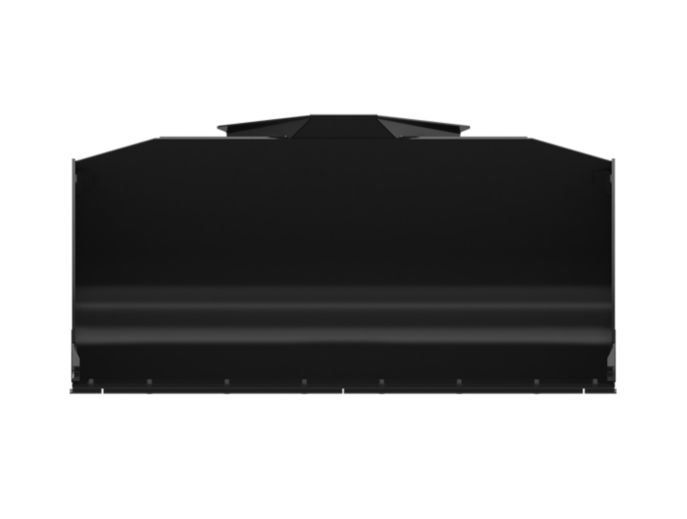

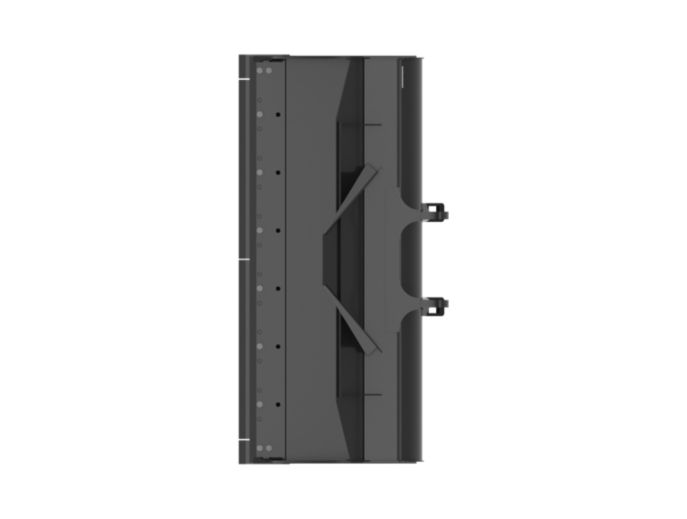

2.7 m3 (3.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge

Sand & Gravel Buckets are designed for aggregate handling in batch plant loader applications.

Request a quote

Specifications
Features

Overview

Cat® Loader Sand & Gravel Buckets are designed for aggregate handling in batch plant loader applications.

UNITS:

Metric

Imperial

Width	2747 mm	108.1 in
Height	1404 mm	55.3 in
Weight	1197 kg	2638.9 lb
Length	1379 mm	54.3 in
Capacity	2.7 m³	3.5 yd³
Base Edge Thickness	25 mm	1 in
Cutting Edge Thickness	25 mm	1 in
Interface Type	Fusion™ Coupler	Fusion™ Coupler

Features

Application

Ideal for aggregate handling in batch plant loader applications.

Rugged Design

Additional wear plates on bottom and sides of the bucket improves life of the bucket in coarse aggregate applications.

Performance Series Technology

Performance Series technology - innovations in bucket designs that improve load-ability of buckets, increasing productivity and decreasing fuel costs.

Maximum Machine Usage

Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.

Spill Guard

Spill guard prevents rock and other materials from spilling onto coupler interface and hydraulics.

Overview

Cat® Loader Sand & Gravel Buckets are designed for aggregate handling in batch plant loader applications.

UNITS:

Metric

Imperial

Width	2747 mm	108.1 in
Height	1404 mm	55.3 in
Weight	1197 kg	2638.9 lb
Length	1379 mm	54.3 in
Capacity	2.7 m³	3.5 yd³
Base Edge Thickness	25 mm	1 in
Cutting Edge Thickness	25 mm	1 in
Interface Type	Fusion™ Coupler	Fusion™ Coupler

Features

Application

Ideal for aggregate handling in batch plant loader applications.

Rugged Design

Additional wear plates on bottom and sides of the bucket improves life of the bucket in coarse aggregate applications.

Performance Series Technology

Performance Series technology - innovations in bucket designs that improve load-ability of buckets, increasing productivity and decreasing fuel costs.

Maximum Machine Usage

Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.

Spill Guard

Spill guard prevents rock and other materials from spilling onto coupler interface and hydraulics.
