Buckets - Skid Steer Loader
1150 mm (45 in)
Concrete Slab Buckets are specifically designed for removing and carrying concrete slab sections.
Request a quote
Overview

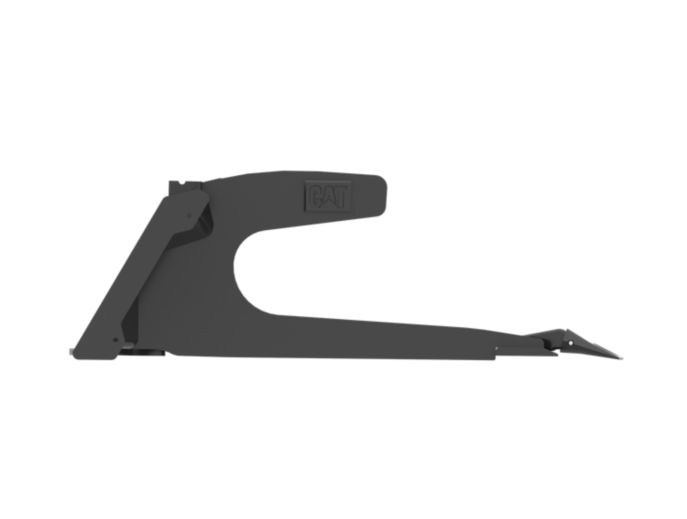

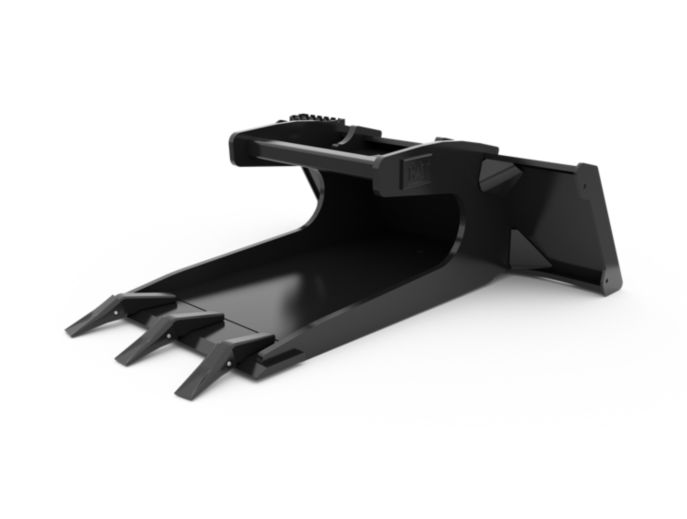

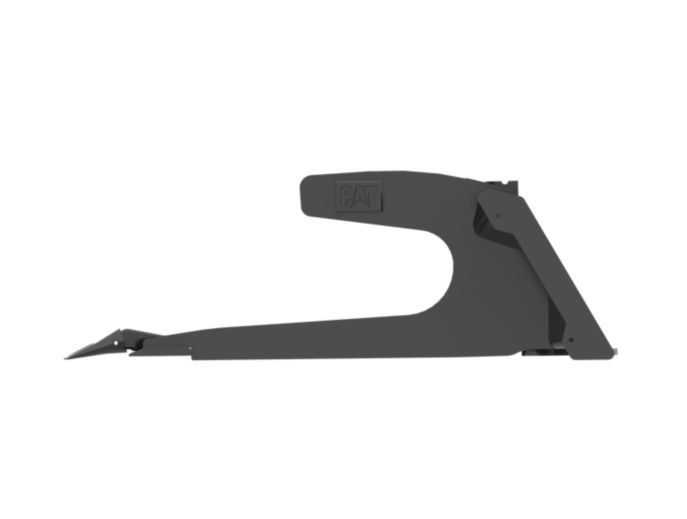

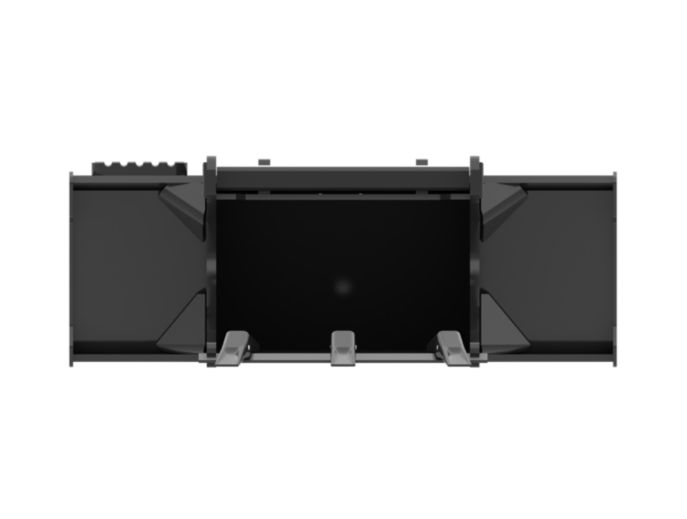

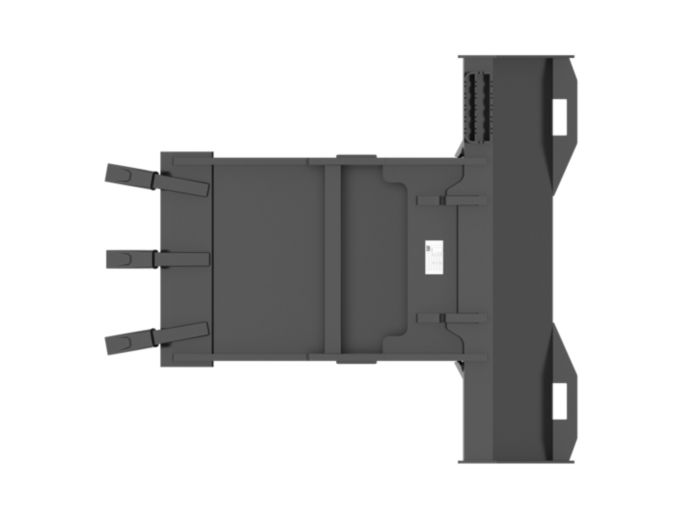

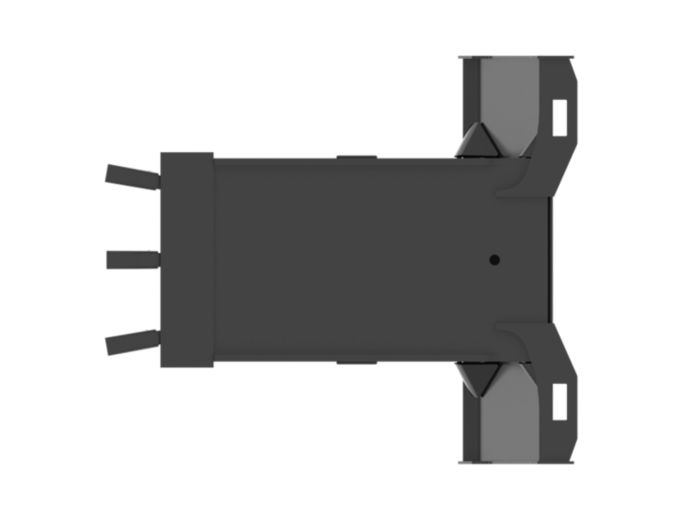

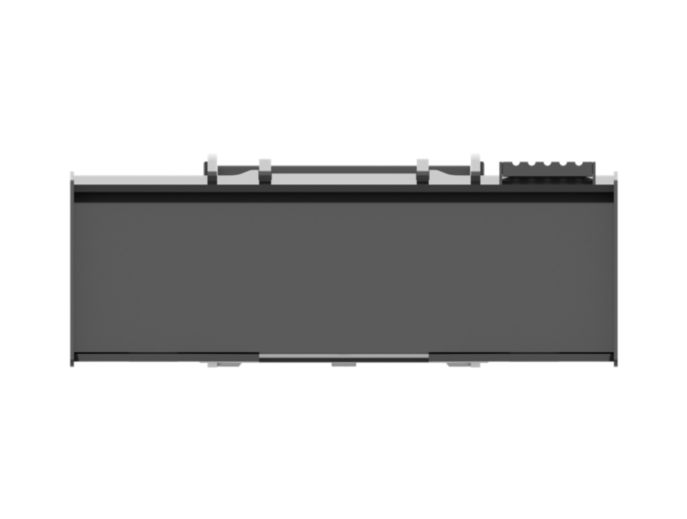

Cat® Concrete Slab Buckets for Cat Skid Steer Loaders, Compact Track Loaders, and Compact Wheel Loaders are specifically designed for removing and carrying concrete slab portions. The flat floor design and replaceable teeth allow the bucket to easily slide under and lift slabs up to 202 mm (8 in) thick. The slab bucket is built with heavy steel side plates to resist bending and twisting when prying large sections of concrete. The top clamp features an integrated sight window to allow the operator to see the teeth edge when sliding under the slab for quick and easy operation. Applications include driveway replacement, sidewalk replacement, and many other construction applications involving concrete slab removal.
UNITS:
Metric
Imperial
| Width | 607 mm | 23.9 in |
| Maximum Slab Thickness | 202 mm | 8 in |
| Overall Width | 1150 mm | 45.3 in |
| Weight | 210 kg | 463 lb |
| Height | 460 mm | 18.1 in |
| Length | 1332 mm | 52.4 in |
| Base Edge Thickness | 20 mm | 0.8 in |
| Sidewall Thickness | 22 mm | 0.8 in |
| Number of Teeth | 3 | 3 |
| Interface Type | Skid Steer Loader | Skid Steer Loader |
Features
Application
The concrete slab bucket is specifically designed for removing and carrying concrete slabs.
Crossbar Visibility
Sight window on top clamp provides good visibility to teeth edge, making it easier to slide under concrete slabs.
Large Slab Working Area
Bucket is designed with a large working area to pick up and carry large concrete slabs up to 202 mm (8 in) thick.
Replaceable Teeth
Three replaceable teeth aid in sliding under a concrete slab, for quick and easy lift.
Welded Support Gussets
Welded gussets ensure strength and durability of bucket.
Drainage Hole
Drainage hole prevents water accumulation in the bucket.
Integrated Step
Integrated step provides safe and ergonomic access to machine cab.
