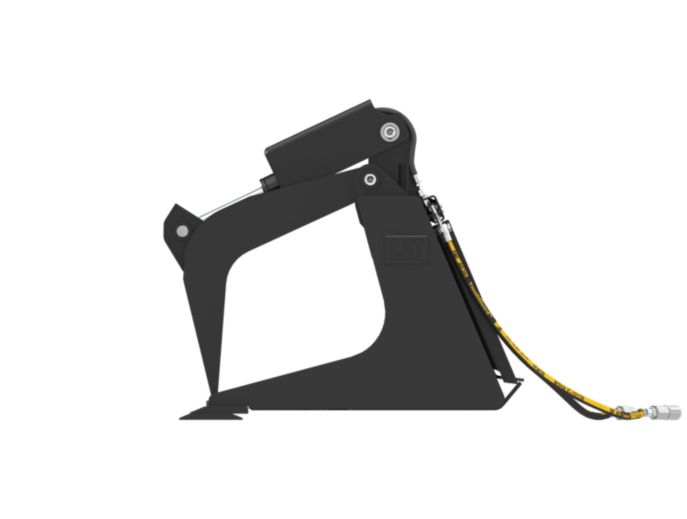

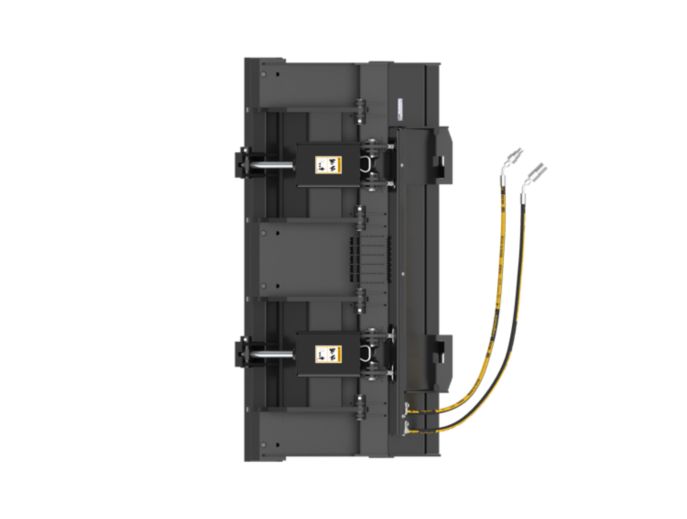

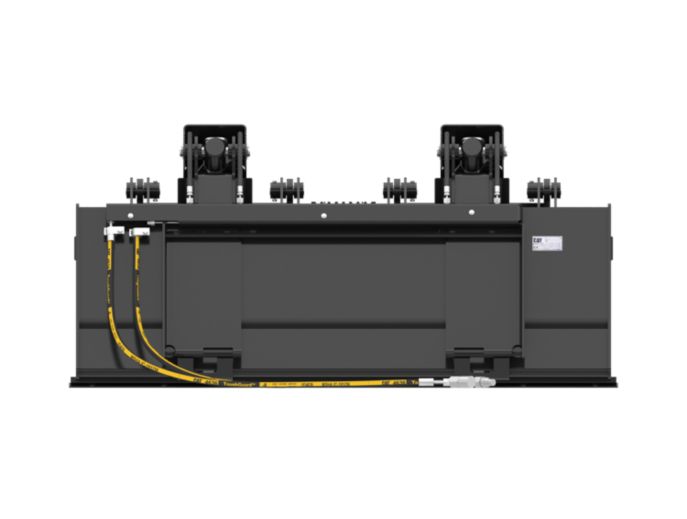

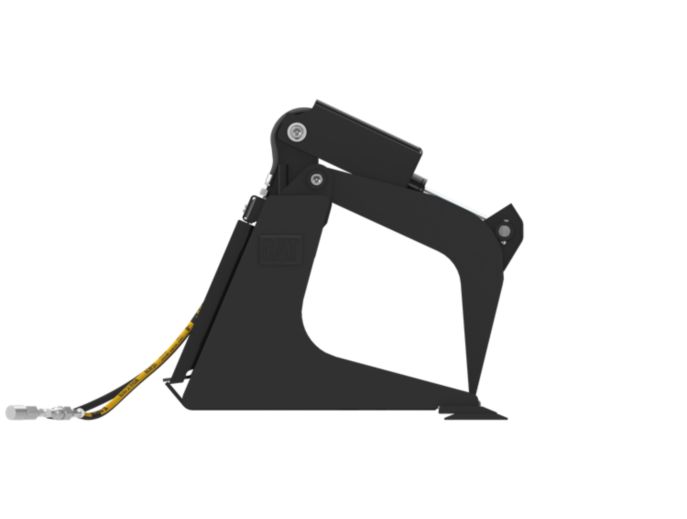

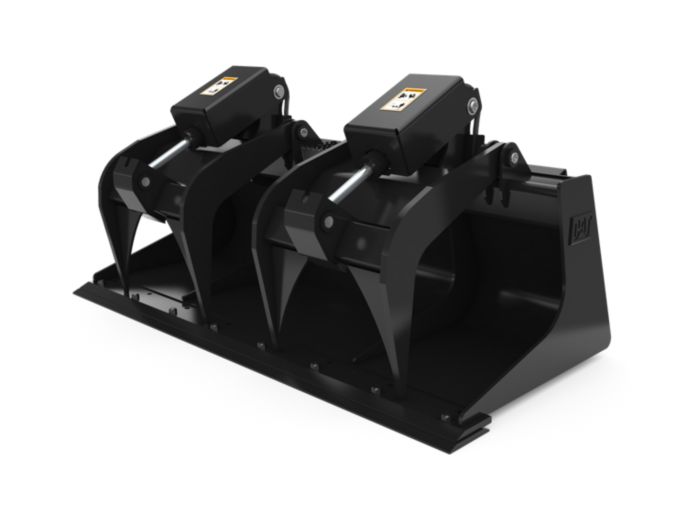

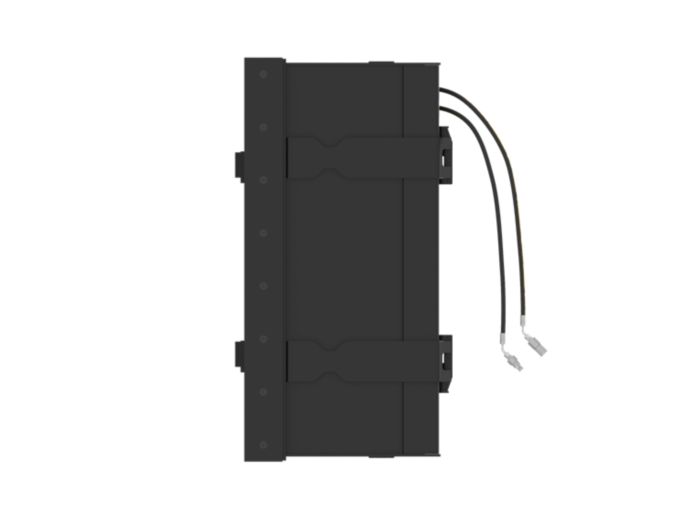

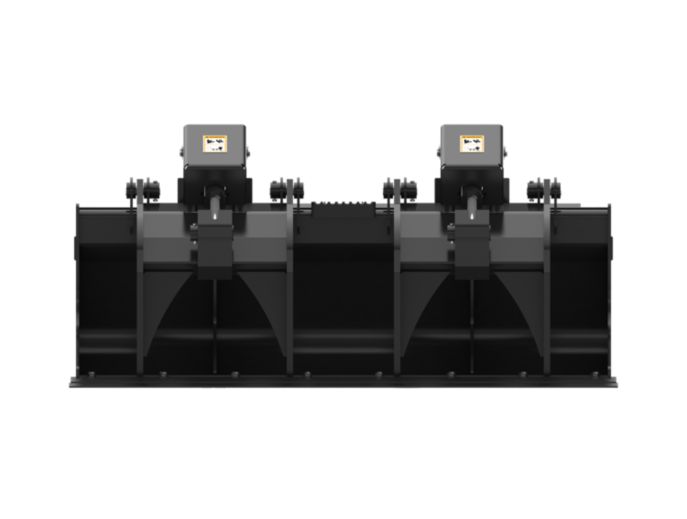

Buckets - Skid Steer Loader

1730 mm (68 in), Bolt-On Cutting Edge

Designed to handle a wide array of materials in a variety of operating conditions.

Overview

Cat® Industrial Grapple Buckets for Cat Skid Steer Loaders, and Compact Track Loaders are designed to handle bulky, irregularly shaped objects found in demolition, industrial, construction, recycling. Ideal for railroad ties, trees, large rocks, brush, industrial and demolition scrap, and recycling debris.

UNITS:

Metric

Imperial

Width	1730 mm	68.1 in
Weight	504 kg	1111.1 lb
Height - Grapples Closed	525 mm	20.7 in
Length	749 mm	29.5 in
Base Edge Thickness	19 mm	0.7 in
Cutting Edge Thickness	16 mm	0.6 in
Operating Pressure	23000 kPa	3335.9 psi
Jaw Opening	1016 mm	40 in
Interface Type	Skid Steer Coupler	Skid Steer Coupler

Features

Application

Designed to handle bulky, irregularly shaped objects found in demolition, industrial, construction and recycling. Ideal for railroad ties, trees, large rocks, brush, industrial and demolition scrap, and recycling debris.

Excellent Clamping

Excellent clamping force and independently controlled grapple assemblies allow for easy grasping of irregularly shaped objects.

Wide Jaw Opening

Wide vertical jaw opening allows for handling of large, bulky material.

Strong Grapple Assemblies

Grapple assemblies incorporate thick, high strength steel to resist bending and increase durability. Each grapple is reinforced with a full width formed plate and rigid box section for additional strength and cylinder protection.

Downloads

Cat® Industrial and Utility Grapple Buckets, Rakes and Forks Brochure Download
