Buckets - Skid Steer Loader

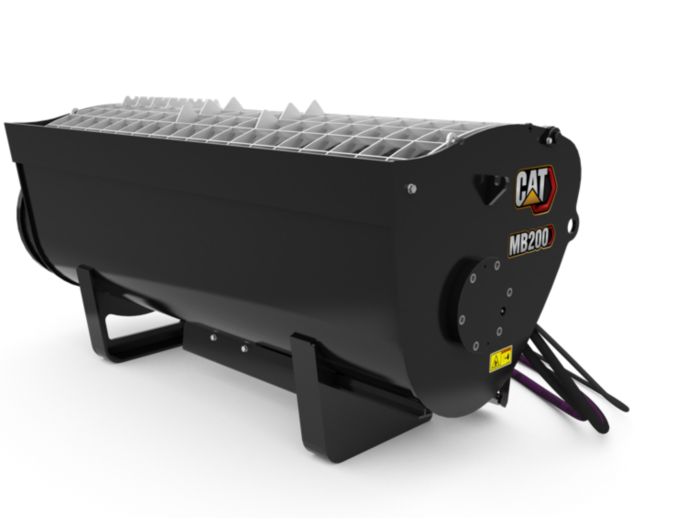

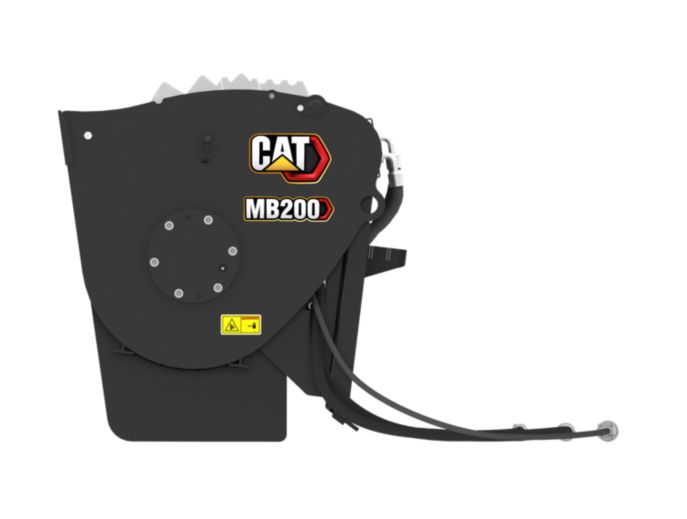

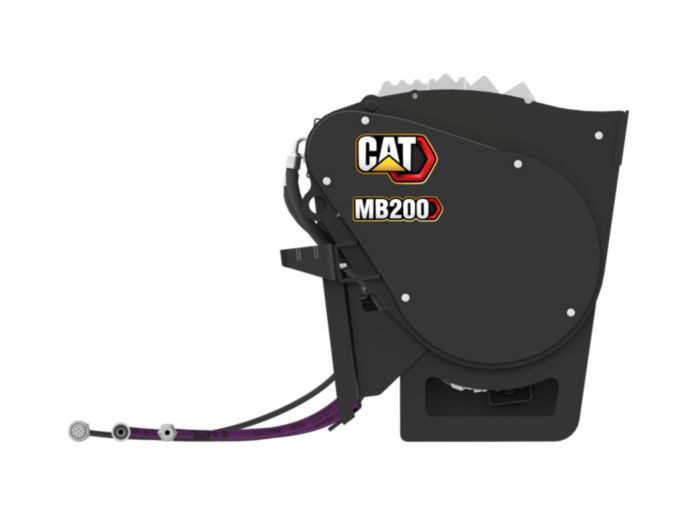

MB200
Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.
Request a quote
Overview

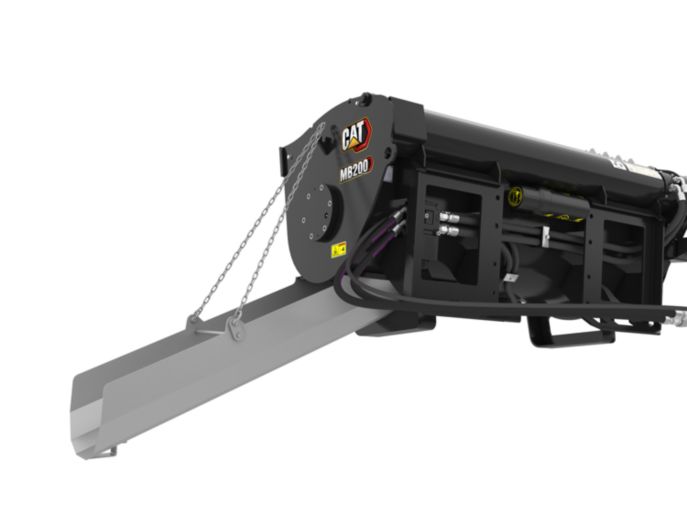

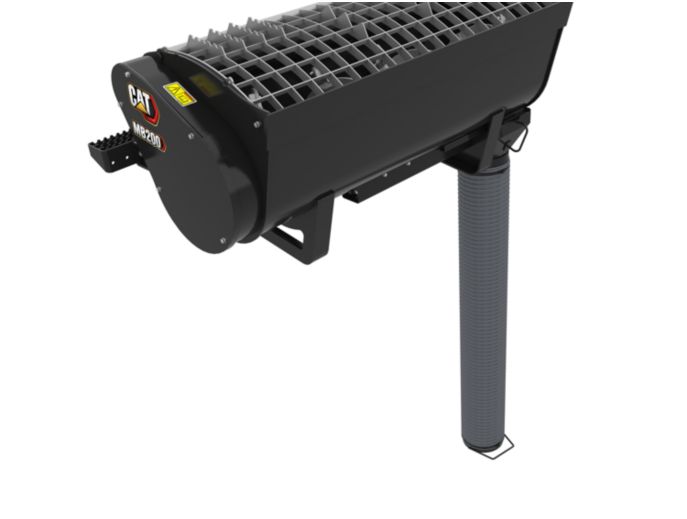

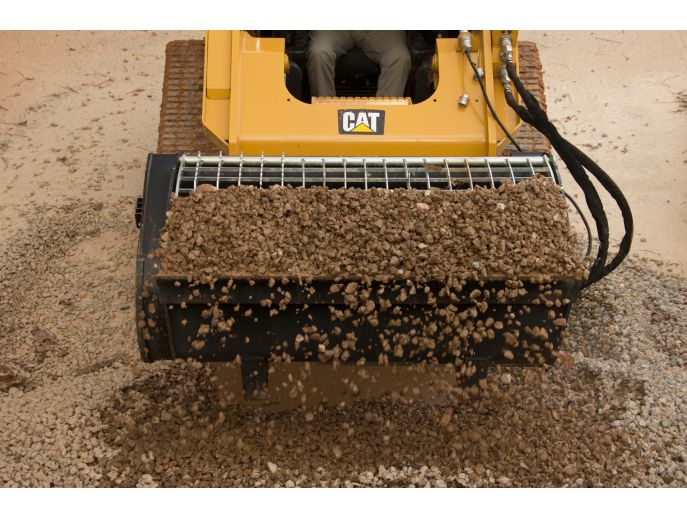

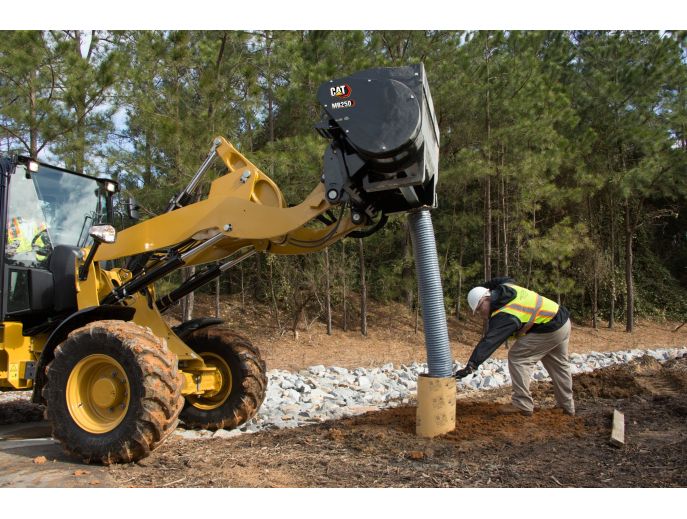

Cat® Mixing Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for material mixing in a variety of applications. Utilizing a chain driven auger equipped with replaceable paddles the Cat Mixing Buckets ensure complete and repeatable mixing. Work can be completed in difficult to access areas, improving productivity and saving on transportation costs. Available with rigid and flexible chutes, the mixing buckets provide different methods to distribute material around job sites. The hydraulically controlled chute door opens a path for material to exit the bucket and is operated from the cab eliminating the need to exit the cab to open the bucket. The Cat Mixing Buckets are excellent for sidewalks, driveways, finish work, fence posts, footings and floors of small buildings.
UNITS:
Metric
Imperial
| Capacity | 0.2 m³ | 0.26 yd³ |
| Width | 1386 mm | 54.6 in |
| Required Hydraulics | Standard Flow | Standard Flow |
| Auger Speed Range | 10-30 rpm | 10-30 rpm |
| Drive Method | Chain | Chain |
| Height | 731 mm | 28.8 in |
| Length | 694 mm | 27.3 in |
| Optimal Hydraulic Flow | 60-70 lpm (16-18 gpm) | 60-70 lpm (16-18 gpm) |
| Optimal Hydraulic Pressure | 140-200 bar (2031-2901 psi) | 140-200 bar (2031-2901 psi) |
| Weight | 290 kg | 639 lb |
| Auger Diameter | 406 mm | 16 in |
| Number of Auger Paddles | 12 | 12 |

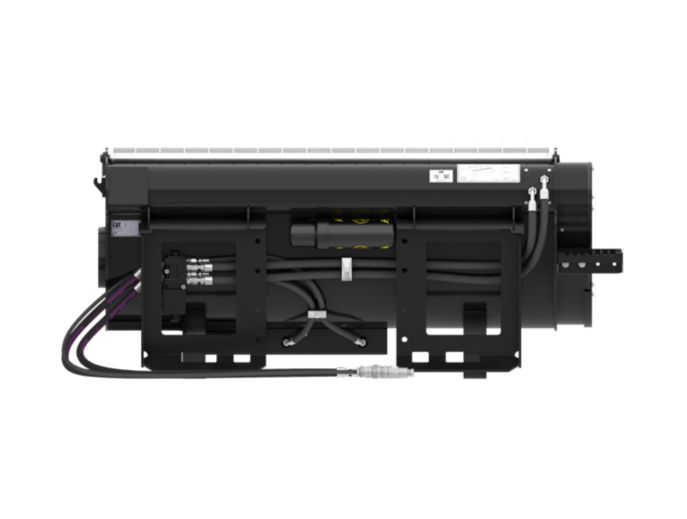

| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
| Overall Width | 1602 mm | 63.1 in |
Features
Easy Material Addition

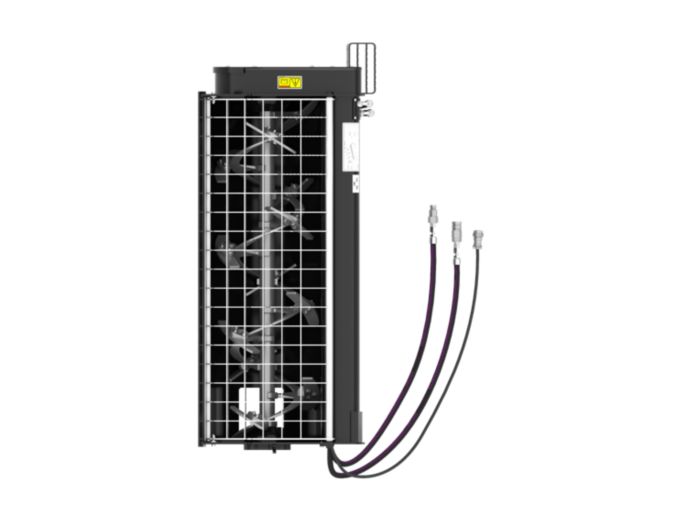

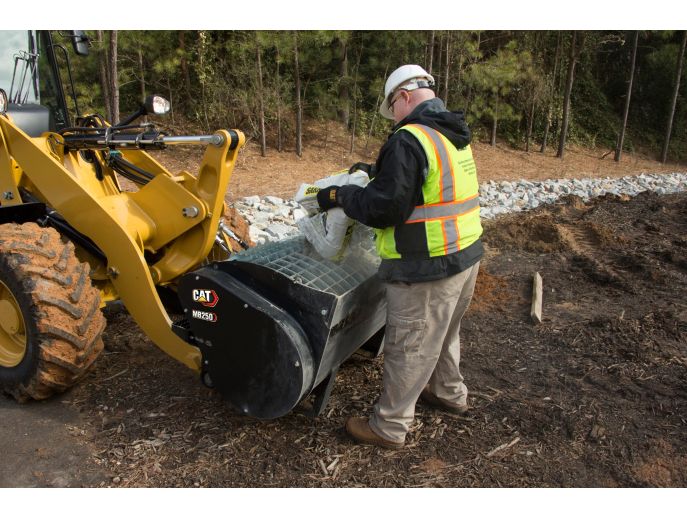

Cement bag breakers on top of mixing bucket grate allow for easy breaking and addition of bagged materials.
Bucket Cutting Edge
Cutting edge allows for bucket to be used to drive into piles of raw materials.
Reinforced Steel Bucket Cavity
Reinforced steel is used for bucket cavity ensuring long life and reduced wear.
Bolt-On Replaceable Auger Paddles
Replaceable, bolt-on auger paddles are hardened and reach throughout the bucket to combine all material.
Remotely Operated Chute Door
Hydraulically controlled chute door allows material to be dispensed all from the cab of the host machine.
Bolt-On Serrated Step
Serrated step allows safe and ergonomic access to machine cab that is easily replaceable if damaged.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and mantenance guides required for proper operation of the work tool.
Overview
Cat® Mixing Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for material mixing in a variety of applications. Utilizing a chain driven auger equipped with replaceable paddles the Cat Mixing Buckets ensure complete and repeatable mixing. Work can be completed in difficult to access areas, improving productivity and saving on transportation costs. Available with rigid and flexible chutes, the mixing buckets provide different methods to distribute material around job sites. The hydraulically controlled chute door opens a path for material to exit the bucket and is operated from the cab eliminating the need to exit the cab to open the bucket. The Cat Mixing Buckets are excellent for sidewalks, driveways, finish work, fence posts, footings and floors of small buildings.
UNITS:
Metric
Imperial
| Capacity | 0.2 m³ | 0.26 yd³ |
| Width | 1386 mm | 54.6 in |
| Required Hydraulics | Standard Flow | Standard Flow |
| Auger Speed Range | 10-30 rpm | 10-30 rpm |
| Drive Method | Chain | Chain |
| Height | 731 mm | 28.8 in |
| Length | 694 mm | 27.3 in |
| Optimal Hydraulic Flow | 60-70 lpm (16-18 gpm) | 60-70 lpm (16-18 gpm) |
| Optimal Hydraulic Pressure | 140-200 bar (2031-2901 psi) | 140-200 bar (2031-2901 psi) |
| Weight | 290 kg | 639 lb |
| Auger Diameter | 406 mm | 16 in |
| Number of Auger Paddles | 12 | 12 |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
| Overall Width | 1602 mm | 63.1 in |
Features
Easy Material Addition
Cement bag breakers on top of mixing bucket grate allow for easy breaking and addition of bagged materials.
Bucket Cutting Edge
Cutting edge allows for bucket to be used to drive into piles of raw materials.
Reinforced Steel Bucket Cavity
Reinforced steel is used for bucket cavity ensuring long life and reduced wear.
Bolt-On Replaceable Auger Paddles
Replaceable, bolt-on auger paddles are hardened and reach throughout the bucket to combine all material.
Remotely Operated Chute Door
Hydraulically controlled chute door allows material to be dispensed all from the cab of the host machine.
Bolt-On Serrated Step
Serrated step allows safe and ergonomic access to machine cab that is easily replaceable if damaged.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and mantenance guides required for proper operation of the work tool.
