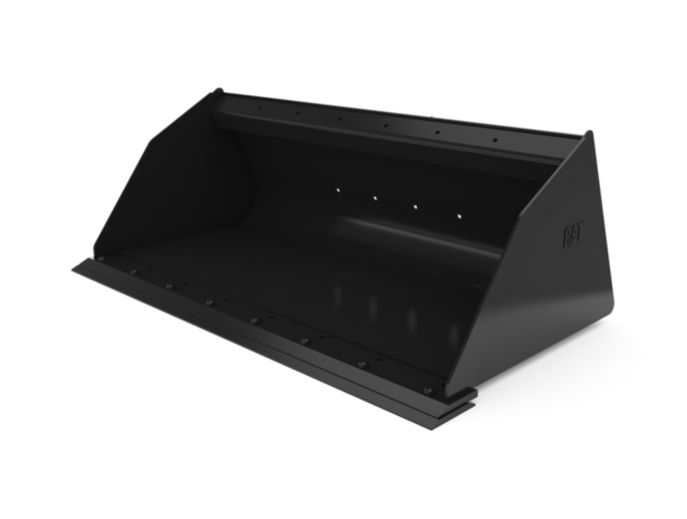

Buckets - Skid Steer Loader

1576 mm (62 in), Bolt-On Cutting Edge

Designed with a taller back height and longer floor length for lower density materials.

Overview

Cat® Utility Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed to grade, level and stockpile light materials, such as mulch, dry topsoil, livestock feed and waste.

UNITS:

Metric

Imperial

Width	1576 mm	62 in
Capacity	0.43 m³	0.56 yd³
Weight	240 kg	529 lb
Height	588 mm	23.1 in
Length	939 mm	37 in
Base Edge Thickness	19 mm	0.7 in
Cutting Edge Thickness	16 mm	0.6 in
Interface Type	Skid Steer Coupler	Skid Steer Coupler

Features

Diverse Applications

Designed for handling lower density materials such as mulch, dry topsoil, livestock feed and waste in agricultural and landscaping settings.

Material Retention

Longer floor length and taller back height provide excellent material retention.

Dual Angled Side Plates

Taller, dual angled side plates aid in the retention of loose, more flowing materials such as feed or fertilizer.

Hardened Edges

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Downloads

Cat® Buckets for Skid Steer Loaders and Compact Track Loaders Brochure Download
