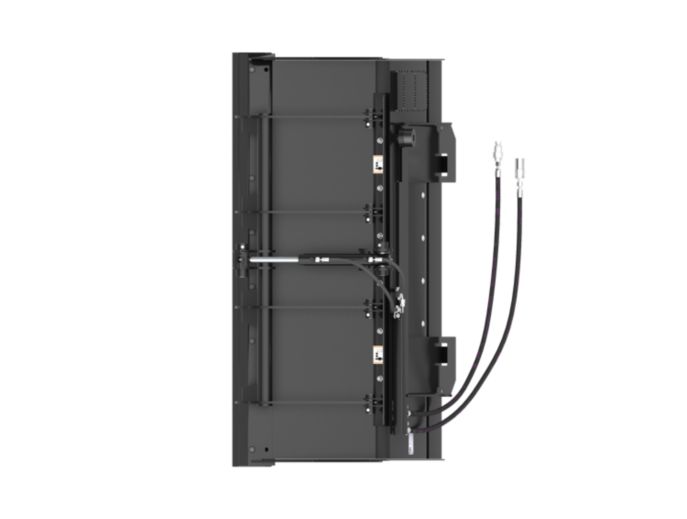

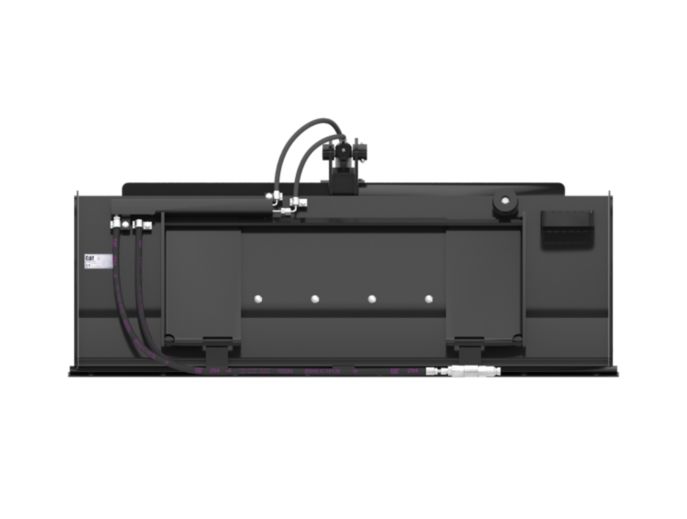

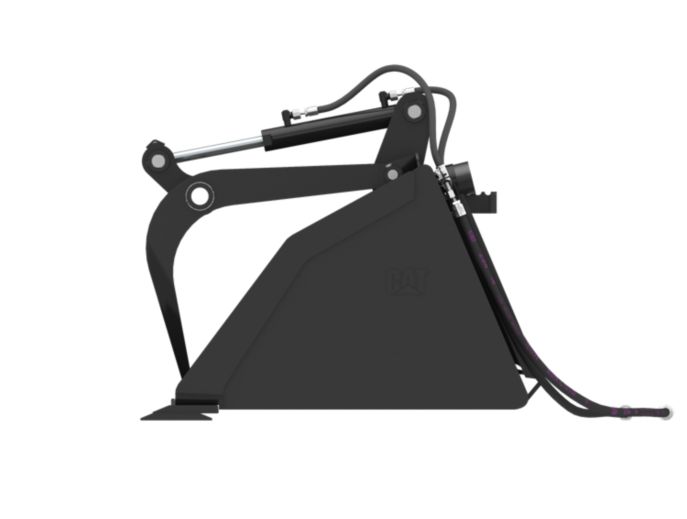

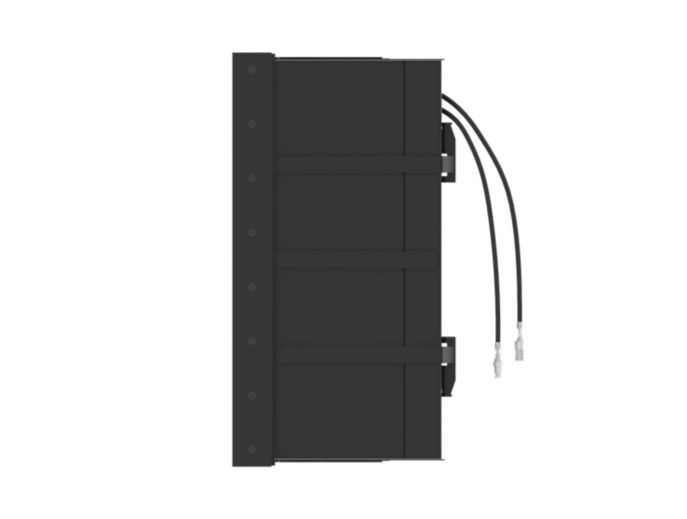

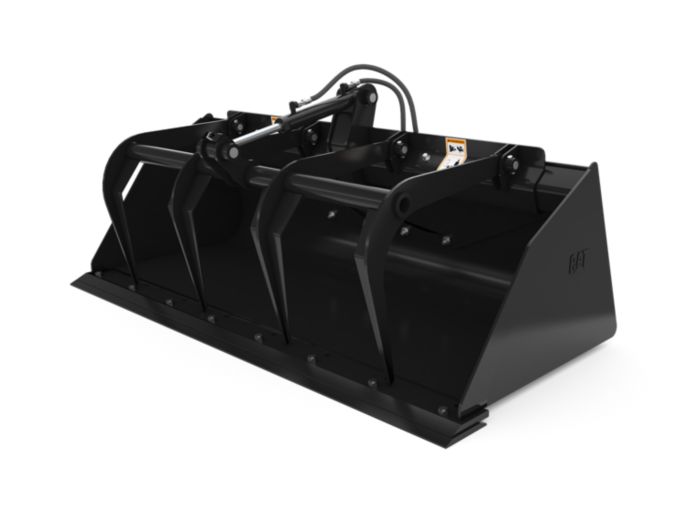

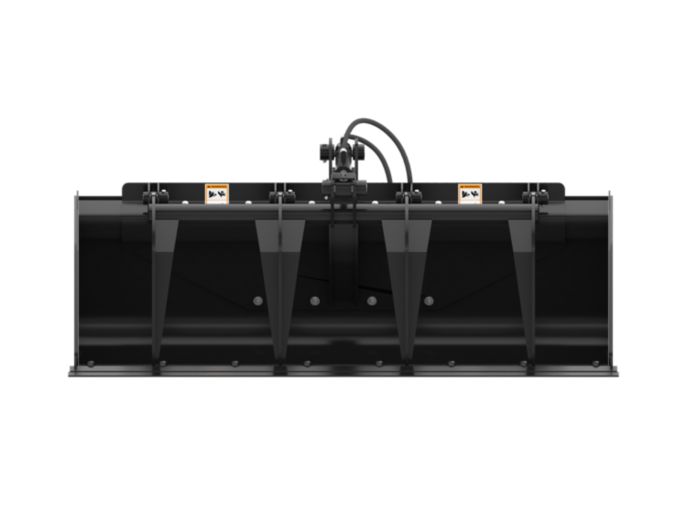

Buckets - Skid Steer Loader
1730 mm (68 in)
Designed to handle a wide array of materials in a variety of operating conditions.
Request a quote
Overview
Cat® Utility Grapple Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project. The light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.
UNITS:
Metric
Imperial
| Width | 1730 mm | 68.1 in |
| Height - Grapples Closed | 739 mm | 29.1 in |
| Jaw Opening | 902 mm | 35.5 in |
| Length | 934 mm | 36.8 in |
| Weight | 354 kg | 780.4 lb |
| Base Edge Thickness | 19 mm | 0.7 in |
| Cutting Edge Thickness | 16 mm | 0.6 in |
| Operating Pressure | 23000 kPa | 3335.9 psi |
| Capacity | 0.48 l | 0.63 ft³ |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Application
Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.
Light Duty Design
Light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.
Wide Jaw Opening
Wide vertical jaw opening allows for handling of large, bulky material.
Hardened Bucket Edge
Hardened bucket base edge provides excellent penetration and wear life.
Overview
Cat® Utility Grapple Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project. The light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.
UNITS:
Metric
Imperial
| Width | 1730 mm | 68.1 in |
| Height - Grapples Closed | 739 mm | 29.1 in |
| Jaw Opening | 902 mm | 35.5 in |
| Length | 934 mm | 36.8 in |
| Weight | 354 kg | 780.4 lb |
| Base Edge Thickness | 19 mm | 0.7 in |
| Cutting Edge Thickness | 16 mm | 0.6 in |
| Operating Pressure | 23000 kPa | 3335.9 psi |
| Capacity | 0.48 l | 0.63 ft³ |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Application
Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.
Light Duty Design
Light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.
Wide Jaw Opening
Wide vertical jaw opening allows for handling of large, bulky material.
Hardened Bucket Edge
Hardened bucket base edge provides excellent penetration and wear life.
