Compactors

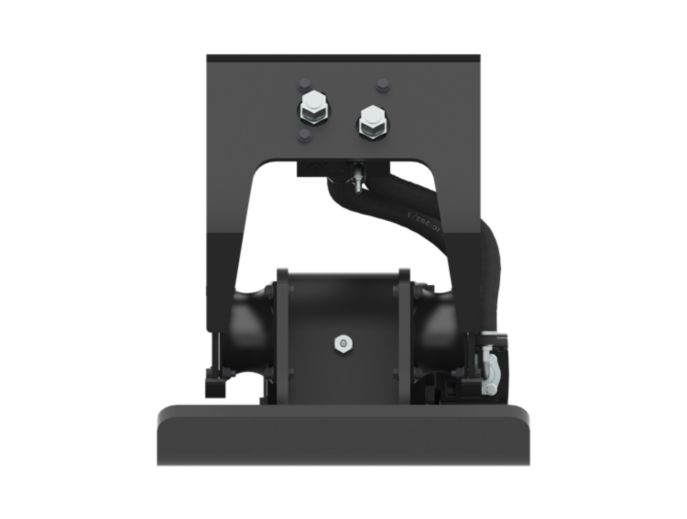

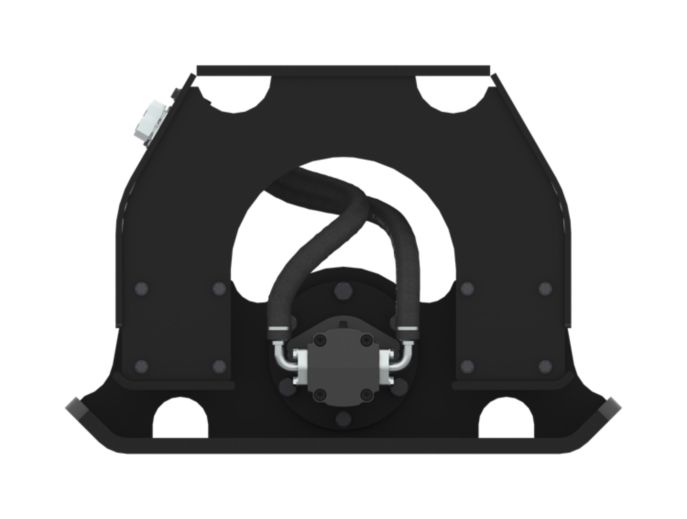

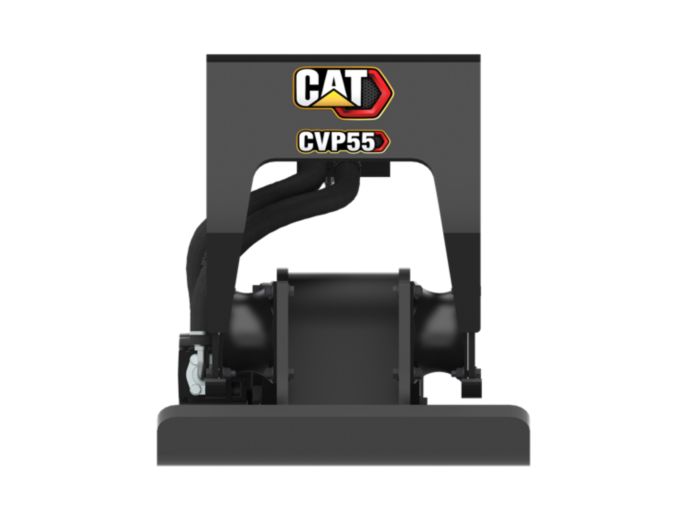

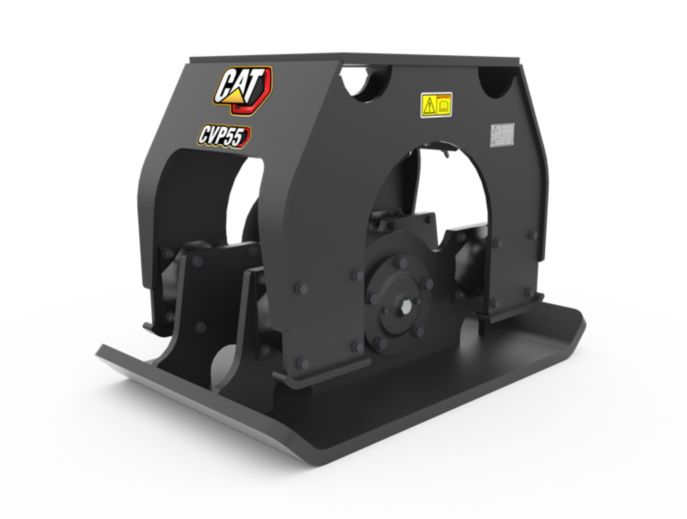

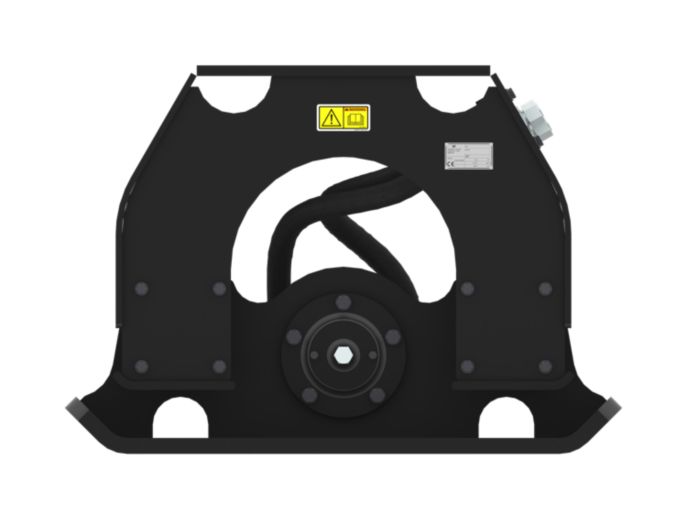

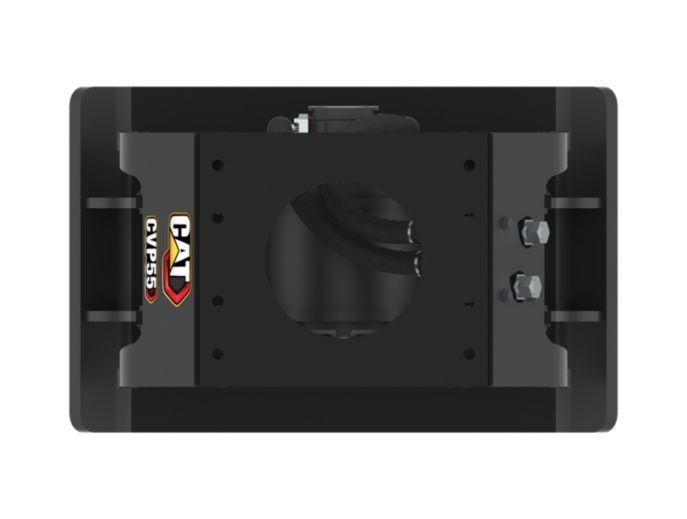

CVP55
Vibratory action and dynamic force provides excellent compaction in a compact size.
Request a quote
Overview

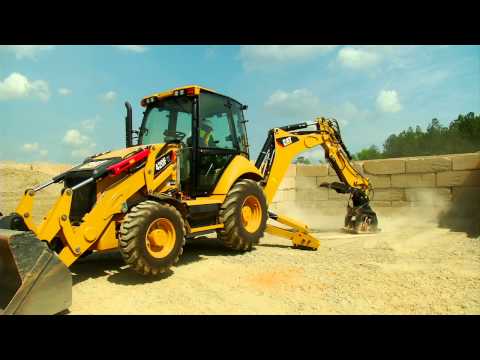

Cat® Vibratory Plate Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.
UNITS:
Metric
Imperial
| Impulse Force | 55 kN | 12364.5 lb |
| Impact Frequency | 2200 bpm | 2200 bpm |

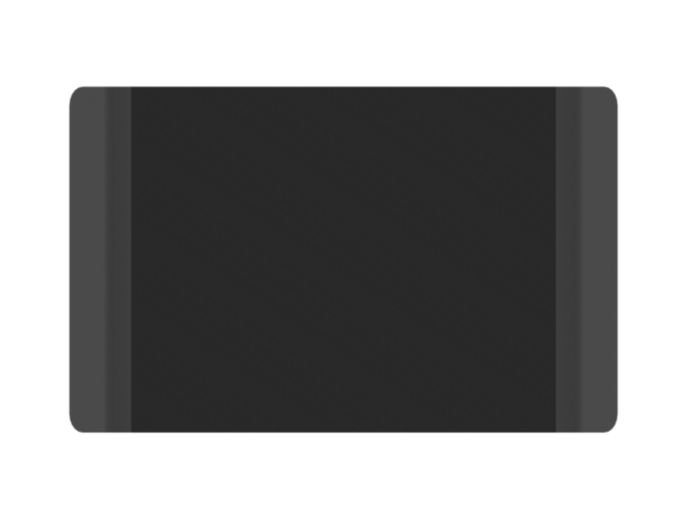

| Base Plate Width | 660 mm | 26 in |
| Compaction Area | 0.53 m² | 5.7 ft² |
| Base Plate Pressure | 102.7 kPa | 14.9 psi |
| Base Plate Length | 1046 mm | 41.2 in |
| Optimal Hydraulic Flow | 83-104 lpm (22-27 gpm) | 83-104 lpm (22-27 gpm) |
| Minimum Operating Pressure | 13000-17000 kPa (1900-2500 psi) | 13000-17000 kPa (1900-2500 psi) |
| Weight | 453 kg | 998.7 lb |
Features
Application
Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.
Superior Compaction Force
These units produce high-power impulses at a rate of 2200 impacts per minute driving soil particles close together for solid, stable compactions.
Common Mounting Solutions
Cat vibratory plate compactors share the same mounting solutions as the Cat B and H model Hammers. Mounting brackets are available for pin on, pin grabber, pin lock, CW, and S type connections.
Protected Hydraulics
Hydraulic hoses are protected inside the frame of the compactor. Jumper lines are routed out the back of the compactor. Hoses are out of the way – even in tight trenches.
Easy Maintenance
Oil changes are simplified with the rear centerline plug. Oil can be changed while the compactor is installed.
Rubber Isolators
A heavy-duty steel frame and solid rubber isolator bushings deliver the maximum amount of power to the ground while minimizing machine impact.

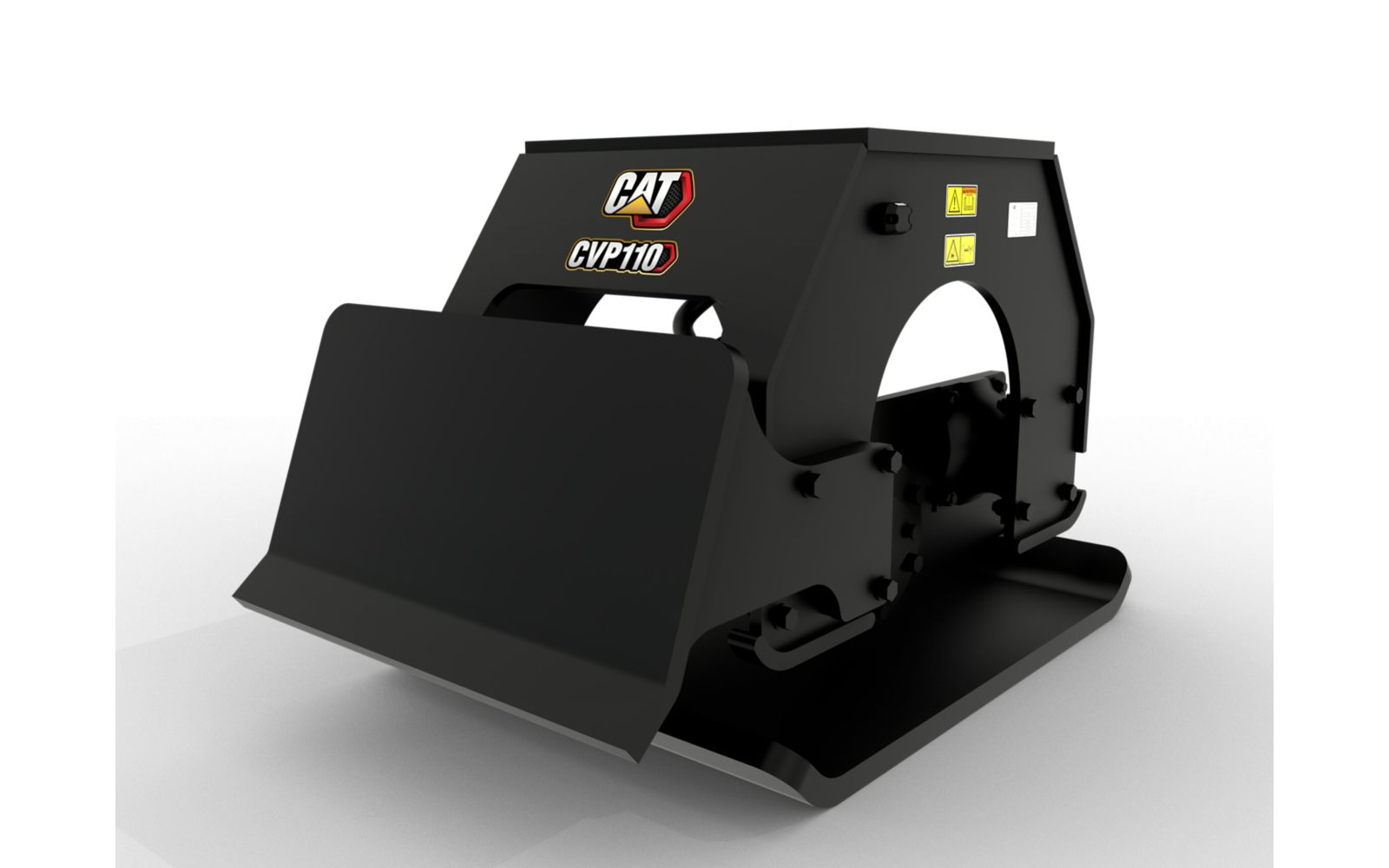

Optional Backfill Blade
An optional bolt-on backfill blade can be mounted on both front and back of the compactor.
Overview
Cat® Vibratory Plate Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.
UNITS:
Metric
Imperial
| Impulse Force | 55 kN | 12364.5 lb |
| Impact Frequency | 2200 bpm | 2200 bpm |
| Base Plate Width | 660 mm | 26 in |
| Compaction Area | 0.53 m² | 5.7 ft² |
| Base Plate Pressure | 102.7 kPa | 14.9 psi |
| Base Plate Length | 1046 mm | 41.2 in |
| Optimal Hydraulic Flow | 83-104 lpm (22-27 gpm) | 83-104 lpm (22-27 gpm) |
| Minimum Operating Pressure | 13000-17000 kPa (1900-2500 psi) | 13000-17000 kPa (1900-2500 psi) |
| Weight | 453 kg | 998.7 lb |
Features
Application
Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.
Superior Compaction Force
These units produce high-power impulses at a rate of 2200 impacts per minute driving soil particles close together for solid, stable compactions.
Common Mounting Solutions
Cat vibratory plate compactors share the same mounting solutions as the Cat B and H model Hammers. Mounting brackets are available for pin on, pin grabber, pin lock, CW, and S type connections.
Protected Hydraulics
Hydraulic hoses are protected inside the frame of the compactor. Jumper lines are routed out the back of the compactor. Hoses are out of the way – even in tight trenches.
Easy Maintenance
Oil changes are simplified with the rear centerline plug. Oil can be changed while the compactor is installed.
Rubber Isolators
A heavy-duty steel frame and solid rubber isolator bushings deliver the maximum amount of power to the ground while minimizing machine impact.
Optional Backfill Blade
An optional bolt-on backfill blade can be mounted on both front and back of the compactor.
