Couplers - Backhoe Rear
415-444 Backhoe Loaders Hydraulic
Increase machine versatility and improve overall production.
Request a quote
Overview

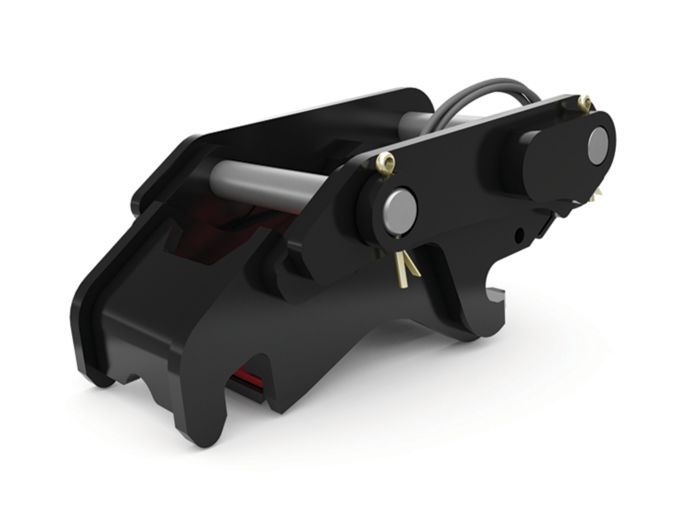

Cat® Dual Lock™ Pin Grabber Couplers allow work tools to be changed quickly - improving overall production and increasing machine versatility.
UNITS:
Metric
Imperial
| Weight | 91 kg | 200.6 lb |
| Width | 359 mm | 14.1 in |
| Length | 615 mm | 24.2 in |
| Overall Height | 276 mm | 10.9 in |
| Pin Diameter | 45/50 mm (1.8/2 in) | 45/50 mm (1.8/2 in) |
| Machine Class | 450 Backhoe Loaders | 450 Backhoe Loaders |
| Interface Type | Pin On | Pin On |
| Required Hydraulics | Dedicated Factory Installed | Dedicated Factory Installed |
Features
Hydraulic Cylinder Lock
Hydraulic cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.
Secondary Lock
The secondary lock is independent of the cylinder and ensures the connection of the attachment to the machine.
Visual Verification Tab
The visual verification tab allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Overview
Cat® Dual Lock™ Pin Grabber Couplers allow work tools to be changed quickly - improving overall production and increasing machine versatility.
UNITS:
Metric
Imperial
| Weight | 91 kg | 200.6 lb |
| Width | 359 mm | 14.1 in |
| Length | 615 mm | 24.2 in |
| Overall Height | 276 mm | 10.9 in |
| Pin Diameter | 45/50 mm (1.8/2 in) | 45/50 mm (1.8/2 in) |
| Machine Class | 450 Backhoe Loaders | 450 Backhoe Loaders |
| Interface Type | Pin On | Pin On |
| Required Hydraulics | Dedicated Factory Installed | Dedicated Factory Installed |
Features
Hydraulic Cylinder Lock
Hydraulic cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.
Secondary Lock
The secondary lock is independent of the cylinder and ensures the connection of the attachment to the machine.
Visual Verification Tab
The visual verification tab allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
