Forks
2134 mm (84 in)
For use in heavy duty applications where standard pallet fork carriages may not be suitable.
Request a quote
Overview

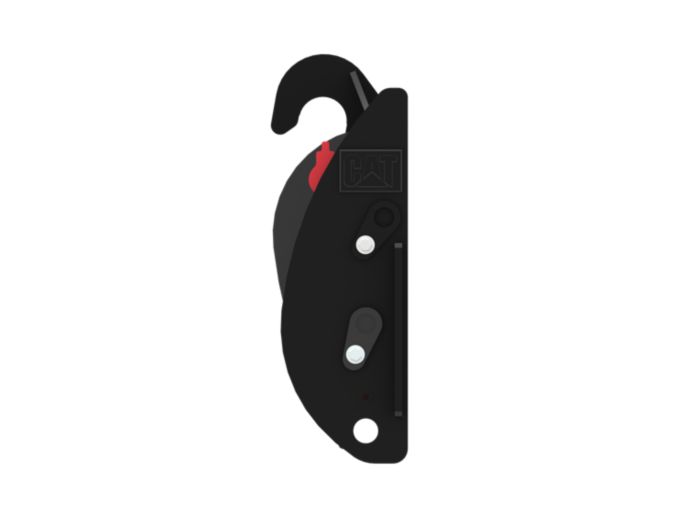

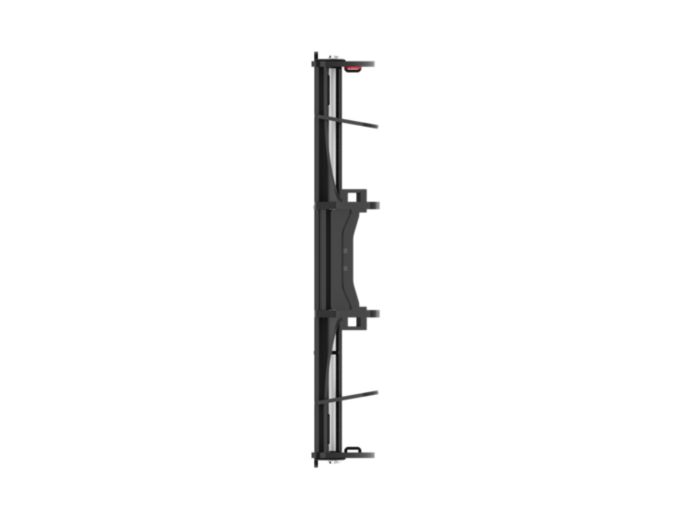

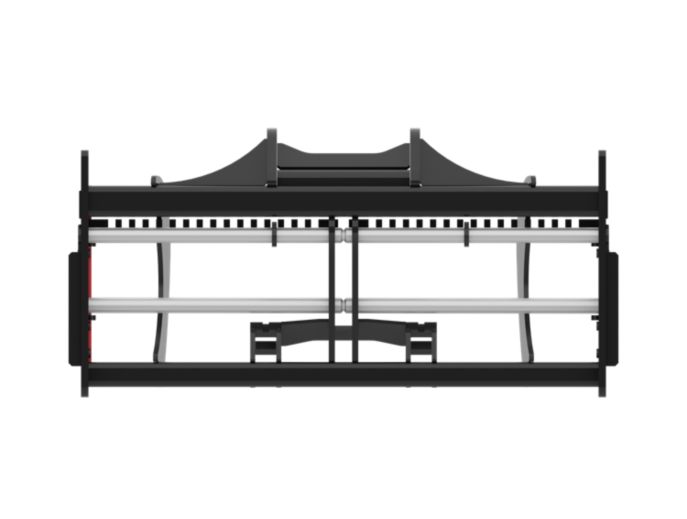

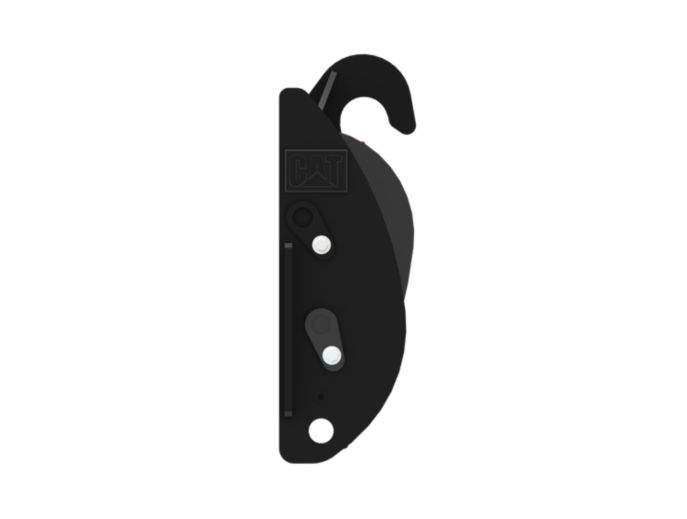

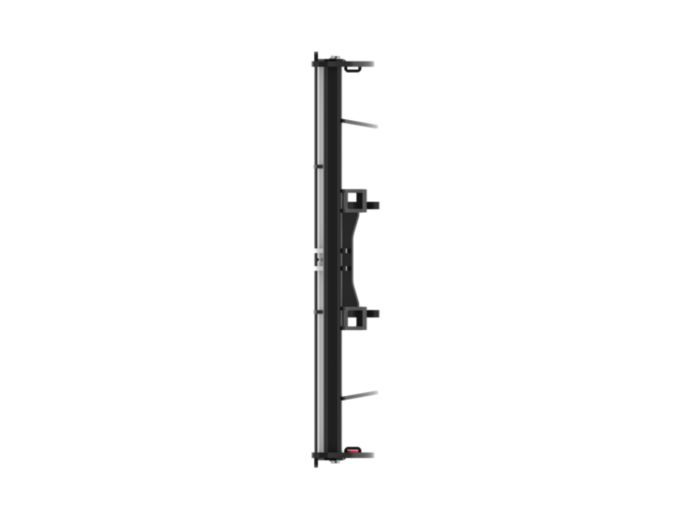

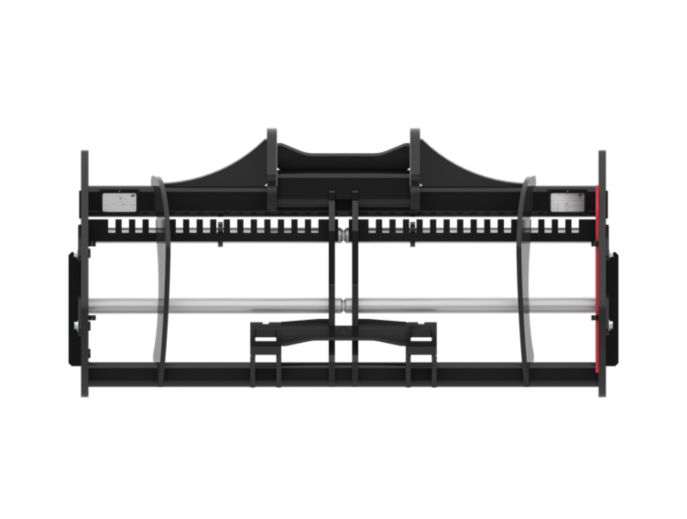

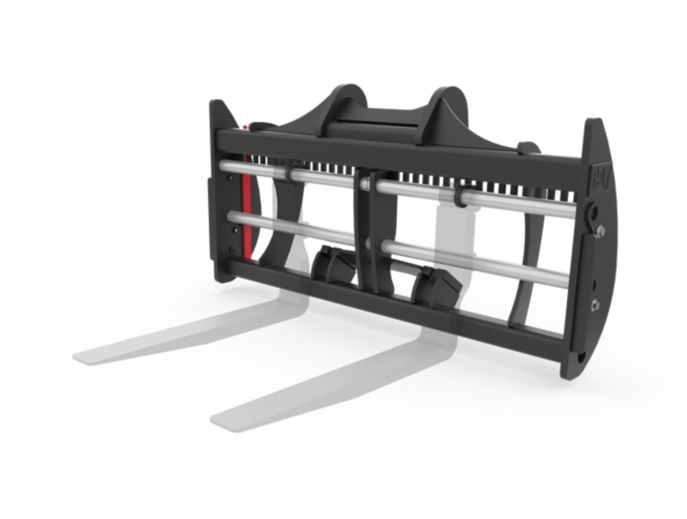

Cat® Construction Fork Carriages for Small Wheel Loaders are wider than pallet fork carriages and are designed for heavy duty applications. Fork tines can be configured to allow tines to either swing or stay in a fixed position.
UNITS:
Metric
Imperial
| Height | 1095 mm | 43.1 in |
| Width | 2134 mm | 84 in |
| Tine Spacing | 270-1924 mm (10.6-76 in) centerline to centerline | 270-1924 mm (10.6-76 in) centerline to centerline |
| Weight | 521 kg | 1148.6 lb |
| Length | 366 mm | 14.4 in |
| Interface Type | Fusion™ Coupler | Fusion™ Coupler |
Features
Heavy Duty Design and High Backs
This heavy duty carriage was specially designed to deliver performance at construction sites, moving palletized and large materials around. The high backs and good visibility through the frame make it happen.
Swinging Forks Capability
In some operations, swinging forks helps to pick materials out of the ground. This carriage offers this option by just removing the lower bar and placing at the special storage located at the bottom of the carriage.
Adjustable Fork Positions
Adjust the fork position a total of 855 mm (33.7 in) from one side to the other with increments of 55 mm (2.2 in) and lock them to prevent non-expected movements.
Positioning Lever
Use the included red lever located at the right rear storage area to move your forks with safety and convenience.
