Forks
1348 mm (53 in)
Heavy duty fork carriages are used for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.
Request a quote
Overview

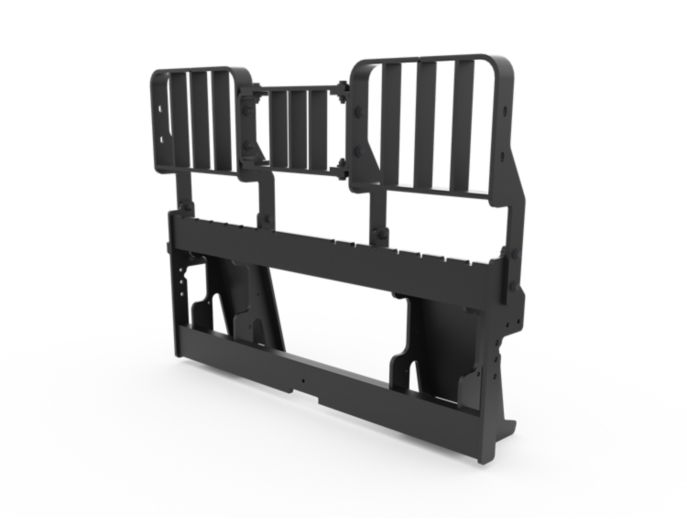

Cat® Heavy Duty Fork Carriages for are designed to meet a wide variety of material handling needs that are above what standard duty fork carriages can handle. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
UNITS:
Metric
Imperial
| Height | 1009 mm | 39.7 in |
| Width | 1348 mm | 53 in |
| Overall Width | 1442 mm | 56.8 in |
| Weight | 192 kg | 423.3 lb |
| Length | 333 mm | 13.1 in |
| Tine Spacing | 250-1172 mm (10-46 in) centerline to centerline | 250-1172 mm (10-46 in) centerline to centerline |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Heavy Duty Backrest
Reinforced backrest designed to retain large, heavy, or bulky loads.Removable Center Section
This section can be removed to allow the operator to enter and exit through the frame and to allow additional clearance on the compact wheel loader linkage.Removable Backrest
Backrest can be completely removed when not needed for low profile loads.Bolt-on Serrated Step
Serrated step provides safe access in and out of cab for operator's safety.Visual Class Indicator
The three vertical bar design is a clear indicator that the carriage is a class 3 fork carriage. Alternatively, the class 2 heavy duty for carriages have a two bar design.Overview
Cat® Heavy Duty Fork Carriages for are designed to meet a wide variety of material handling needs that are above what standard duty fork carriages can handle. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
UNITS:
Metric
Imperial
| Height | 1009 mm | 39.7 in |
| Width | 1348 mm | 53 in |
| Overall Width | 1442 mm | 56.8 in |
| Weight | 192 kg | 423.3 lb |
| Length | 333 mm | 13.1 in |
| Tine Spacing | 250-1172 mm (10-46 in) centerline to centerline | 250-1172 mm (10-46 in) centerline to centerline |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Heavy Duty Backrest
Reinforced backrest designed to retain large, heavy, or bulky loads.Removable Center Section
This section can be removed to allow the operator to enter and exit through the frame and to allow additional clearance on the compact wheel loader linkage.Removable Backrest
Backrest can be completely removed when not needed for low profile loads.Bolt-on Serrated Step
Serrated step provides safe access in and out of cab for operator's safety.Visual Class Indicator
The three vertical bar design is a clear indicator that the carriage is a class 3 fork carriage. Alternatively, the class 2 heavy duty for carriages have a two bar design.Related Products
