Forks

1219 mm (48 in), Pin On

Stack, carry and sort piles of lumber.

Specifications
Features

Overview

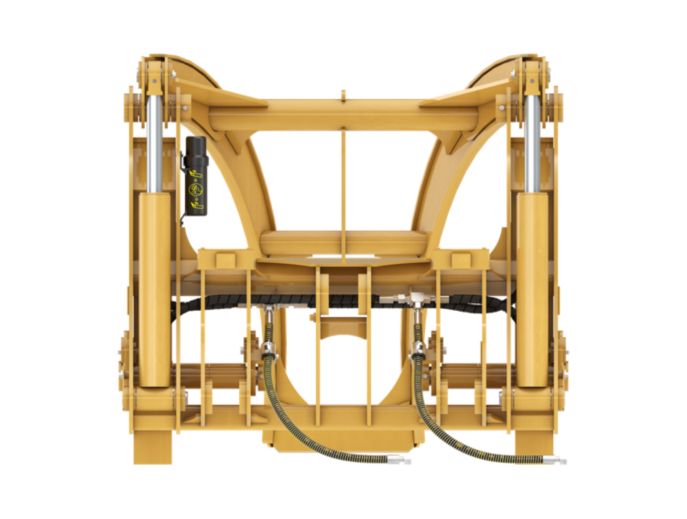

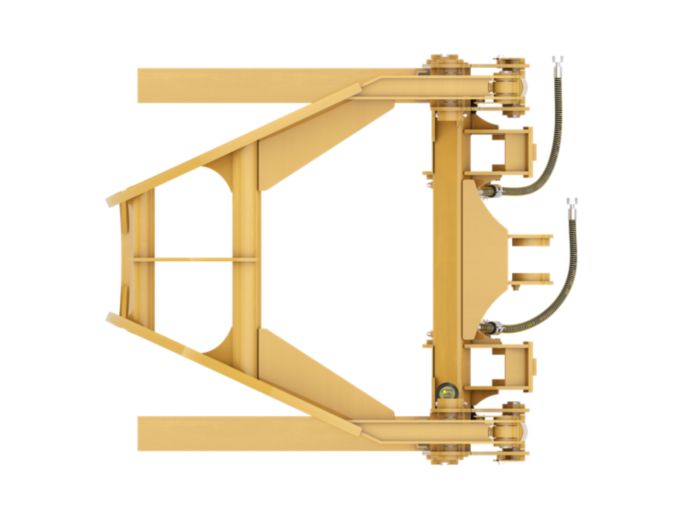

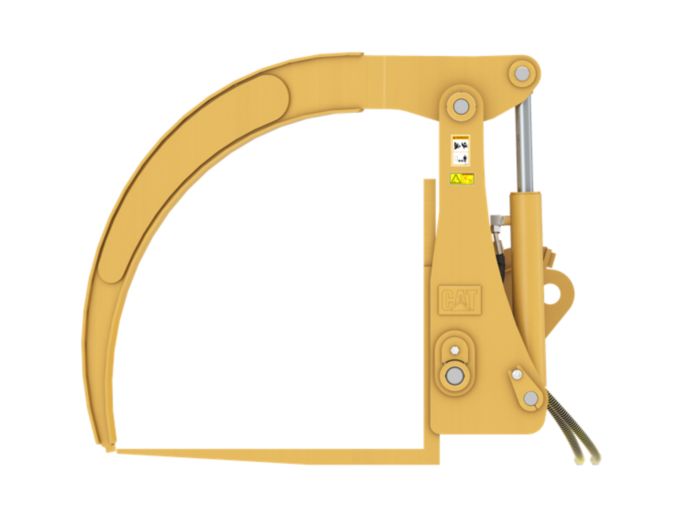

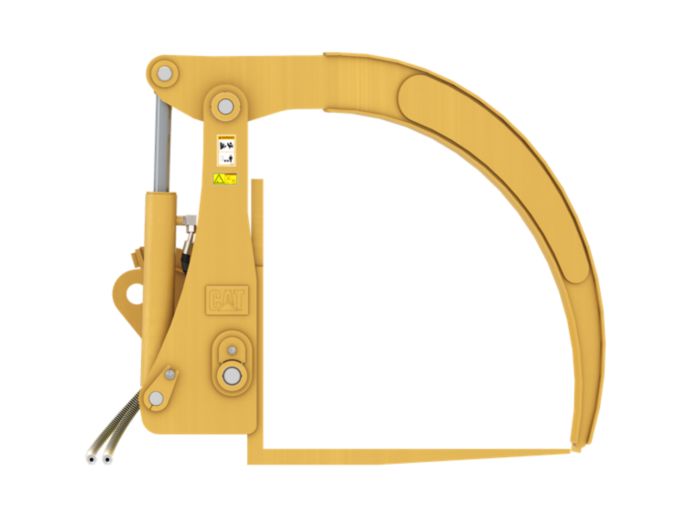

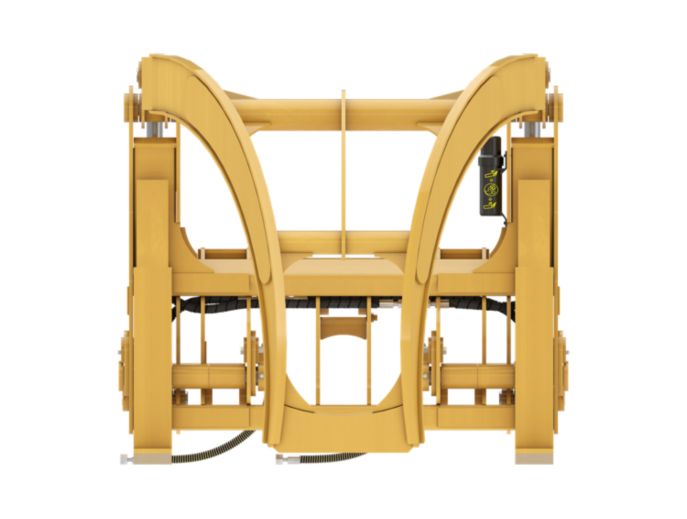

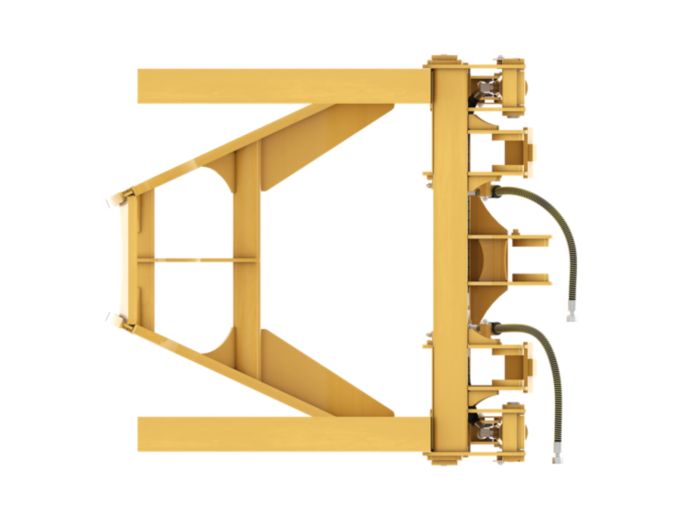

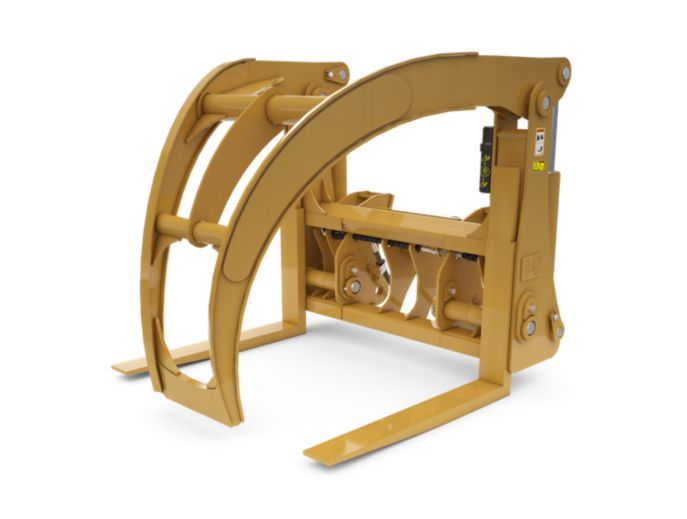

The Cat® Semi Millyard Forks for Small Wheel Loaders are designed to efficiently load and unload from trucks, capably sort pole and decking materials, effectively feed sawmills as well as handle other long or bulky material.

UNITS:

Metric

Imperial

Width	1778 mm	70 in
Tine Spacing - Maximum Width	1670 mm	65.7 in
Tine Spacing - Minimum Width	1210 mm	47.6 in
Tine Length	1219 mm	48 in
Tine Width	152 mm	6 in
Maximum Clamp Opening	2510 mm	98.8 in
Minimum Clamp Opening	152 mm	6 in
Weight	1578 kg	3478.9 lb
Interface Type	Pin On	Pin On

Features

Application

Efficiently unload and load from trucks, capably sort pole and decking inventory in the yard, effectively feed sawmills and handle other long or bulky material.

90 Degree Flat Back Tines

90 degree flat back tines allows for carrying palletized lumber and other items as well as loose logs.

Adjustable Tine Spacing

Adjustable tines can be configured to 9 different spacing setups, allowing for complete flexibility to your particular applications.

Narrow Top Clamp

Narrow top clamp is designed to close between the tines, which would allow the operator to clamp tightly on a single log.

Floating/Non-Floating Tines

Floating/non-floating tines are adjustable to 3 different spacing configurations, and can be locked, or setup to float.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, holder includes all operation manuals and maintenance guides required for proper operation of the work tool.
