Overview

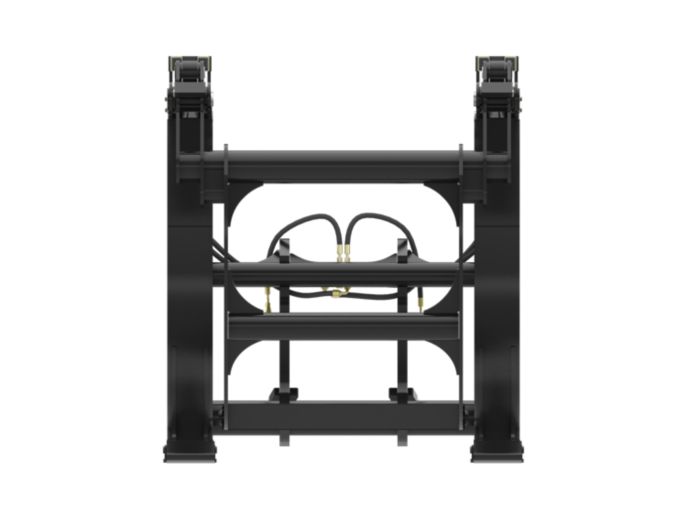

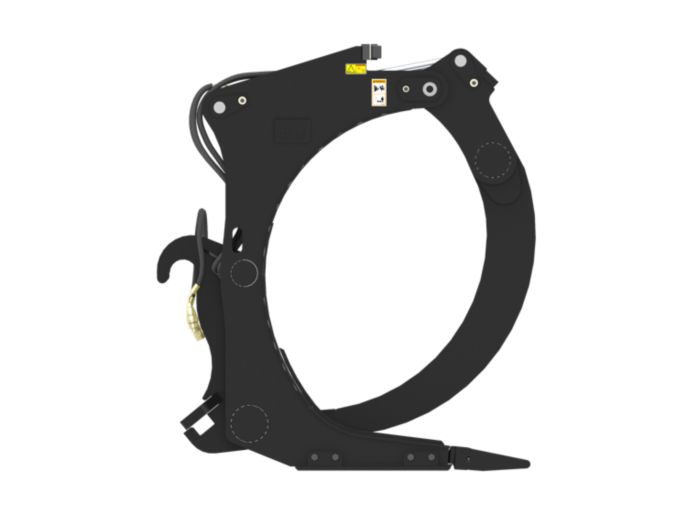

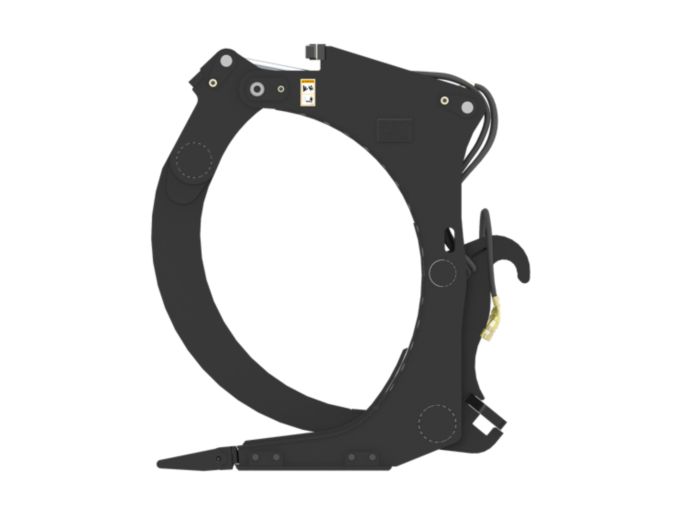

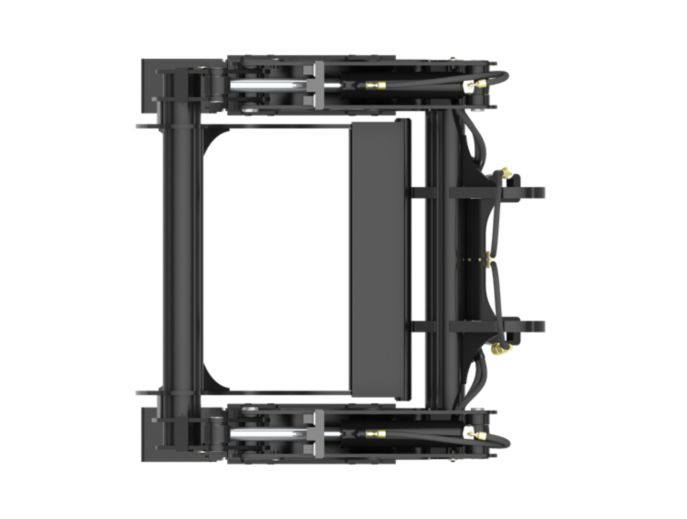

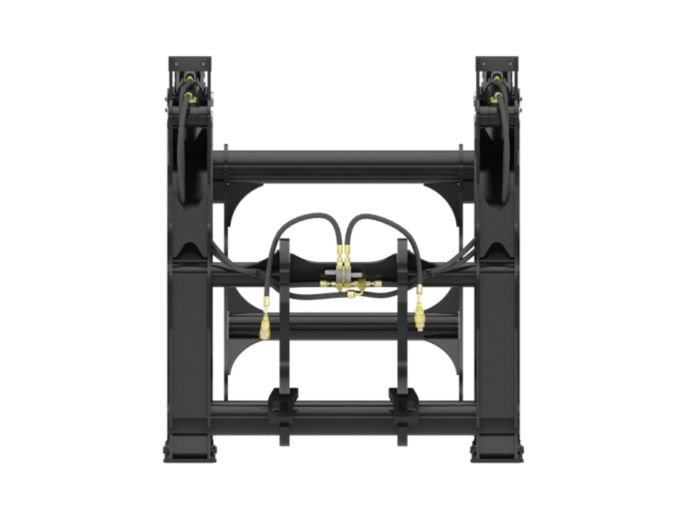

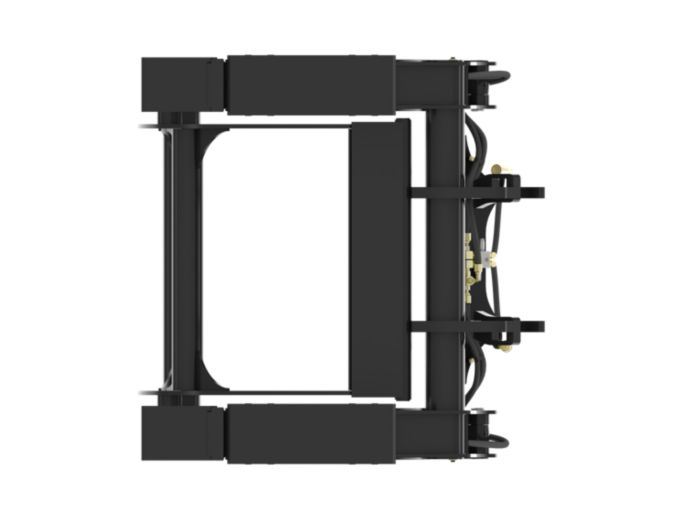

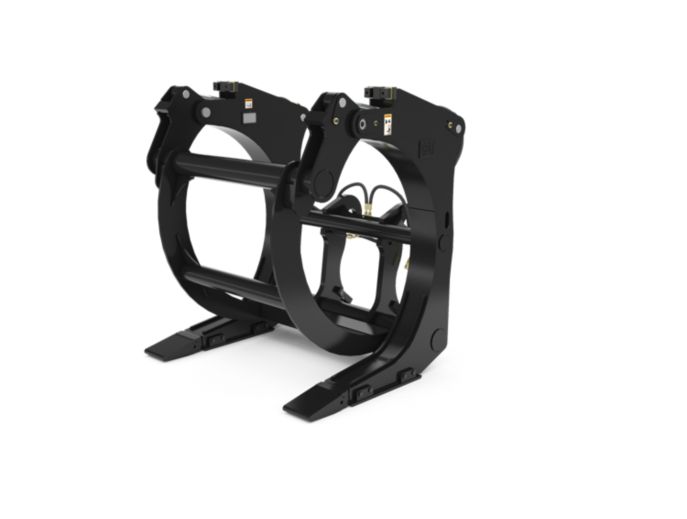

The Cat® Sorting Grapple Forks for Small Wheel Loaders are designed for numerous applications in log and lumber handling. Moving logs from stack piles for further processing or unloading trucks the Sorting Grapple Forks are built to perform. With adjustable clamp pressure and bolt-wear plates the Sorting Grapple Forks are adjustable to meet the operator’s preferences while reducing owning and operating cost.
UNITS:
Metric
Imperial
| Width | 1812 mm | 71.3 in |
| Tine Length | 1269 mm | 50 in |
| Grapple Area | 1.91 m² | 20.6 ft² |
| Grapple Height | 2606 mm | 102.6 in |
| Grapple Weight | 1751 kg | 3860.3 lb |
| Interface Type | Fusion™ Coupler | Fusion™ Coupler |
| Operating Weight | 15046 kg | 33170.7 lb |
Features
Application
Designed and built for log and lumber and is primarily used for moving logs from stack piles for further processing.Lumber-Handling Performance
Purpose-built for use in log and lumber applications, the Sorting Grapple Fork is equipped with a large clamp creating a 21 square foot opening for material.Pressure Regulated Clamping Force
Integrated pressure regulator provides the ability to adjust clamping force, minimizing the potential to damage material being carried.Short Tines
Specifically designed to slide under log piles and roll them into the grapple. Short tines allow for precise control when loading the grapple with logs.Replaceable Wear Strips
Bolt-on wear strips on the underside of the grapple are easily replaced at regular service intervals avoiding additional welding.User-Configurable
Various available fork tips allow the Sorting Grapple to be configured to machine and operation.Overview
