Forks
1829 mm (72 in)

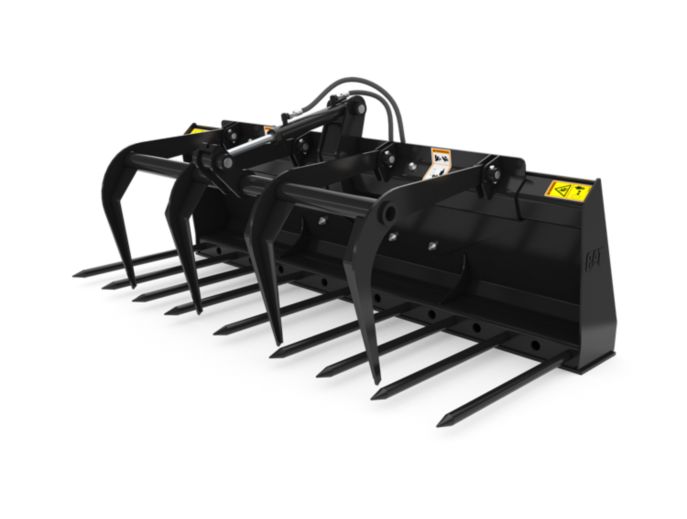

Cat® Utility Grapple Forks are designed to handle a wide variety of materials in a variety of operating conditions.
Request a quote
Overview
Cat® Utility Grapple Forks for Cat Skid Steer Loaders and Compact Track Loaders are designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project. The light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch, pine straw and pierceable objects. NOTE: Utility grapple forks are not designed for piercing and carrying large, round bales.
UNITS:
Metric
Imperial
| Width | 1829 mm | 72 in |
| Height - Grapples Closed | 770 mm | 30.3 in |
| Jaw Opening | 876 mm | 34.5 in |
| Length | 939 mm | 37 in |
| Usable Tine Length | 637 mm | 25.1 in |
| Weight | 326 kg | 718.7 lb |
| Tine Diameter | 31.75 mm | 1.3 in |
| Number of Tines | 9 | 9 |
| Tine Width | 31.75 mm | 1.3 in |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Application
Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.
Light-duty Design
Light-duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.
Wide Jaw Opening
Wide vertical jaw opening allows for handling of bulky material.
Excellent Clamping
Heavy Duty grapple allow for clamping and grasping of odd shaped materials. Single grapple with wide clamp will grasp non uniform materials such as logs, rocks, and hay.
Not Designed for Large, Round Bales
NOTE: Utility Grapple Forks are not designed for piercing and carrying large, round bales.
Overview
Cat® Utility Grapple Forks for Cat Skid Steer Loaders and Compact Track Loaders are designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project. The light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch, pine straw and pierceable objects. NOTE: Utility grapple forks are not designed for piercing and carrying large, round bales.
UNITS:
Metric
Imperial
| Width | 1829 mm | 72 in |
| Height - Grapples Closed | 770 mm | 30.3 in |
| Jaw Opening | 876 mm | 34.5 in |
| Length | 939 mm | 37 in |
| Usable Tine Length | 637 mm | 25.1 in |
| Weight | 326 kg | 718.7 lb |
| Tine Diameter | 31.75 mm | 1.3 in |
| Number of Tines | 9 | 9 |
| Tine Width | 31.75 mm | 1.3 in |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Application
Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.
Light-duty Design
Light-duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.
Wide Jaw Opening
Wide vertical jaw opening allows for handling of bulky material.
Excellent Clamping
Heavy Duty grapple allow for clamping and grasping of odd shaped materials. Single grapple with wide clamp will grasp non uniform materials such as logs, rocks, and hay.
Not Designed for Large, Round Bales
NOTE: Utility Grapple Forks are not designed for piercing and carrying large, round bales.
