Grapples

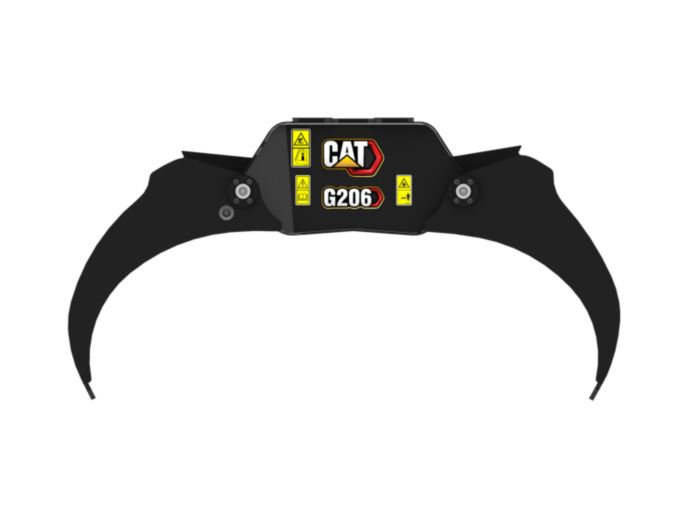

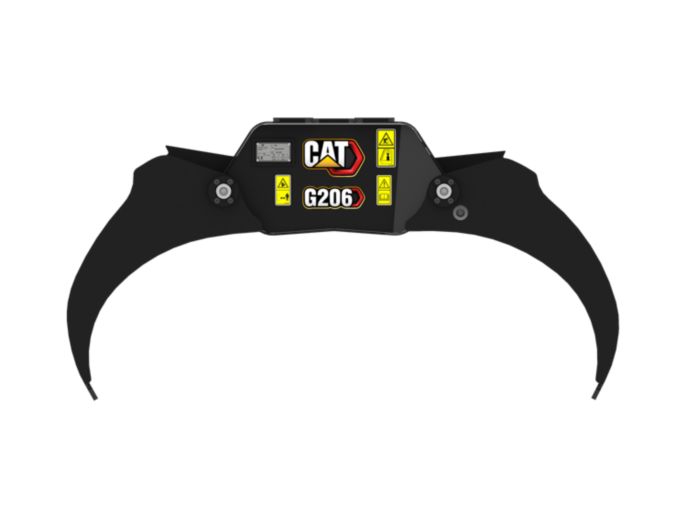

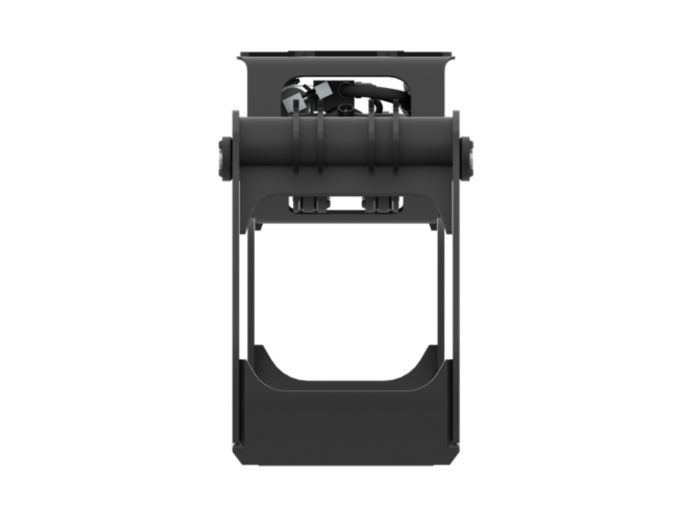

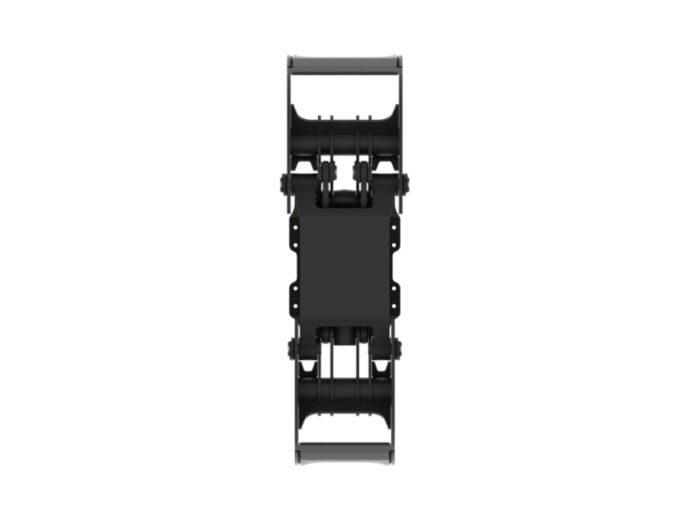

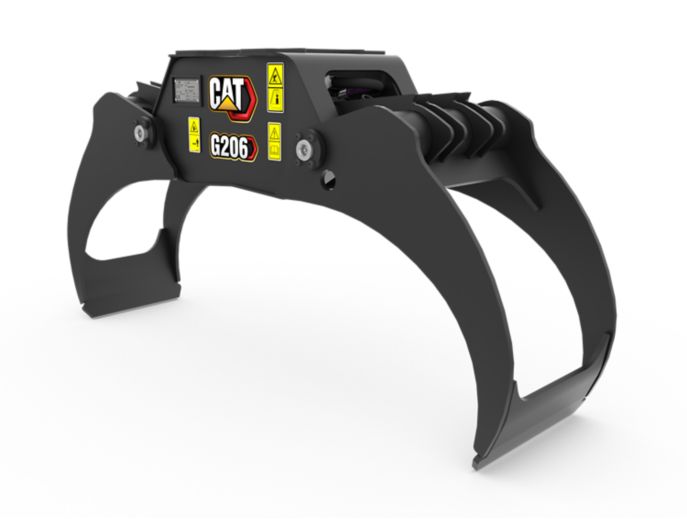

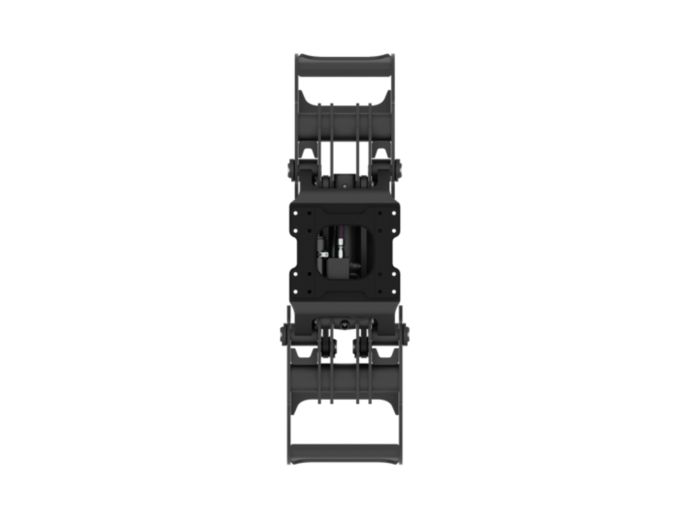

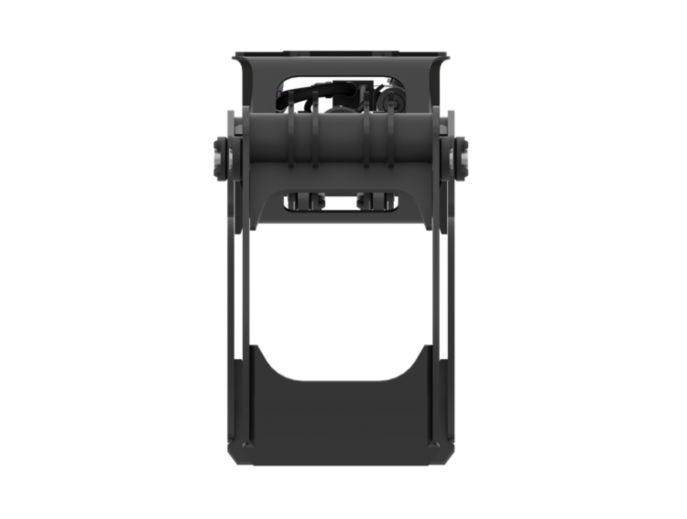

G206
Works best in material handling applications where irregular surface materials are used.
Request a quote
Overview
Cat® Multi-Purpose Grapples are designed to allow maximum maneuverability with Cat Tiltrotators. The integrated bracket has a minimal offset to optimize the performance of thegrapplefunctionality. The Multi-Purpose Grapple works best in material handling applications where irregular surface materials are used, such as concrete pipe, curbs, trees, brush and other hardscape used in landscaping.
UNITS:
Metric
Imperial
| Grapple Area | 0.2 m² | 2.2 ft² |
| Weight | 182 kg | 401.2 lb |
| Machine Class | 5-6 Ton Mini Excavators | 5-6 Ton Mini Excavators |
| Maximum Jaw Opening | 1290 mm | 50.8 in |
| Overall Width (Jaws Open) | 1445 mm | 56.9 in |
| Overall Width (Jaws Closed) | 784 mm | 30.9 in |
| Overall Height (Jaws Open) | 740 mm | 29.1 in |
| Overall Height (Jaws Closed) | 513 mm | 20.2 in |
| Overall Depth | 465 mm | 18.3 in |
| Minimum Grip Diameter | 78 mm | 3.1 in |
| Wear Plate Thickness | 12 mm | 0.5 in |
| Arm Depth (Outer) | 405 mm | 15.9 in |
| Arm Depth (Inner) | 351 mm | 13.8 in |
| Interface Type | Tool Interface | Tool Interface |
| Required Hydraulics | Tiltrotator Auxiliary | Tiltrotator Auxiliary |
| Edge Material | AR500/HB500 | AR500/HB500 |
| Maximum Closing Force | 14.5 kN | 3259.7 ft·lbf |
| Maximum Load Rating | 3000 kg | 6613.9 lb |
Features
Integrated Bracket
Integrated bracket specifically designed for the hydraulic TRS attachments to ensure load forces are always evenly distributed providing a smoother operation.
Integrated Cylinder Load Holding Valve
Load holding valve maintains grapple closing pressure with zero leakage.
Integrated Jumper Lines
Higher and shorter routing offers superior protection against damage, dirt and debris.
Hard Mounted Piston Accumulator
Hard mounted piston accumulator reduces potential leaks and decreases hydraulic response time.
Double Connecting Rods
Double connecting rods provide optimal open and close force guidance on both sides of the cylinder.
Pins and Bushings
Integrated pin joint lip seals keep grease in and dirt out.
High Strength Steel Grapple Arms
Arms hardened to AR450 and edges hardened to AR500/HB500 standards provide higher strength and longer wear in rough conditions.
Torque Tube
Grapple arm paddle design has an integrated torque tube with 360 degrees welded connection from grapple arms and cylinder hinge plate. This helps to more evenly distribute load forces throughout the structure.
Double Mechanical Stops
Double mechanical stops prevent over closing and help ensure optimal functionality.
Welded Box Structure
Welded box structure supports pivot points which help to avoid any bending/twisting torques in the radial direction. Box structure also increases the reliability of hydraulic components as they are protected in a closed-in box housing, with access panels on both sides.
Grapple Stability
Remains stable and vertical, allowing operator to quickly engage or disengage a TRS bottom side quick coupler for ease of picking up the multi purpose grapple.
Optimal TRS6 Matching
The G206 multi-purpose grapple was designed to function optimally when paired with the TRS6 using the TRS bracket system.
