Hammers

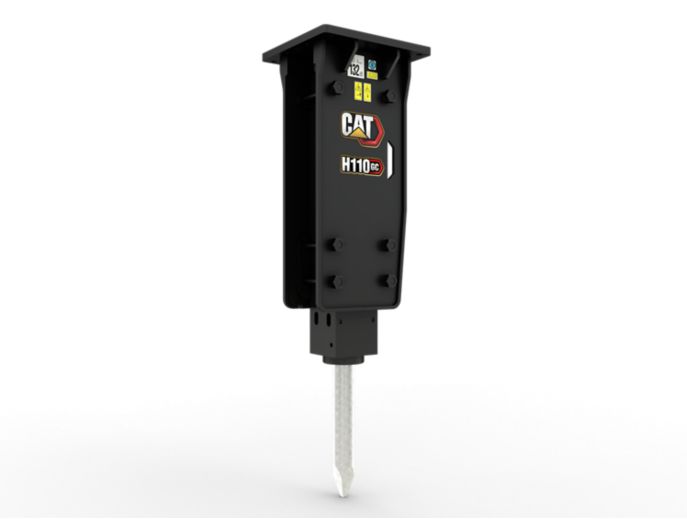

H110 GC
Cat® GC Hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat GC Hammers help increase overall productivity and reduce maintenance costs. Cat GC Hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
Request a quote
Overview
Cat® GC Hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat GC Hammers help increase overall productivity and reduce maintenance costs. Cat GC Hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
UNITS:
Metric
Imperial
| Blows per Minute | 350 to 700 | 350 to 700 |
| Minimum Operating Weight | 917 kg | 2022 lb |
| Minimum Rated Flow | 80 l/min | 21 gal/min |
| Maximum Rated Flow | 100 l/min | 26 gal/min |
| Minimum Operating Pressure | 14700 kPa | 2132 psi |
| Maximum Operating Pressure | 16600 kPa | 2408 psi |
| Tool Shaft Diameter | 100 mm | 3.9 in |
| Minimum Carrier Weight | 10 t | 22046 lb |
| Maximum Carrier Weight | 18 t | 39680 lb |
Features
High Performance
- The large hammer tool diameter has high impact power to help break tough rock and concrete applications on the job site.
- Cat GC Hammers are designed with high impact power and fast impact frequency to help break through material quickly to increase efficiency and production.
- Cat GC Hammers are fully tested and validated with matched machines, resulting in better performance and compatibility.
Easy to Maintain
- The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.

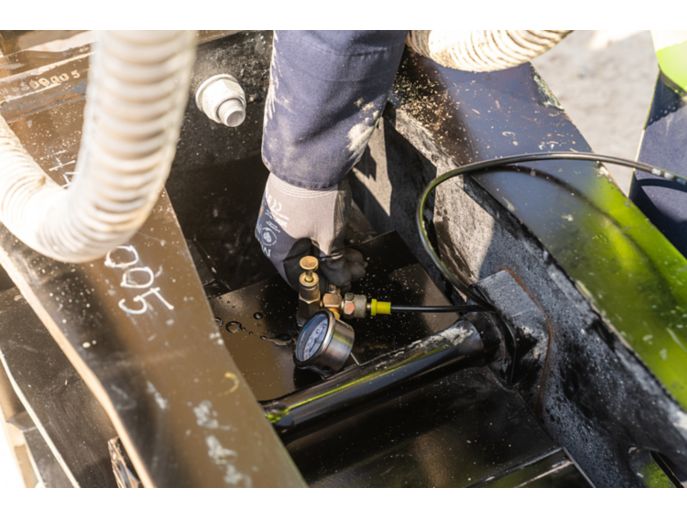

- Daily tool inspection and grease points are accessible from the ground with the hammer still mounted on the machine.
- Reinforced connecting hardware and easy bolt tightening processes help provide strong, durable joints and extend hammer life.
Reliability and Durability
- Power cells are made with high-quality alloy steel and two-stage heat treatment to help increase durability and lower service costs.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
- The Cat hammer lines kit with independent return oil routing helps prevent contamination of the main hydraulic system.
Overview
Cat® GC Hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat GC Hammers help increase overall productivity and reduce maintenance costs. Cat GC Hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
UNITS:
Metric
Imperial
| Blows per Minute | 350 to 700 | 350 to 700 |
| Minimum Operating Weight | 917 kg | 2022 lb |
| Minimum Rated Flow | 80 l/min | 21 gal/min |
| Maximum Rated Flow | 100 l/min | 26 gal/min |
| Minimum Operating Pressure | 14700 kPa | 2132 psi |
| Maximum Operating Pressure | 16600 kPa | 2408 psi |
| Tool Shaft Diameter | 100 mm | 3.9 in |
| Minimum Carrier Weight | 10 t | 22046 lb |
| Maximum Carrier Weight | 18 t | 39680 lb |
Features
High Performance
- The large hammer tool diameter has high impact power to help break tough rock and concrete applications on the job site.
- Cat GC Hammers are designed with high impact power and fast impact frequency to help break through material quickly to increase efficiency and production.
- Cat GC Hammers are fully tested and validated with matched machines, resulting in better performance and compatibility.
Easy to Maintain
- The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.
- Daily tool inspection and grease points are accessible from the ground with the hammer still mounted on the machine.
- Reinforced connecting hardware and easy bolt tightening processes help provide strong, durable joints and extend hammer life.
Reliability and Durability
- Power cells are made with high-quality alloy steel and two-stage heat treatment to help increase durability and lower service costs.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
- The Cat hammer lines kit with independent return oil routing helps prevent contamination of the main hydraulic system.
