Hammers

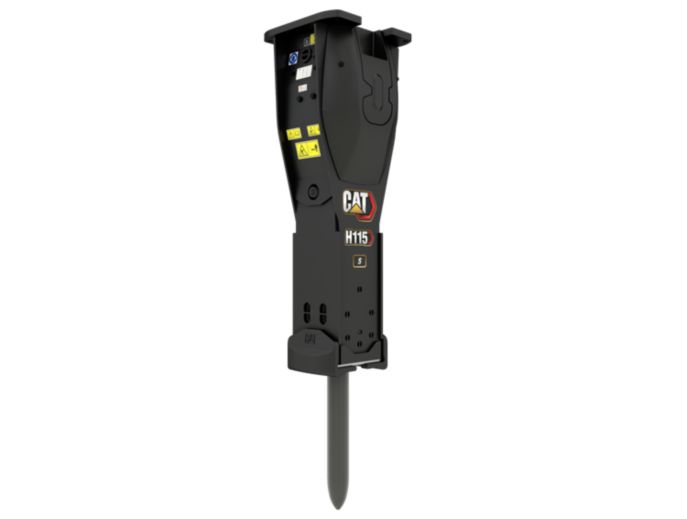

H115 S
Cat® H115 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H115 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H115 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
Request a quote
Overview
Cat® H115 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H115 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H115 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
UNITS:
Metric
Imperial
| Blows per Minute | 370 to 800 | 370 to 800 |
| Minimum Operating Weight | 1070 kg | 2354 lb |
| Rated Flow - Minimum | 70 l/min | 19 gal/min |
| Rated Flow - Maximum | 130 l/min | 34 gal/min |
| Minimum Operating Pressure | 13000 kPa | 1885 psi |
| Maximum Operating Pressure | 15000 kPa | 2175 psi |
| Tool Shaft Diameter | 110 mm | 4.3 in |
| Minimum Carrier Weight | 12 t | 26500 lb |
| Maximum Carrier Weight | 20 t | 44100 lb |
Features
High Performance
- Automatic shut off offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.
- The internal buffering system helps reduce machine vibration and increase noise suppression.
- The standard silencing feature allows you to use a Performance hammer on job sites in noise-sensitive areas like neighborhoods or near hospitals where noise is regulated.
Increase Productivity
- Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.
- The oil-fired operating cycle helps provide full power during every blow and less waste heat.
- Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
Easy to Maintain
- Standard on-board autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.
- The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.
- The oil-fired design eliminates the need to check gas charge.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.
Boost Efficiency and Productivity with Integrated Technologies
- Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.
- Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set up site boundary.
Attachments
Overview
Cat® H115 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H115 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H115 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
UNITS:
Metric
Imperial
| Blows per Minute | 370 to 800 | 370 to 800 |
| Minimum Operating Weight | 1070 kg | 2354 lb |
| Rated Flow - Minimum | 70 l/min | 19 gal/min |
| Rated Flow - Maximum | 130 l/min | 34 gal/min |
| Minimum Operating Pressure | 13000 kPa | 1885 psi |
| Maximum Operating Pressure | 15000 kPa | 2175 psi |
| Tool Shaft Diameter | 110 mm | 4.3 in |
| Minimum Carrier Weight | 12 t | 26500 lb |
| Maximum Carrier Weight | 20 t | 44100 lb |
Features
High Performance
- Automatic shut off offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.
- The internal buffering system helps reduce machine vibration and increase noise suppression.
- The standard silencing feature allows you to use a Performance hammer on job sites in noise-sensitive areas like neighborhoods or near hospitals where noise is regulated.
Increase Productivity
- Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.
- The oil-fired operating cycle helps provide full power during every blow and less waste heat.
- Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
Easy to Maintain
- Standard on-board autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.
- The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.
- The oil-fired design eliminates the need to check gas charge.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.
Boost Efficiency and Productivity with Integrated Technologies
- Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.
- Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set up site boundary.
Attachments
