Pulverizers

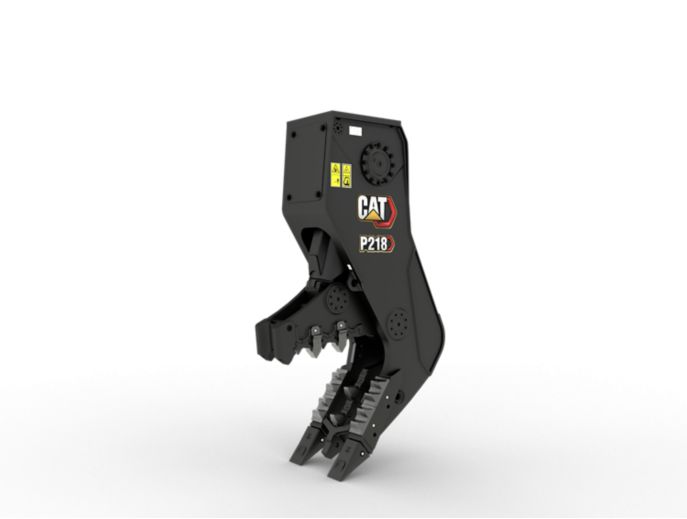

P218 Secondary Pulverizer
Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
Request a quote
Overview
Cat® Pulverizers are perfectly matched to Cat excavators so you can deliver productive concrete demolition without compromising performance or machine health. Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
Performance
UNITS:
Metric
Imperial
| Cycle Time - Open | 1.8 s | 1.8 s |
| Cycle Time - Close | 1.2 s | 1.2 s |
| Crushing Force - Primary Cutter | 3125 kN | 351 Sh Ton |
| Crushing Force - Tip | 955 kN | 107 Sh Ton |
| Crushing Force - Primary Tooth | 1710 kN | 192 Sh Ton |
Hydraulic Requirements
| Jaw Circuit - Max. Oil Pressure | 33000 kPa | 4786 psi |
| Jaw Circuit - Max. Oil Flow | 225 l/min | 59 gal/min |
Dimensions - Jaw
| Jaw Depth | 770 mm | 30.3 in |
| Cutter Length | 150 mm | 5.9 in |
| Jaw Opening - Maximum | 1070 mm | 42.1 in |
| Jaw Width - Fixed | 620 mm | 24.4 in |
| Jaw Width - Moveable | 335 mm | 13.2 in |
Dimensions - Housing + Jaw
| Length | 2465 mm | 97 in |
| Height | 1450 mm | 57.1 in |
| Width | 620 mm | 24.4 in |
Weight
| Weight - Housing, Jaw and Bracket | 2000 kg | 4409 lb |
Recommended Carrier Weight
| Excavator Minimum | 18000 kg (39700 lb) | 18000 kg (39700 lb) |
| Excavator Maximum | 25000 kg (55100 lb) | 25000 kg (55100 lb) |
Features
HIGH PERFORMANCE
- Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.
- The oversized cylinder on the non-rotating secondary pulverizer delivers a strong crushing force to reduce concrete and separate rebar.
- The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.
EASY TO MAINTAIN
- Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.
- Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.
- Safely perform maintenance with easy access through one inspection panel.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
RELIABILITY AND DURABILITY
- Cat pulverizers are manufactured with high-strength, abrasion-resistant steel, especially in excessive wear areas.
- Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.
- The C-shaped cylinder guard provides extra protection against concrete demolition.
- Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.
BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES
- Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.
- Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
VERSATILITY AND CONVENIENCE WITH COUPLERS
- Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.
- Significantly reduce the time it takes to switch attachments when using a quick coupler.
- Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.
- A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
Overview
Cat® Pulverizers are perfectly matched to Cat excavators so you can deliver productive concrete demolition without compromising performance or machine health. Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
Performance
UNITS:
Metric
Imperial
| Cycle Time - Open | 1.8 s | 1.8 s |
| Cycle Time - Close | 1.2 s | 1.2 s |
| Crushing Force - Primary Cutter | 3125 kN | 351 Sh Ton |
| Crushing Force - Tip | 955 kN | 107 Sh Ton |
| Crushing Force - Primary Tooth | 1710 kN | 192 Sh Ton |
Hydraulic Requirements
| Jaw Circuit - Max. Oil Pressure | 33000 kPa | 4786 psi |
| Jaw Circuit - Max. Oil Flow | 225 l/min | 59 gal/min |
Dimensions - Jaw
| Jaw Depth | 770 mm | 30.3 in |
| Cutter Length | 150 mm | 5.9 in |
| Jaw Opening - Maximum | 1070 mm | 42.1 in |
| Jaw Width - Fixed | 620 mm | 24.4 in |
| Jaw Width - Moveable | 335 mm | 13.2 in |
Dimensions - Housing + Jaw
| Length | 2465 mm | 97 in |
| Height | 1450 mm | 57.1 in |
| Width | 620 mm | 24.4 in |
Weight
| Weight - Housing, Jaw and Bracket | 2000 kg | 4409 lb |
Recommended Carrier Weight
| Excavator Minimum | 18000 kg (39700 lb) | 18000 kg (39700 lb) |
| Excavator Maximum | 25000 kg (55100 lb) | 25000 kg (55100 lb) |
Features
HIGH PERFORMANCE
- Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.
- The oversized cylinder on the non-rotating secondary pulverizer delivers a strong crushing force to reduce concrete and separate rebar.
- The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.
EASY TO MAINTAIN
- Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.
- Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.
- Safely perform maintenance with easy access through one inspection panel.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
RELIABILITY AND DURABILITY
- Cat pulverizers are manufactured with high-strength, abrasion-resistant steel, especially in excessive wear areas.
- Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.
- The C-shaped cylinder guard provides extra protection against concrete demolition.
- Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.
BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES
- Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.
- Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
VERSATILITY AND CONVENIENCE WITH COUPLERS
- Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.
- Significantly reduce the time it takes to switch attachments when using a quick coupler.
- Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.
- A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
Related Products

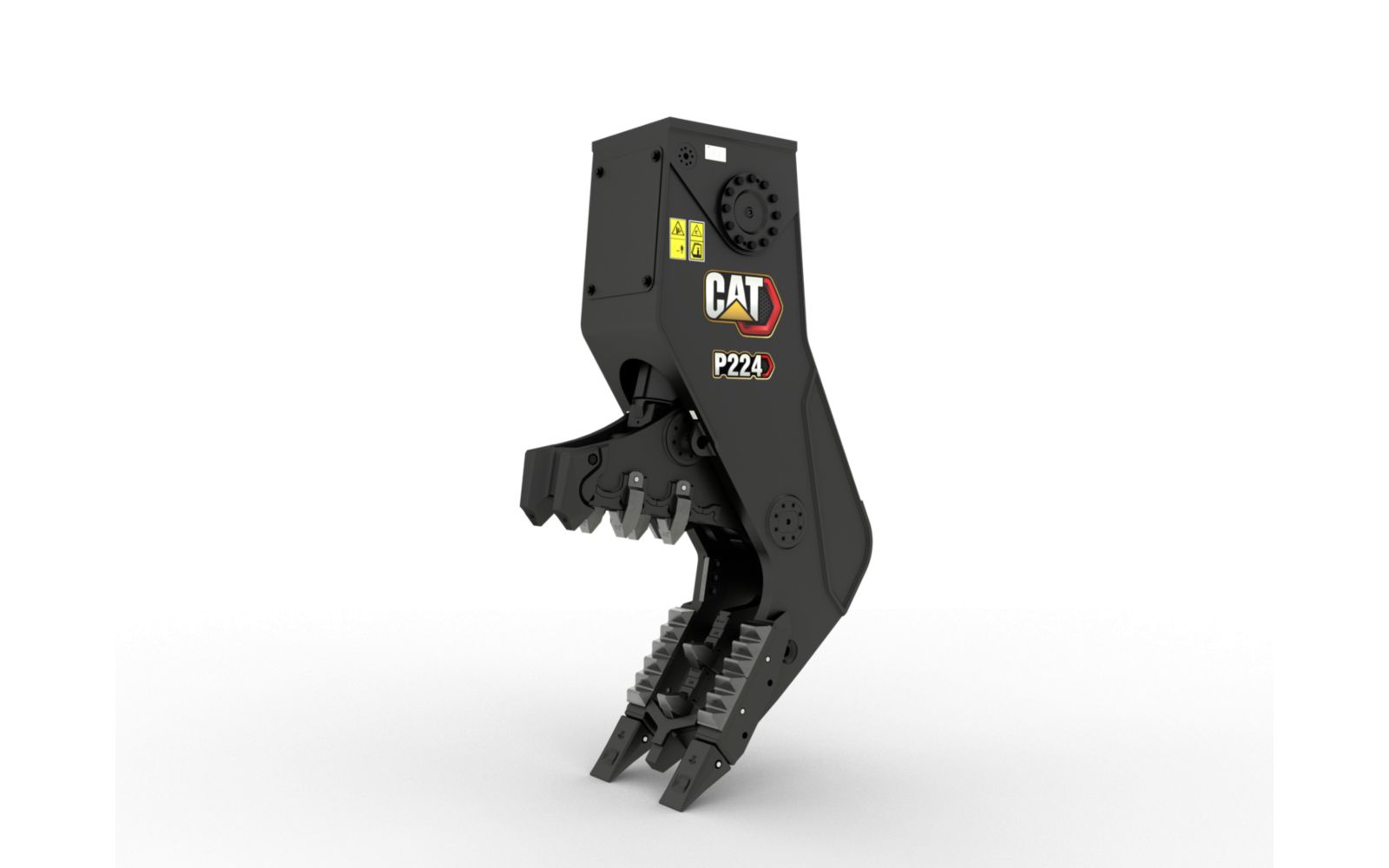

P224 Secondary Pulverizer
Cycle Time - Open
1.9 s / 1.9 s
Cycle Time - Close
1.3 s / 1.3 s
1.9 s / 1.9 s
Cycle Time - Close
1.3 s / 1.3 s

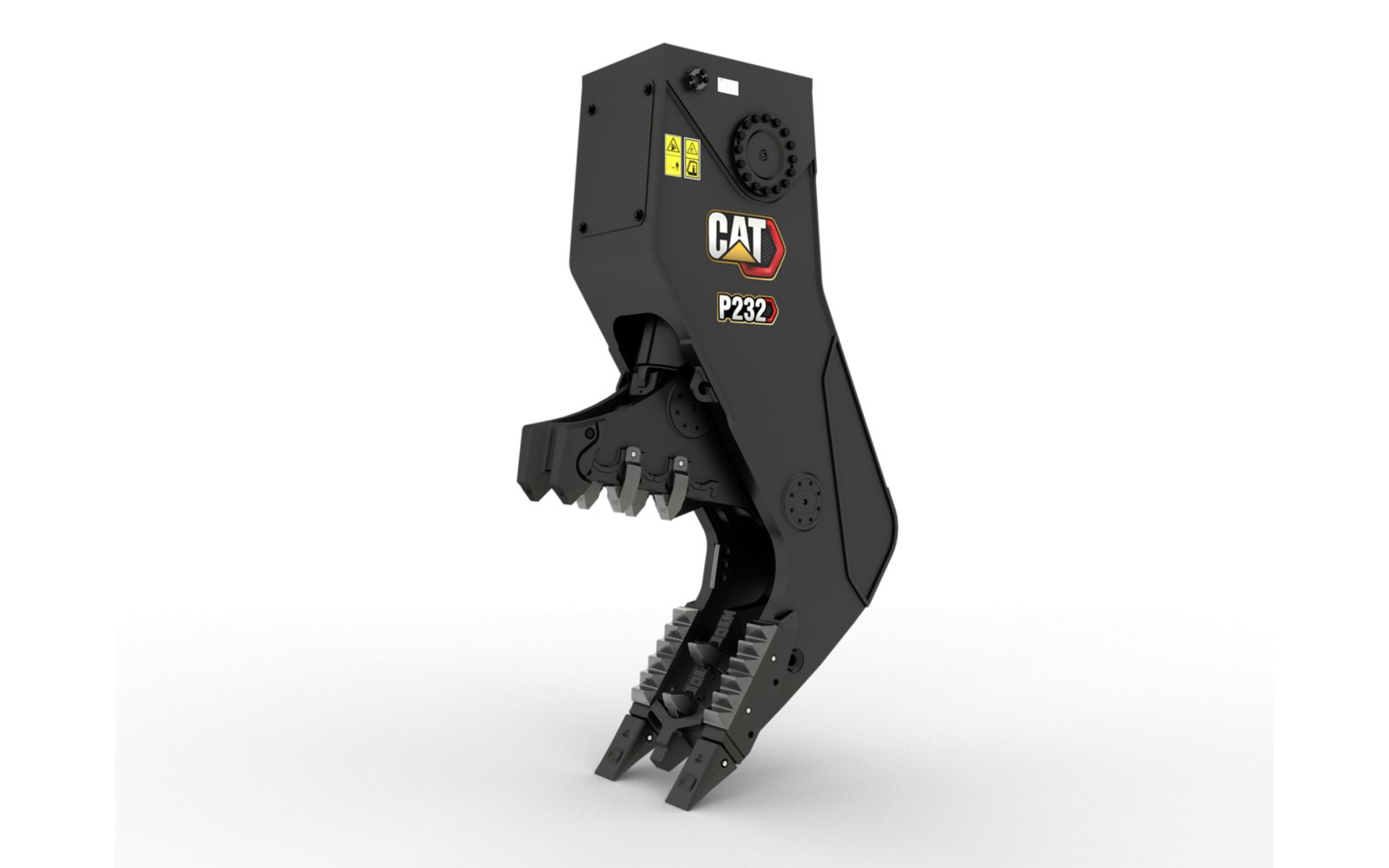

P232 Secondary Pulverizer
