Rakes

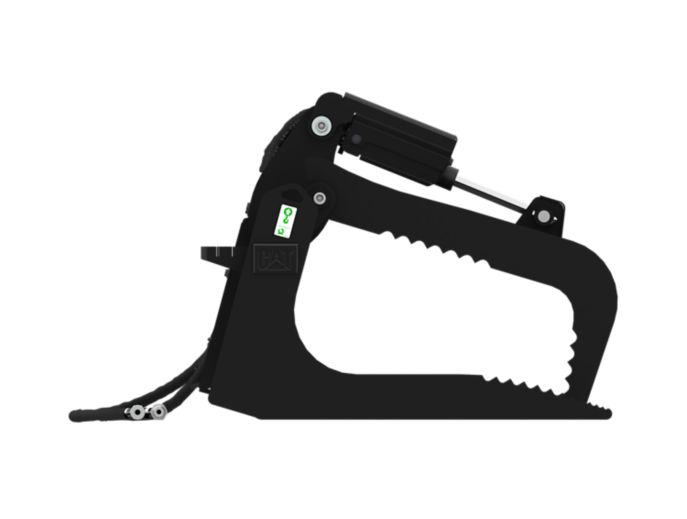

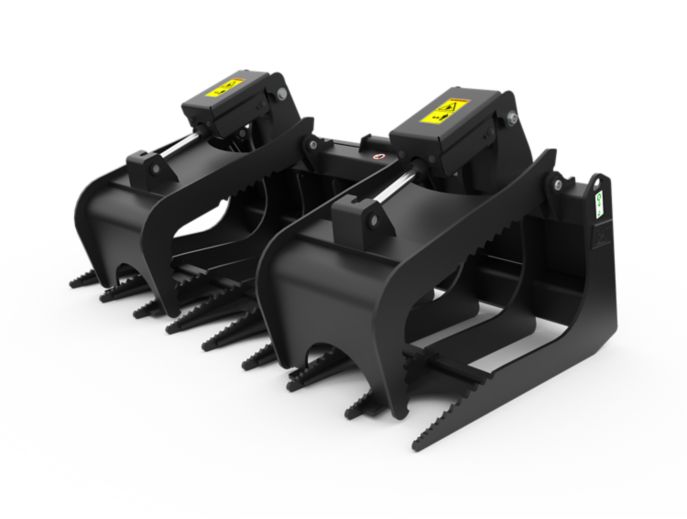

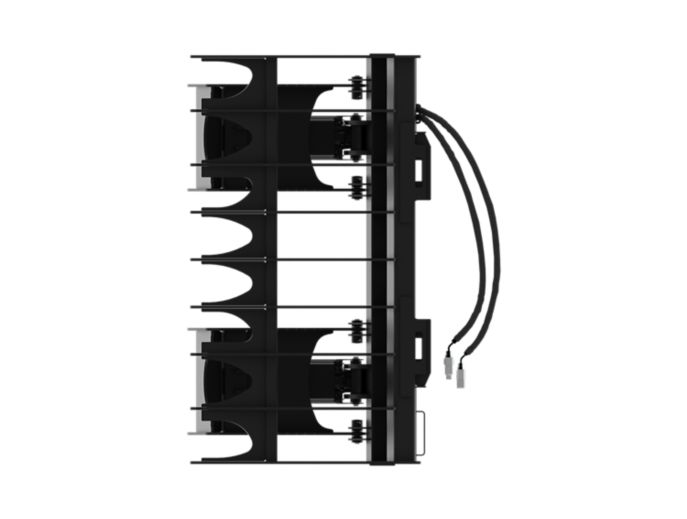

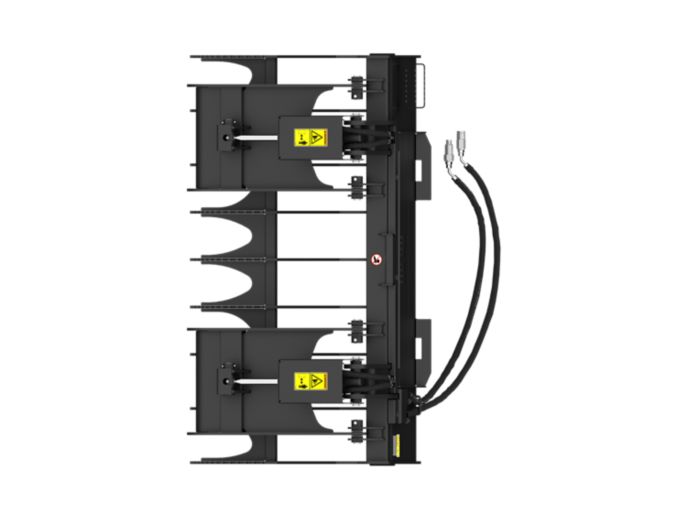

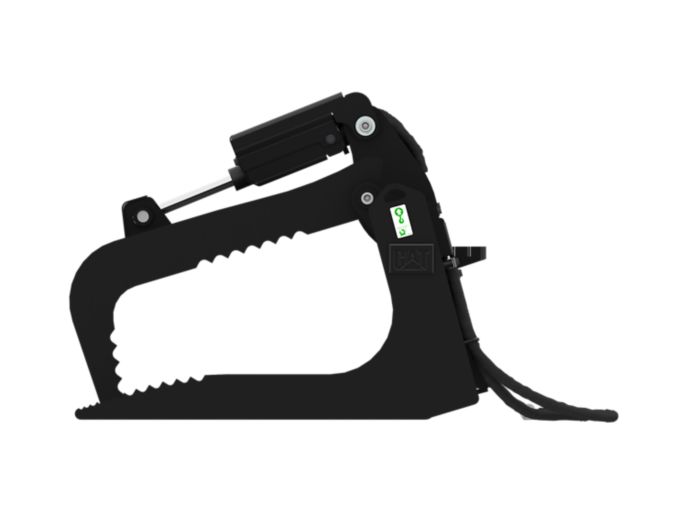

1829 mm (72 in) Straight Tine
Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.
Request a quote
Overview
Cat® Industrial Grapple Rakes are ideal for storm debris clean-up and land clearing applications due to their open bottom design which allows unwanted material to filter through the bottom of the work tool.
UNITS:
Metric
Imperial
| Width | 1829 mm | 72 in |
| Height | 837 mm | 33 in |
| Weight | 499.8 kg | 1101.9 lb |
| Maximum Grapple Opening | 941 mm | 37 in |
| Minimum Grapple Opening | 356 mm | 14 in |
| Length | 1093 mm | 43 in |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Number of Tines | 9 | 9 |
| Required Hydraulics | Standard Flow | Standard Flow |
Features
Application
Cat® Industrial Grapple Rakes are designed to handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris cleanup, land clearing and other aggressive applications.
Strong Grapple Design
Heavy-duty industrial grapple rake is designed for superior durability, long structural life, and incorporates durable steel rake tines, and dual full-width torque tubes with an additional front torque tube for tine reinforcement.
Open Bottom Design
Open bottom design allows unwanted material to filter through the bottom of the work tool making it ideal for storm debris clean-up and land clearing applications.
Wide Jaw Opening
Wide jaw opening for handling large, bulky material such as logs, stumps, rocks and other landscape debris.
Robust Grapple Assemblies
Robust grapple assemblies incorporate thick, high strength steel to resist bending and increase durability.
Excellent Clamping Force
Excellent clamping force and independently controlled grapple assemblies allow for easy grasping of irregularly shaped objects.
Serrated Step
Serrated step provides safe ingress and egress from machine cab.
Lift/Tie Downs
Convenient lift/tie down locations to help facilitate maneuverability and transport.
Reinforced Gussets
Tines are reinforced with gussets to provide increased durability and better penetration.
Overview
Cat® Industrial Grapple Rakes are ideal for storm debris clean-up and land clearing applications due to their open bottom design which allows unwanted material to filter through the bottom of the work tool.
UNITS:
Metric
Imperial
| Width | 1829 mm | 72 in |
| Height | 837 mm | 33 in |
| Weight | 499.8 kg | 1101.9 lb |
| Maximum Grapple Opening | 941 mm | 37 in |
| Minimum Grapple Opening | 356 mm | 14 in |
| Length | 1093 mm | 43 in |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Number of Tines | 9 | 9 |
| Required Hydraulics | Standard Flow | Standard Flow |
Features
Application
Cat® Industrial Grapple Rakes are designed to handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris cleanup, land clearing and other aggressive applications.
Strong Grapple Design
Heavy-duty industrial grapple rake is designed for superior durability, long structural life, and incorporates durable steel rake tines, and dual full-width torque tubes with an additional front torque tube for tine reinforcement.
Open Bottom Design
Open bottom design allows unwanted material to filter through the bottom of the work tool making it ideal for storm debris clean-up and land clearing applications.
Wide Jaw Opening
Wide jaw opening for handling large, bulky material such as logs, stumps, rocks and other landscape debris.
Robust Grapple Assemblies
Robust grapple assemblies incorporate thick, high strength steel to resist bending and increase durability.
Excellent Clamping Force
Excellent clamping force and independently controlled grapple assemblies allow for easy grasping of irregularly shaped objects.
Serrated Step
Serrated step provides safe ingress and egress from machine cab.
Lift/Tie Downs
Convenient lift/tie down locations to help facilitate maneuverability and transport.
Reinforced Gussets
Tines are reinforced with gussets to provide increased durability and better penetration.
