Overview

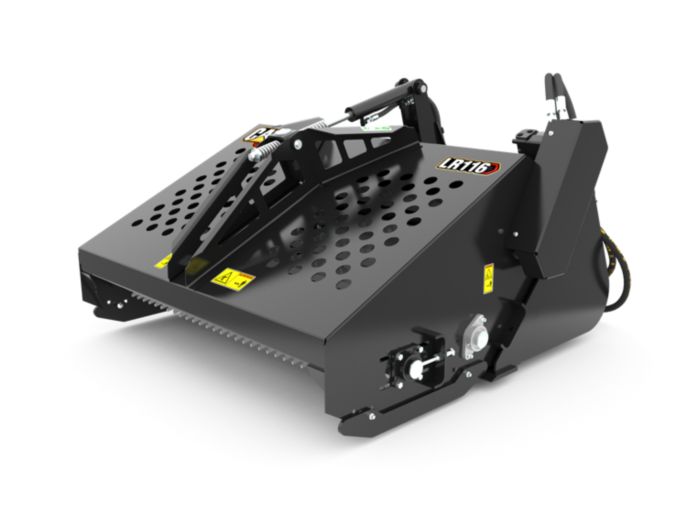

Cat® Landscape Rakes are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance applications. They use the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal. Landscape rakes are designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.
UNITS:
Metric
Imperial
| Working Width | 1576 mm | 62 in |
| Bucket Capacity - Struck | 0.31 m³ | 0.4 yd³ |
| Weight | 595 kg | 1311.7 lb |
| Raking Width | 1384 mm | 54.5 in |
| Overall Width | 1683 mm | 66.3 in |
| Height | 989 mm | 38.9 in |
| Length | 1620 mm | 63.8 in |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Motor Displacement | 315 cm³/rev | 19.2 in³/rev |
| Driven Shaft Speed | 165 rpm @ 80 L/min (21 gpm) | 165 rpm @ 80 L/min (21 gpm) |
| Number of Hard Face Tines | 372 | 372 |
| Rock Size Range | 19-152 mm (0.75-6 in) | 19-152 mm (0.75-6 in) |
| Drive Method | Chain Reduction | Chain Reduction |
| Drive Chain | #80H | #80H |
| Conveyor Chain | #2060H | #2060H |
| Required Hydraulics | Standard Flow | Standard Flow |
Features
Application
Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.

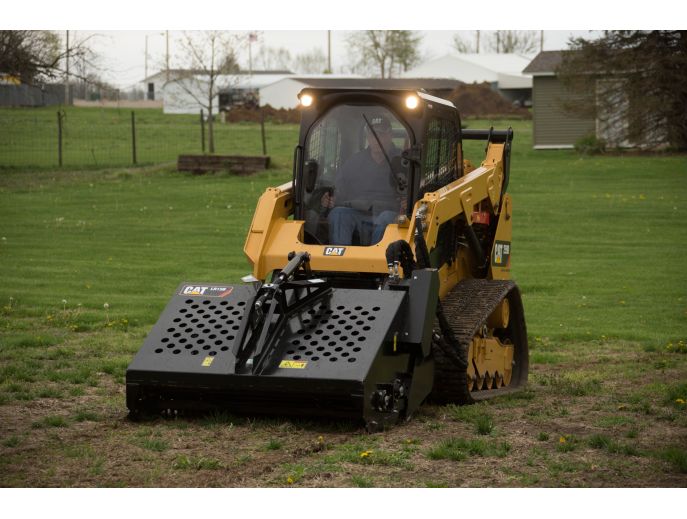

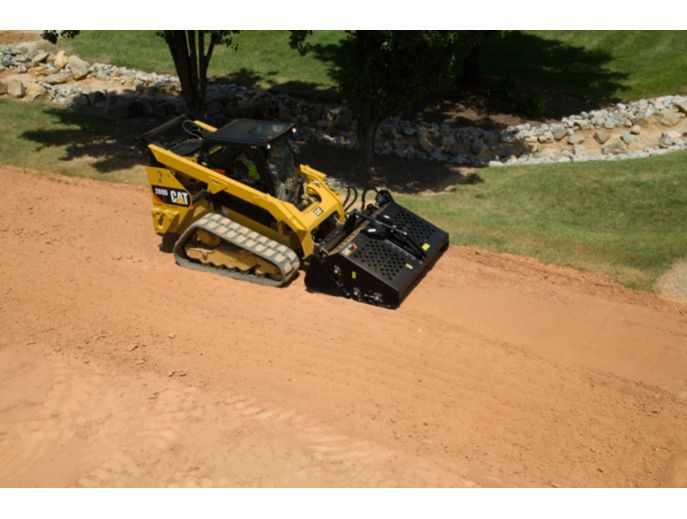

Travel Direction
Designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.
Robust Design
Chain reduction drive system and steel teeth are built for maximum strength and durability in the toughest soil conditions.
Quick Dumping
Quick dumping capability is accomplished with a poppet check valve that stops flow to the hydraulic motor and directs flow to the rake head cylinder. Once the hopper bucket is full, simply reverse flow to actuate the rake head cylinder and dump the bucket.
Conveyor Tubes
Bolt-on conveyor tubes for easy replacement and serviceability.
