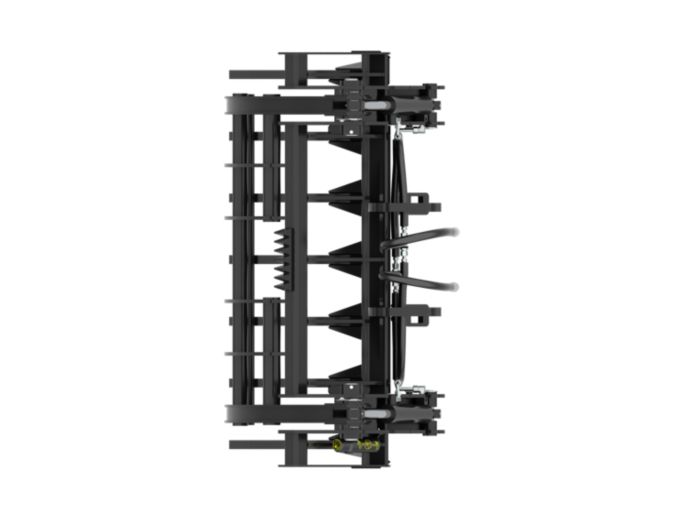

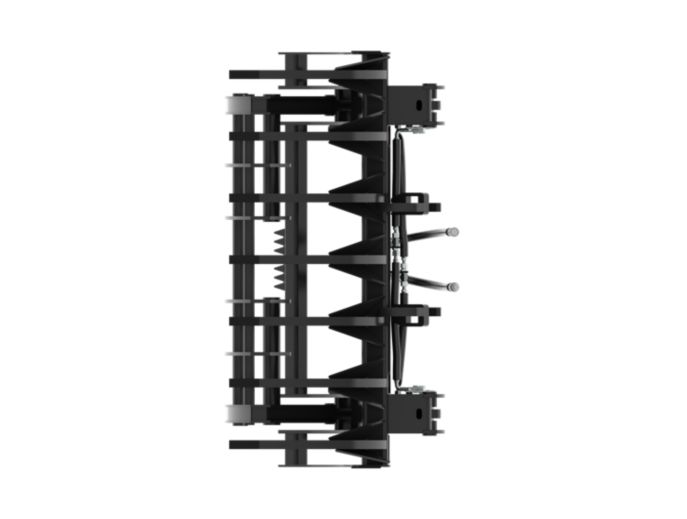

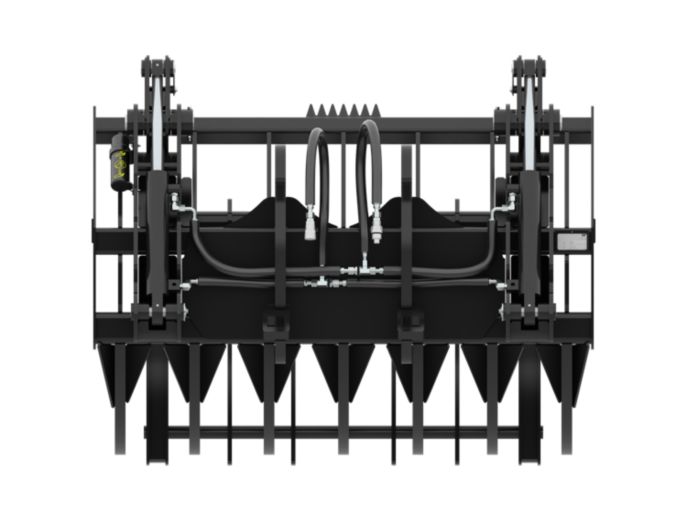

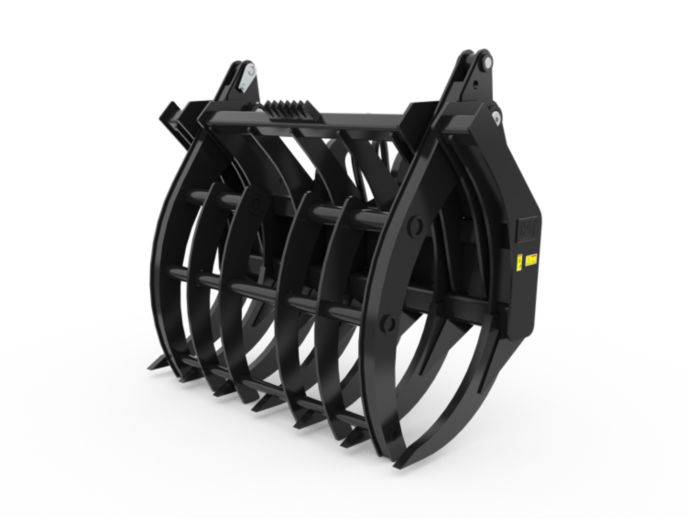

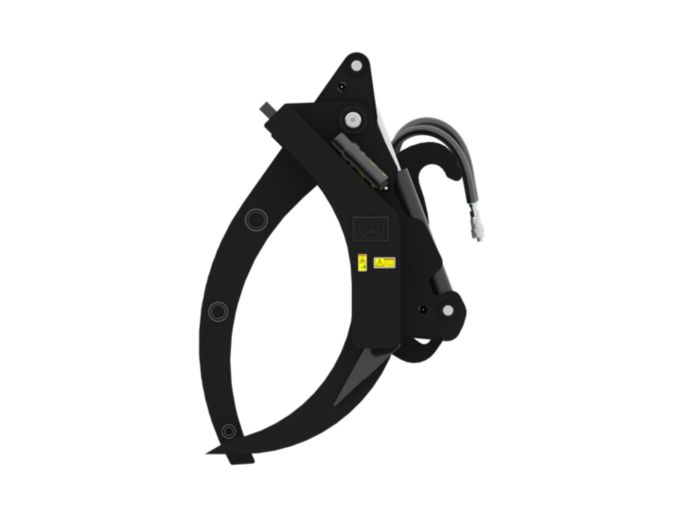

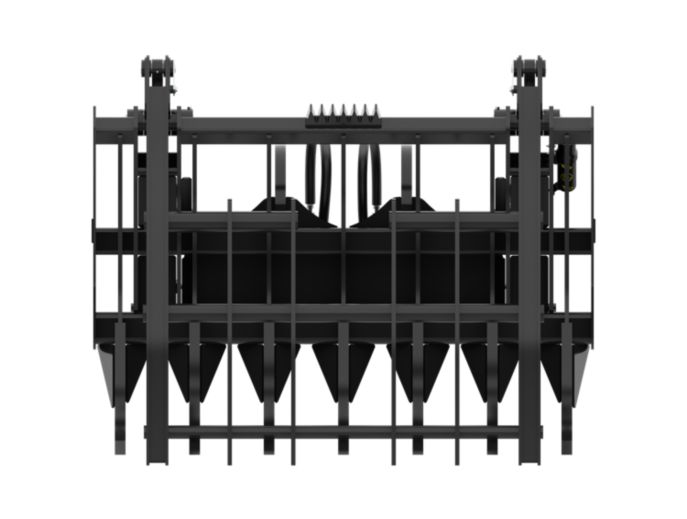

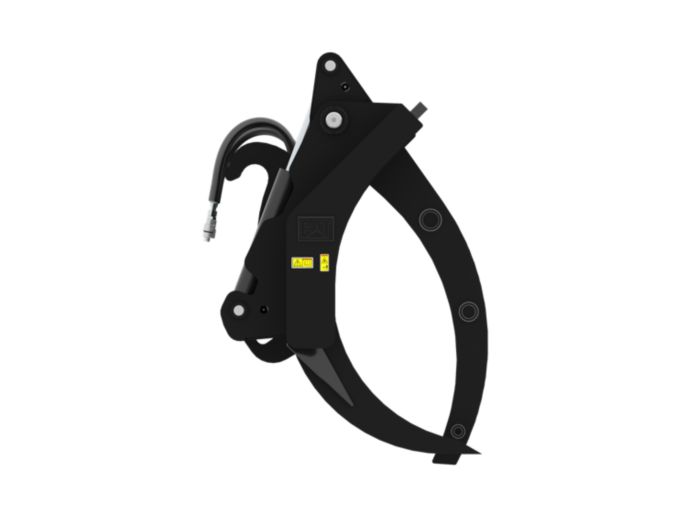

Rakes
2348 mm (92 in), Fusion™ Coupler
Loader Rakes are designed to remove roots from the ground and to pile up branches, logs or roots during a land cleaning application.
Request a quote
Overview
Cat® Loader Rakes are designed to remove roots from the ground and also to pile up branches, logs or roots during a land cleaning application. Loader Rakes are very helpful when the operation requests moving material and not the dirt.
UNITS:
Metric
Imperial
| Width | 2348 mm | 92.4 in |
| Weight | 2096 kg | 4620.9 lb |
| Overall Height | 1865 mm | 73.4 in |
| Overall Length | 1249 mm | 49.2 in |
| Tine Spacing | 300 mm | 11.8 in |
| Tine Thickness | 50 mm | 2 in |
| Number of Tines | 7 | 7 |
| Interface Type | Fusion™ | Fusion™ |
| Top Clamp Style | Full Width Top Clamp | Full Width Top Clamp |
| Required Hydraulics | 3rd Function | 3rd Function |
Features
Application
Designed to remove material and not dirt, such as roots, branches, and logs during a land cleaning application.
Heavy Duty Sharpened Teeth
With a total of seven teeth, each 50 mm (2 in) wide and a specially designed attack angle, they are ready to work through any soil condition.
Gussets
Gussets located in both sides of the teeth are designed to deliver maximum resistance to the tool.
Reinforced Structure
Square torque tubes positioned along the frame of the rake help distribute loads and provide for a longer lasting attachment.
Serrated Push Plate
Located at the top center of the rake, this serrated plate functions to make material pushing easier, avoiding damage at the rake structure.
Full Width Top Clamp Style
Hydraulic top clamp spans the entire width of the rake.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Overview
Cat® Loader Rakes are designed to remove roots from the ground and also to pile up branches, logs or roots during a land cleaning application. Loader Rakes are very helpful when the operation requests moving material and not the dirt.
UNITS:
Metric
Imperial
| Width | 2348 mm | 92.4 in |
| Weight | 2096 kg | 4620.9 lb |
| Overall Height | 1865 mm | 73.4 in |
| Overall Length | 1249 mm | 49.2 in |
| Tine Spacing | 300 mm | 11.8 in |
| Tine Thickness | 50 mm | 2 in |
| Number of Tines | 7 | 7 |
| Interface Type | Fusion™ | Fusion™ |
| Top Clamp Style | Full Width Top Clamp | Full Width Top Clamp |
| Required Hydraulics | 3rd Function | 3rd Function |
Features
Application
Designed to remove material and not dirt, such as roots, branches, and logs during a land cleaning application.
Heavy Duty Sharpened Teeth
With a total of seven teeth, each 50 mm (2 in) wide and a specially designed attack angle, they are ready to work through any soil condition.
Gussets
Gussets located in both sides of the teeth are designed to deliver maximum resistance to the tool.
Reinforced Structure
Square torque tubes positioned along the frame of the rake help distribute loads and provide for a longer lasting attachment.
Serrated Push Plate
Located at the top center of the rake, this serrated plate functions to make material pushing easier, avoiding damage at the rake structure.
Full Width Top Clamp Style
Hydraulic top clamp spans the entire width of the rake.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
