Rakes

2697 mm (106 in), Fusion™ Coupler

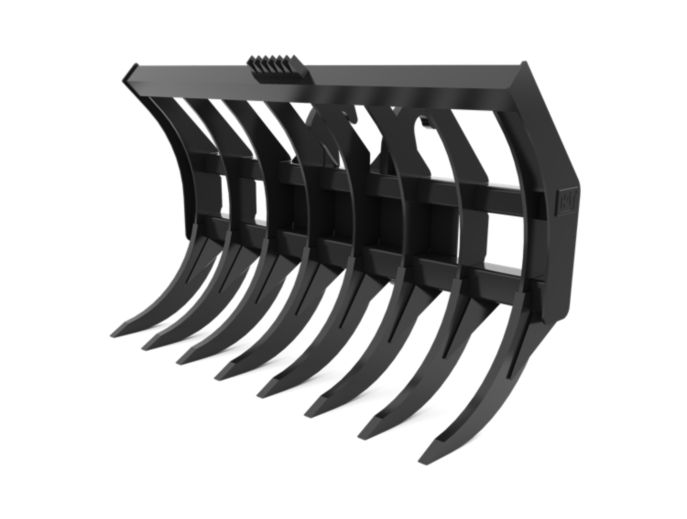

Loader Rakes are designed to remove roots from the ground and to pile up branches, logs or roots during a land cleaning application.

Request a quote

Specifications
Features

Overview

Cat® Loader Rakes are designed to remove roots from the ground and also to pile up branches, logs or roots during a land cleaning application. Loader Rakes are very helpful when the operation requests moving material and not the dirt.

UNITS:

Metric

Imperial

Width	2697 mm	106.2 in
Weight	1344 kg	2963 lb
Overall Height	1653 mm	65.1 in
Overall Length	1202 mm	47.3 in
Tine Spacing	350 mm	13.8 in
Tine Thickness	20 mm	0.8 in
Number of Tines	8	8
Interface Type	Fusion™	Fusion™

Features

Application

Designed to remove material and not dirt, such as roots, branches, and logs during a land cleaning application.

Heavy Duty Sharpened Teeth

With a total of eight teeth, each 50 mm (2 in) wide and a specially designed attack angle, they are ready to work through any soil condition.

Gussets

Gussets located in both sides of the teeth are designed to deliver maximum resistance to the tool.

Reinforced Structure

Square torque tubes positioned along the frame of the rake help distribute loads and provide for a longer lasting attachment.

Serrated Push Plate

Located at the top center of the rake, this serrated plate functions to make material pushing easier, avoiding damage at the rake structure.
