Rakes
2204 mm (86 in)
For root removal, stockpiling of tree debris, and soil preparation.
Request a quote
Overview

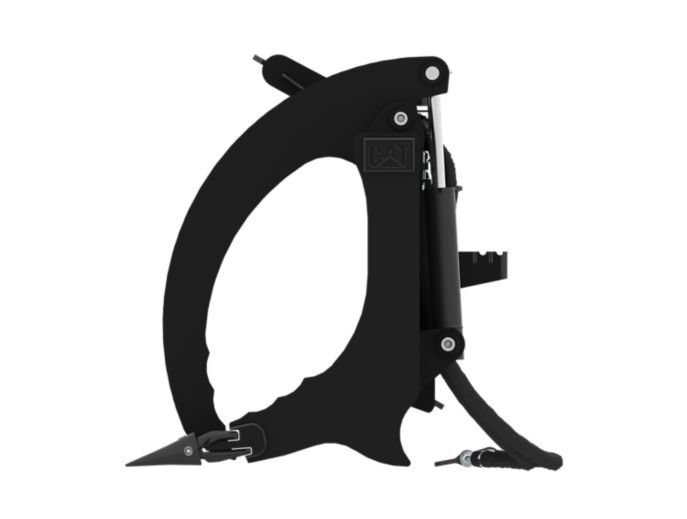

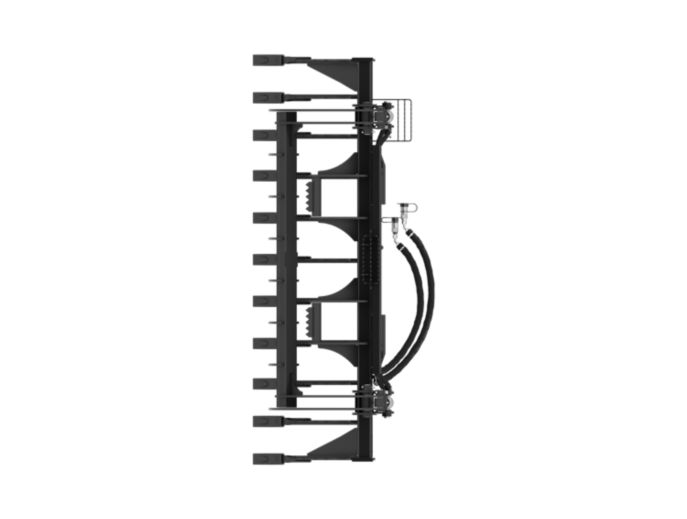

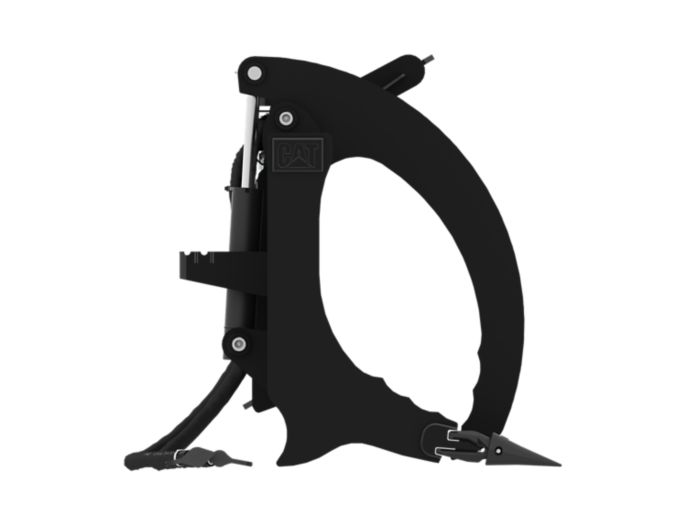

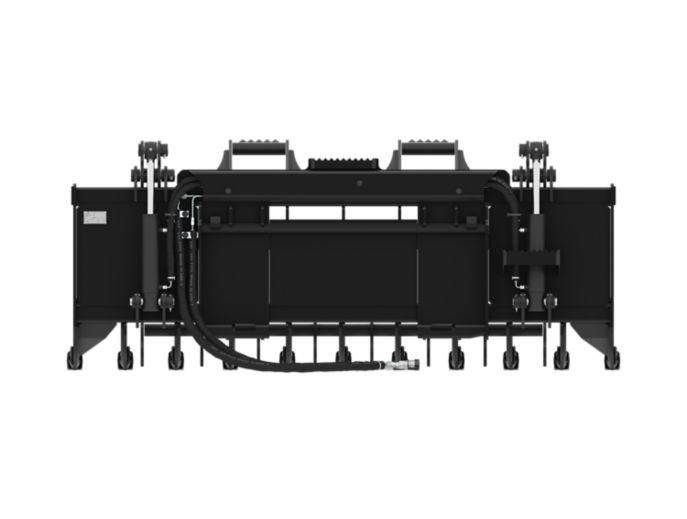

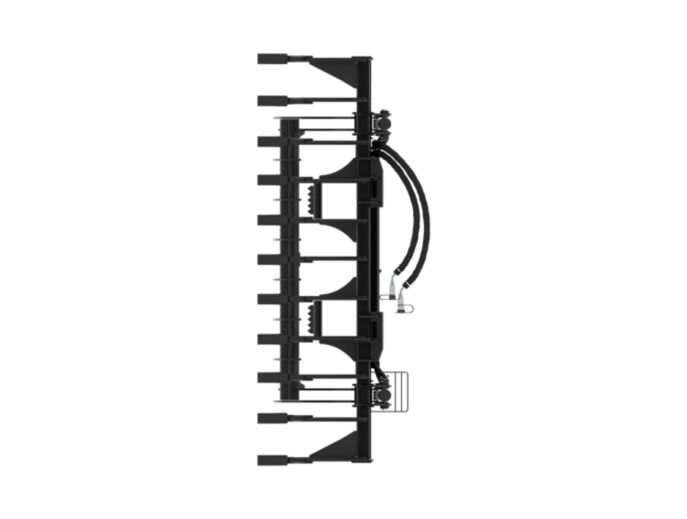

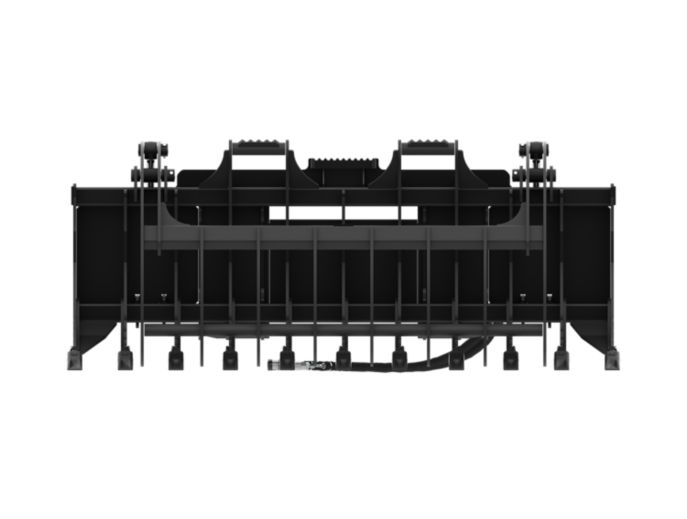

Cat® Root Rakes for Cat Skid Steer and Compact Track Loaders are specially designed to remove roots, stockpile tree trunks, and soil preparation. Available with a hydraulic clamp or no clamp option, both models have a heavy duty structure and ground engaging tools for more productivity and less down time. The hydraulic clamp option is ideal for grabbing and removing material and for loading trucks when required.
UNITS:
Metric
Imperial
| Width | 2204 mm | 86 in |
| Weight | 503 kg | 1108.9 lb |
| Overall Height | 920 mm | 36.2 in |
| Overall Length | 853 mm | 33.6 in |
| Tine Spacing | 212 mm | 8.3 in |
| Tine Thickness | 12 mm | 0.5 in |
| Number of Tines | 11 | 11 |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
| Top Clamp Width | 1618 mm | 63.7 in |
| Required Hydraulics | Standard Flow w/o Electrical | Standard Flow w/o Electrical |
| Maximum Clamp Opening | 1297 mm | 51.1 in |
| Minimum Clamp Opening | 335 mm | 13.2 in |
Features
Serrated Grapples and Tines
Serrations on the grapple and the tines help to ensure retention of larger objects and debris.
Push Bars
Heavy duty serrated push bars can be used to tip or push debris.
Hose Guarding
Hose sleeves and guarding help to protect the hoses from damage.
Built in Scarifier
Allows the rake to be used to scarify in a reverse direction. Also provides for a stable base when the tool is being stored.
Hardened Grapple Tips
Robust grapple tips are hardened to be more durable and allow for better performance.
Large Grapple Opening
Large grapple opening allows the ability to secure a wide range of debris.
Replaceable Teeth
Replaceable J200 style teeth help to prolong the life of the tool and provide better performance.
Serrated Steps
Serrated steps provide the operator with a safer ingress and egress from the machine.
Overview
Cat® Root Rakes for Cat Skid Steer and Compact Track Loaders are specially designed to remove roots, stockpile tree trunks, and soil preparation. Available with a hydraulic clamp or no clamp option, both models have a heavy duty structure and ground engaging tools for more productivity and less down time. The hydraulic clamp option is ideal for grabbing and removing material and for loading trucks when required.
UNITS:
Metric
Imperial
| Width | 2204 mm | 86 in |
| Weight | 503 kg | 1108.9 lb |
| Overall Height | 920 mm | 36.2 in |
| Overall Length | 853 mm | 33.6 in |
| Tine Spacing | 212 mm | 8.3 in |
| Tine Thickness | 12 mm | 0.5 in |
| Number of Tines | 11 | 11 |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
| Top Clamp Width | 1618 mm | 63.7 in |
| Required Hydraulics | Standard Flow w/o Electrical | Standard Flow w/o Electrical |
| Maximum Clamp Opening | 1297 mm | 51.1 in |
| Minimum Clamp Opening | 335 mm | 13.2 in |
Features
Serrated Grapples and Tines
Serrations on the grapple and the tines help to ensure retention of larger objects and debris.
Push Bars
Heavy duty serrated push bars can be used to tip or push debris.
Hose Guarding
Hose sleeves and guarding help to protect the hoses from damage.
Built in Scarifier
Allows the rake to be used to scarify in a reverse direction. Also provides for a stable base when the tool is being stored.
Hardened Grapple Tips
Robust grapple tips are hardened to be more durable and allow for better performance.
Large Grapple Opening
Large grapple opening allows the ability to secure a wide range of debris.
Replaceable Teeth
Replaceable J200 style teeth help to prolong the life of the tool and provide better performance.
Serrated Steps
Serrated steps provide the operator with a safer ingress and egress from the machine.
