Saws

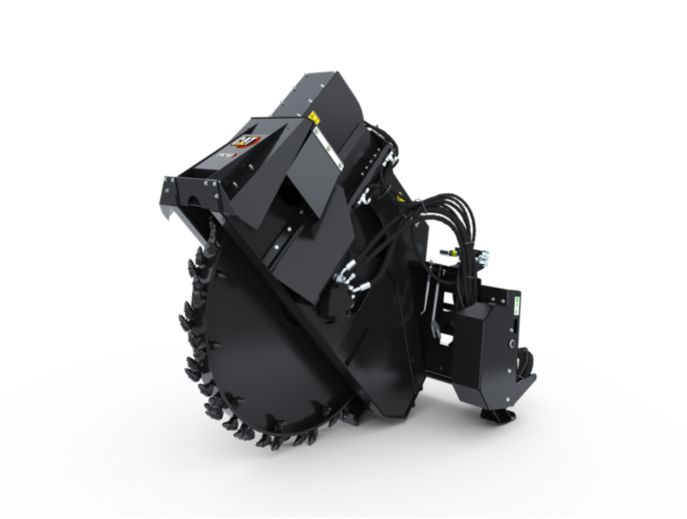

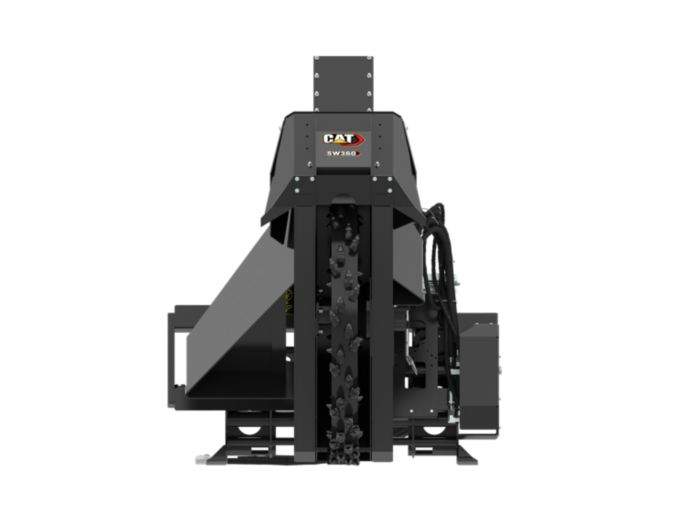

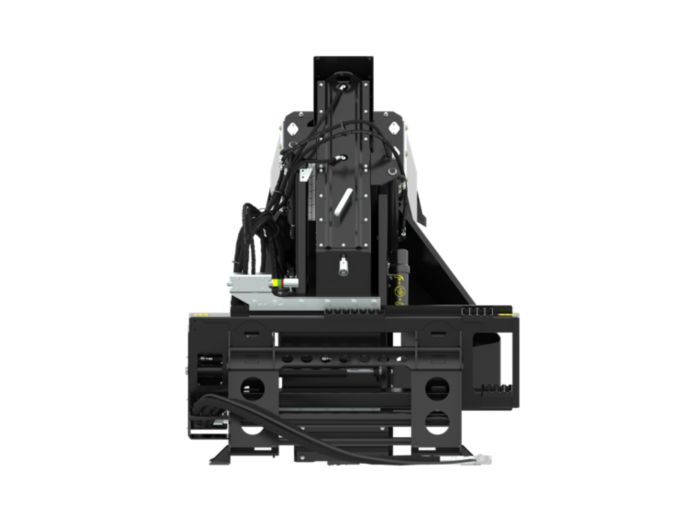

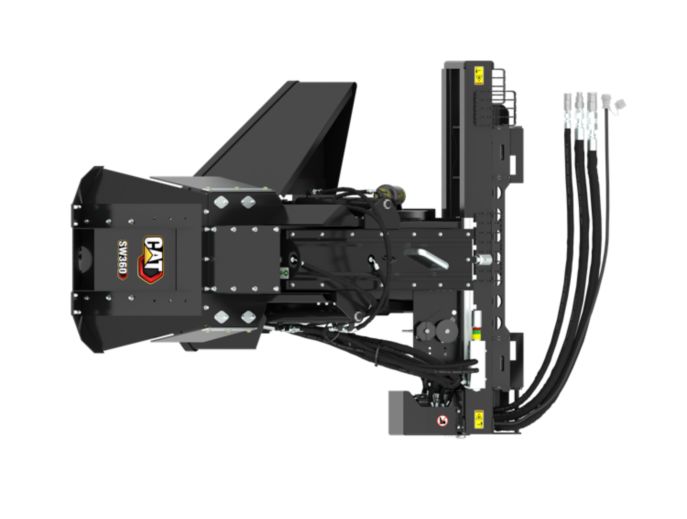

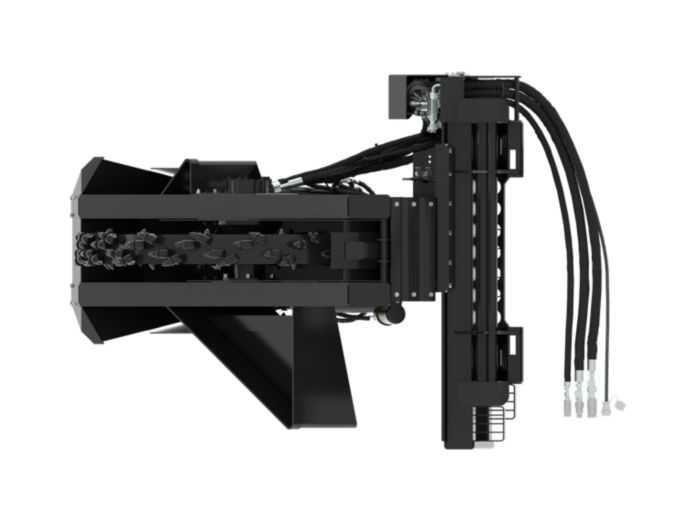

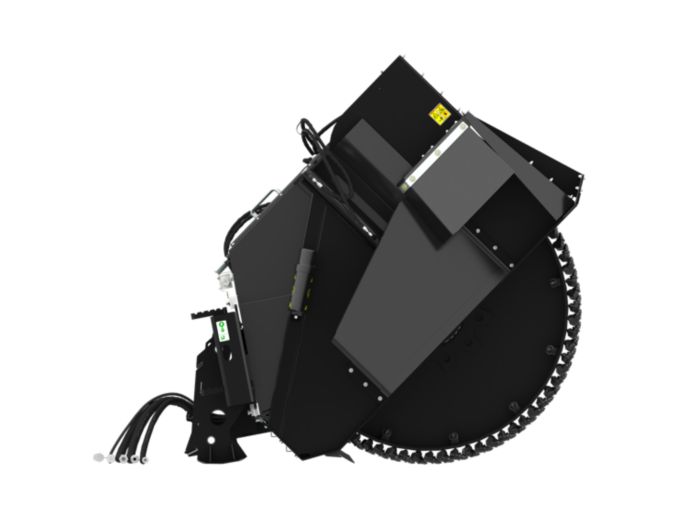

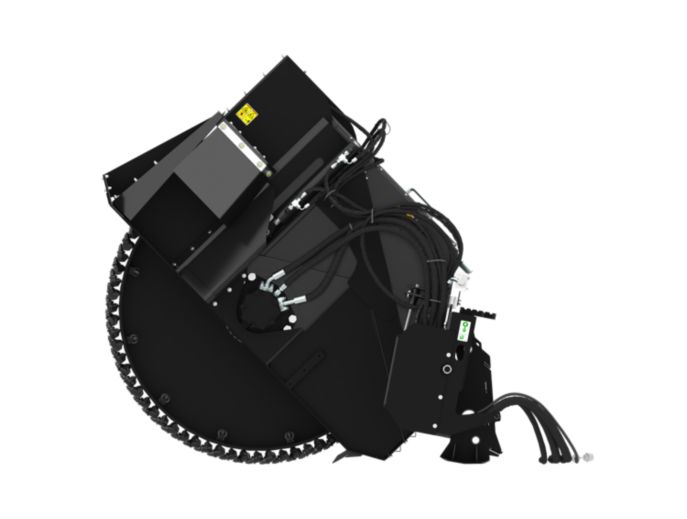

SW360, 160 mm (6 in)
Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.
Request a quote
Overview
Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.
UNITS:
Metric
Imperial
| Maximum Cutting Depth | 600 mm | 23.6 in |
| Wheel Width | 160 mm | 6.3 in |
| Weight | 1315 kg | 2899.1 lb |
| Overall Width | 1655 mm | 65.2 in |
| Overall Height | 1765 mm | 69.5 in |
| Length | 2417 mm | 95.2 in |
| Required Hydraulics | High Flow XPS | High Flow XPS |
| Optimal Hydraulic Flow | 98-125 L/min (26-33 gpm) | 98-125 L/min (26-33 gpm) |
| Optimal Hydraulic Pressure | 230-280 bar (3300-4000 psi) | 230-280 bar (3300-4000 psi) |
| Motor Displacement | 1686 cm³/rev | 102.9 in³/rev |
| Wheel Torque at Maximum Pressure | 7509 N·m | 5538.4 lb/ft |
| Wheel Speed at Maximum Flow | 74 RPM | 74 RPM |
| Bit Speed at Maximum Flow | 360 m/min | 1181.1 ft/min |
| Conical Bits - Per Wheel | 96 | 96 |
| Standard Bit Type | Concrete | Concrete |
| Optional Bit Type | All Purpose | All Purpose |
| Side Shift Travel | 550 mm | 21.7 in |
| Trench Cleaning Device | Yes | Yes |
| Drive Method | Direct Drive | Direct Drive |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Direct Drive System
Direct drive system features a hydraulic piston pump motor to ensure maximum cutting rate and wheel torque for optimal production performance and efficiency.Hydraulic Side-Shift
Hydraulic side-shift is standard on all models and is controlled from the operator’s compartment. Hydraulic side-shift allows wheel positioning from center to the far right of center. This allows for cutting close to curbs, walls and other obstructions, and minimizes need to reposition the machine.Hydraulic Depth Control
Hydraulic depth control is standard on all models and is controlled from the operator’s compartment. Hydraulic depth control allows the operator to adjust cut depth on the fly from in cab to quickly adjust to the current job as needed.Trench Cleaning Device
The trench cleaning device is hydraulically operated from the operator’s compartment. The blade can be controlled up and down to remove spoil and ensure a clean trench.Deflector Plates
Deflector plates remove spoil from the machine’s path for smooth operation. Spoil can be discharged left, right, or on both sides of the wheel saw with installation of included blanking plates.Max Pro Pressure Gauge
Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.Bits
Concrete bits are standard on all models. Optional all purpose conical bits are available for all Cat Wheel Saws for tarmac and asphalt applications. Extreme life bits are available for extreme duty Cat Wheel Saw applications.Self Standing
Self standing frame design improves connection and parking.OMM Container
Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.Included Tools
Attachment mounted tools included to provide quick and easy change out of bits when needed.Smart Creep
Smart Creep is a dynamic drive control system that works in conjunction with the initial creep speed setting. Smart Creep senses load on the attachment being operated, and can automatically adjusts drive command to keep the attachment running at the most productive speed.Optional Guide Bar
Optional guide bar allows operator to position wheel saw for better visibility of cut path, allowing for a straighter cut.Water Kit Ready
Ports are strategically located to equip the saw with a water sprinkler kit along hood, which allows for significant dust reduction.Downloads
