Saws

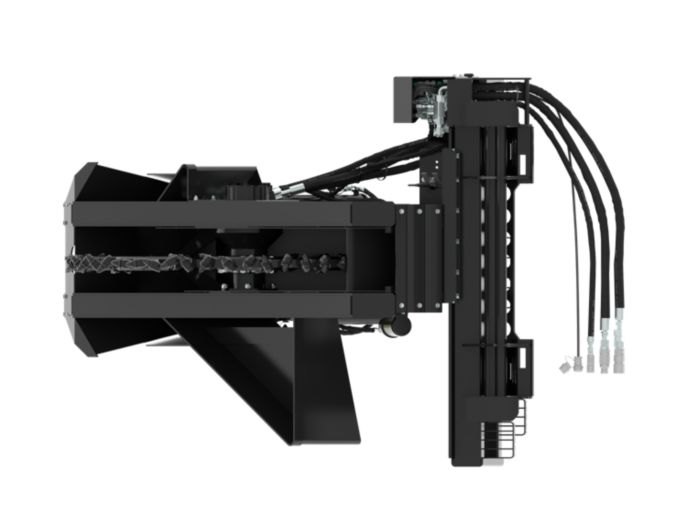

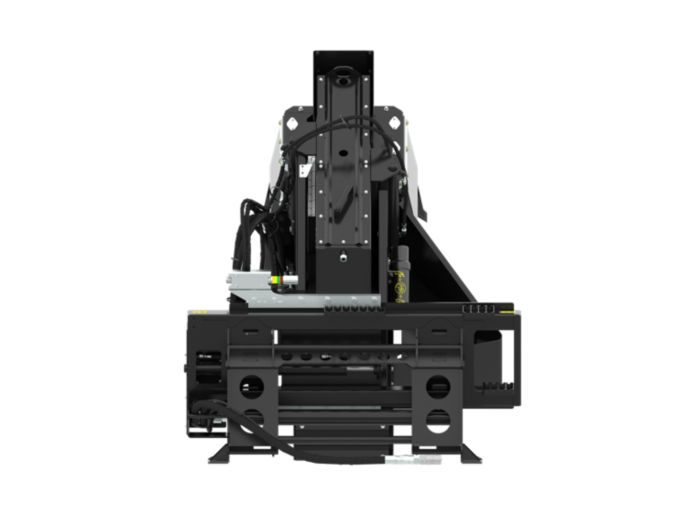

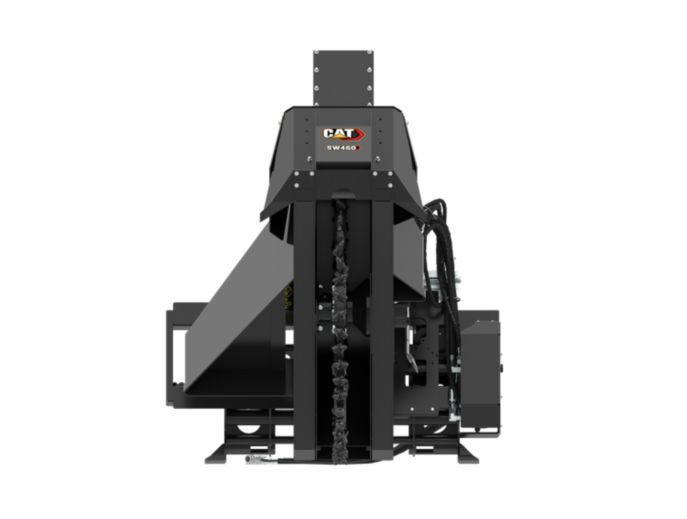

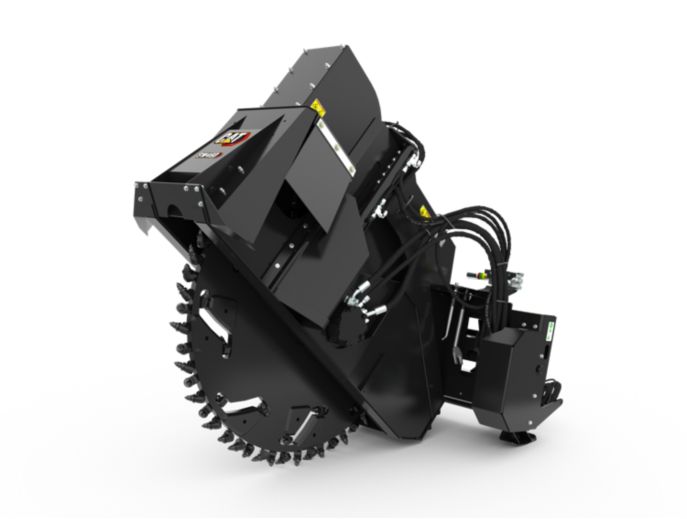

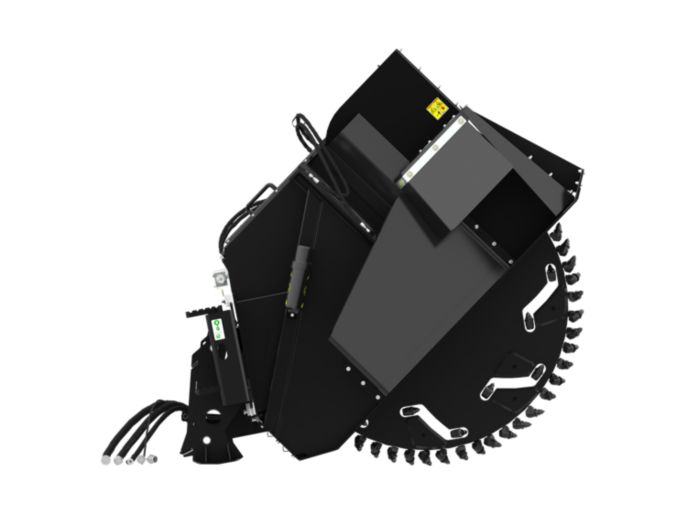

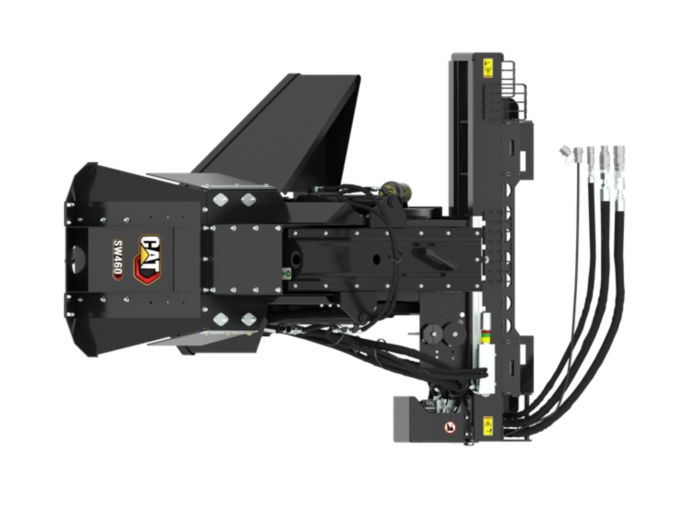

SW460, 80 mm (3 in)

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Overview

Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

UNITS:

Metric

Imperial

Maximum Cutting Depth	600 mm	23.6 in
Wheel Width	80 mm	3.1 in
Weight	1440 kg	3174.7 lb
Overall Width	1655 mm	65.2 in
Overall Height	1765 mm	69.5 in
Length	2417 mm	95.2 in
Required Hydraulics	XHP / XE	XHP / XE
Optimal Hydraulic Flow	136-150 L/min (36-40 gpm)	136-150 L/min (36-40 gpm)
Optimal Hydraulic Pressure	250-280 bar (3630-4000 psi)	250-280 bar (3630-4000 psi)
Motor Displacement	1686 cm³/rev	102.9 in³/rev
Wheel Torque at Maximum Pressure	7509 N·m	5538.4 lb/ft
Wheel Speed at Maximum Flow	89 RPM	89 RPM
Bit Speed at Maximum Flow	430 m/min	1410.8 ft/min
Conical Bits - Per Wheel	70	70
Standard Bit Type	Concrete	Concrete
Optional Bit Type	All Purpose	All Purpose
Side Shift Travel	550 mm	21.7 in
Trench Cleaning Device	No	No
Drive Method	Direct Drive	Direct Drive
Interface Type	Skid Steer Coupler	Skid Steer Coupler

Features

Direct Drive System

Direct drive system features a hydraulic piston pump motor to ensure maximum cutting rate and wheel torque for optimal production performance and efficiency.

Hydraulic Side-Shift

Hydraulic side-shift is standard on all models and is controlled from the operator’s compartment. Hydraulic side-shift allows wheel positioning from center to the far right of center. This allows for cutting close to curbs, walls and other obstructions, and minimizes need to reposition the machine.

Hydraulic Depth Control

Hydraulic depth control is standard on all models and is controlled from the operator’s compartment. Hydraulic depth control allows the operator to adjust cut depth on the fly from in cab to quickly adjust to the current job as needed.

Deflector Plates

Deflector plates remove spoil from the machine’s path for smooth operation. Spoil can be discharged left, right, or on both sides of the wheel saw with installation of included blanking plates.

Max Pro Pressure Gauge

Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.

Bits

Concrete bits are standard on all models. Optional all purpose conical bits are available for all Cat Wheel Saws for tarmac and asphalt applications. Extreme life bits are available for extreme duty Cat Wheel Saw applications.

Self Standing

Self standing frame design improves connection and parking.

OMM Container

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Included Tools

Attachment mounted tools included to provide quick and easy change out of bits when needed.

Smart Creep

Smart Creep is a dynamic drive control system that works in conjunction with the initial creep speed setting. Smart Creep senses load on the attachment being operated, and can automatically adjusts drive command to keep the attachment running at the most productive speed.

Optional Guide Bar

Optional guide bar allows operator to position wheel saw for better visibility of cut path, allowing for a straighter cut.

Water Kit Ready

Ports are strategically located to equip the saw with a water sprinkler kit along hood, which allows for significant dust reduction.
