360 View
- 360° View (HTML5)
Overview

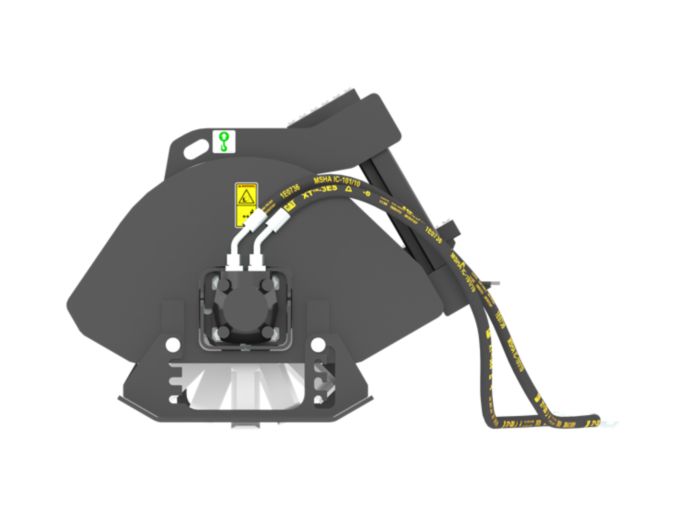

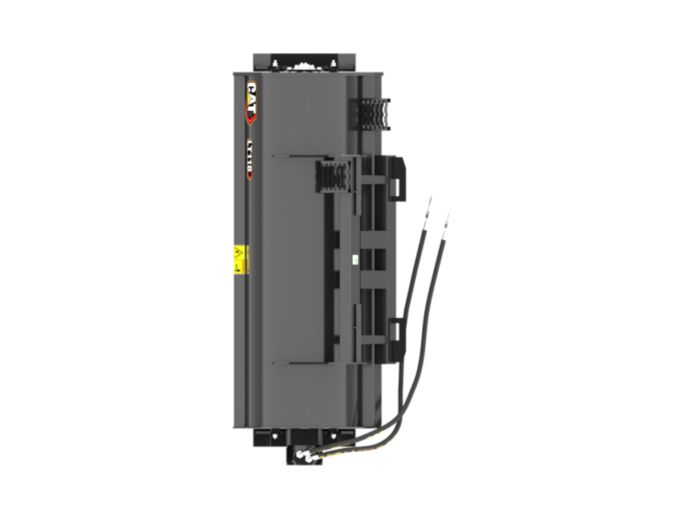

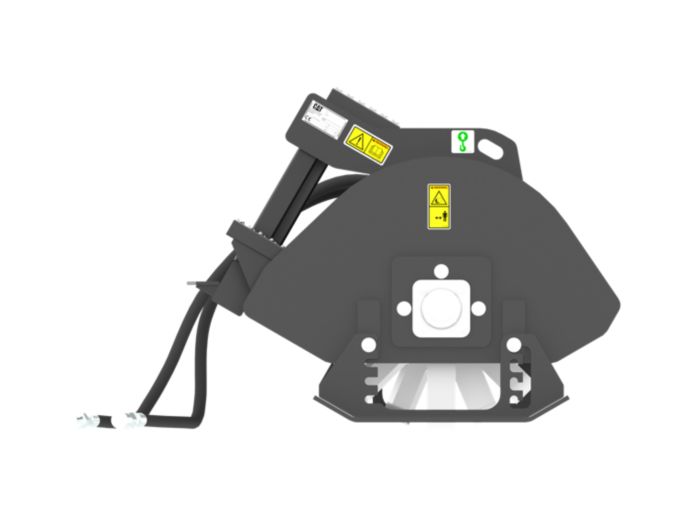

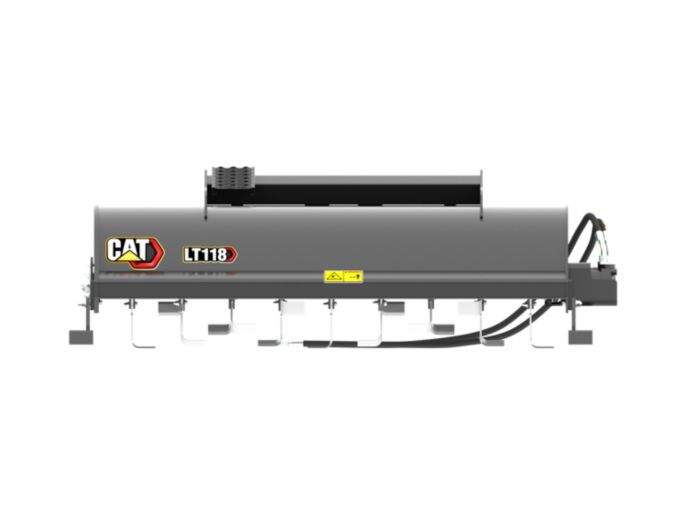

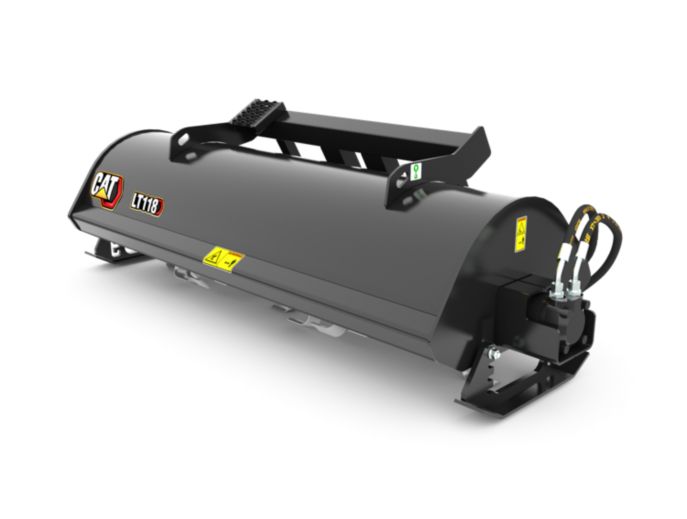

Cat® Landscape Tillers are designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications. They are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance applications.
UNITS:
Metric
Imperial
| Working Width | 1848 mm | 72.8 in |
| Working Depth | 25-152 mm (1-6 in) | 25-152 mm (1-6 in) |
| Weight | 420 kg | 925.9 lb |
| Overall Width | 2272 mm | 89.4 in |
| Height | 755 mm | 29.7 in |
| Length | 956 mm | 37.6 in |
| Optimal Hydraulic Flow | 60-114 L/min (16-30 gpm) | 60-114 L/min (16-30 gpm) |
| Optimal Hydraulic Pressure | 207-310 bar (3000-4500 psi) | 207-310 bar (3000-4500 psi) |
| Motor Displacement | 629.09 cm³ | 38.4 in³ |
| Drum Speed | 127 rpm @ 80 L/min (21 gpm) | 127 rpm @ 80 L/min (21 gpm) |
| Number of Hard Face Tines | 36 | 36 |
| Required Hydraulics | Standard Flow | Standard Flow |
Features
Application
Designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications.
Direct Drive System
Single motor direct drive system is matched to the machine's auxiliary hydraulic system for maximum performance.
Unique Spiral Tine Arrangement
Unique spiral tine arrangement provides 10% greater cutting performance over tillers with standard placements.
Tungsten Carbide Tines
Tines are hardened for maximum strength, durability and wear life in the toughest soil conditions. The bolt-on design provides quick change versatility and extended work tool life.
Two Full-Width Torque Tubes
Two full-width torque tubes provide rigid structural enforcement of tiller housing. Front torque tube design minimizes hood damage caused from larger rocks.
Arm Level Indicator
Arm level indicator provides operator a visual set-up and operating reference with top tiller attachment arms designed parallel to skid shoe.
Adjustable Skid Shoes
Adjustable and replaceable skid shoes with three position tiller depth adjustment allows for tilling depth to be quickly adjusted without skid shoe removal.
Serrated Steps
Serrated steps provide safe ingress and egress from machine cab.
Downloads
Overview
Cat® Landscape Tillers are designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications. They are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance applications.
UNITS:
Metric
Imperial
| Working Width | 1848 mm | 72.8 in |
| Working Depth | 25-152 mm (1-6 in) | 25-152 mm (1-6 in) |
| Weight | 420 kg | 925.9 lb |
| Overall Width | 2272 mm | 89.4 in |
| Height | 755 mm | 29.7 in |
| Length | 956 mm | 37.6 in |
| Optimal Hydraulic Flow | 60-114 L/min (16-30 gpm) | 60-114 L/min (16-30 gpm) |
| Optimal Hydraulic Pressure | 207-310 bar (3000-4500 psi) | 207-310 bar (3000-4500 psi) |
| Motor Displacement | 629.09 cm³ | 38.4 in³ |
| Drum Speed | 127 rpm @ 80 L/min (21 gpm) | 127 rpm @ 80 L/min (21 gpm) |
| Number of Hard Face Tines | 36 | 36 |
| Required Hydraulics | Standard Flow | Standard Flow |
Features
Application
Designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications.
Direct Drive System
Single motor direct drive system is matched to the machine's auxiliary hydraulic system for maximum performance.
Unique Spiral Tine Arrangement
Unique spiral tine arrangement provides 10% greater cutting performance over tillers with standard placements.
Tungsten Carbide Tines
Tines are hardened for maximum strength, durability and wear life in the toughest soil conditions. The bolt-on design provides quick change versatility and extended work tool life.
Two Full-Width Torque Tubes
Two full-width torque tubes provide rigid structural enforcement of tiller housing. Front torque tube design minimizes hood damage caused from larger rocks.
Arm Level Indicator
Arm level indicator provides operator a visual set-up and operating reference with top tiller attachment arms designed parallel to skid shoe.
Adjustable Skid Shoes
Adjustable and replaceable skid shoes with three position tiller depth adjustment allows for tilling depth to be quickly adjusted without skid shoe removal.
Serrated Steps
Serrated steps provide safe ingress and egress from machine cab.
