Asphalt Pavers

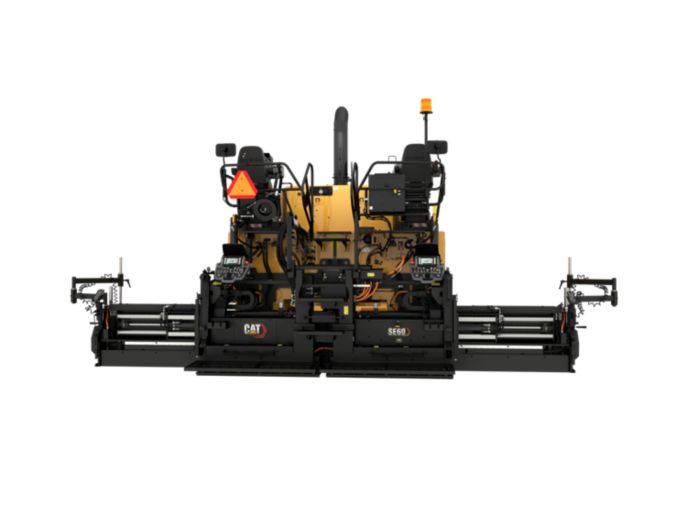

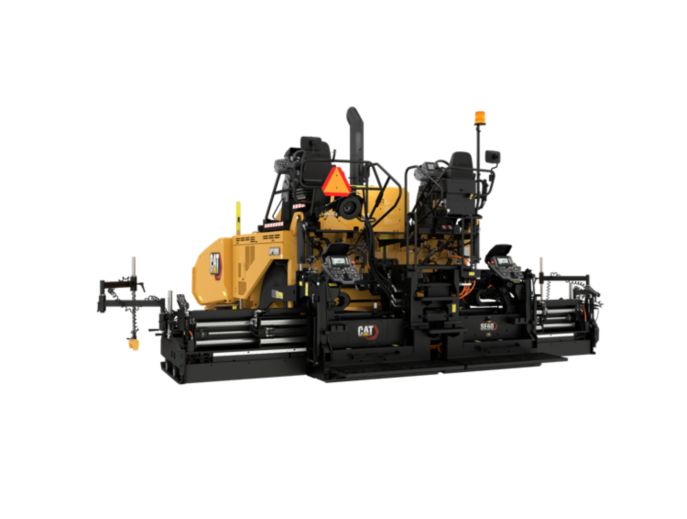

SE60 FM Vibratory Screed

The Cat® SE60 FM screed provides application versatility, easy set-up, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other mid-sized applications. Front-mounted extenders easily navigate curbs, light poles, turnouts, and other obstacles.

Request a quote

Overview

Weights

UNITS:

Metric

Imperial

Standard Weight	3538 kg	7800 lb

Operating Specifications

Standard Paving Range	3.05 - 594 m (10' - 19' 6")	3.05 - 594 m (10' - 19' 6")
Maximum Paving Width	7.77 m	25.5 ft
Maximum Paving Depth	250 mm	10 in
Heating Time - Maximum Width	25 minutes	25 minutes
Heating Time - Standard Width	15 minutes	15 minutes
Crown Range	-2.5% to 5%	-2.5% to 5%
Vibratory Speed Range	0 to 3000 vpm	0 to 3000 vpm
Extender Height Range	-41 mm to +6.5 mm	-41 mm to +6.5 mm
Extender Slope Range	0% to 9%	0% to 9%

Dimensions

Minimum Width - Endgates Attached	3353 mm	132 in
Transport Length - Tractor and Screed	6635 mm	21.75 ft
Screed Plates Width, Front to Back, Main Screed	616 mm	24 in
Screed Plates Width, Front to Back, Extenders	228 mm	9 in
Length - Front to Back, Endgates Attached	2194 mm	86 in
Length - Front to Back, Endgates Removed	1509 mm	59 in

Features

Application Versatility

The standard paving range of 3.05 m - 5.94 m (10' - 19' 6") and maximum width of 7.77 m (25' 6") provides a balance between urban and highway paving applications.
Common applications include parking lots, urban and rural roads, subdivision streets, and highways
Front-mounted extenders make maneuvering around abstacles easy
by providing the ability to retract without first clearing material from the extender
Power berm options provide the ability to create a 305 mm (12"), 457 mm (18"), or 609 mm (24")wide berms with a variable height up to 102 mm (4")

Quick Adjustment

Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to improve paving quaility and extend screed plate life
Extender angle of attack is easily accessible from the top of the extender frame
Inner and outer strike-off adjustments are connected to provide single point modification that ensures equal adjustment across the width of the screed
Slope stops help maintain performance

Smooth Material Flow

Screed plate widths of 610 mm (24") on the main and 210 mm (9") on the extenders provide smooth flow
Heated end gate option improves material flow for enhanced longitudinal joints
The in-line extension cylinders and rigid frame design reduces deflection in the extenders for better mat quality

Quick Heat, Even Distribution

Screed plate heating in as little as 25 minutes to 130º C (266º F)
Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure
U-shaped heating elements combined with zone monitoring helps ensure even heat distribution and smooth asphalt textures

Simple Operation

Operating displays can be tailored to specific language requirements with multiple options available
Exclusive 2-speed, proportional extender control provides smooth adjustment when transitioning paving widths
Screed operating consoles are equipped with ratio adjustment for the augers and conveyors, providing the ability to modify material flow
Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures

Pendent Control (Option)

Independent feeder system control includes manual and pause functions for each auger and conveyor
Emergency engine stop feature
Simple tow-point and berm attachment adjustments can be easily made with good visibility from the remote position

Cat® Grade Control (Option)

Factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sensor, and cross-coupling feature that maintains elevation with height adjustment

Service and Repair Kits

Paver and screed service and repair kits include the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Standard Equipment

Operating Environment

Level holder
Lockable storage
Shovel holder

Power Controls

Crown
Slope
Extender height

Service and Repair

Service repair kits

Safety

Horn

Material Delivery

Thickness screws _ clockwise or counterclockwise
End gate_manual

Optional Equipment

Operating Environment

Pendent control
Visor _ LCD display

Downloads

Key Features Download

Paving Product Line Brochure Download

Paving Application Guides and eBooks Download
