Compactors

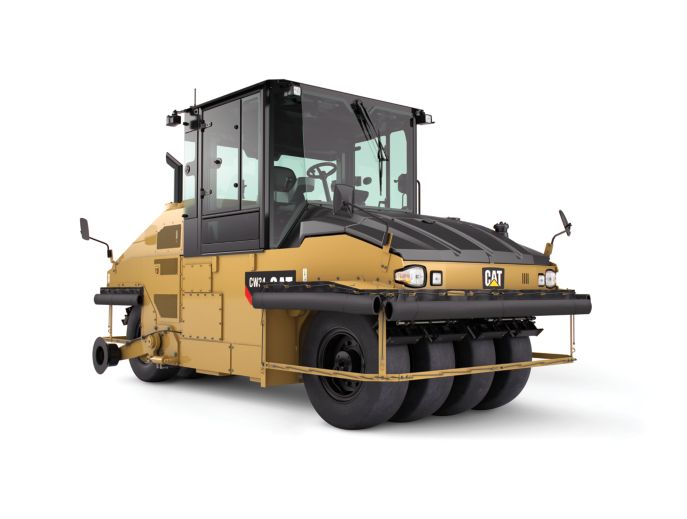

CW34

The CW34 is an eight wheel pneumatic roller that features a modular ballast system and flexible operating weight of 10 000 kg to 27 000 kg (22,050 lb - 59,525 lb). This machine offers excellent visibility, ECO-mode operation, even compaction, and excels on a variety of materials due to its flexible air-on-the-run capability.

Request a quote

Overview

Weights

UNITS:

Metric

Imperial

Operating Weight - Standard Machine Empty	10000 kg	22050 lb
Operating Weight - Maximum Ballast	27000 kg	59525 lb
Operating Weight - Maximum Water Ballast	13000 kg	28660 lb
Average Weight per Wheel - No Ballast	1250 kg	2756 lb
Average Weight per Wheel - Maximum Ballast	3380 kg	7451 lb
Average Weight per Wheel	1620 kg	3571 lb
Operating Weight - Maximum Wet Sand Ballast	16000 kg	35275 lb
Operating Weight - No Ballast	10000.0 kg	22050.0 lb

Operating Specifications

Compaction Width	2090 mm	82 in
Turning Radius - Inside (2)	6.1 m	15.0 ft
Rolling Width	2090.0 mm	82.0 in
Travel Speed - Maximum	19 km/h	12 mile/h
Turning Radius - Inside (1)	6100 mm	240 in
Ground Clearance	260 mm	10 in
Turning Radius - Outside	8700 mm	342 in
Number of Wheels	8	8

Engine

Bore	105.0 mm	4.13 in
Stroke	127.0 mm	5.0 in
Gross Power	96.5 kW	131.2 hp
Engine Model	C4.4	C4.4

Dimensions

Height - ROPS	3000 mm	118 in
Overall Length	5350 mm	210 in
Height - Steering Wheel	2450 mm	96 in
Maximum Machine Height	3000.0 mm	118.0 in
Overall Width	2160 mm	85 in

Tires

Tires	13/80 R20	13/80 R20

Service Refill Capacities

Fuel Tank Capacity	270 l	71 gal (US)
Water Spray Tank Capacity	380 l	100 gal (US)

Features

Versatile Compaction Performance

Exceptional Visibility and Control

Cat® Compaction Control

Smooth Operating Powertrain
