Compactors

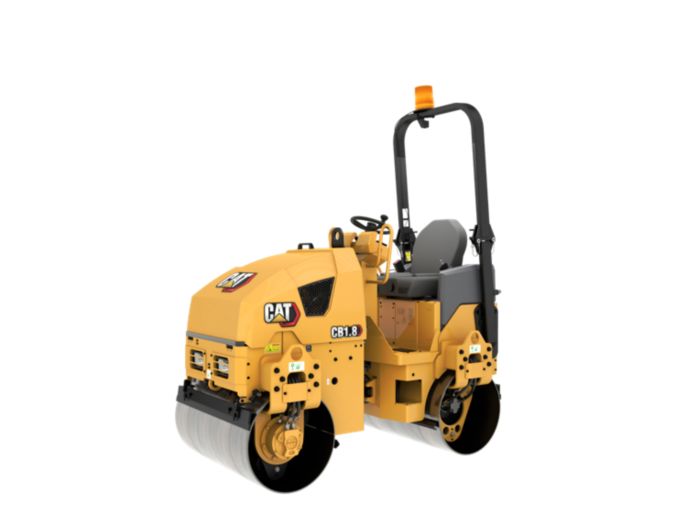

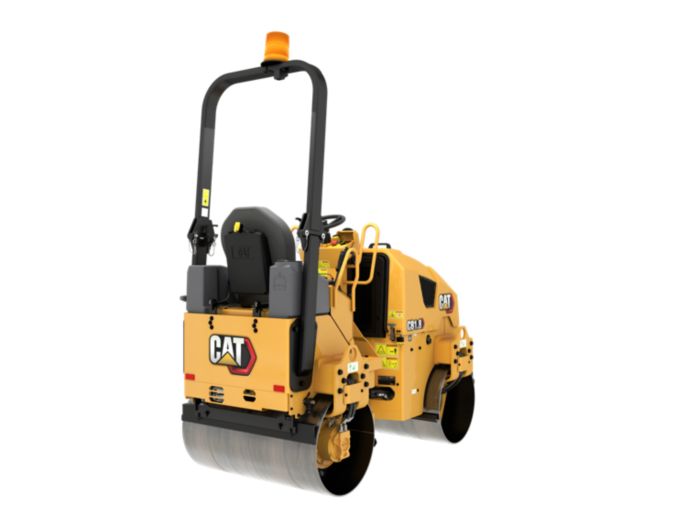

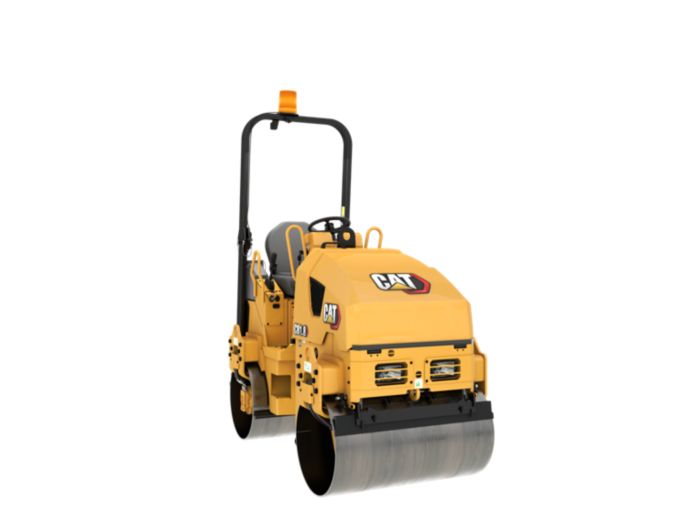

CB1.8
The CB1.8 is a 1.8 metric ton utility roller with 1000 mm (39 in) tandem vibratory drums.
Request a quote
Overview
The CB1.8 is a 1.8 metric ton utility roller with 1000 mm (39 in) tandem vibratory drums.
Weights
UNITS:
Metric
Imperial
| Operating Weight | 1735 kg | 3825 lb |
Operating Specifications
| Standard Compaction Width | 1000 mm | 39 in |
| Curb Clearance | 403 mm | 16 in |
| Ground Clearance | 251 mm | 10 in |
| Travel Speed - Maximum | 8.6 km/h | 5.3 mile/h |
| Static Linear Load | 9.1 kg/cm | 63 lb/in |
| Turning Radius - Inside Drum Edge | 1900 mm | 75 in |
Engine
| Gross Power | 18.4 kW | 24.7 hp |
| Engine Model | Cat C1.1 | Cat C1.1 |
Dimensions
| Overall Length | 2040 mm | 80 in |
| Overall Width | 1112 mm | 44 in |
| Drum Diameter | 575 mm | 22.5 in |
| Drum Width | 1000 mm | 39 in |
| Maximum Machine Height | 2400 mm | 94.5 in |
Vibratory System
| Frequency | 57 Hz | 3420 V/m |
| Nominal Amplitude - High | 0.47 mm | 0.018 in |
| Centrifugal Force per Drum - Maximum | 13.6 kN | 3057 lb |
Service Refill Capacities
| Fuel Tank Capacity | 30 l | 7.9 gal (US) |
| Water Spray Tank Capacity | 145 l | 38 gal (US) |
Features
Simple Operation
- Ergonomic operating environment with vandal protection
- Spacious seating and easy access due to logically placed handles and lower platform height
- Simple operation with mechanical propel and speed control levers
Efficient Performance
- Compact size for excellent maneuverability in tight spaces
- Excellent drum-edge visibility enhances control for better coverage and compaction results
- Industry-leading compaction force delivers outstanding results
- Industry-leading water tank capacity of 145 L (38 gal) sized for less fills throughout the day
- Single-Point Lift for trench work and alternative transport options
Optimized Power
- Powerful Cat® C1.1 engine; single source supplier for parts, service, and support
- Cooling system capability of up to 49º C (120º F) for good performance in harsh environments
- Quickly move around the job site with a fast travel speed of 8.6 kph (5.3 mph) for good mobility
Reliable and Easy to Maintain
- 3 year/3000 hour vibratory drum service interval
- Reliable triple filtration design for the water spray system
- Easy access to engine service points
- Robust hitch design easily supports single lift point option
- Remote monitoring available with Product Link™ option
Standard Equipment
Operator Environment
| ROPS Folding |
| Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights |
| Dual 12-volt Power Outlet |
| Horn, Backup Alarm |
Compaction System
| Folding Scrapers |
| Vibe Selection - Front, Rear, or Both |
| Pressurized, Triple-Filtration Spray System |
Powertrain
| Air Cleaner, Dual Element |
| Engine Belt Guard |
Technology
| ProductLinkTM |
Electrical
| Working Lights |
Other
| Vandal Protection - Lockable Hood and Controls Cover |
| Machine Life and Tiedowns |
Optional Equipment
Operator Environment
| Adjustable Suspension Seat w/ Operator Presence Switch |
| ROPS Fixed |
