CS11 GC (Tier 3)

Overview

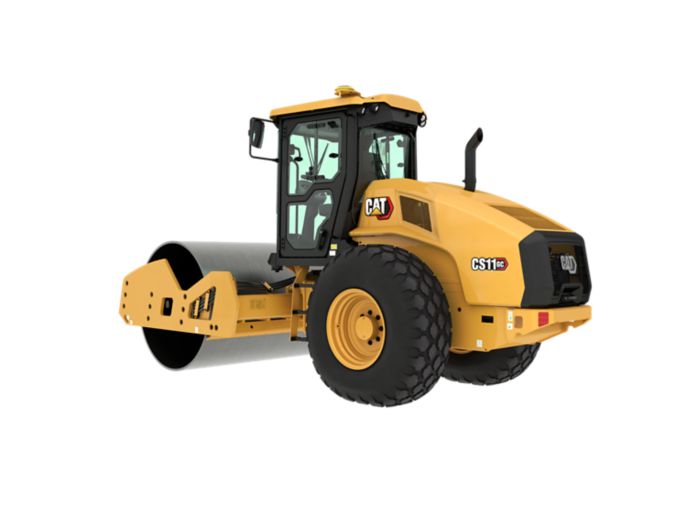

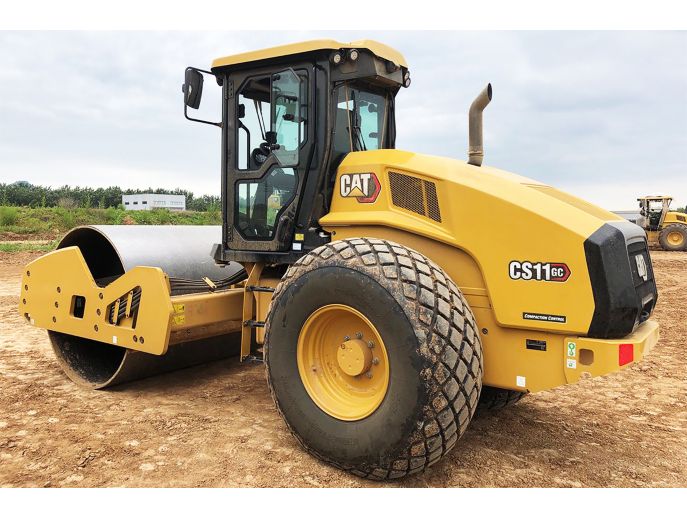

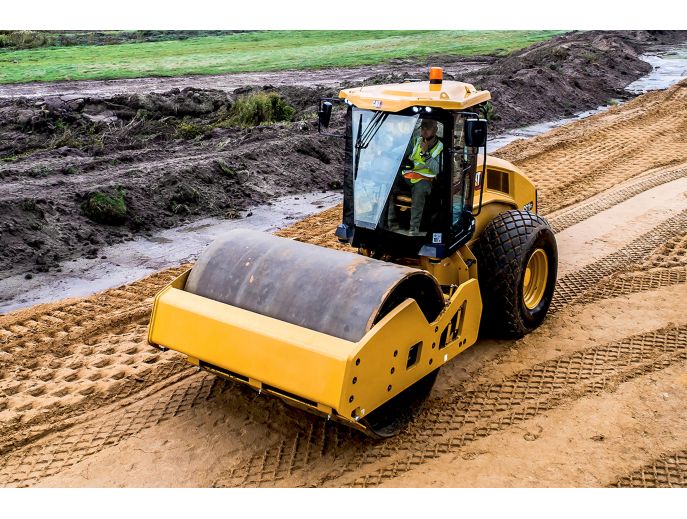

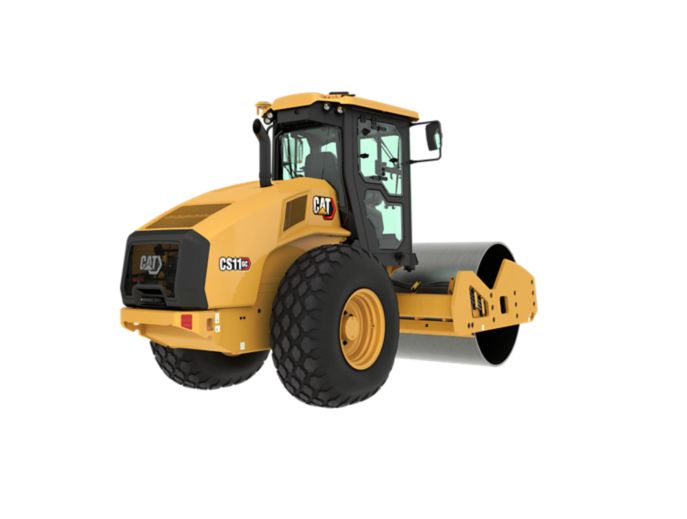

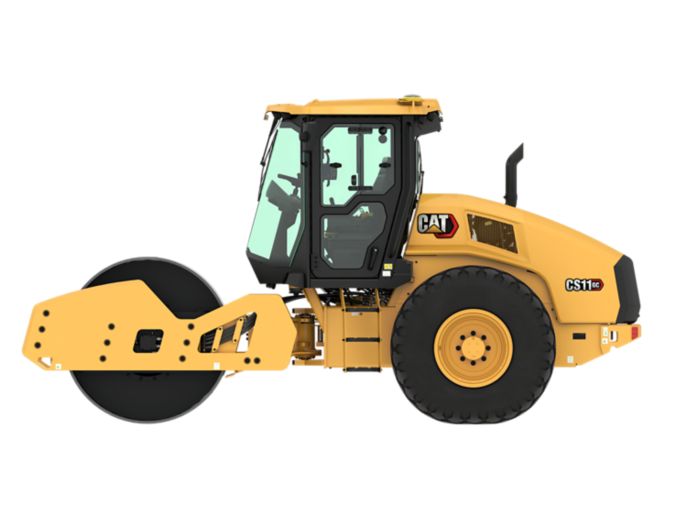

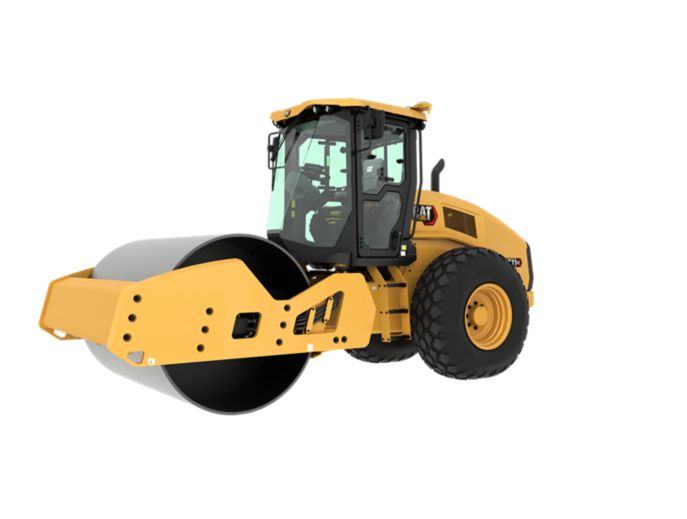

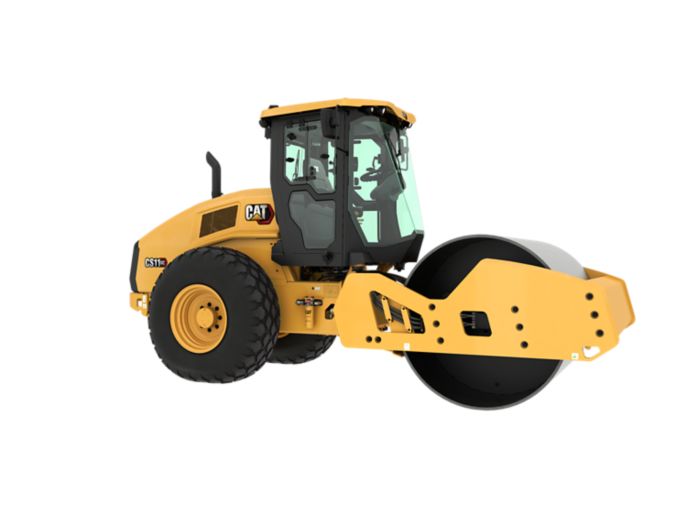

The Cat® CS11 GC Vibratory Soil Compactorsbring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CS11 GC smooth drum roller is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit.

Weights

Vibratory System

Dimensions

Operating Specifications

Service Refill Capacities

Sustainability

Features

Reliable Power


• The propel system is driven by a single pump design and is ideal for flat to moderate grades.

• Powered by a Cat® C4.4 engine that meets Brazil MAR-1, equivalent to U.S. EPA Tier 3 and EU Stage IIIA emission standards.

• Eco-mode limits engine RPM helping to reduce fuel consumption.

Comfortable and Ergonomic Operator Station


• The ISO-mounted operator station and rubber floormats help reduce noise and vibration for comfort during operation.

• Easy to use controls are grouped by function and a large display informs operators of machine performance.

• The seat, armrest and steering column are adjustable for all-day comfort.

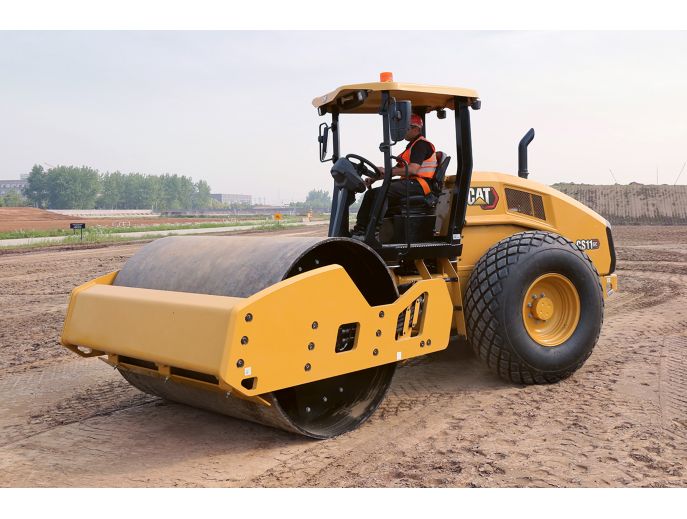

• Operators are protected from the elements by a standard equipped sun canopy, optional ROPS/FOPS canopy or optional climate-controlled ROPS/FOPS cab with hinged glass windows.

• Upgrade the standard adjustable vinyl seat to a vinyl suspension seat with arm rest for enhanced operator comfort. A deluxe high back air-ride seat option is available for cab configurations.

Safety Features


• Angled steps, handrails, and an antiskid surface help provide stability during entry and exit of the operator station.

• Internal and external mirrors are available to provide the operator with a broad view of the jobsite.

• Enhance visibility with an optional rear vision camera with large color touchscreen display for more complete operator control and safety.

• Optional operator presence seat sensor and seat belt switch.

Excellent Compaction Performance


• The exclusive pod-style eccentric weight vibratory system is designed to provide high reliability, smooth performance and low noise levels with a 3-year, 3000-hour maintenance interval.

• High static linear loads and amplitudes.

• The optional Traction Control system helps improve traction in soft underfoot conditions such as sand or loose material.

• The Auto-vibe function helps operators easily maintain consistent, high-quality compaction.

• Enhance machine versatility with the addition of an oval or square padfoot shell kit, allowing your smooth drum machine to compact semi-cohesive and cohesive materials.

• An optional MicroVibe™ drum configuration provides a lower range of amplitude than the standard drum for vibration-sensitive applications.

• Upgrade the CS11 GC to a heavier size class with an optional XT weight kit for use on a wider range of jobsites and lift thicknesses.

Enhance Quality and Productivity with Technology


• Optional Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes – saving on fuel and reducing rework and material costs.

• Exclusive Machine Drive Power (MDP) is an energy-based measurement and can be used on all soil types in either static or vibratory mode.

• Compaction Meter Value (CMV) is an accelerometer-based measurement for granular soils, measuring only when the vibratory system is active.

Virtually Maintenance Free


• The articulated hitch with sealed-for-life bearings does not require routine maintenance.

• Ground-level access to all maintenance points for easy service and fluid sampling.

• Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.

• Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.

• VisionLink® takes the guesswork out of managing your entire fleet–regardless of size or equipment manufacturer*–by providing maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and more through interactive dashboards on your mobile device or desktop, helping you make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.

Sustainability


• The Cat® C4.4 engine meets Brazil MAR-1, equivalent to U.S. EPA Tier 3 and EU Stage IIIA emission standards.

• Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester) and 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
      *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

• A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.

• Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. Extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.

• Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays.

• Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.

• Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.

NOTE

OPERATOR ENVIRONMENT

VIBRATORY SYSTEM

TECHNOLOGY SOLUTIONS

POWERTRAIN

ELECTRICAL

OTHER

NOTE
