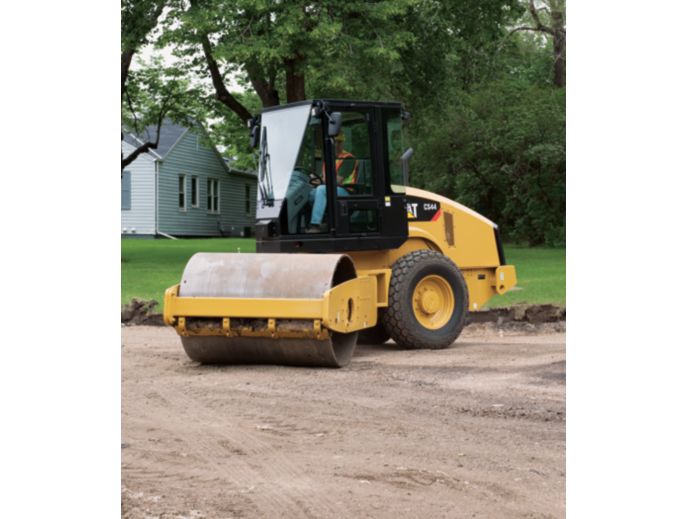

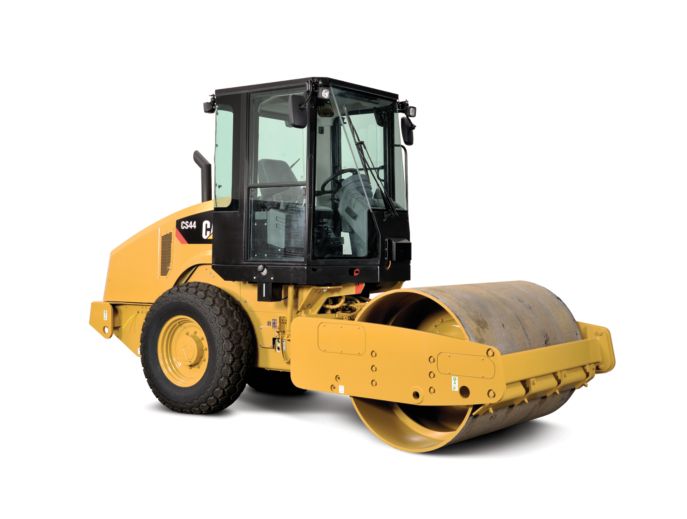

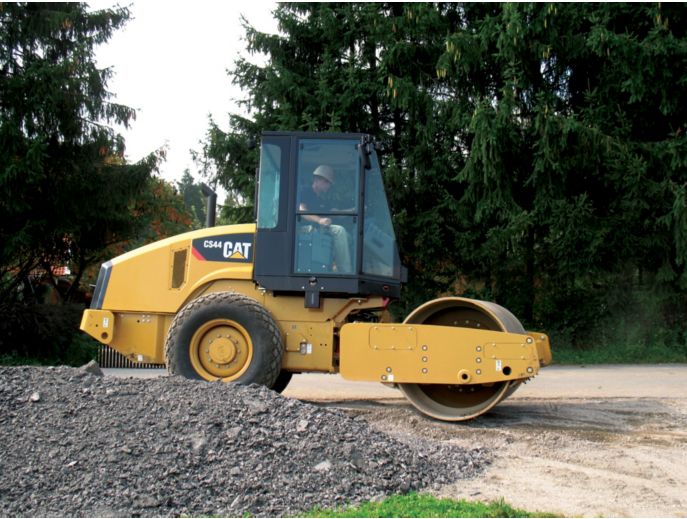

CS44B

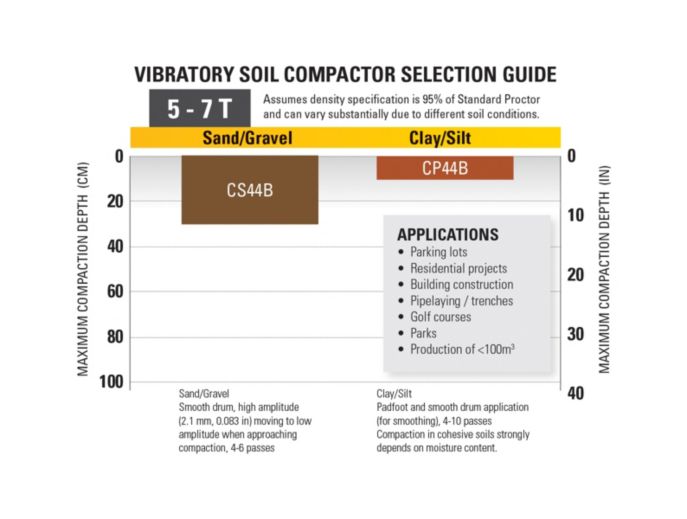

The CS44B provides exceptional performance on flat or sloped terrain. This machine is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.

Request a quote

Overview

Weights

UNITS:

Metric

Imperial

Operating Weight - With Cab	7210 kg	15895 lb
Weight - Drum with ROPS/FOPS	3384 kg	7460 lb
Weight - Drum with Cab	3518 kg	7756 lb
Weight - Drum with Sun Canopy	3384 kg	7460 lb
Operating Weight - With Sun Canopy	6943 kg	15307 lb

Operating Specifications

Compaction Width	1676 mm	66 in
Static Linear Load - With Cab	21 kg/cm	118 lb/in
Static Linear Load - With ROPS/FOPS	20.2 kg/cm	113 lb/in
Travel Speed - Maximum	11.4 km/h	7 mile/h
Turning Radius - Inside Drum Edge	3.05 m	10 ft
Ground Clearance	411 mm	16.2 in

Engine

Gross Power	74.5 kW	99.9 hp
Engine Model	Cat C4.4 ACERT	Cat C4.4 ACERT

Dimensions

Drum Width	1676 mm	66 in
Wheel Base	2.6 m	8.5 ft
Overall Length - With Blade Option	5.62 m	18.44 ft
Maximum Height	2.85 m	9.35 ft
Overall Width	1.8 m	5.91 ft
Drum Diameter	1221 mm	48.1 in
Optional Blade Height	574 mm	22.6 in
Overall Width - With Blade Option	2.12 m	6.95 ft
Overall Length	5.09 m	16.7 ft

Vibratory System

Centrifugal Force - Maximum	133 kN	29900 lb
Variable Frequency Option Range	23.3-31.9 Hz (1400-1914 vpm)	23.3-31.9 Hz (1400-1914 vpm)
Nominal Amplitude - High	1.67 mm	0.066 in
Vibratory Frequency - Standard	31.9 Hz	1914 V/m
Centrifugal Force - Minimum	67 kN	15000 lb
Nominal Amplitude - Low	0.84 mm	0.033 in

Tires

Tires	14.9 × 24 6-ply flotation	14.9 × 24 6-ply flotation

Service Refill Capacities

Fuel Tank Capacity	140 l	37 gal (US)

Features

Comfortable and Ergonomic Operator Station

The steering console features an LCD display. The display provides diagnostics and additional data to the operator. Machines that are equipped with Cat Compaction Control output compaction measurements to the display as well.
A multi-position steering wheel adjusts for comfort. An adjustable vinyl seat with seat belt is comfortable and keeps controls and operating information within easy reach. The 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibrations. Cup holders are provided on the steering column. Large mirrors provide excellent views to the rear of the machine.
The operator is provided with excellent visibility to the front, drum edges rear tire edges and rear of machine enhancing safety and production. Optional mirrors provide enhanced visibility to the rear.

Easy to Service

Design provides ground level access to all service and maintenance points.
Long service intervals contribute to more productivity and lower owning and operating costs. The vibratory system scheduled oil change interval is 3 years/3,000 hours. The hydraulic oil service interval is 3,000 hours. Engine oil service is every 500 hours.

Power Train

The Vibratory Soil Compactor features a Cat engine that offers enhanced efficiency, better serviceability, ample power, and less noise.

Reliable Vibratory System

The vibratory soil compactors deliver excellent compaction performance due to high amplitude and static linear load.
The vibratory soil compactor utilizes the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contamination common to conventional designs that employ metal weights. Providing unrivaled reliability and performance, the Cat pod-style vibratory system is virtually maintenance free, with the first scheduled maintenance period at 3 years or 3,000 hours.
An automatic vibration function provides consistency for more uniform compaction. When vibration is engaged, vibration will cease as the compactor slows beneath a predetermined speed. When propel resumes, vibration recommences at a predetermined speed. This feature contributes to uniform, high-quality work.

Standard Equipment

OPERATOR ENVIRONMENT

ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
Adjustable Tilting Steering Column with Integrated Cup Holders
Rear Vision Camera System
Seat Belt
12-volt Power Outlet
Horn, Backup Alarm

VIBRATORY SYSTEM

Smooth Drum
Dual Amplitude, Single Frequency
Pod-Style Eccentric Weight Housings
Auto-vibe Function
Front Adjustable Steel Scraper

POWER TRAIN

Cat C4.4 Engine
Air Cleaner, Dual Element
Two-Speed Throttle Switch and Eco-mode
Dual Propel Pumps; One for Drum Drive, One for Rear Axle
Fuel Filter, Water Separator, Priming Pump, Water Indicator
Tilting Radiator/Hydraulic Oil Cooler
Dual Braking System
Two-speed Hydrostatic Transmission

ELECTRICAL

12 volt Electrical System
150 ampere Alternator
1000 Cold-cranking Amps Battery Capacity

OTHER

Product Link™
Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
S•O•S℠ Sampling Valves: Engine Oil, Hydraulic Oil and Coolant

Optional Equipment

OPERATOR ENVIRONMENT

ROPS/FOPS Cab with Climate Control
