Compactors

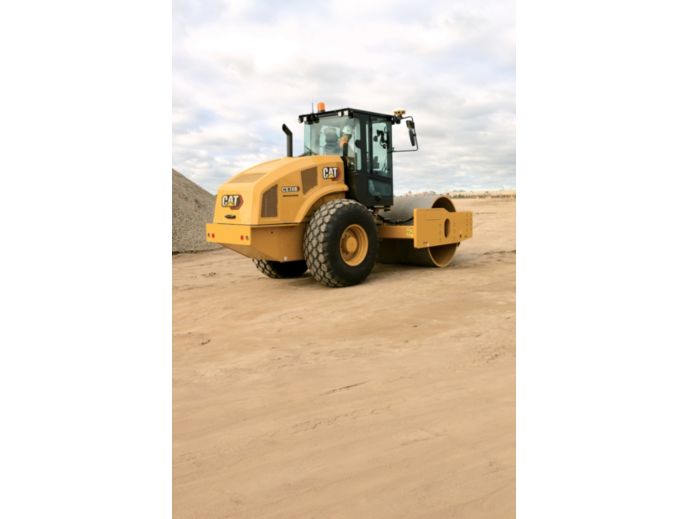

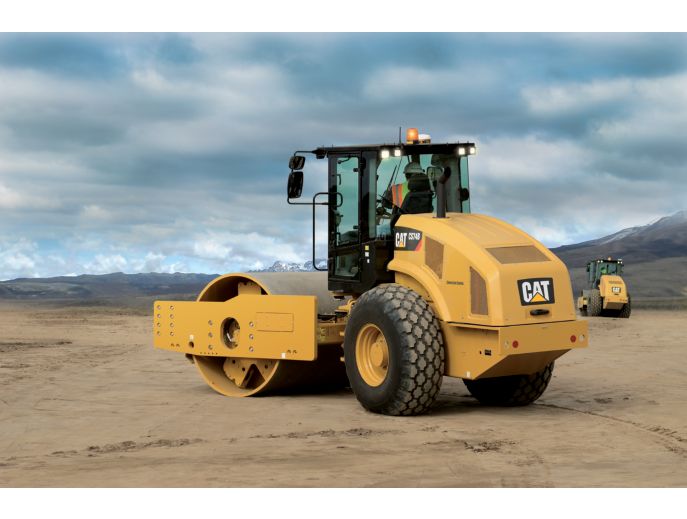

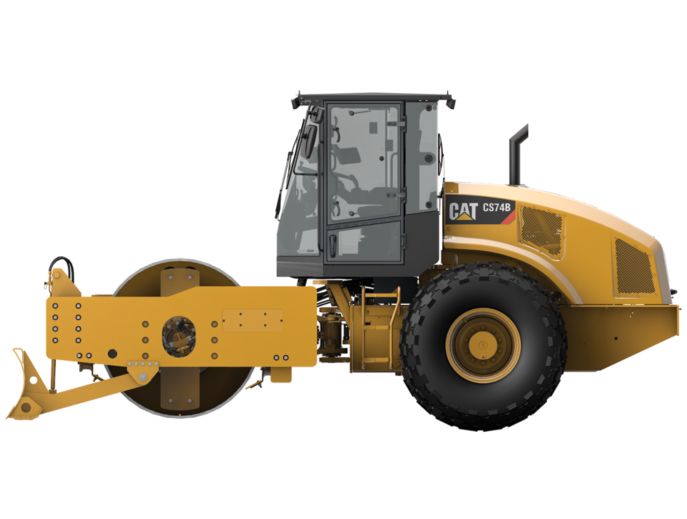

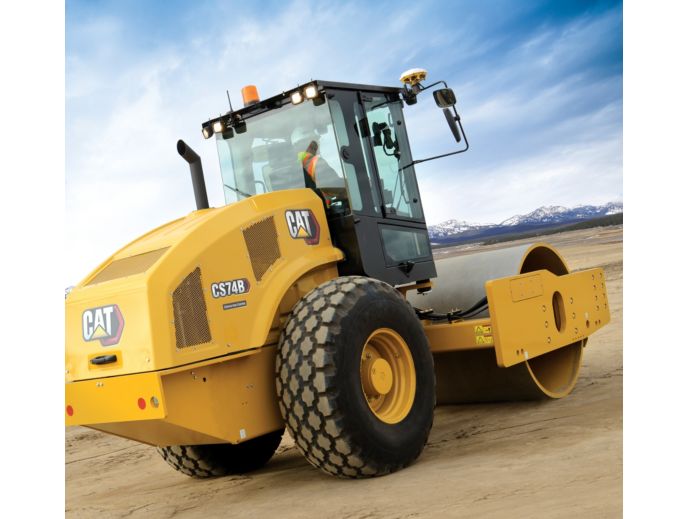

CS74B
The CS74B provides exceptional performance for granular soil compaction applications.
Request a quote
Overview
The CS74B provides exceptional performance for granular soil compaction applications.
Weights
UNITS:
Metric
Imperial
| Operating Weight - With Cab | 16000 kg | 35264 lb |
| Weight - Drum with Cab | 10630 kg | 23435 lb |
| Operating Weight - With ROPS/FOPS Canopy | 34690 lb | 15735 kg |
| Weight - Drum with ROPS/FOPS Canopy | 34690 lb | 15735 kg |
| Operating Weight - With Steel Sun Canopy | 15565 kg | 34315 lb |
| Weight at Drum with Steel Sun Canopy | 23016 lb | 10440 kg |
| Weight at Drum with Open Platform | 34106 lb | 15470 kg |
| Operating Weight - With Open Platform | 34106 lb | 15470 kg |
Operating Specifications
| Compaction Width | 2134 mm | 84 in |
| Ground Clearance | 437 mm | 17.2 in |
| Static Linear Load - With Cab | 49.7 kg/cm | 278.7 lb/in |
| Travel Speed - Maximum | 11.4 km/h | 7 mile/h |
| Turning Radius - Inside Drum Edge | 3.68 m | 12.07 ft |
Engine
| Engine Model | Cat C7.1 | Cat C7.1 |
| Gross Power | 129.5 kW | 173.7 hp |
| Net Power - ISO 9249 | 108.5 kW | 145.5 hp |
| Net Power - SAE J1349:2011 | 107.2 kW | 143.8 hp |
| Bore | 105 mm | 4.1 in |
| Stroke | 135 mm | 5.3 in |
Dimensions
| Drum Diameter | 1534 mm | 60.4 in |
| Drum Width | 2134 mm | 84 in |
| Height - With ROPS/FOPS or Cab | 3.11 m | 10.25 ft |
| Optional Blade Height | 688 mm | 27.1 in |
| Overall Length | 6.05 m | 19.9 ft |
| Overall Length - With Blade Option | 6.55 m | 21.5 ft |
| Overall Width | 2.33 m | 7.64 ft |
| Overall Width - With Blade Option | 2.5 m | 8.25 ft |
| Wheel Base | 2.9 m | 9.5 ft |
Vibratory System
| Vibratory Frequency - Standard | 1680 Hz | 1680 Hz |
| Vibratory Frequency - Standard | 28 | 28 |
| Vibratory Frequency - Ecomode | 25.5 | 25.5 |
| Vibratory Frequency - Ecomode | 1527 | 1527 |
| Variable Frequency Option Range | 23.3 - 28 Hz (1400-1680 vpm) | 23.3 - 28 Hz (1400-1680 vpm) |
| Nominal Amplitude - High | 2.1 mm | 0.083 in |
| Centrifugal Force - Maximum | 332 kN | 74600 lb |
| Nominal Amplitude - Low | 0.98 mm | 0.039 in |
| Centrifugal Force - Minimum | 166 kN | 37300 lb |
Tires
| Tires | 23.1 x 26 | 23.1 x 26 |
Service Refill Capacities
| Fuel Tank Capacity | 332 l | 88 gal (US) |
Features
Enhanced Vibratory System
Reliable Power Train
Comfortable Operator's Environment
Cat Compaction Control Option
Easy to Service
Standard Equipment
NOTE:
| Standard and optional equipment may vary. Consult your Cat dealer for details. |
OPERATOR ENVIRONMENT
| Open Platform with Handrails/Guardrails, Floor Mat |
| Vinyl Adjustable Pivoting Seat with Integrated Console and LCD Display |
| Adjustable Tilting Steering Column with Integrated Cup Holders |
| Seat Belt |
| 12-volt Power Outlet |
| Horn, Backup Alarm |
VIBRATORY SYSTEM
| Smooth Drum |
| Dual Amplitude, Single Frequency |
| Dual Pod-Style Eccentric Weight Housings |
| Auto-vibe Function |
| Front Adjustable Steel Scraper |
POWER TRAIN
| Cat C7.1 Diesel Engine |
| Air Cleaner, Dual Element |
| Three-Speed Throttle Switch, Eco-mode and Automatic Speed Control |
| Dual Propel Pumps; One for Drum Drive, One for Rear Axle |
| Fuel Filter, Water Separator, Priming Pump, Water Indicator |
| Tilting Radiator/Hydraulic Oil Cooler |
| Dual Braking System |
| Two-speed Hydrostatic Transmission |
ELECTRICAL
| 24 volt Electrical System |
| 100 ampere Alternator |
| 750 Cold-cranking Amps Battery Capacity |
OTHER
| Product Link™ |
| Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level |
| S•O•S℠ Sampling Valves: Engine Oil, Hydraulic Oil and Coolant |
Optional Equipment
NOTE:
| Standard and optional equipment may vary. Consult your Cat dealer for details. |
