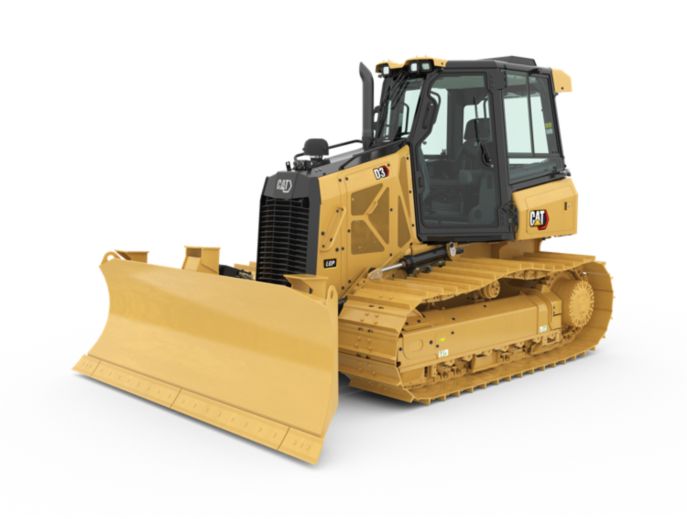

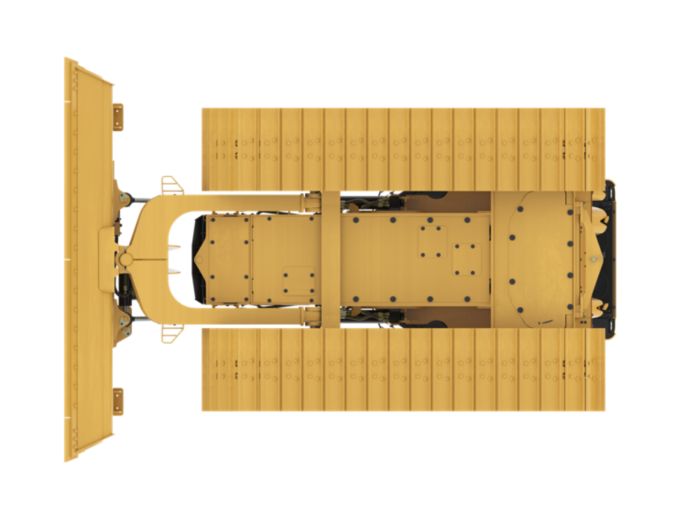

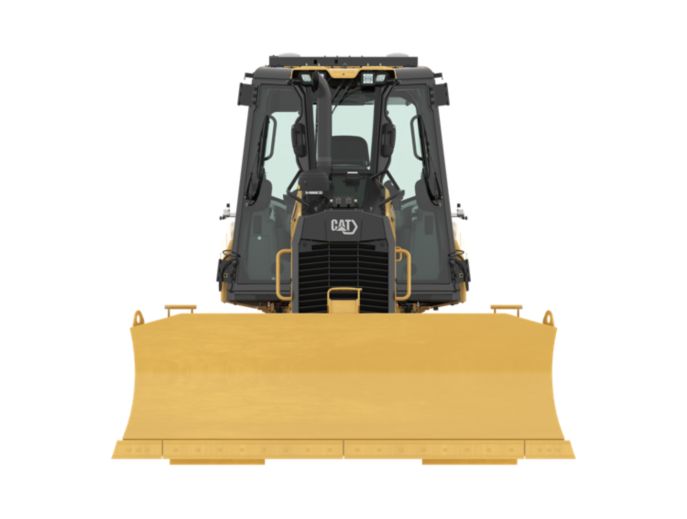

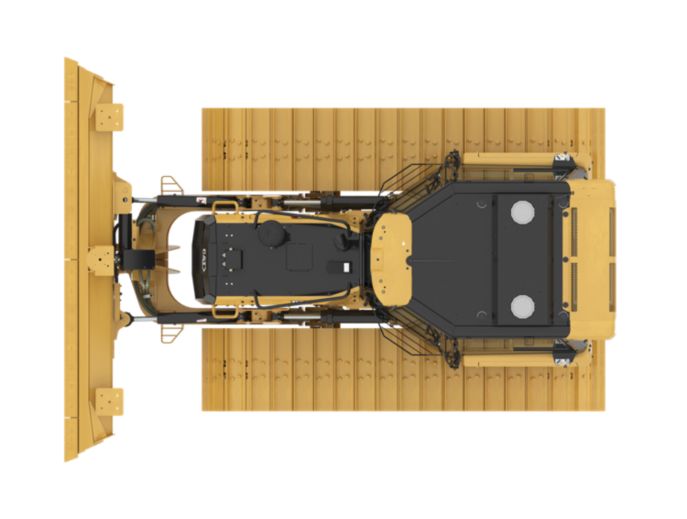

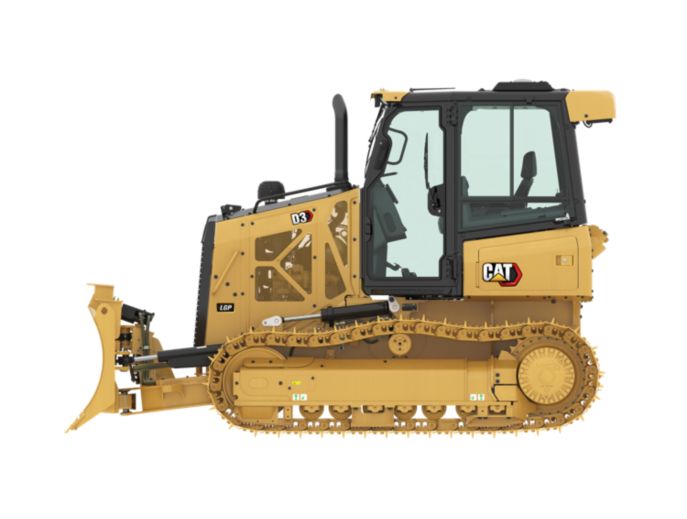

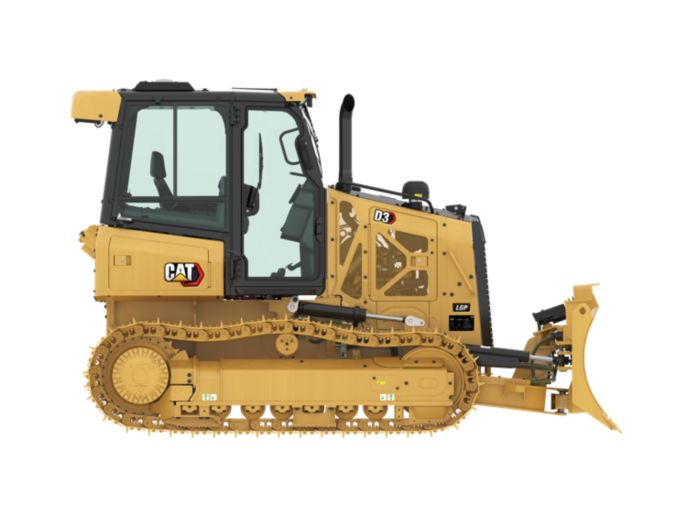

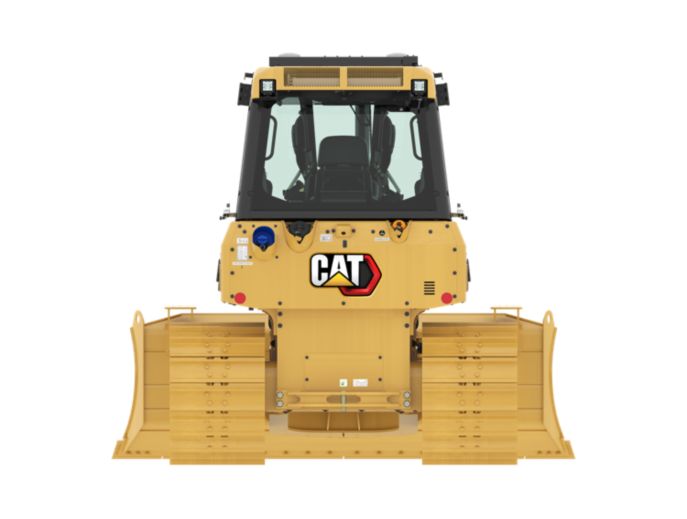

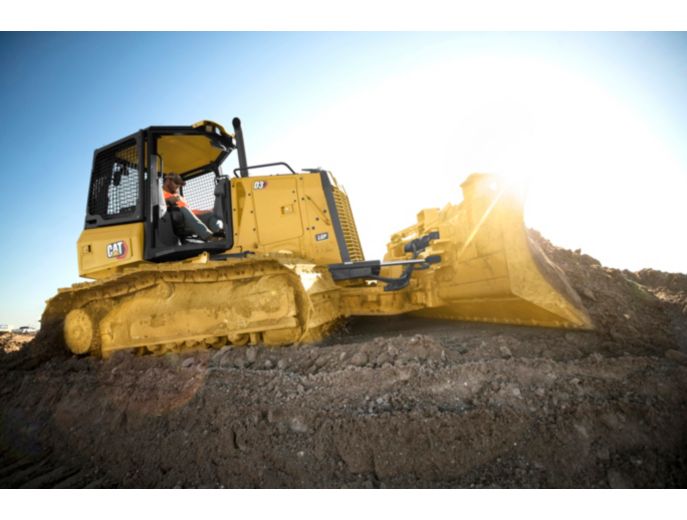

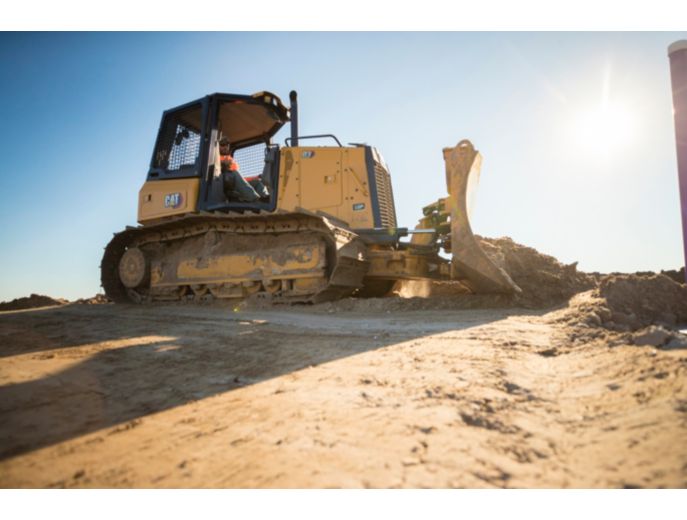

D3

The Cat^® D3 delivers superior performance and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and ﬁnesse for grading. Fully hydrostatic transmission gives you seamless acceleration, so you can get the job done quickly. The load sensing system automatically optimizes ground speed based on load, for the greatest productivity and fuel efficiency.

Request a quote

Overview

Engine

UNITS:

Metric

Imperial

Engine Model	Cat® C3.6	Cat® C3.6
Power - Net	77.6 kW	104 hp
Displacement	3.6 l	220 in³
Net Power - 2,200 rpm - SAE J1349	77.6 kW	104 hp
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269	77.6 kW	104 hp
Note (1)	Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ﬂywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.	Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ﬂywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Note (2)	All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.	All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.

Engine

Power Train	Hydrostatic	Hydrostatic

Weights

Operating Weight	9362 kg	20639.68 lb
Operating Weight	9362 kg	20640 lb
Operating Weight - LGP	9693 kg	21369 lb
Operating Weight - LGP, 762 mm/30 in	9893 kg	21810 lb
Note (2)	For machine with ripper, add 554 kg (1,222 lb).	For machine with ripper, add 554 kg (1,222 lb).
Note (1)	Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.	Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.

Cab

ROPS	ISO 3471:2008	ISO 3471:2008
FOPS	ISO 3449:2005 Level II	ISO 3449:2005 Level II

Transmission

Drive Pumps	1	1
Maximum Travel Speed - Forward	9 km/h	5.6 mile/h
Maximum Travel Speed - Reverse	10 km/h	6.2 mile/h
Track Motors	2	2
Relief Valve Settings	48500 kPa	7033 psi

Undercarriage

Shoe Width - Standard	510 mm	20 in
Ground Pressure - LGP	31.2 kPa	4.5 psi
Track Gauge - LGP	1750 mm	69 in
Length - Track on Ground - LGP	2310 mm	91 in
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage	40	40
Ground Pressure - LGP, 762 mm (30 in)	27.2 kPa	3.9 psi
Length - Track on Ground - LGP, 762 mm (30 in)	2310 mm	91 in
Shoe Width - LGP	660 mm	26 in
Shoe Width - LGP, 762 mm (30 in)	762 mm	30 in
Track Gauge	1600 mm	63 in
Number of Rollers - Each Side	7	7
Track Gauge - LGP, 762 mm (30 in)	1860 mm	73 in

Undercarriage

Ground Pressure	38.9 kPa	5.7 psi
Length of Track on Ground	2310 mm	91 in
Number of Shoes - Each Side - Abrasion Undercarriage	36	36

Service Refill Capacities

Cooling System	19 l	5 gal (US)
Final Drive - Each - LGP	10 l	2.6 gal (US)
Crankcase - With Filter	10.5 l	2.8 gal (US)
Diesel Exhaust Fluid (DEF) Tank	19 l	4.9 gal (US)
Transmission - Hydraulic Tank	90 l	23.8 gal (US)
Fuel Tank	195 l	51.5 gal (US)

Service Refill Capacities

Final Drives - Each Side	10 l	2.6 gal (US)

Hydraulic Controls

Pump Output	65 l/min	17.2 gal/min
Relief Valve Settings	20600 kPa	2988 psi

Ripper

Type	Parallelogram	Parallelogram
Number of Shanks	3	3
Height	165 mm	6.5 in
Weight	554 kg	1222 lb
Maximum Digging Depth	337.5 mm	13.3 in
Maximum Reach - Ground Line	766 mm	30.2 in
Overall Width	1710 mm	67.3 in
Maximum Ground Clearance Under Tip	448 mm	17.6 in

Air Conditioning System

Air Conditioning	The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.	The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.

Dimensions

BLADE: Blade Width - LGP	3220 mm	126.7 in
Track Gauge - LGP, 762 mm (30 in)	1860 mm	73 in
BLADE: Digging Depth - LGP	590 mm	23.2 in
Track Gauge - LGP	1750 mm	67.9 in
BLADE: Blade Capacity (SAE) - LGP	2.34 m³	3.06 yd³
BLADE: Blade Width at Maximum Angle - LGP	2940 mm	115.8 in
BLADE: Blade Cutting Edge Angle, Adjustable - LGP	52° to 58°	52° to 58°
Ground Clearance - LGP, 762 mm (30 in)	332 mm	13 in
BLADE: Blade Height - LGP	1010 mm	39.8 in
BLADE: Blade Lift Height - LGP	767 mm	30.2 in
Ground Clearance - LGP	332 mm	13 in
Overall Length - With Blade - LGP, 762 mm (30 in)	4309 mm	169.6 in
Overall Length - With Blade - LGP	4309 mm	169.6 in
BLADE: Maximum Tilt - LGP	448 mm	17.7 in
BLADE: Maximum Angle (either side) - LGP	25°	25°
Note	With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in)	With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in)
Length of Basic Dozer (without blade) - Standard	3270 mm	128.7 in
Dozer Height - Standard	2769 mm	109 in
Width of Dozer (standard shoes, no blade) - LGP	2410 mm	94.9 in
Width of Dozer (standard shoes, no blade) - LGP, 762 mm (30 in)	2630 mm	103.5 in
Length of Basic Dozer (without blade) - LGP	3270 mm	128.7 in
Dozer Height - LGP, 762 mm (30 in)	2769 mm	109 in
Width of Dozer (standard shoes, no blade) - Standard	2110 mm	83 in
Length of Basic Dozer (without blade) - LGP, 762 mm (30 in)	3270 mm	128.7 in
Dozer Height - LGP	2769 mm	109 in

Dimensions

BLADE: Blade Capacity (SAE) - Standard	2.19 m³	2.86 yd³
Track Gauge - Standard	1600 mm	63 in
BLADE: Digging Depth - Standard	605 mm	23.8 in
BLADE: Blade Lift Height - Standard	767 mm	30.2 in
Ground Clearance - Standard	332 mm	13 in
Overall Length - With Blade - Standard	4337 mm	170.7 in
BLADE: Blade Cutting Edge Angle, Adjustable - Standard	52° to 58°	52° to 58°
BLADE: Blade Height - Standard	1073 mm	42.2 in
BLADE: Maximum Tilt - Standard	402 mm	15.8 in
Note	Abrasion Undercarriage	Abrasion Undercarriage
BLADE: Blade Width - Standard	2782 mm	109.5 in
BLADE: Blade Width at Maximum Angle - Standard	2636 mm	103.8 in
BLADE: Maximum Angle (either side) - Standard	25°	25°

Retrieval Winch

Maximum Line Pull - Bare Drum	14583 kg	32150 lb
Control	Hydraulic	Hydraulic
Rope Diameter - Optional	19 mm	0.75 in
Drum Capacity - Optional Cable	59 m	195 ft
Maximum Line Speed - Full Drum	24 m/min	79 ft/min
Drum Capacity - Recommended Cable	84 m	277 ft
Winch Drive	Hydraulic	Hydraulic
Weight	794 kg	1747 lb
Maximum Line Pull - Full Drum	9231 kg	20350 lb
Rope Diameter - Recommended	16 mm	0.63 in
Maximum Line Speed - Bare Drum	15 m/min	50 ft/min
Speed	Variable	Variable
Winch Length	905 mm	35.63 in
Drum Diameter	203.2 mm	8 in
Overall width	709 mm	27.91 in
Drum Width	245 mm	9.65 in
Throat Clearance	141.4 mm	5.6 in

High Performance Winch

Winch length	705 mm	27.76 in
Rope diameter – optional	19 mm	0.75 in
Maximum line speed – bare drum	40 m/min	131 ft/min
Maximum line pull – bare drum	18144 kg	40000 lb
Weight	610 kg	1345 lb
Drum capacity – optional	78 m	256 ft
Maximum line speed – full drum	63 m/min	207 ft/min
Rope diameter – recommended	16 mm	0.63 in
Winch drive	Hydrostatic	Hydrostatic
Throat clearance	171.5 mm	6.75 in
Drum diameter	254 mm	10 in
Overall width	741 mm	29.2 in
Drum width	274 mm	10.8 in
Maximum line pull – full drum	11340 kg	25000 lb
Speed	Variable	Variable
Drum capacity – recommended cable	113 m	371 ft
Control	Hydraulic	Hydraulic

Features

IMPROVED VISIBILITY

The sloped hood provides better visibility to the work in front of the blade as well as the overall job site. Better visibility can equal less operator fatigue and more confidence in your work.

ENHANCED TECHNOLOGY

Cat small dozers include a suite of Operator Assist features that work seemlessly to save time, effort, fuel, machine wear and overall costs.

Steer Assist automates track steering with light or heavy loads and automates blade tilt steering to help push heavy loads with less effort. This feature helps reduce operator inputs by up to 75% and enhances operator efficiency and productivity. Steer Assist is standard with Assist with Attachment Ready Option (ARO). Steer Assist 3D is standard with Grade 3D with Assist.
Stable Blade Lift and Tilt automatically works behind the scenes to allow operators to create smooth surfaces with less effort using accelerometers on the blade and chassis with an advanced algorithm to make minor blade raise and lower movements. Stable Blade Lift and Tilt is standard with Assist with ARO and Grade 3D with Assist.
Blade Load Monitor provides real-time feedback of current load vs. target load to fully utilize machine capacity benefiting operators of all skills levels. Automatically compensates for ground conditions. This feature is not available indoors or in areas where a GPS signal is not available. Blade Load Monitor is standard with Assist with ARO and Grade 3D with Assist.
Low Slip Traction Control prevents excessive track slip to improve machine efficiency and reduce burden on the operator. Feature offers two modes: Normal Mode helps when pushing heavy blade loads by limiting non-productive track slip, recommended for most applications. And Low Slip Mode limits track slip for applications sensitive to slip such as spreading material on top of a liner, select this mode when needed. Traction Control is standard with Assist with ARO and Grade 3D with Assist.
AutoCarry™ raises and lowers the blade to maximize pushing capability and prevent excessive track slip when pushing heavy loads. Feature is designed to work in unison with other Operator Assist Features. Not available indoors or in areas where a GPS signal is not available. AutoCarry is standard with Assist with ARO and Grade 3D with Assist.
Scalable Grade 2D and 3D with Assist is an optional feature that makes your job up to 39% faster with up to 82% fewer operator inputs and less rework by maintaining blade angles for better surface quality – even with less experienced operators.
Cat Command remote control is an optional feature that takes you off the machine and away from hazardous conditions, dust, noise or vibration or operating on unstable surfaces. Eliminates risk of injury from climbing on or off the machine. Integrated with dozer systems, Cat Command enables smooth, precise control with access to all machine functions and advanced features (if equipped) for maximum efficiency and productivity. Availability varies by region.

UP TO 10% IMPROVED FUEL ECONOMY

The D3 features the lowest fuel consumption in this size class with the same great performance you've come to expect. Up to 20% improvement and no performance sacriﬁce when ECO mode is active.

COMFORTABLE WORK SPACE

The spacious and comfortable cab features an optional heated and ventilated seat, along with heated joystick controls to make the operator comfortable no matter what the conditions are outside. The seat height and armrests can be easily adjusted to the operator’s preference.

BIGGER, BETTER DISPLAY WITH CAMERA

This new and improved optional 10 in (254 mm) touchscreen, color display is easy to use, with a great view of machine settings, rearview camera and Slope Indicate/Slope Assist screens. The large reversing camera gives the operator better visibility to the job site.

DURABLE UNDERCARRIAGE

The D3 is available with either a Sealed and Lubricated Track (SALT) or Abrasion undercarriage to best suit your application. The undercarriage has a longer life resulting in less down time. A one piece mainframe/track roller frame design and the large, double reduction planetary final drive allow the machine to push heavy loads.

SUSTAINABILITY

The Cat® C3.6 engine meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and Korea Tier 5 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat® Grade with Slope Assist™ helps you avoid costly rework and wasteful fuel burn and greenhouse gas emissions by automating your blade position without a GPS signal.
Cat® Grade with 3D automates blade movements using a GPS signal helping you follow a grade design, reducing fuel burn and greenhouse gas emissions by improving efficiency and accuracy.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.

Standard Equipment

POWER TRAIN

Air cleaner with precleaner, automatic dust ejection and underhood intake
Aluminum bar plate cooling system (radiator, power train)
Automatic traction control
Cat C3.6 diesel engine
Drive, auxiliary
Dual path, closed loop, hydrostatic transmission
Electric fuel pump
Fuel/water separator
Turbocharged aftercooled

ELECTRICAL

Alarm, backup
Alternator, 150 amp, heavy duty
Batteries, heavy duty, maintenance free, 1,000 CCA
Diagnostic connector
Four integrated front halogen lights, two rear halogen
Horn, electric
Starter, electric, 12 V, heavy duty

UNDERCARRIAGE

Heavy Duty (HD) Undercarriage (40 section)
Carrier rollers
Guards, front/rear guiding
Seven roller track frame
Track adjusters, hydraulic
Track rollers, lifetime lubricated

HYDRAULIC

Hydraulic pump and oil
Single lever, three function control
Three valve hydraulics

CAT TECHNOLOGY

Slope Indicate
Stable Blade – Basic Lift
Third party 3D grade system compatible
Cat Product Link™ PLE643/PLE743 Cellular

OPERATOR ENVIRONMENT

Armrests, adjustable
Coat hook
Controls, seat mounted, fore/aft adjustment
Cup holders
Eco Mode
Electronic Monitoring system with gauge: – Chassis slope indication – Diesel exhaust fluid (DEF) – Engine coolant temperature – Fuel level – Hydraulic oil temperature
Electronic security system
Engine air cleaner service indicator
Engine RPM and gear display
Floor mat, rubber, heavy duty
Foot pads, dash
Hour meter, electronic
Independent forward/reverse speed settings
Mirror, rearview, inside
Power port, 12 volt
ROPS/FOPS canopy
Seat, air suspended, cloth or vinyl
Seatbelt, hi-vis retractable 76 mm (3")
Seatbelt buckling indicator/reminder
Single pedal combining decel and brake functions
Speed recall
Storage compartment
Throttle switch, rotary
Travel speed limiter, electronic

Optional Equipment

POWER TRAIN

Air cleaner with external precleaner
Installation, winch

Downloads

D3 Small Product Brochure Download

D3 Large Product Brochure Download

D1, D2, D3 Fire Suppression Dozers Product Brochure (N Am, Aus-NZ)Download

D1, D2, D3 Shiphold Product Brochure Download

Options and Accessories Kit Guide for Small Track Type Tractors Download

Overview

Engine

UNITS:

Metric

Imperial

Engine Model	Cat® C3.6	Cat® C3.6
Power - Net	77.6 kW	104 hp
Displacement	3.6 l	220 in³
Net Power - 2,200 rpm - SAE J1349	77.6 kW	104 hp
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269	77.6 kW	104 hp
Note (1)	Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ﬂywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.	Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ﬂywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Note (2)	All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.	All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.

Engine

Power Train	Hydrostatic	Hydrostatic

Weights

Operating Weight	9362 kg	20639.68 lb
Operating Weight	9362 kg	20640 lb
Operating Weight - LGP	9693 kg	21369 lb
Operating Weight - LGP, 762 mm/30 in	9893 kg	21810 lb
Note (2)	For machine with ripper, add 554 kg (1,222 lb).	For machine with ripper, add 554 kg (1,222 lb).
Note (1)	Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.	Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.

Cab

ROPS	ISO 3471:2008	ISO 3471:2008
FOPS	ISO 3449:2005 Level II	ISO 3449:2005 Level II

Transmission

Drive Pumps	1	1
Maximum Travel Speed - Forward	9 km/h	5.6 mile/h
Maximum Travel Speed - Reverse	10 km/h	6.2 mile/h
Track Motors	2	2
Relief Valve Settings	48500 kPa	7033 psi

Undercarriage

Shoe Width - Standard	510 mm	20 in
Ground Pressure - LGP	31.2 kPa	4.5 psi
Track Gauge - LGP	1750 mm	69 in
Length - Track on Ground - LGP	2310 mm	91 in
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage	40	40
Ground Pressure - LGP, 762 mm (30 in)	27.2 kPa	3.9 psi
Length - Track on Ground - LGP, 762 mm (30 in)	2310 mm	91 in
Shoe Width - LGP	660 mm	26 in
Shoe Width - LGP, 762 mm (30 in)	762 mm	30 in
Track Gauge	1600 mm	63 in
Number of Rollers - Each Side	7	7
Track Gauge - LGP, 762 mm (30 in)	1860 mm	73 in

Undercarriage

Ground Pressure	38.9 kPa	5.7 psi
Length of Track on Ground	2310 mm	91 in
Number of Shoes - Each Side - Abrasion Undercarriage	36	36

Service Refill Capacities

Cooling System	19 l	5 gal (US)
Final Drive - Each - LGP	10 l	2.6 gal (US)
Crankcase - With Filter	10.5 l	2.8 gal (US)
Diesel Exhaust Fluid (DEF) Tank	19 l	4.9 gal (US)
Transmission - Hydraulic Tank	90 l	23.8 gal (US)
Fuel Tank	195 l	51.5 gal (US)

Service Refill Capacities

Final Drives - Each Side	10 l	2.6 gal (US)

Hydraulic Controls

Pump Output	65 l/min	17.2 gal/min
Relief Valve Settings	20600 kPa	2988 psi

Ripper

Type	Parallelogram	Parallelogram
Number of Shanks	3	3
Height	165 mm	6.5 in
Weight	554 kg	1222 lb
Maximum Digging Depth	337.5 mm	13.3 in
Maximum Reach - Ground Line	766 mm	30.2 in
Overall Width	1710 mm	67.3 in
Maximum Ground Clearance Under Tip	448 mm	17.6 in

Air Conditioning System

Air Conditioning	The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.	The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.

Dimensions

BLADE: Blade Width - LGP	3220 mm	126.7 in
Track Gauge - LGP, 762 mm (30 in)	1860 mm	73 in
BLADE: Digging Depth - LGP	590 mm	23.2 in
Track Gauge - LGP	1750 mm	67.9 in
BLADE: Blade Capacity (SAE) - LGP	2.34 m³	3.06 yd³
BLADE: Blade Width at Maximum Angle - LGP	2940 mm	115.8 in
BLADE: Blade Cutting Edge Angle, Adjustable - LGP	52° to 58°	52° to 58°
Ground Clearance - LGP, 762 mm (30 in)	332 mm	13 in
BLADE: Blade Height - LGP	1010 mm	39.8 in
BLADE: Blade Lift Height - LGP	767 mm	30.2 in
Ground Clearance - LGP	332 mm	13 in
Overall Length - With Blade - LGP, 762 mm (30 in)	4309 mm	169.6 in
Overall Length - With Blade - LGP	4309 mm	169.6 in
BLADE: Maximum Tilt - LGP	448 mm	17.7 in
BLADE: Maximum Angle (either side) - LGP	25°	25°
Note	With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in)	With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in)
Length of Basic Dozer (without blade) - Standard	3270 mm	128.7 in
Dozer Height - Standard	2769 mm	109 in
Width of Dozer (standard shoes, no blade) - LGP	2410 mm	94.9 in
Width of Dozer (standard shoes, no blade) - LGP, 762 mm (30 in)	2630 mm	103.5 in
Length of Basic Dozer (without blade) - LGP	3270 mm	128.7 in
Dozer Height - LGP, 762 mm (30 in)	2769 mm	109 in
Width of Dozer (standard shoes, no blade) - Standard	2110 mm	83 in
Length of Basic Dozer (without blade) - LGP, 762 mm (30 in)	3270 mm	128.7 in
Dozer Height - LGP	2769 mm	109 in

Dimensions

BLADE: Blade Capacity (SAE) - Standard	2.19 m³	2.86 yd³
Track Gauge - Standard	1600 mm	63 in
BLADE: Digging Depth - Standard	605 mm	23.8 in
BLADE: Blade Lift Height - Standard	767 mm	30.2 in
Ground Clearance - Standard	332 mm	13 in
Overall Length - With Blade - Standard	4337 mm	170.7 in
BLADE: Blade Cutting Edge Angle, Adjustable - Standard	52° to 58°	52° to 58°
BLADE: Blade Height - Standard	1073 mm	42.2 in
BLADE: Maximum Tilt - Standard	402 mm	15.8 in
Note	Abrasion Undercarriage	Abrasion Undercarriage
BLADE: Blade Width - Standard	2782 mm	109.5 in
BLADE: Blade Width at Maximum Angle - Standard	2636 mm	103.8 in
BLADE: Maximum Angle (either side) - Standard	25°	25°

Retrieval Winch

Maximum Line Pull - Bare Drum	14583 kg	32150 lb
Control	Hydraulic	Hydraulic
Rope Diameter - Optional	19 mm	0.75 in
Drum Capacity - Optional Cable	59 m	195 ft
Maximum Line Speed - Full Drum	24 m/min	79 ft/min
Drum Capacity - Recommended Cable	84 m	277 ft
Winch Drive	Hydraulic	Hydraulic
Weight	794 kg	1747 lb
Maximum Line Pull - Full Drum	9231 kg	20350 lb
Rope Diameter - Recommended	16 mm	0.63 in
Maximum Line Speed - Bare Drum	15 m/min	50 ft/min
Speed	Variable	Variable
Winch Length	905 mm	35.63 in
Drum Diameter	203.2 mm	8 in
Overall width	709 mm	27.91 in
Drum Width	245 mm	9.65 in
Throat Clearance	141.4 mm	5.6 in

High Performance Winch

Winch length	705 mm	27.76 in
Rope diameter – optional	19 mm	0.75 in
Maximum line speed – bare drum	40 m/min	131 ft/min
Maximum line pull – bare drum	18144 kg	40000 lb
Weight	610 kg	1345 lb
Drum capacity – optional	78 m	256 ft
Maximum line speed – full drum	63 m/min	207 ft/min
Rope diameter – recommended	16 mm	0.63 in
Winch drive	Hydrostatic	Hydrostatic
Throat clearance	171.5 mm	6.75 in
Drum diameter	254 mm	10 in
Overall width	741 mm	29.2 in
Drum width	274 mm	10.8 in
Maximum line pull – full drum	11340 kg	25000 lb
Speed	Variable	Variable
Drum capacity – recommended cable	113 m	371 ft
Control	Hydraulic	Hydraulic

Features

IMPROVED VISIBILITY

The sloped hood provides better visibility to the work in front of the blade as well as the overall job site. Better visibility can equal less operator fatigue and more confidence in your work.

ENHANCED TECHNOLOGY

Cat small dozers include a suite of Operator Assist features that work seemlessly to save time, effort, fuel, machine wear and overall costs.

Steer Assist automates track steering with light or heavy loads and automates blade tilt steering to help push heavy loads with less effort. This feature helps reduce operator inputs by up to 75% and enhances operator efficiency and productivity. Steer Assist is standard with Assist with Attachment Ready Option (ARO). Steer Assist 3D is standard with Grade 3D with Assist.
Stable Blade Lift and Tilt automatically works behind the scenes to allow operators to create smooth surfaces with less effort using accelerometers on the blade and chassis with an advanced algorithm to make minor blade raise and lower movements. Stable Blade Lift and Tilt is standard with Assist with ARO and Grade 3D with Assist.
Blade Load Monitor provides real-time feedback of current load vs. target load to fully utilize machine capacity benefiting operators of all skills levels. Automatically compensates for ground conditions. This feature is not available indoors or in areas where a GPS signal is not available. Blade Load Monitor is standard with Assist with ARO and Grade 3D with Assist.
Low Slip Traction Control prevents excessive track slip to improve machine efficiency and reduce burden on the operator. Feature offers two modes: Normal Mode helps when pushing heavy blade loads by limiting non-productive track slip, recommended for most applications. And Low Slip Mode limits track slip for applications sensitive to slip such as spreading material on top of a liner, select this mode when needed. Traction Control is standard with Assist with ARO and Grade 3D with Assist.
AutoCarry™ raises and lowers the blade to maximize pushing capability and prevent excessive track slip when pushing heavy loads. Feature is designed to work in unison with other Operator Assist Features. Not available indoors or in areas where a GPS signal is not available. AutoCarry is standard with Assist with ARO and Grade 3D with Assist.
Scalable Grade 2D and 3D with Assist is an optional feature that makes your job up to 39% faster with up to 82% fewer operator inputs and less rework by maintaining blade angles for better surface quality – even with less experienced operators.
Cat Command remote control is an optional feature that takes you off the machine and away from hazardous conditions, dust, noise or vibration or operating on unstable surfaces. Eliminates risk of injury from climbing on or off the machine. Integrated with dozer systems, Cat Command enables smooth, precise control with access to all machine functions and advanced features (if equipped) for maximum efficiency and productivity. Availability varies by region.

UP TO 10% IMPROVED FUEL ECONOMY

The D3 features the lowest fuel consumption in this size class with the same great performance you've come to expect. Up to 20% improvement and no performance sacriﬁce when ECO mode is active.

COMFORTABLE WORK SPACE

The spacious and comfortable cab features an optional heated and ventilated seat, along with heated joystick controls to make the operator comfortable no matter what the conditions are outside. The seat height and armrests can be easily adjusted to the operator’s preference.

BIGGER, BETTER DISPLAY WITH CAMERA

This new and improved optional 10 in (254 mm) touchscreen, color display is easy to use, with a great view of machine settings, rearview camera and Slope Indicate/Slope Assist screens. The large reversing camera gives the operator better visibility to the job site.

DURABLE UNDERCARRIAGE

The D3 is available with either a Sealed and Lubricated Track (SALT) or Abrasion undercarriage to best suit your application. The undercarriage has a longer life resulting in less down time. A one piece mainframe/track roller frame design and the large, double reduction planetary final drive allow the machine to push heavy loads.

SUSTAINABILITY

The Cat® C3.6 engine meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and Korea Tier 5 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat® Grade with Slope Assist™ helps you avoid costly rework and wasteful fuel burn and greenhouse gas emissions by automating your blade position without a GPS signal.
Cat® Grade with 3D automates blade movements using a GPS signal helping you follow a grade design, reducing fuel burn and greenhouse gas emissions by improving efficiency and accuracy.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.

POWER TRAIN

Air cleaner with precleaner, automatic dust ejection and underhood intake
Aluminum bar plate cooling system (radiator, power train)
Automatic traction control
Cat C3.6 diesel engine
Drive, auxiliary
Dual path, closed loop, hydrostatic transmission
Electric fuel pump
Fuel/water separator
Turbocharged aftercooled

ELECTRICAL

Alarm, backup
Alternator, 150 amp, heavy duty
Batteries, heavy duty, maintenance free, 1,000 CCA
Diagnostic connector
Four integrated front halogen lights, two rear halogen
Horn, electric
Starter, electric, 12 V, heavy duty

UNDERCARRIAGE

Heavy Duty (HD) Undercarriage (40 section)
Carrier rollers
Guards, front/rear guiding
Seven roller track frame
Track adjusters, hydraulic
Track rollers, lifetime lubricated

HYDRAULIC

Hydraulic pump and oil
Single lever, three function control
Three valve hydraulics

CAT TECHNOLOGY

Slope Indicate
Stable Blade – Basic Lift
Third party 3D grade system compatible
Cat Product Link™ PLE643/PLE743 Cellular

OPERATOR ENVIRONMENT

Armrests, adjustable
Coat hook
Controls, seat mounted, fore/aft adjustment
Cup holders
Eco Mode
Electronic Monitoring system with gauge: – Chassis slope indication – Diesel exhaust fluid (DEF) – Engine coolant temperature – Fuel level – Hydraulic oil temperature
Electronic security system
Engine air cleaner service indicator
Engine RPM and gear display
Floor mat, rubber, heavy duty
Foot pads, dash
Hour meter, electronic
Independent forward/reverse speed settings
Mirror, rearview, inside
Power port, 12 volt
ROPS/FOPS canopy
Seat, air suspended, cloth or vinyl
Seatbelt, hi-vis retractable 76 mm (3")
Seatbelt buckling indicator/reminder
Single pedal combining decel and brake functions
Speed recall
Storage compartment
Throttle switch, rotary
Travel speed limiter, electronic
