330 GC - Tier 3

Overview

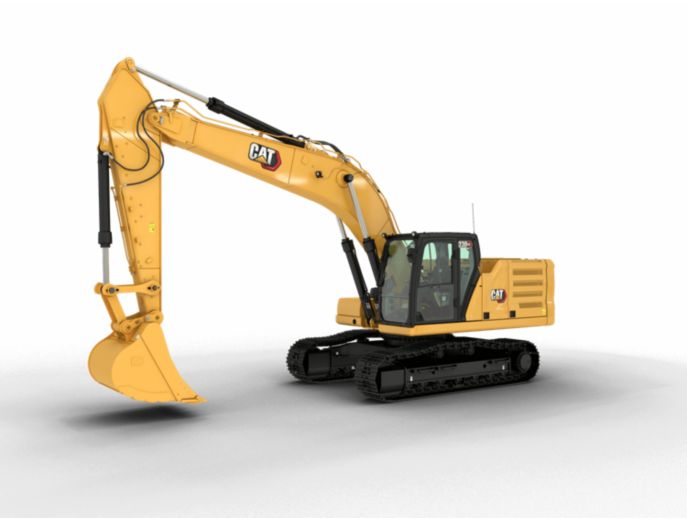

The Cat® 330 GC excavator balances productivity with easy-to-use controls, a comfortable cab, reduced fuel consumption, and longer maintenance intervals to reduce maintenance costs - all to give you a durable, low-cost-per-hour excavator for your applications.

Not all features are available in all regions. Consult your Cat dealer for specific configurations available in your region.

Hydraulic System

Swing Mechanism

Weights

Service Refill Capacities

Dimensions

Working Ranges and Forces

Air Conditioning System

Features

Latest Features


• Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.

• Smaller app tiles to view more apps in one screen.

• When navigating the menu, scroll position will be remembered.

• While menu is shown and lever is moved, camera view will be shown.

• Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area. Build Number: 07H

Do More With Less Fuel


• The C7.1 meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

• Help reduce fuel consumption by matching the excavator to the job - Eco and Smart mode allow for automatic recognition of engine and hydraulic power in specific digging conditions.

• Auxiliary hydraulic options give you the versatility to use a wide range of Cat® attachments.

• Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52° C (125° F) and cold start capability of –18° C (0° F). An optional –32° C (–25° F) cold start package is available.

Long Term Value and Durability


• Work up to 3000 m (9,840 ft) above sea level without de-rating.

• Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52° C (125° F) and cold start capability of –18° C (0° F). An optional – 32° C (–25° F) cold start package is available.

• Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.

• Two levels of fuel filtration protect the engine from dirty diesel fuel.

• Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.

• The track guiding guard helps keep the excavator track aligned when traveling and working on slopes.

• The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

Work in Comfort


• The cab has a wide seat that adjusts for operators of all sizes.

• Control the excavator comfortably with easy-to-reach controls all located in front of you.

• Standard automatic climate control keeps you at the right temperature all shift long.

• Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.

• Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.

Designed for Operators


• Start the engine with a push button; use a Bluetooth® key fob,or the unique Operator ID function.

• Program your power mode and joystick preferences using Operator ID; the excavator will remember what you set each time you go to work.

• Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor or with the aid of the jog dial control.

• Protect your hammer tool from overheating and rapid wear. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds - all to extend the tool’s service life.

• Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.

• Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.

• Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

• The Cat® PL161 Attachment Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy.

• Find the tool you need – even if it’s hidden beneath overgrowth or debris. The available Bluetooth reader can search for any work tool equipped with Cat asset tracking devices up to a range of 60 m (200 ft).

Lower Maintenance Costs


• Expect lower maintenance costs compared to the 330D2.

• Do all daily maintenance at ground level.

• Check engine oil level quickly and safely with the latest ground-level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick.

• Track your excavator’s filter life and maintenance intervals via the in-cab monitor.

• Expect the latest air intake filter with precleaner to last up to 1,000 hours.

• The hydraulic oil filter provides high filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000 hour replacement interval.

• High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.

• Boost productivity with proactive service reminders. Our integrated vehicle health management system alerts the operator with step-by-step service guidance, along with parts needed, so you don't experience any unnecessary downtime.

• S·O·S^SM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

Safely Home Every Day


• Access 100% of daily maintenance points from ground level – no need for you to climb on top of the excavator.

• Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.

• The standard ROPS cab meets ISO 12117-2:2008 requirements.

• Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.

• A rearview camera is standard, and a right-side-view camera is available.

• The latest right service platform design provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.

• The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.

• Ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.

• Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.

• Make service work easier with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.

Take the Guesswork Out of Managing Your Equipment


• VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.

• VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacturer.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.

• Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
