Off-Highway Trucks

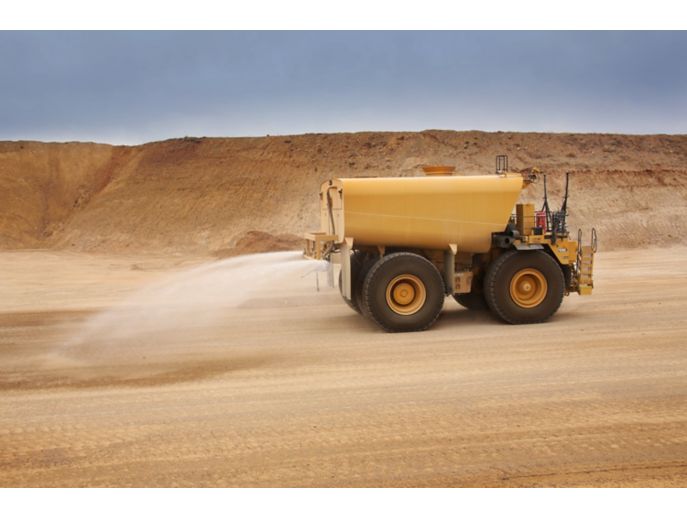

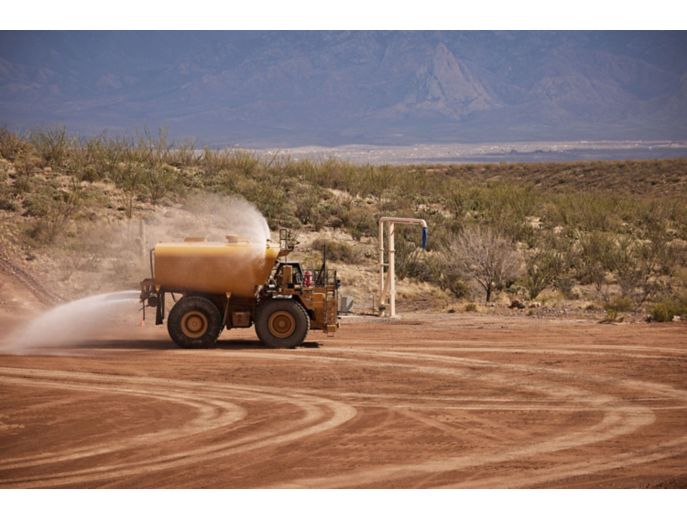

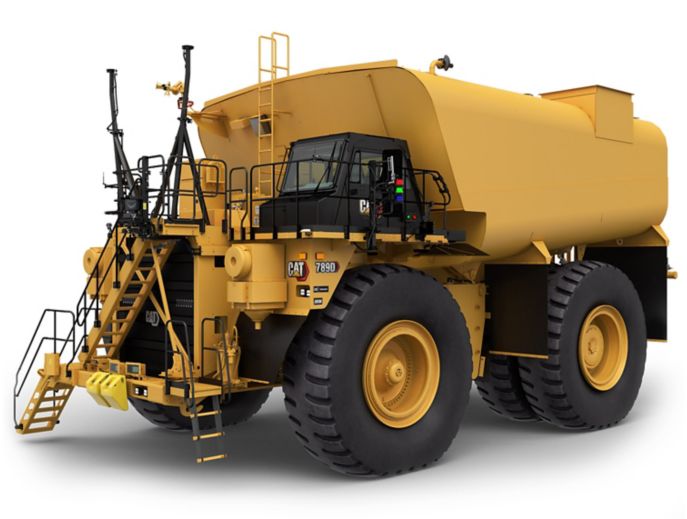

789D Autonomous Water Truck
An industry first, the Cat® 789D Autonomous Water Truck is a complete solution that not only automates the truck, but also automates the delivery of the water — optimizing the complete haul road watering process. Autonomous water trucks help dust suppression on site and enhance productivity by enabling mine operations to digitally track water consumption and reduce waste.
The Cat Autonomous Water Truck includes the full support of the Cat dealer and parts network. Combining an automated water delivery system with an autonomous truck, powered by MineStar, creates a truly automated solution that takes haul road watering safety and efficiency to a new level.
Request a quote
Overview
Longer description goes here
Engine
UNITS:
Metric
Imperial
| Engine Model | Cat® 3516C HD | Cat® 3516C HD |
| Gross Power - SAE J1995:2014 | 1566 kW | 2100 hp |
| Net Power - SAE J1349:2011 | 1468 kW | 1969 hp |
| Emissions | Fuel Optimized or EPA Tier 2 equivalent. | Fuel Optimized or EPA Tier 2 equivalent. |
| Bore | 215 mm | 6.7 in |
| Stroke | 78.1 l | 4766 in³ |
| Displacement | 58.56 l | 3573.6 in³ |
| Note (1) | Net Power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,750 rpm. | Net Power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,750 rpm. |
Cat Water Delivery System (WDS)
| Maximum water flow | 6814 l/min | 1800 gal(US)/min |
| Water per spray head (minimum) | 132.5 l/min | 35 gal(US)/min |
| Water per spray head (maximum) | 2271 l/min | 600 gal(US)/min |
| Spray head opening range (minimum) | 1 mm | 0.04 in |
| Spray head opening range (maximum) | 19 mm | 0.75 in |
| Maximum size debris flushed through spray head | 19 mm | 0.75 in |
| Spray system hydraulic tank capacity | 27.5 l | 7.25 gal (US) |
| Maximum number of rear spray heads | 5 | 5 |
| Minimum number of rear spray heads (recommended 3) | 2 | 2 |
| Minimum number of front/side spray heads | 2 | 2 |
| Maximum number of front/side spray heads | 0 | 0 |
| Maximum water from cannon (idle) | 2271 l/min | 600 gal(US)/min |
| Maximum water from cannon (high idle) | 4732 l/min | 1250 gal(US)/min |
| Maximum cannon spray distance | 61 m | 200 ft |
| Type | Wet water pump/hydraulic motor coupling | Wet water pump/hydraulic motor coupling |
| Note | Selectable coverage: 0.1-0.8 L/m² (4 kph - 40 kph) / 0.05-0.2 gal/ft² (3 mph - 25 mph). Coverage rates above 0.6 L/m² may not be available at higher speeds depending on head count and configuration. | Selectable coverage: 0.1-0.8 L/m² (4 kph - 40 kph) / 0.05-0.2 gal/ft² (3 mph - 25 mph). Coverage rates above 0.6 L/m² may not be available at higher speeds depending on head count and configuration. |
| Note (1) | Spray head opening is automatically controlled by the system to achieve Auto Mode Coverage or manual mode flow rate. | Spray head opening is automatically controlled by the system to achieve Auto Mode Coverage or manual mode flow rate. |
| Note (2) | The Auto Mode setting controls water coverage and automatically adjusts to the number of spray heads being used — independent of ground speed. This is an exclusive feature designed into the Cat WDS software to help water more efficiently. Water flow is continually adjusted during operation to conserve water and achieve desired coverage and flow rate. | The Auto Mode setting controls water coverage and automatically adjusts to the number of spray heads being used — independent of ground speed. This is an exclusive feature designed into the Cat WDS software to help water more efficiently. Water flow is continually adjusted during operation to conserve water and achieve desired coverage and flow rate. |
| Note (3) | When the truck speed drops below 4.8 kph (3 mph), the system shuts off automatically to prevent overwatering, and then automatically re-starts as speed increases. | When the truck speed drops below 4.8 kph (3 mph), the system shuts off automatically to prevent overwatering, and then automatically re-starts as speed increases. |
| Note (4) | Spray heads on competitive water distribution systems require tools and maintenance to change flow and spray pattern. Caterpillar is the only company to have variable active spray heads to regulate water spray. | Spray heads on competitive water distribution systems require tools and maintenance to change flow and spray pattern. Caterpillar is the only company to have variable active spray heads to regulate water spray. |
| Note (5) | Cannon performance depends on nozzle orifice and pipe size. Cannon mode may only be operated manually. Not available for autonomous operation. | Cannon performance depends on nozzle orifice and pipe size. Cannon mode may only be operated manually. Not available for autonomous operation. |
Tank Configurations
| Water Tank Capacity | up to 155 000 L (41,000 gal) | up to 155 000 L (41,000 gal) |
| Note | Water Tank Capacity Range: 151 416 L - 155 000 L (40,000 gal - 41,000 gal) | Water Tank Capacity Range: 151 416 L - 155 000 L (40,000 gal - 41,000 gal) |
| Machine Weight (with water tank full) | 641,774 lb - 656,103 lb / 291 105 kg - 297 393 kg | 641,774 lb - 656,103 lb / 291 105 kg - 297 393 kg |
| Empty Machine Operating Weight (without water / with fuel) | 308,619 lb - 314,619 lb / 139 988 kg - 142 700 kg | 308,619 lb - 314,619 lb / 139 988 kg - 142 700 kg |
| Water Tank - Max Empty Weight (no WDS) | 80,000 lb - 86,000 lb / 36 288 kg - 39 000 kg | 80,000 lb - 86,000 lb / 36 288 kg - 39 000 kg |
| Note (1) | Please contact your Cat dealer, Mining Tech Rep or the Mining Technology Enable Solutions team (MTES) for requirements on the autonomous water truck. They will also be able to provide a list of the approved water tank manufacturers for the 789D autonomous water truck configuration. | Please contact your Cat dealer, Mining Tech Rep or the Mining Technology Enable Solutions team (MTES) for requirements on the autonomous water truck. They will also be able to provide a list of the approved water tank manufacturers for the 789D autonomous water truck configuration. |
| Note (2) | Hoist cylinder mounting on all tank offerings enhances serviceability. | Hoist cylinder mounting on all tank offerings enhances serviceability. |
Operating Specifications
| Note | Water Tank Capacity Range: 151 416 L - 155 000 L (40,000 gal - 41,000 gal) | Water Tank Capacity Range: 151 416 L - 155 000 L (40,000 gal - 41,000 gal) |
| Note (2) | Operator selectable coverage: 0.2-0.8 L/m² (4 kph - 40 kph) / 0.5-0.2 gal/ft² (3 mph - 25 mph) | Operator selectable coverage: 0.2-0.8 L/m² (4 kph - 40 kph) / 0.5-0.2 gal/ft² (3 mph - 25 mph) |
Weights - Approximate
| Target Gross Machine Weight | 324319 kg | 715000 lb |
| Chassis Weight | 103700 kg | 228619 lb |
Transmission
| Forward - 1 | 12.6 km/h | 7.8 mile/h |
| Forward - 2 | 17.1 km/h | 10.6 mile/h |
| Forward - 3 | 23.1 km/h | 14.4 mile/h |
| Forward - 4 | 31.2 km/h | 19.4 mile/h |
| Forward - 5 | 42.3 km/h | 26.3 mile/h |
| Forward - 6 | 57.2 km/h | 35.5 mile/h |
| Reverse | 11.8 km/h | 7.3 mile/h |
| Note | Maximum travel speeds with standard 37.00-R57 tires. | Maximum travel speeds with standard 37.00-R57 tires. |
Final Drives
| Differential Ratio | 2.35:1 | 2.35:1 |
| Planetary Ratio | 10.83:1 | 10.83:1 |
| Total Reduction Ratio | 25.46:1 | 25.46:1 |
Braking System
| Brake Surface - Front | 81693 cm² | 12662 in² |
| Brake Surface - Rear | 134590 cm² | 20862 in² |
| Brake Standards | ISO 3450:2011 | ISO 3450:2011 |
Body Hoists
| Pump Flow - High Idle | 731 l/min | 193 gal/min |
| Relief Valve Setting - Raise | 17238 kPa | 2500 psi |
| Body Raise Time - High Idle | 18.9 s | 18.9 s |
| Body Lower Time - Float | 17.3 s | 17.3 s |
| Body Lower Time - High Idle | 15.6 s | 15.6 s |
Weight Distributions - Approximate
| Front Axle - Empty | 46 % | 46 % |
| Front Axle - Loaded | 33 % | 33 % |
| Rear Axle - Empty | 54 % | 54 % |
| Rear Axle - Loaded | 67 % | 67 % |
Suspension
| Rear axle - Oscillation | 5.6 ° | 5.6 ° |
Steering
| Steering Standards | ISO 5010:2019 | ISO 5010:2019 |
| Steer Angle | 36 ° | 36 ° |
| Turning Diameter - Front | 27.53 m | 90.32 ft |
Tires
| Standard Tire | 37.00-R57 | 37.00-R57 |
| Note (1) | Optional tire: 40.00-R57 | Optional tire: 40.00-R57 |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
Service Refill Capacities
| Fuel Tank | 2082 l | 550 gal (US) |
| Cooling System | 725 l | 192 gal (US) |
| Crankcase | 291 l | 77 gal (US) |
| Differential - Final Drives | 583 l | 154 gal (US) |
| Steering System - Including Tank | 189 l | 50 gal (US) |
| Brake Hoist System | 909 l | 241 gal (US) |
Cab
| Air Conditioning | 42780 Btu/kWh | 18390 Btu/lb |
| Heater / Defroster | 11070 kJ/kg | 43930 Btu |
| ROPS Standards (1) | ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria and ISO 13459:2012 for trainer. | ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria and ISO 13459:2012 for trainer. |
| FOPS Standards | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria and ISO 13459:2012 Level II for trainer. | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria and ISO 13459:2012 Level II for trainer. |
| Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to work cycle procedures specified in ANSI/SAE J1166 MAY90 is 80 dB(A) for cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed. | The operator sound exposure Leq (equivalent sound pressure level) measured according to work cycle procedures specified in ANSI/SAE J1166 MAY90 is 80 dB(A) for cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed. |
| Note (2) | The exterior sound power level for the standard machine is tested using ISO 6393:2008 and ISO 6395:2008 procedures is 123 dB(A). | The exterior sound power level for the standard machine is tested using ISO 6393:2008 and ISO 6395:2008 procedures is 123 dB(A). |
| Note (3) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
Features
ENHANCED SITE SAFETY
BOOSTS SAFETY
- The Cat 789D water truck is equipped with the Command for hauling autonomous haulage solution, which makes it possible for the truck to drive among other staffed and autonomous machines, along haul road routes and within active load and dump areas.
- Enhances safety by removing operators from hazardous or remote sites and reduces the number of people required on site.
- The Cat Water Delivery System utilizes automatic start and stop to help eliminate overwatering at road intersections.
- The system reduces water volume as ground speed is reduced — preventing overwatering at haul road intersections, at the start of grades or when traffic is encountered.
- It minimizes dust, uses less water and prevents underwatering or overwatering — eliminating reduced traction events and allowing water trucks to travel at higher speeds for improved efficiency.
INCREASED PRODUCTIVITY
IMPROVES WATERING OPERATIONS
- Properly watered haul roads directly impact fleet cycle times, enabling you to meet production targets.
- Improves efficiency, enables consistency in operations and provides near-continuous operation through the reduction of operational delays.
- Spend less time maintaining haul roads using proper watering techniques to solve overwatering and underwatering concerns.
- Prevent damage to trucks and reduce unplanned downtime with properly watered haul roads.
- The autonomous water truck coordinates its speed with haul trucks to ensure it does not impede haul traffic and reduce hourly productivity.
CAT WATER DELIVERY SYSTEM
GAIN EFFICENCY WITH A PROVEN WATER DELIVERY SYSTEM

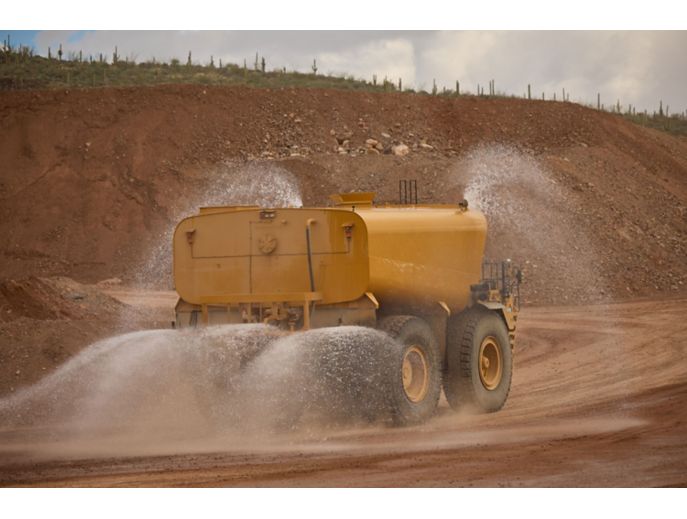

- The Cat Water Delivery System (WDS) is designed to put water to the ground in a controlled, intelligent way.
- This automated system, which is a fully integrated Cat design, controls the amount of water and spray patterns to prevent the hazards common with overwatering. The system improves safety and productivity while saving fuel and conserving water.
- When the truck speed drops below 4.8 kph (3 mph), the system shuts off automatically to prevent overwatering, and then automatically re-starts as speed increases.
- Pump features soft startup and shuts off automatically when the tank is empty, eliminating damage and preventing the pump from running dry.
- Refilling process is completely automated – water truck recognizes when it’s time to refill.
- Maintenance-free and self-cleaning water spray heads reduce truck downtime.
CAT® MINESTAR™ COMMAND
AUTONOMOUS WATER DELIVERY WITH CAT MINESTAR COMMAND
- Cat MineStar Command for hauling creates a fully autonomous water truck that operates safely around other equipment, light vehicles and personnel — all without an operator on board.
- Key to watering operations, MineStar also helps the autonomous truck maintain stability by controlling steering, braking and traction.
- 100% compliance with watering plan and zero incidences of overwatering.
- Water truck reports & tracks amount of water delivered with compliance to site watering plans.
- Provides consistent watering to match production targets.
- Technology connected to our water delivery system increases efficiency to help optimize your water truck fleet size.
SUSTAINABLE OPERATIONS
REDUCES ENVIRONMENTAL IMPACT
- The Cat Water Delivery System provides variable water flow based on truck speed and determines appropriate flow to conserve water.
- Know where, when, and how much to water using technology driven by automation.
- Automated system uses less water and efficiency improvements reduce fuel usage.
TRACK AND REPORT
MONITOR YOUR WATER OPERATIONS
- The Cat autonomous water truck is equipped with Cat MineStar, which collects and communicates real-time information and provides data logging capabilities critical to minimizing safety-related liability.
- MineStar provides information on truck location and utilization data, fuel and water level, whether or not the truck is spraying water, and WDS utilization.
- Optional premium connectivity includes a comprehensive reporting package with data and reports that can help improve watering efficiency.
- Water solutions data can help ensure you're meeting regulatory requirements.
- MineStar doesn't just monitor how much water the trucks have put down. It monitors the actual saturation levels of the haul roads.
- Watering assignments can be amended on request when it's necessary to address watering of specific haul roads or locations. For example, a water truck may be reassigned to a load or dump area to address priority dust suppression needs based on pit personnel requests.
DEALER SUPPORT
BACKED BY THE ONE YOU TRUST
- The Cat Autonomous Water Truck includes the full support of the Cat dealer and parts network.
- The truck and WDS are covered by a Caterpillar warranty, with service parts available for both.
- The truck is eligible for Equipment Protection Plans (EPP) and Customer Value Agreements (CVAs).
- Retrofit kits are available and can be installed by your local dealer.
Standard Equipment
NOTE
| Standard and optional equipment may vary. Consult your Cat dealer for details. |
ELECTRICAL
| Alarm, Back-up |
| Alternator (105 A) |
| Batteries, 93Ah, Low-maintenance, 12V (2) |
| Converter, 12V electrical |
| Lighting System |
| Electrical System, 24V, 15A |
SUSPENSION SYSTEMS
| Suspension, rear |
OPERATOR ENVIRONMENT
| Dome courtesy light |
| Gauges/Indicators |
| Air conditioning |
| Ashtray and cigarette lighter |
| Coat hook |
| Diagnostic connection port |
| Entertainment Radio Ready – 5 amp converter – Speakers – Antenna – Wiring harness |
| Heater/defroster |
| Horn |
| VIMS |
| TPMS |
| Storage compartment |
| Steering wheel, tilt, padded, telescopic |
| ROPS cab, insulated/sound suppressed |
| Tinted glass |
| Window, electric powered, operator |
| Sun visor |
| Window, right side, hinged access/egress |
| Windshield wiper (intermittent) and washer |
CAT TECHNOLOGY PRODUCTS
| Adaptive economy mode |
| Object detection (4 cameras, 4 radars) |
| Product Link™ Ready (Level 1) |
| TKPH/TMPH (Tons Kilometer Per Hour/ Tons Mile Per Hour) |
| Work Area Vision System (WAVS) |
| Cat MineStar Edge™: Level 1 - Basic (Equipment Tracking)* |
| *Basic connectivity package comes standard on all Cat Water Solutions trucks with a 6-month complimentary service-based offering |
POWERTRAIN
| Cat 3512C HD-EUI diesel engine |
| Braking System |
| Transmission |
GUARDS
| Engine crankcase |
| Driveline |
| Fan and A/C |
FLUIDS
| Extended Life Coolant to –35° C (–30° F) |
OTHER STANDARD EQUIPMENT
| Body mounting group |
| Air Line Dryer (2) |
| Auto lubrication system (Lincoln) |
| Dumping, Auxiliary Quick Connect for “Buddy Dumping” |
| Steering, Auxiliary Quick Connect for Towing |
| Continuous rear axle filtration |
| Diagonal stairway, 600 mm (24 in) |
| Driveline Operator Safety Guard |
| Battery Disconnect |
| High speed crankcase oil change |
| Fast-fill Fuel System |
| Reservoirs (Separate) |
| S•O•S℠ sample ports |
| Supplemental steering (automatic) |
| Tie Down Eyes |
| Tow Hooks, Front |
| Traction Control System |
| Vandalism Protection Locks |
| Vital Information Management System (VIMS) includes: VIMS payload monitor, MAX payload and speed manager |
CAT WATER DELIVERY SYSTEM (WDS)
| Controls: Factory installed and integrated into cab |
| Water System Monitor: integrated into cab, programmable spray configurations, automatic diagnostic messages |
| Variable Hydraulic Pump Drive: 1,200 gpm at speeds of 3 to 25 mph with auto shut-off and soft startup |
| Stainless Steel Spray Heads: maintenance free, patented design resists corrosion |
| Independent Hydraulic Cooling System: minimizes overheating |
| Water Cannon: hydraulically controlled, integrated joystick with cab controls, optional nozzles |
| Parts & service available through global Cat dealer network |
Optional Equipment
NOTE
| Standard and optional equipment may vary. Consult your Cat dealer for details. |
Overview
Longer description goes here
Engine
UNITS:
Metric
Imperial
| Engine Model | Cat® 3516C HD | Cat® 3516C HD |
| Gross Power - SAE J1995:2014 | 1566 kW | 2100 hp |
| Net Power - SAE J1349:2011 | 1468 kW | 1969 hp |
| Emissions | Fuel Optimized or EPA Tier 2 equivalent. | Fuel Optimized or EPA Tier 2 equivalent. |
| Bore | 215 mm | 6.7 in |
| Stroke | 78.1 l | 4766 in³ |
| Displacement | 58.56 l | 3573.6 in³ |
| Note (1) | Net Power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,750 rpm. | Net Power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,750 rpm. |
Cat Water Delivery System (WDS)
| Maximum water flow | 6814 l/min | 1800 gal(US)/min |
| Water per spray head (minimum) | 132.5 l/min | 35 gal(US)/min |
| Water per spray head (maximum) | 2271 l/min | 600 gal(US)/min |
| Spray head opening range (minimum) | 1 mm | 0.04 in |
| Spray head opening range (maximum) | 19 mm | 0.75 in |
| Maximum size debris flushed through spray head | 19 mm | 0.75 in |
| Spray system hydraulic tank capacity | 27.5 l | 7.25 gal (US) |
| Maximum number of rear spray heads | 5 | 5 |
| Minimum number of rear spray heads (recommended 3) | 2 | 2 |
| Minimum number of front/side spray heads | 2 | 2 |
| Maximum number of front/side spray heads | 0 | 0 |
| Maximum water from cannon (idle) | 2271 l/min | 600 gal(US)/min |
| Maximum water from cannon (high idle) | 4732 l/min | 1250 gal(US)/min |
| Maximum cannon spray distance | 61 m | 200 ft |
| Type | Wet water pump/hydraulic motor coupling | Wet water pump/hydraulic motor coupling |
| Note | Selectable coverage: 0.1-0.8 L/m² (4 kph - 40 kph) / 0.05-0.2 gal/ft² (3 mph - 25 mph). Coverage rates above 0.6 L/m² may not be available at higher speeds depending on head count and configuration. | Selectable coverage: 0.1-0.8 L/m² (4 kph - 40 kph) / 0.05-0.2 gal/ft² (3 mph - 25 mph). Coverage rates above 0.6 L/m² may not be available at higher speeds depending on head count and configuration. |
| Note (1) | Spray head opening is automatically controlled by the system to achieve Auto Mode Coverage or manual mode flow rate. | Spray head opening is automatically controlled by the system to achieve Auto Mode Coverage or manual mode flow rate. |
| Note (2) | The Auto Mode setting controls water coverage and automatically adjusts to the number of spray heads being used — independent of ground speed. This is an exclusive feature designed into the Cat WDS software to help water more efficiently. Water flow is continually adjusted during operation to conserve water and achieve desired coverage and flow rate. | The Auto Mode setting controls water coverage and automatically adjusts to the number of spray heads being used — independent of ground speed. This is an exclusive feature designed into the Cat WDS software to help water more efficiently. Water flow is continually adjusted during operation to conserve water and achieve desired coverage and flow rate. |
| Note (3) | When the truck speed drops below 4.8 kph (3 mph), the system shuts off automatically to prevent overwatering, and then automatically re-starts as speed increases. | When the truck speed drops below 4.8 kph (3 mph), the system shuts off automatically to prevent overwatering, and then automatically re-starts as speed increases. |
| Note (4) | Spray heads on competitive water distribution systems require tools and maintenance to change flow and spray pattern. Caterpillar is the only company to have variable active spray heads to regulate water spray. | Spray heads on competitive water distribution systems require tools and maintenance to change flow and spray pattern. Caterpillar is the only company to have variable active spray heads to regulate water spray. |
| Note (5) | Cannon performance depends on nozzle orifice and pipe size. Cannon mode may only be operated manually. Not available for autonomous operation. | Cannon performance depends on nozzle orifice and pipe size. Cannon mode may only be operated manually. Not available for autonomous operation. |
Tank Configurations
| Water Tank Capacity | up to 155 000 L (41,000 gal) | up to 155 000 L (41,000 gal) |
| Note | Water Tank Capacity Range: 151 416 L - 155 000 L (40,000 gal - 41,000 gal) | Water Tank Capacity Range: 151 416 L - 155 000 L (40,000 gal - 41,000 gal) |
| Machine Weight (with water tank full) | 641,774 lb - 656,103 lb / 291 105 kg - 297 393 kg | 641,774 lb - 656,103 lb / 291 105 kg - 297 393 kg |
| Empty Machine Operating Weight (without water / with fuel) | 308,619 lb - 314,619 lb / 139 988 kg - 142 700 kg | 308,619 lb - 314,619 lb / 139 988 kg - 142 700 kg |
| Water Tank - Max Empty Weight (no WDS) | 80,000 lb - 86,000 lb / 36 288 kg - 39 000 kg | 80,000 lb - 86,000 lb / 36 288 kg - 39 000 kg |
| Note (1) | Please contact your Cat dealer, Mining Tech Rep or the Mining Technology Enable Solutions team (MTES) for requirements on the autonomous water truck. They will also be able to provide a list of the approved water tank manufacturers for the 789D autonomous water truck configuration. | Please contact your Cat dealer, Mining Tech Rep or the Mining Technology Enable Solutions team (MTES) for requirements on the autonomous water truck. They will also be able to provide a list of the approved water tank manufacturers for the 789D autonomous water truck configuration. |
| Note (2) | Hoist cylinder mounting on all tank offerings enhances serviceability. | Hoist cylinder mounting on all tank offerings enhances serviceability. |
Operating Specifications
| Note | Water Tank Capacity Range: 151 416 L - 155 000 L (40,000 gal - 41,000 gal) | Water Tank Capacity Range: 151 416 L - 155 000 L (40,000 gal - 41,000 gal) |
| Note (2) | Operator selectable coverage: 0.2-0.8 L/m² (4 kph - 40 kph) / 0.5-0.2 gal/ft² (3 mph - 25 mph) | Operator selectable coverage: 0.2-0.8 L/m² (4 kph - 40 kph) / 0.5-0.2 gal/ft² (3 mph - 25 mph) |
Weights - Approximate
| Target Gross Machine Weight | 324319 kg | 715000 lb |
| Chassis Weight | 103700 kg | 228619 lb |
Transmission
| Forward - 1 | 12.6 km/h | 7.8 mile/h |
| Forward - 2 | 17.1 km/h | 10.6 mile/h |
| Forward - 3 | 23.1 km/h | 14.4 mile/h |
| Forward - 4 | 31.2 km/h | 19.4 mile/h |
| Forward - 5 | 42.3 km/h | 26.3 mile/h |
| Forward - 6 | 57.2 km/h | 35.5 mile/h |
| Reverse | 11.8 km/h | 7.3 mile/h |
| Note | Maximum travel speeds with standard 37.00-R57 tires. | Maximum travel speeds with standard 37.00-R57 tires. |
Final Drives
| Differential Ratio | 2.35:1 | 2.35:1 |
| Planetary Ratio | 10.83:1 | 10.83:1 |
| Total Reduction Ratio | 25.46:1 | 25.46:1 |
Braking System
| Brake Surface - Front | 81693 cm² | 12662 in² |
| Brake Surface - Rear | 134590 cm² | 20862 in² |
| Brake Standards | ISO 3450:2011 | ISO 3450:2011 |
Body Hoists
| Pump Flow - High Idle | 731 l/min | 193 gal/min |
| Relief Valve Setting - Raise | 17238 kPa | 2500 psi |
| Body Raise Time - High Idle | 18.9 s | 18.9 s |
| Body Lower Time - Float | 17.3 s | 17.3 s |
| Body Lower Time - High Idle | 15.6 s | 15.6 s |
Weight Distributions - Approximate
| Front Axle - Empty | 46 % | 46 % |
| Front Axle - Loaded | 33 % | 33 % |
| Rear Axle - Empty | 54 % | 54 % |
| Rear Axle - Loaded | 67 % | 67 % |
Suspension
| Rear axle - Oscillation | 5.6 ° | 5.6 ° |
Steering
| Steering Standards | ISO 5010:2019 | ISO 5010:2019 |
| Steer Angle | 36 ° | 36 ° |
| Turning Diameter - Front | 27.53 m | 90.32 ft |
Tires
| Standard Tire | 37.00-R57 | 37.00-R57 |
| Note (1) | Optional tire: 40.00-R57 | Optional tire: 40.00-R57 |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
Service Refill Capacities
| Fuel Tank | 2082 l | 550 gal (US) |
| Cooling System | 725 l | 192 gal (US) |
| Crankcase | 291 l | 77 gal (US) |
| Differential - Final Drives | 583 l | 154 gal (US) |
| Steering System - Including Tank | 189 l | 50 gal (US) |
| Brake Hoist System | 909 l | 241 gal (US) |
Cab
| Air Conditioning | 42780 Btu/kWh | 18390 Btu/lb |
| Heater / Defroster | 11070 kJ/kg | 43930 Btu |
| ROPS Standards (1) | ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria and ISO 13459:2012 for trainer. | ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria and ISO 13459:2012 for trainer. |
| FOPS Standards | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria and ISO 13459:2012 Level II for trainer. | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria and ISO 13459:2012 Level II for trainer. |
| Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to work cycle procedures specified in ANSI/SAE J1166 MAY90 is 80 dB(A) for cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed. | The operator sound exposure Leq (equivalent sound pressure level) measured according to work cycle procedures specified in ANSI/SAE J1166 MAY90 is 80 dB(A) for cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed. |
| Note (2) | The exterior sound power level for the standard machine is tested using ISO 6393:2008 and ISO 6395:2008 procedures is 123 dB(A). | The exterior sound power level for the standard machine is tested using ISO 6393:2008 and ISO 6395:2008 procedures is 123 dB(A). |
| Note (3) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
Features
ENHANCED SITE SAFETY
BOOSTS SAFETY
- The Cat 789D water truck is equipped with the Command for hauling autonomous haulage solution, which makes it possible for the truck to drive among other staffed and autonomous machines, along haul road routes and within active load and dump areas.
- Enhances safety by removing operators from hazardous or remote sites and reduces the number of people required on site.
- The Cat Water Delivery System utilizes automatic start and stop to help eliminate overwatering at road intersections.
- The system reduces water volume as ground speed is reduced — preventing overwatering at haul road intersections, at the start of grades or when traffic is encountered.
- It minimizes dust, uses less water and prevents underwatering or overwatering — eliminating reduced traction events and allowing water trucks to travel at higher speeds for improved efficiency.
INCREASED PRODUCTIVITY
IMPROVES WATERING OPERATIONS
- Properly watered haul roads directly impact fleet cycle times, enabling you to meet production targets.
- Improves efficiency, enables consistency in operations and provides near-continuous operation through the reduction of operational delays.
- Spend less time maintaining haul roads using proper watering techniques to solve overwatering and underwatering concerns.
- Prevent damage to trucks and reduce unplanned downtime with properly watered haul roads.
- The autonomous water truck coordinates its speed with haul trucks to ensure it does not impede haul traffic and reduce hourly productivity.
CAT WATER DELIVERY SYSTEM
GAIN EFFICENCY WITH A PROVEN WATER DELIVERY SYSTEM
- The Cat Water Delivery System (WDS) is designed to put water to the ground in a controlled, intelligent way.
- This automated system, which is a fully integrated Cat design, controls the amount of water and spray patterns to prevent the hazards common with overwatering. The system improves safety and productivity while saving fuel and conserving water.
- When the truck speed drops below 4.8 kph (3 mph), the system shuts off automatically to prevent overwatering, and then automatically re-starts as speed increases.
- Pump features soft startup and shuts off automatically when the tank is empty, eliminating damage and preventing the pump from running dry.
- Refilling process is completely automated – water truck recognizes when it’s time to refill.
- Maintenance-free and self-cleaning water spray heads reduce truck downtime.
CAT® MINESTAR™ COMMAND
AUTONOMOUS WATER DELIVERY WITH CAT MINESTAR COMMAND
- Cat MineStar Command for hauling creates a fully autonomous water truck that operates safely around other equipment, light vehicles and personnel — all without an operator on board.
- Key to watering operations, MineStar also helps the autonomous truck maintain stability by controlling steering, braking and traction.
- 100% compliance with watering plan and zero incidences of overwatering.
- Water truck reports & tracks amount of water delivered with compliance to site watering plans.
- Provides consistent watering to match production targets.
- Technology connected to our water delivery system increases efficiency to help optimize your water truck fleet size.
SUSTAINABLE OPERATIONS
REDUCES ENVIRONMENTAL IMPACT
- The Cat Water Delivery System provides variable water flow based on truck speed and determines appropriate flow to conserve water.
- Know where, when, and how much to water using technology driven by automation.
- Automated system uses less water and efficiency improvements reduce fuel usage.
TRACK AND REPORT
MONITOR YOUR WATER OPERATIONS
- The Cat autonomous water truck is equipped with Cat MineStar, which collects and communicates real-time information and provides data logging capabilities critical to minimizing safety-related liability.
- MineStar provides information on truck location and utilization data, fuel and water level, whether or not the truck is spraying water, and WDS utilization.
- Optional premium connectivity includes a comprehensive reporting package with data and reports that can help improve watering efficiency.
- Water solutions data can help ensure you're meeting regulatory requirements.
- MineStar doesn't just monitor how much water the trucks have put down. It monitors the actual saturation levels of the haul roads.
- Watering assignments can be amended on request when it's necessary to address watering of specific haul roads or locations. For example, a water truck may be reassigned to a load or dump area to address priority dust suppression needs based on pit personnel requests.
DEALER SUPPORT
BACKED BY THE ONE YOU TRUST
- The Cat Autonomous Water Truck includes the full support of the Cat dealer and parts network.
- The truck and WDS are covered by a Caterpillar warranty, with service parts available for both.
- The truck is eligible for Equipment Protection Plans (EPP) and Customer Value Agreements (CVAs).
- Retrofit kits are available and can be installed by your local dealer.
NOTE
| Standard and optional equipment may vary. Consult your Cat dealer for details. |
ELECTRICAL
| Alarm, Back-up |
| Alternator (105 A) |
| Batteries, 93Ah, Low-maintenance, 12V (2) |
| Converter, 12V electrical |
| Lighting System |
| Electrical System, 24V, 15A |
SUSPENSION SYSTEMS
| Suspension, rear |
OPERATOR ENVIRONMENT
| Dome courtesy light |
| Gauges/Indicators |
| Air conditioning |
| Ashtray and cigarette lighter |
| Coat hook |
| Diagnostic connection port |
| Entertainment Radio Ready – 5 amp converter – Speakers – Antenna – Wiring harness |
| Heater/defroster |
| Horn |
| VIMS |
| TPMS |
| Storage compartment |
| Steering wheel, tilt, padded, telescopic |
| ROPS cab, insulated/sound suppressed |
| Tinted glass |
| Window, electric powered, operator |
| Sun visor |
| Window, right side, hinged access/egress |
| Windshield wiper (intermittent) and washer |
CAT TECHNOLOGY PRODUCTS
| Adaptive economy mode |
| Object detection (4 cameras, 4 radars) |
| Product Link™ Ready (Level 1) |
| TKPH/TMPH (Tons Kilometer Per Hour/ Tons Mile Per Hour) |
| Work Area Vision System (WAVS) |
| Cat MineStar Edge™: Level 1 - Basic (Equipment Tracking)* |
| *Basic connectivity package comes standard on all Cat Water Solutions trucks with a 6-month complimentary service-based offering |
POWERTRAIN
| Cat 3512C HD-EUI diesel engine |
| Braking System |
| Transmission |
GUARDS
| Engine crankcase |
| Driveline |
| Fan and A/C |
FLUIDS
| Extended Life Coolant to –35° C (–30° F) |
OTHER STANDARD EQUIPMENT
| Body mounting group |
| Air Line Dryer (2) |
| Auto lubrication system (Lincoln) |
| Dumping, Auxiliary Quick Connect for “Buddy Dumping” |
| Steering, Auxiliary Quick Connect for Towing |
| Continuous rear axle filtration |
| Diagonal stairway, 600 mm (24 in) |
| Driveline Operator Safety Guard |
| Battery Disconnect |
| High speed crankcase oil change |
| Fast-fill Fuel System |
| Reservoirs (Separate) |
| S•O•S℠ sample ports |
| Supplemental steering (automatic) |
| Tie Down Eyes |
| Tow Hooks, Front |
| Traction Control System |
| Vandalism Protection Locks |
| Vital Information Management System (VIMS) includes: VIMS payload monitor, MAX payload and speed manager |
CAT WATER DELIVERY SYSTEM (WDS)
| Controls: Factory installed and integrated into cab |
| Water System Monitor: integrated into cab, programmable spray configurations, automatic diagnostic messages |
| Variable Hydraulic Pump Drive: 1,200 gpm at speeds of 3 to 25 mph with auto shut-off and soft startup |
| Stainless Steel Spray Heads: maintenance free, patented design resists corrosion |
| Independent Hydraulic Cooling System: minimizes overheating |
| Water Cannon: hydraulically controlled, integrated joystick with cab controls, optional nozzles |
| Parts & service available through global Cat dealer network |
NOTE
| Standard and optional equipment may vary. Consult your Cat dealer for details. |
Related Products
777 (05) Water Truck
Engine Model
Cat® C32B
Gross Power - SAE J1995:2014
1026 hp / 765 kW
Cat® C32B
Gross Power - SAE J1995:2014
1026 hp / 765 kW
785D Water Truck
Engine Model
Cat® 3512C HD
Gross Power - SAE J1995:2014
1450 hp / 1082 kW
Cat® 3512C HD
Gross Power - SAE J1995:2014
1450 hp / 1082 kW
