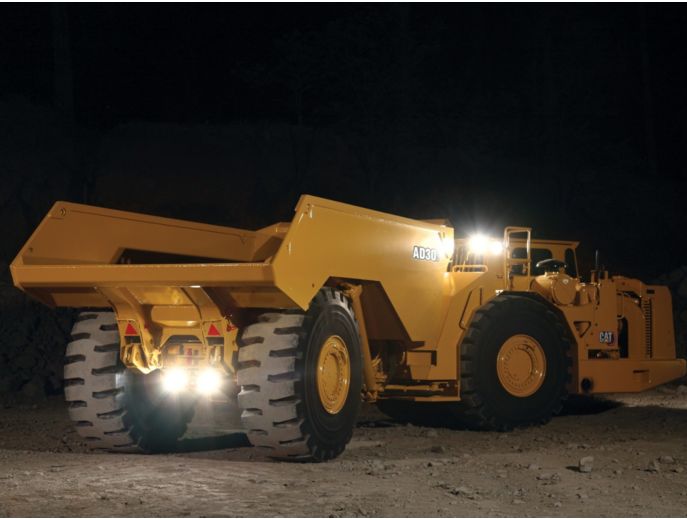

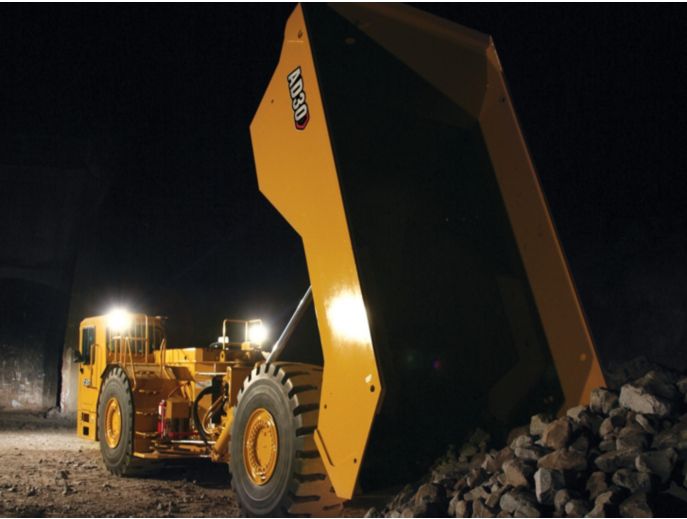

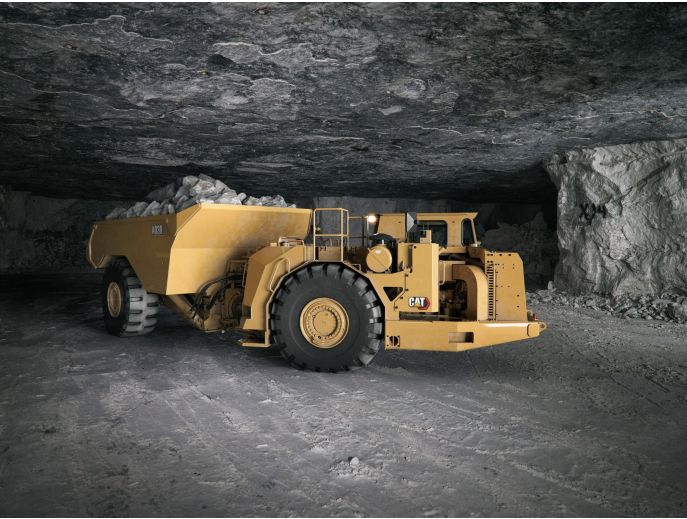

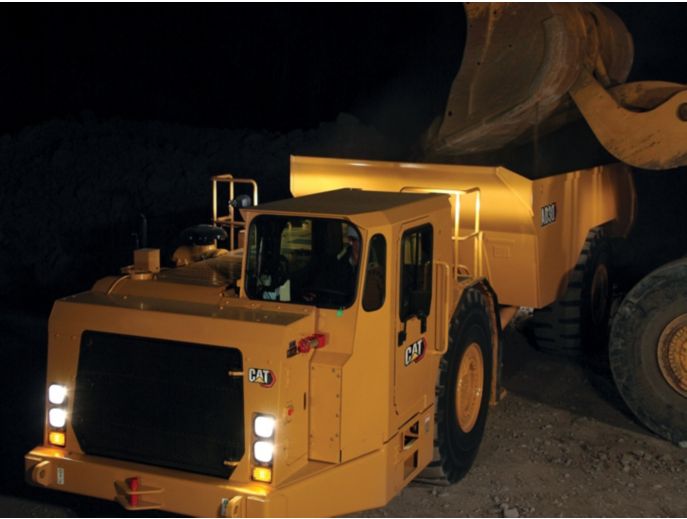

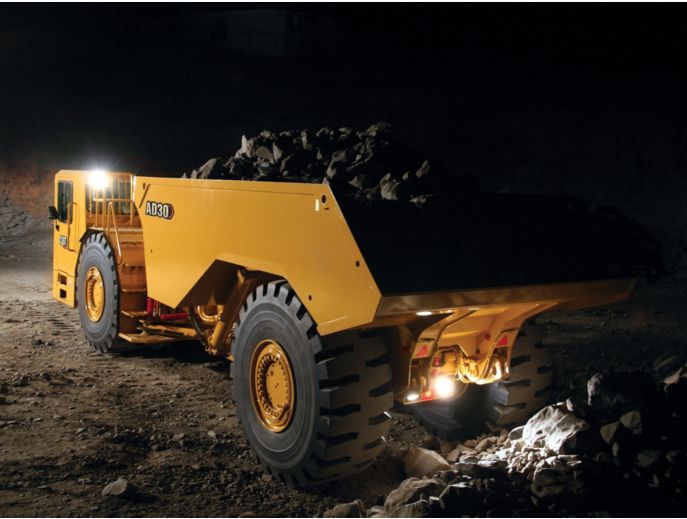

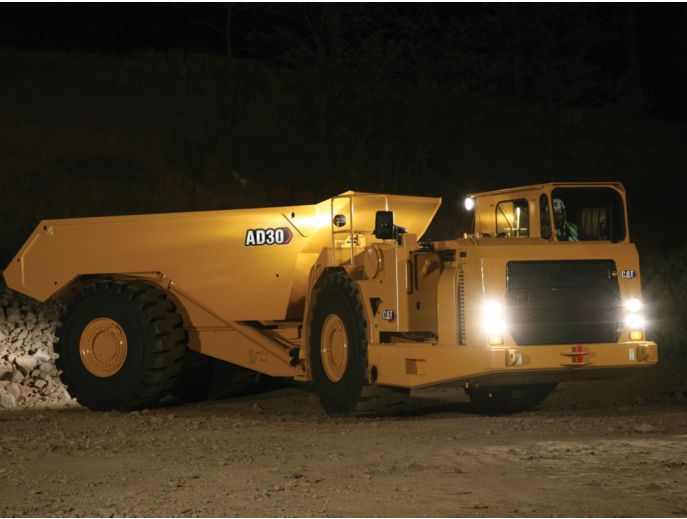

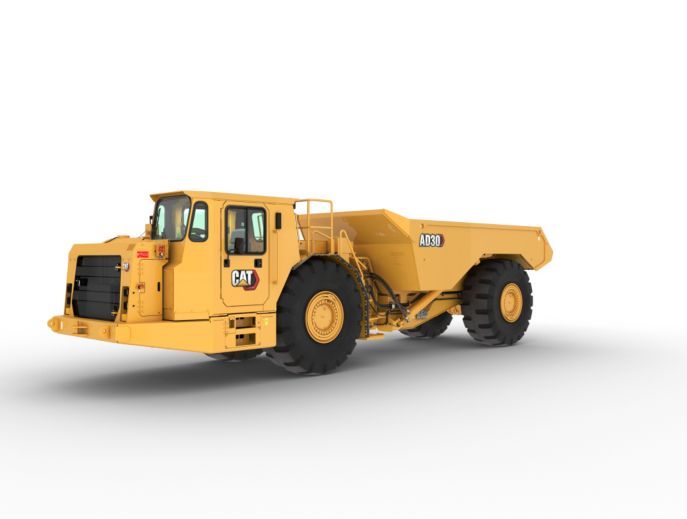

The Cat® AD30 Underground Truck is a medium to smaller mine hauler that is a perfect match to the Cat R1600H underground loader. Engineered for performance, it’s powered by the Cat C15 engine and delivers fast cycle times and maximum efficiency. With two body styles plus multiple body sizes, you can choose the right body to maximize efficiency in your application. The cab is ergonomically designed to keep operators safe, comfortable and in control. Rugged construction and easy maintenance guarantee long life with low operating costs.
The Cat® AD30 Underground Truck is a medium to smaller mine hauler that is a perfect match to the Cat R1600H underground loader. Engineered for performance, it’s powered by the Cat C15 engine and delivers fast cycle times and maximum efficiency. With two body styles plus multiple body sizes, you can choose the right body to maximize efficiency in your application. The cab is ergonomically designed to keep operators safe, comfortable and in control. Rugged construction and easy maintenance guarantee long life with low operating costs.
Engine Model | Cat® C15 | Cat® C15 |
Engine Power - Tier 3 Engine - ISO 14396:2002 | 299 kW | 401 hp |
Engine Power - VR Engine - ISO 14396:2002 | 299 kW | 401 hp |
Bore | 137.2 mm | 5.4 in |
Stroke | 171.5 mm | 6.8 in |
Displacement | 15.2 l | 928 in³ |
Note (1) | Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard. | Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard. |
Note (2) | All rating conditions are based on ISO/TR14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (7.05-7.09 lb/gal @ 59° F) and fuel inlet temperature 40° C (104° F). | All rating conditions are based on ISO/TR14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (7.05-7.09 lb/gal @ 59° F) and fuel inlet temperature 40° C (104° F). |
Note (3) | Engine derate will commence at an altitude of 2743 m (8,999 ft). | Engine derate will commence at an altitude of 2743 m (8,999 ft). |
Note (4) | Optional Ventilation Reduction package available. <br>Optional engine with emissions equivalent to Tier 3 and EU Stage IIIA is also available. | Optional Ventilation Reduction package available. <br>Optional engine with emissions equivalent to Tier 3 and EU Stage IIIA is also available. |
Note (5) | Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU stage IIIA is also available. | Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU stage IIIA is also available. |
Operating Specifications
Nominal Payload Capacity | 30000 kg | 66139 lb |
Gross Machine Mass | 60000 kg | 132300 lb |
Body Capacities | 11.3-17.5 m³ (14.8-22.9 yd³) | 11.3-17.5 m³ (14.8-22.9 yd³) |
Weights
Empty | 28870 kg | 63647 lb |
Empty - Front Axle | 19479 kg | 42944 lb |
Empty - Rear Axle | 9391 kg | 20704 lb |
Loaded | 60000 kg | 132277 lb |
Loaded - Front Axle | 26513 kg | 58451 lb |
Loaded - Rear Axle | 33487 kg | 73826 lb |
Weight Distribution
Empty - Front Axle | 67.50% | 67.50% |
Empty - Rear Axle | 32.50% | 32.50% |
Loaded - Front Axle | 44.20% | 44.20% |
Loaded - Rear Axle | 55.80% | 55.80% |
Transmission
Forward - 1 | 6.3 km/h | 3.9 mile/h |
Forward - 2 | 11.3 km/h | 7 mile/h |
Forward - 3 | 20.8 km/h | 12.9 mile/h |
Forward - 4 | 36.7 km/h | 22.8 mile/h |
Reverse - 1 | 7.1 km/h | 4.4 mile/h |
Note | Maximum travel speeds with standard 26.5 × R25 tires. | Maximum travel speeds with standard 26.5 × R25 tires. |
Final Drives
Differential Ratio | 3.38:1 | 3.38:1 |
Final Drive Ratio | 4.76:1 | 4.76:1 |
Total Reduction Ratio | 16.13:1 | 16.13:1 |
Note | Fully floating axles. | Fully floating axles. |
Body Hoist
Raise | 10.5 s | 10.5 s |
Lower | 11.2 s | 11.2 s |
Total Cycle Time | 21.7 s | 21.7 s |
Body Capacities
Body 1 | 11.3 m³ | 14.8 yd³ |
Body 2 - Standard Body | 14.4 m³ | 18.8 yd³ |
Body 3 | 17.5 m³ | 22.9 yd³ |
Wide Body | 16.8 m³ | 21.9 yd³ |
Ejector Body (1) | 15.2 m³ | 19.9 yd³ |
Ejector Body (2) | 16.8 m³ | 21.9 yd³ |
Note | Heaped SAE 2:1. | Heaped SAE 2:1. |
Turning Dimensions
Outside Clearance Radius | 8571 mm | 337.4 in |
Inner Clearance Radius | 5030 mm | 198 in |
Articulation Angle | 42.5 ° | 42.5 ° |
Frame Oscillation | 10 Degrees | 10 Degrees |
Service Refill Capacities
Engine Crankcase - With Filter | 34 l | 9 gal (US) |
Transmission | 67 l | 18 gal (US) |
Hydraulic Tank | 145 l | 38 gal (US) |
Cooling System | 74 l | 20 gal (US) |
Front Differential and Final Drives | 56 l | 15 gal (US) |
Rear Differential and Final Drives | 56 l | 15 gal (US) |
Fuel Tank | 410 l | 108 gal (US) |
Tires
Tire Size | 26.5 × R25 | 26.5 × R25 |
Standards
Standards | ROPS/FOPS Certified Cab | ROPS/FOPS Certified Cab |
TIRES, RIMS, AND WHEELS
Tires must be selected from the Mandatory Attachments section. Choose from below: – Tire, 26.5 × 25 VSNT Bridgestone – Tire, 26.5 × 25 VSDL Bridgestone |
Rims (set of four) – five pieces, tubeless |
ELECTRICAL
12V power supply in cab |
Alarm, reversing |
Alternator, 95 amp |
Battery disconnect switch, ground level |
Circuit breaker, 80-amp |
Corrosive protection spray |
Diagnostic connector |
Disconnect switch, two post, ground level |
Lights: – Headlights with dimmer switch – Brake and tail lights – Reversing lights, automatic when reverse gear selected – Work light, rear, cab mounted |
Low maintenance batteries |
Receptacle group, auxiliary start |
Shutdown switch, ground level |
Starting and charging system |
OPERATOR ENVIRONMENT
Cab, ROPS/FOPS certified |
Open operator station ROPS/FOPS structure |
Caterpillar Electronic Monitoring System (CEMS), dash instrument panels |
Operator Presence System |
Automatic Brake Application (ABA) |
Electric horns |
Gauges: – Engine coolant temperature – Transmission coolant temperature – Hydraulic oil temperature – Fuel level – Speedometer – Tachometer |
Indicator lights: – Alert warning light – Body up position warning – High beam – Residual brake pressure warning – Retarder application – Turn signal |
Low hydraulic level warning |
Mirrors, rear view |
Seat, suspension operator seat with retractable seat belt |
Seat, trainer/passenger with seat belt |
Steering wheel, tilt/telescopic |
POWER TRAIN
Axle, arrangement: – Standard width, front – rear |
Brake retarder control, automatic |
Brakes: – All wheel disc – Oil cooled – Multiple-disc (SAFR™) |
Control throttle shifting |
Electric fuel priming pump |
Engine: – Cat C15 six cylinder diesel engine – Air-to-air aftercooler (ATAAC) |
Exhaust, turbo compartment shielding |
Four wheel drive |
Gear blockout with tray up, programmable |
Ground speed limiting, programmable |
Long life coolant |
Parking brakes, four wheels |
Precleaner, engine air intake |
Radiator, cross flow; Radiator cap manual release |
Secondary steering system |
Transmission, automatic planetary power shift (4F/1R) |
Torque converter with automatic lockup |
OTHER STANDARD EQUIPMENT
Adapters, oil sample |
Alarm, tray up |
Body dump and ejector: – Dump, (14.4 m3/18.8 yd3) |
Cap, radiator, manual release |
Catalytic exhaust purifier/muffler group |
Centralized lubrication points |
Fenders: – Front, rear flaps |
Firewall |
Fuel system manual shut off tap |
Front rubber bumpers |
Handholds (access on/off top deck) |
Handrails |
Hitch, articulated and oscillated |
Lifting lugs, frame |
Lubrication system: – Centralized, dump body |
Operation and Maintenance Manual – English and other applicable local languages to select |
Scheduled Oil Sampling (S·O·SSM) port: – Coolant – Engine oil – Hydraulic oil – Transmission oil |
Spill guard, front, for body |
Swing out radiator grill |
Tow pin, front and rear |
POWER TRAIN
Axle, arrangement: – Wide body, front – rear |
Brake pressure gauges |
Engine options: – Engine, Ventilation Reduction (VR) – Equivalent to Tier 3 |
After treatment options (for use with VR engine only) Diesel Particulate Filter (DPF) (flow through) filter |
Fast Fill System: – Coolant – Engine oil – Fuel (dual tanks) – Hydraulic oil – Transmission oil |
Park Brake Switch Engagement – Push to Apply/Pull to Apply |

The Cat® AD30 Underground Truck is a medium to smaller mine hauler that is a perfect match to the Cat R1600H underground loader. Engineered for performance, it’s powered by the Cat C15 engine and delivers fast cycle times and maximum efficiency. With two body styles plus multiple body sizes, you can choose the right body to maximize efficiency in your application. The cab is ergonomically designed to keep operators safe, comfortable and in control. Rugged construction and easy maintenance guarantee long life with low operating costs.
Engine Model | Cat® C15 | Cat® C15 |
Engine Power - Tier 3 Engine - ISO 14396:2002 | 299 kW | 401 hp |
Engine Power - VR Engine - ISO 14396:2002 | 299 kW | 401 hp |
Bore | 137.2 mm | 5.4 in |
Stroke | 171.5 mm | 6.8 in |
Displacement | 15.2 l | 928 in³ |
Note (1) | Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard. | Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard. |
Note (2) | All rating conditions are based on ISO/TR14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (7.05-7.09 lb/gal @ 59° F) and fuel inlet temperature 40° C (104° F). | All rating conditions are based on ISO/TR14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (7.05-7.09 lb/gal @ 59° F) and fuel inlet temperature 40° C (104° F). |
Note (3) | Engine derate will commence at an altitude of 2743 m (8,999 ft). | Engine derate will commence at an altitude of 2743 m (8,999 ft). |
Note (4) | Optional Ventilation Reduction package available. <br>Optional engine with emissions equivalent to Tier 3 and EU Stage IIIA is also available. | Optional Ventilation Reduction package available. <br>Optional engine with emissions equivalent to Tier 3 and EU Stage IIIA is also available. |
Note (5) | Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU stage IIIA is also available. | Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU stage IIIA is also available. |
Operating Specifications
Nominal Payload Capacity | 30000 kg | 66139 lb |
Gross Machine Mass | 60000 kg | 132300 lb |
Body Capacities | 11.3-17.5 m³ (14.8-22.9 yd³) | 11.3-17.5 m³ (14.8-22.9 yd³) |
Weights
Empty | 28870 kg | 63647 lb |
Empty - Front Axle | 19479 kg | 42944 lb |
Empty - Rear Axle | 9391 kg | 20704 lb |
Loaded | 60000 kg | 132277 lb |
Loaded - Front Axle | 26513 kg | 58451 lb |
Loaded - Rear Axle | 33487 kg | 73826 lb |
Weight Distribution
Empty - Front Axle | 67.50% | 67.50% |
Empty - Rear Axle | 32.50% | 32.50% |
Loaded - Front Axle | 44.20% | 44.20% |
Loaded - Rear Axle | 55.80% | 55.80% |
Transmission
Forward - 1 | 6.3 km/h | 3.9 mile/h |
Forward - 2 | 11.3 km/h | 7 mile/h |
Forward - 3 | 20.8 km/h | 12.9 mile/h |
Forward - 4 | 36.7 km/h | 22.8 mile/h |
Reverse - 1 | 7.1 km/h | 4.4 mile/h |
Note | Maximum travel speeds with standard 26.5 × R25 tires. | Maximum travel speeds with standard 26.5 × R25 tires. |
Final Drives
Differential Ratio | 3.38:1 | 3.38:1 |
Final Drive Ratio | 4.76:1 | 4.76:1 |
Total Reduction Ratio | 16.13:1 | 16.13:1 |
Note | Fully floating axles. | Fully floating axles. |
Body Hoist
Raise | 10.5 s | 10.5 s |
Lower | 11.2 s | 11.2 s |
Total Cycle Time | 21.7 s | 21.7 s |
Body Capacities
Body 1 | 11.3 m³ | 14.8 yd³ |
Body 2 - Standard Body | 14.4 m³ | 18.8 yd³ |
Body 3 | 17.5 m³ | 22.9 yd³ |
Wide Body | 16.8 m³ | 21.9 yd³ |
Ejector Body (1) | 15.2 m³ | 19.9 yd³ |
Ejector Body (2) | 16.8 m³ | 21.9 yd³ |
Note | Heaped SAE 2:1. | Heaped SAE 2:1. |
Turning Dimensions
Outside Clearance Radius | 8571 mm | 337.4 in |
Inner Clearance Radius | 5030 mm | 198 in |
Articulation Angle | 42.5 ° | 42.5 ° |
Frame Oscillation | 10 Degrees | 10 Degrees |
Service Refill Capacities
Engine Crankcase - With Filter | 34 l | 9 gal (US) |
Transmission | 67 l | 18 gal (US) |
Hydraulic Tank | 145 l | 38 gal (US) |
Cooling System | 74 l | 20 gal (US) |
Front Differential and Final Drives | 56 l | 15 gal (US) |
Rear Differential and Final Drives | 56 l | 15 gal (US) |
Fuel Tank | 410 l | 108 gal (US) |
Tires
Tire Size | 26.5 × R25 | 26.5 × R25 |
Standards
Standards | ROPS/FOPS Certified Cab | ROPS/FOPS Certified Cab |
TIRES, RIMS, AND WHEELS
Tires must be selected from the Mandatory Attachments section. Choose from below: – Tire, 26.5 × 25 VSNT Bridgestone – Tire, 26.5 × 25 VSDL Bridgestone |
Rims (set of four) – five pieces, tubeless |
ELECTRICAL
12V power supply in cab |
Alarm, reversing |
Alternator, 95 amp |
Battery disconnect switch, ground level |
Circuit breaker, 80-amp |
Corrosive protection spray |
Diagnostic connector |
Disconnect switch, two post, ground level |
Lights: – Headlights with dimmer switch – Brake and tail lights – Reversing lights, automatic when reverse gear selected – Work light, rear, cab mounted |
Low maintenance batteries |
Receptacle group, auxiliary start |
Shutdown switch, ground level |
Starting and charging system |
OPERATOR ENVIRONMENT
Cab, ROPS/FOPS certified |
Open operator station ROPS/FOPS structure |
Caterpillar Electronic Monitoring System (CEMS), dash instrument panels |
Operator Presence System |
Automatic Brake Application (ABA) |
Electric horns |
Gauges: – Engine coolant temperature – Transmission coolant temperature – Hydraulic oil temperature – Fuel level – Speedometer – Tachometer |
Indicator lights: – Alert warning light – Body up position warning – High beam – Residual brake pressure warning – Retarder application – Turn signal |
Low hydraulic level warning |
Mirrors, rear view |
Seat, suspension operator seat with retractable seat belt |
Seat, trainer/passenger with seat belt |
Steering wheel, tilt/telescopic |
POWER TRAIN
Axle, arrangement: – Standard width, front – rear |
Brake retarder control, automatic |
Brakes: – All wheel disc – Oil cooled – Multiple-disc (SAFR™) |
Control throttle shifting |
Electric fuel priming pump |
Engine: – Cat C15 six cylinder diesel engine – Air-to-air aftercooler (ATAAC) |
Exhaust, turbo compartment shielding |
Four wheel drive |
Gear blockout with tray up, programmable |
Ground speed limiting, programmable |
Long life coolant |
Parking brakes, four wheels |
Precleaner, engine air intake |
Radiator, cross flow; Radiator cap manual release |
Secondary steering system |
Transmission, automatic planetary power shift (4F/1R) |
Torque converter with automatic lockup |
OTHER STANDARD EQUIPMENT
Adapters, oil sample |
Alarm, tray up |
Body dump and ejector: – Dump, (14.4 m3/18.8 yd3) |
Cap, radiator, manual release |
Catalytic exhaust purifier/muffler group |
Centralized lubrication points |
Fenders: – Front, rear flaps |
Firewall |
Fuel system manual shut off tap |
Front rubber bumpers |
Handholds (access on/off top deck) |
Handrails |
Hitch, articulated and oscillated |
Lifting lugs, frame |
Lubrication system: – Centralized, dump body |
Operation and Maintenance Manual – English and other applicable local languages to select |
Scheduled Oil Sampling (S·O·SSM) port: – Coolant – Engine oil – Hydraulic oil – Transmission oil |
Spill guard, front, for body |
Swing out radiator grill |
Tow pin, front and rear |
POWER TRAIN
Axle, arrangement: – Wide body, front – rear |
Brake pressure gauges |
Engine options: – Engine, Ventilation Reduction (VR) – Equivalent to Tier 3 |
After treatment options (for use with VR engine only) Diesel Particulate Filter (DPF) (flow through) filter |
Fast Fill System: – Coolant – Engine oil – Fuel (dual tanks) – Hydraulic oil – Transmission oil |
Park Brake Switch Engagement – Push to Apply/Pull to Apply |
