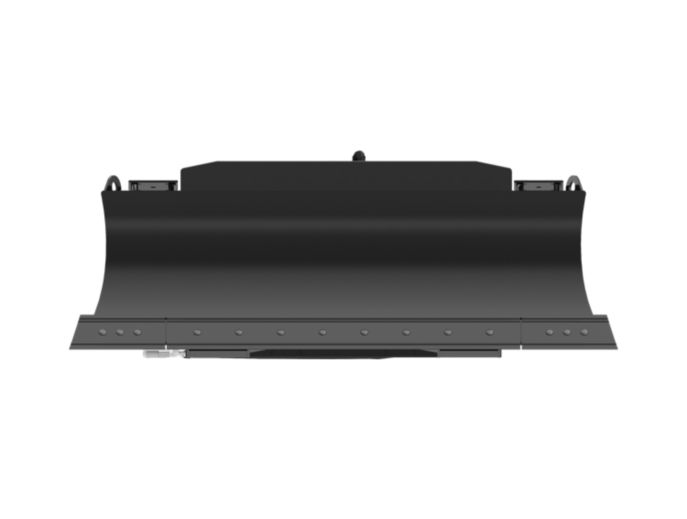

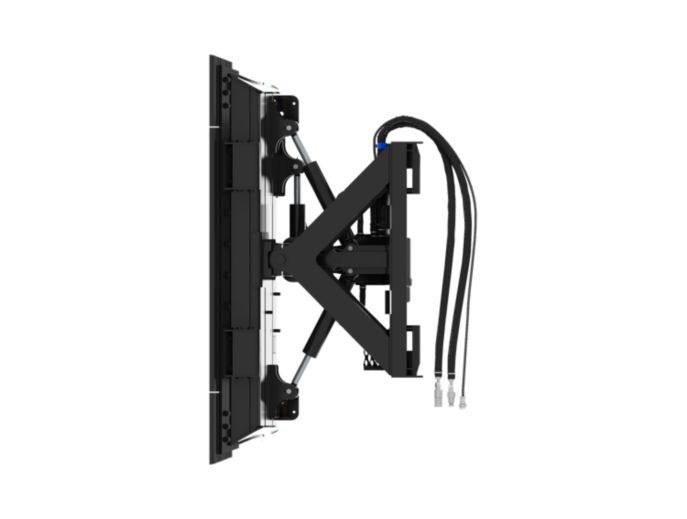

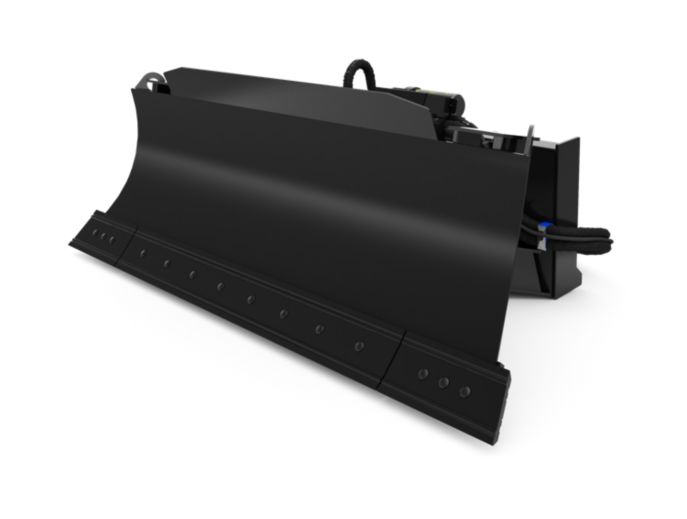

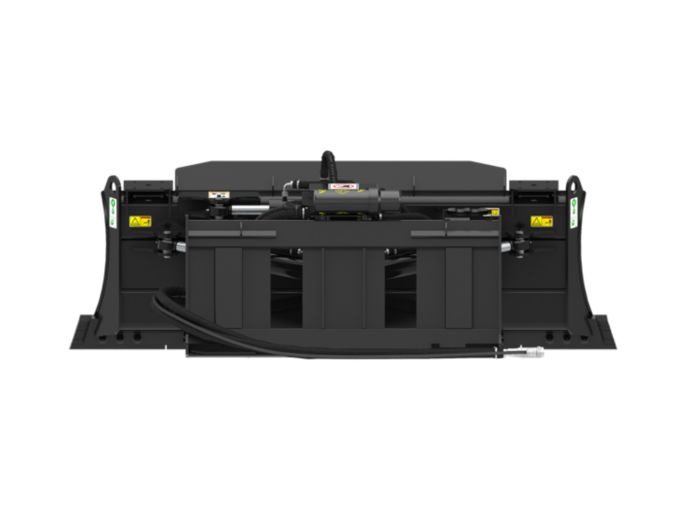

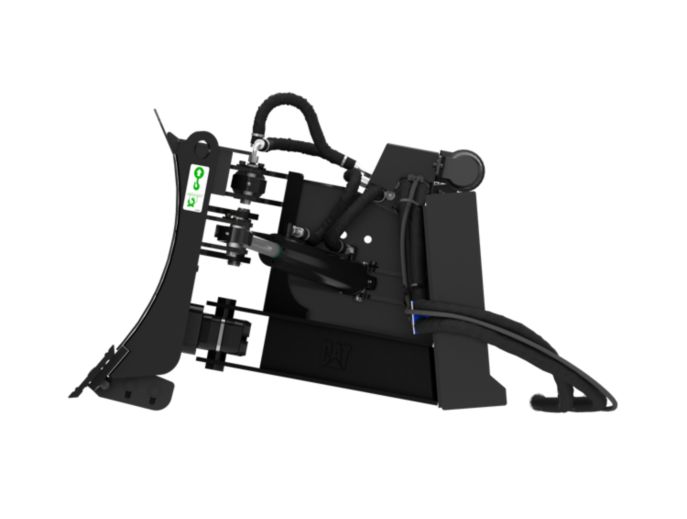

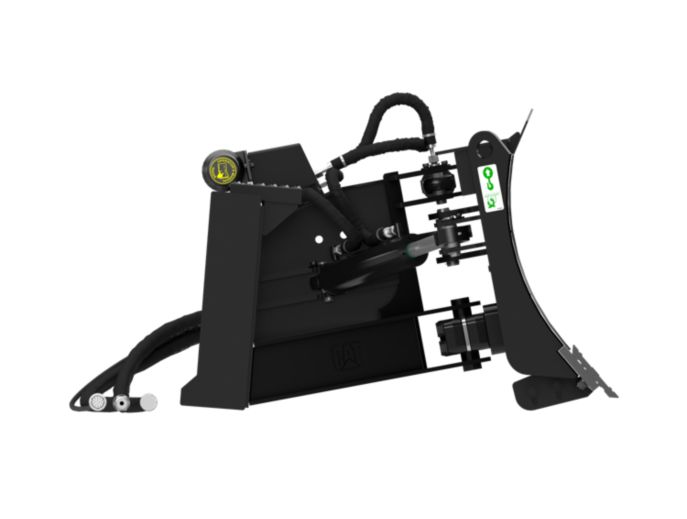

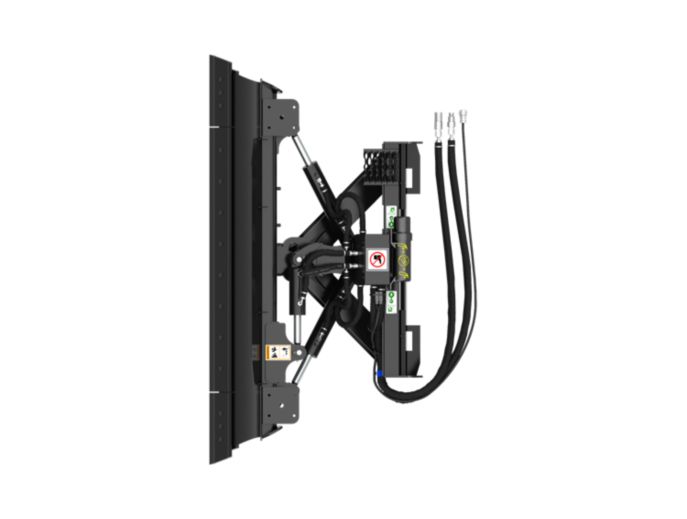

Blades
2007 mm (79 in)
Designed for rough and finish grading in dirt, gravel, and light dozing.
Request a quote
Overview
Cat® Dozer Blades are designed for rough and finish grading in dirt and gravel, and light dozing. With their 6-way capabilities, dozer blades are better suited for finish grade work in construction and landscaping applications.
UNITS:
Metric
Imperial
| Blade Width | 2007 mm | 79 in |
| Width - Fully Angled | 1750 mm | 68.9 in |
| Maximum Blade Angle - Right/Left of Center | 30 degrees | 30 degrees |
| Tilt Angle Range +/- | 10 degrees | 10 degrees |
| Blade Height | 619 mm | 24.4 in |
| Overall Height | 637 mm | 25.1 in |
| Length | 1028 mm | 40.5 in |
| Weight | 460 kg | 1014 lb |
| Cutting Edge Thickness | 16 mm | 0.6 in |
| Required Hydraulics | Standard Flow | Standard Flow |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Application
Designed for rough and finish grading in dirt and gravel as well as for light dozing.
VPAT Design
Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.
Replaceable Cutting Edge
Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.
Spill Guard
An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.
Angled Blade Ends
Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.
Mast Mounting Points
To accept external reference masts for use by GPS, Laser, or other leveling systems.
Removable Shims
Allows for adjustment of trunnion due to interface wear during normal usage.
OMM Container
Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.
Overview
Cat® Dozer Blades are designed for rough and finish grading in dirt and gravel, and light dozing. With their 6-way capabilities, dozer blades are better suited for finish grade work in construction and landscaping applications.
UNITS:
Metric
Imperial
| Blade Width | 2007 mm | 79 in |
| Width - Fully Angled | 1750 mm | 68.9 in |
| Maximum Blade Angle - Right/Left of Center | 30 degrees | 30 degrees |
| Tilt Angle Range +/- | 10 degrees | 10 degrees |
| Blade Height | 619 mm | 24.4 in |
| Overall Height | 637 mm | 25.1 in |
| Length | 1028 mm | 40.5 in |
| Weight | 460 kg | 1014 lb |
| Cutting Edge Thickness | 16 mm | 0.6 in |
| Required Hydraulics | Standard Flow | Standard Flow |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Application
Designed for rough and finish grading in dirt and gravel as well as for light dozing.
VPAT Design
Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.
Replaceable Cutting Edge
Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.
Spill Guard
An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.
Angled Blade Ends
Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.
Mast Mounting Points
To accept external reference masts for use by GPS, Laser, or other leveling systems.
Removable Shims
Allows for adjustment of trunnion due to interface wear during normal usage.
OMM Container
Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.
