Blades

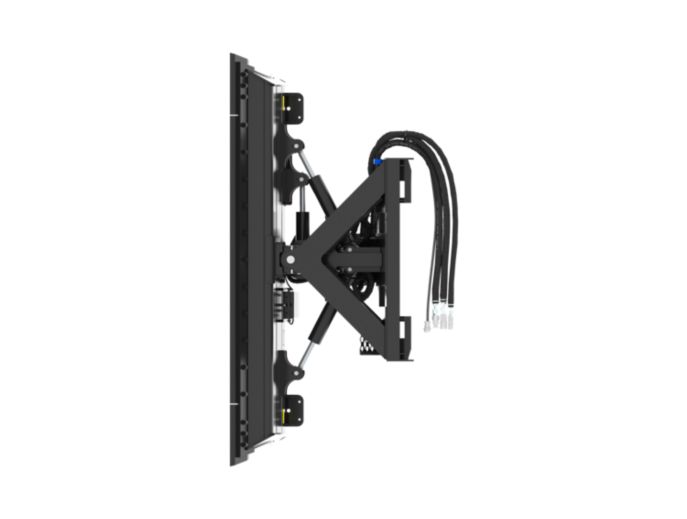

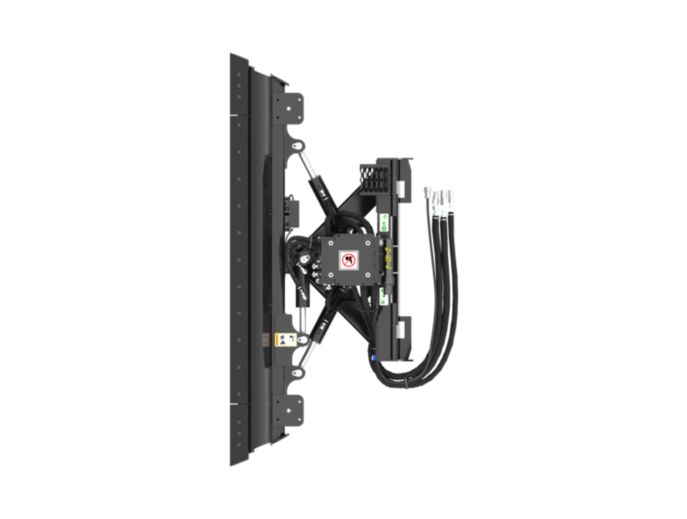

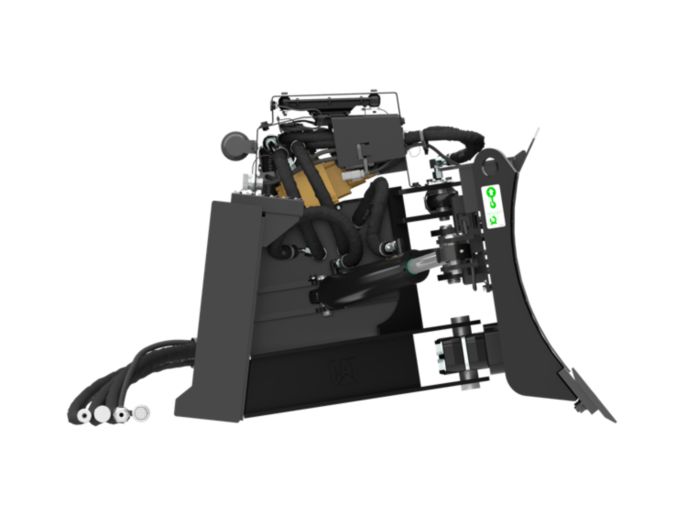

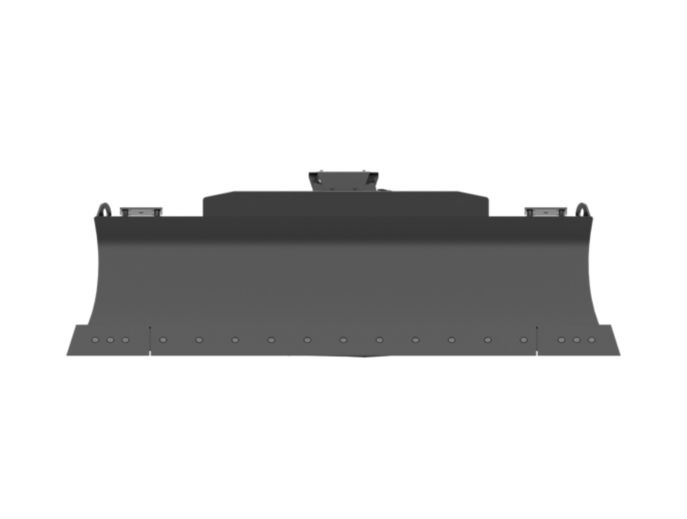

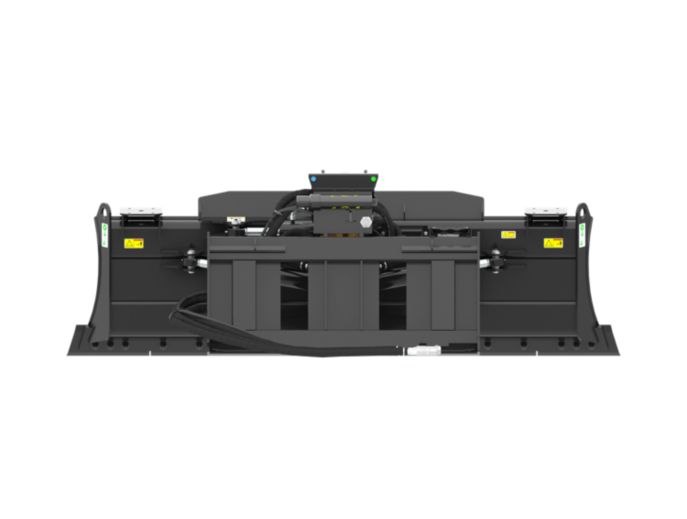

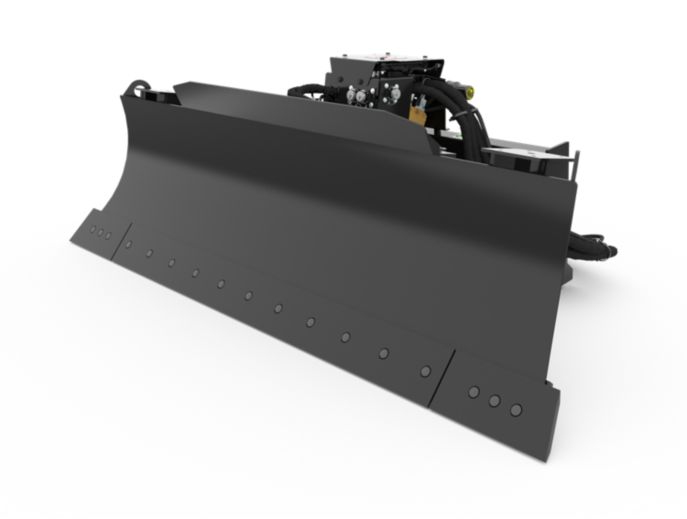

2337 mm (92 in), Smart
Designed for rough and finish grading in dirt, gravel, and light dozing.
Request a quote
Overview
Cat® Dozer Blades are designed for rough and finish grading in dirt and gravel, and light dozing. With their 6-way capabilities, dozer blades are better suited for finish grade work in construction and landscaping applications.
UNITS:
Metric
Imperial
| Blade Width | 2337 mm | 92 in |
| Width - Fully Angled | 2049 mm | 80.7 in |
| Maximum Blade Angle - Right/Left of Center | 30 degrees | 30 degrees |
| Tilt Angle Range +/- | 10 degrees | 10 degrees |
| Blade Height | 619 mm | 24.4 in |
| Overall Height | 785 mm | 30.9 in |
| Length | 1028 mm | 40.5 in |
| Weight | 528 kg | 1164 lb |
| Cutting Edge Thickness | 16 mm | 0.6 in |
| Required Hydraulics | High Flow XPS | High Flow XPS |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Application
Designed for rough and finish grading in dirt and gravel as well as for light dozing.
SMART Attachment
Attachment recognition makes the Smart Dozer Blade, Smart. Cat® Compact Track Loaders equipped with Smart technology recognizes the Smart Dozer attached to the machine, thus unlocking additional dedicated machine display screens allowing the operator to interface with the machine and how the attachment is controlled. As a Smart attachment, the existing joysticks on the machine equipped with Smart technology allow for mode select and pattern change to perform functions on the attachment.
VPAT Design
Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.
Replaceable Cutting Edge
Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.
Spill Guard
An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.
Angled Blade Ends
Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.
Mast Mounting Points
To accept external reference masts for use by GPS, Laser, or other leveling systems.
Removable Shims
Allows for adjustment of trunnion due to interface wear during normal usage.
OMM Container
Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.
