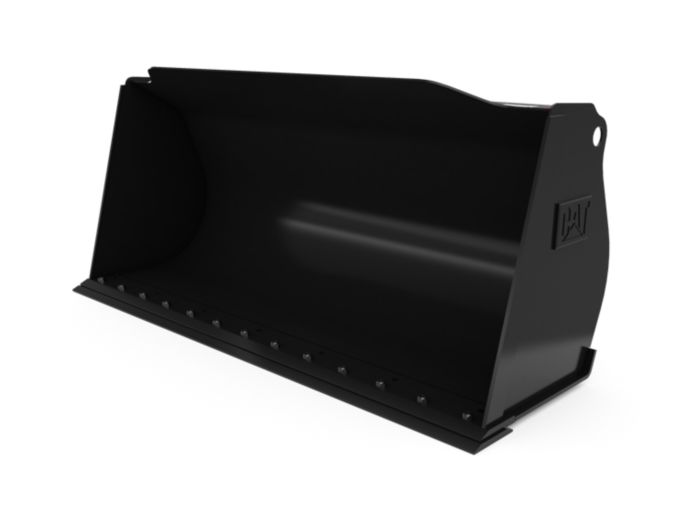

Buckets - Compact Wheel Loader

0.6 m3 (0.8 yd3), Skid Steer Coupler, Bolt-On Cutting Edge

Used for loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.

Specifications
Features

Overview

Cat® General Purpose Buckets have been designed to optimize performance of the Cat Compact Wheel Loader when loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.

UNITS:

Metric

Imperial

Width	1790 mm	70.5 in
Weight	311.2 kg	686.1 lb
Height	823 mm	32.4 in
Length	790 mm	31.1 in
Capacity	0.6 m³	0.8 yd³
Base Edge Thickness	20 mm	0.8 in
Cutting Edge Thickness	16 mm	0.6 in
Interface Type	Skid Steer Coupler	Skid Steer Coupler

Features

Application

Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials. These all purpose buckets are ideal for construction, landscaping, industrial and more aggressive demolition applications.

Superior Loading

Long bucket floor length, combined with large radius back wrapper, provides superior material loading and dumping, resulting in greater payloads and quicker cycle times.

Rugged Design

Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.

Strong and Durable

Hardened front base edge and side cutters provide excellent penetration, durability and wear life.

Ground Engaging Tool Options

Base bucket also available with bolt-on cutting edge and bolt-on teeth.
